lcd module hd44780 controller factory

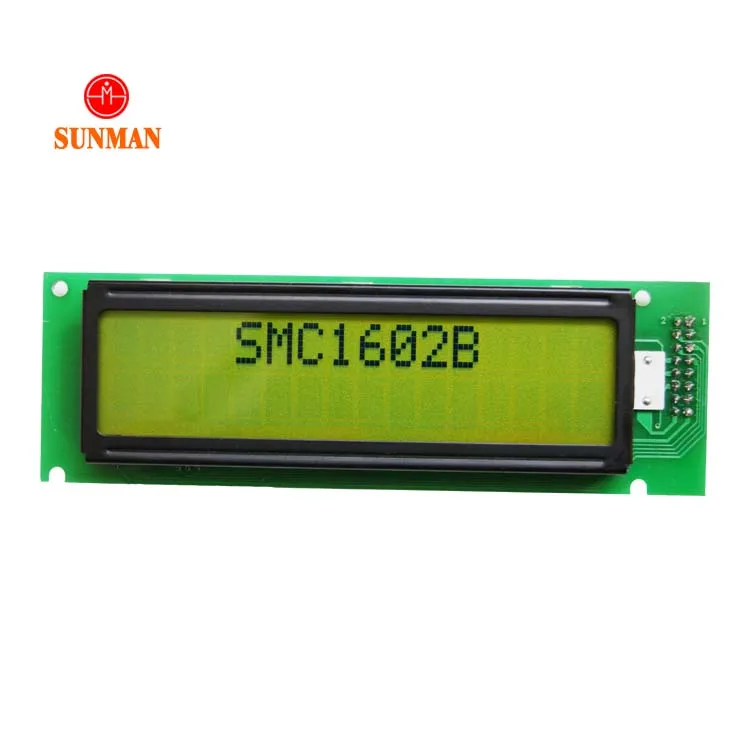

ERM1602FS-3 is 16 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,fstn-lcd positive,black text on the white color,high contrast,wide operating temperature range,wide view angle,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It"s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

When working with a 20×4 character LCD, you might be surprised to see the controller set to 2-line mode: Write_To_LCD(COMMAND,0x38); //SET 2 LINE,5*8 FONT Why would a 4-line LCD’s controller be set to 2-line mode? It has to do with the way the LCD glass is laid out. Essentially the display is the right and … Read more FAQ: Why does the initialization code for a 20×4 LCD specify 2-line mode?

What is involved in ISO certification (and annual recertification) and what does it mean for a company to be ISO certified? This post takes a deeper look at everything involved in ISO certification for our LCD electronics-based company.

Confused about the differences between TFTs, LCDs, and OLEDs? What Do They Stand For? TFT stands for Thin Film Transistor (shorthand for “Active Matrix TFT LCD”) LCD stands for Liquid Crystal Display (shorthand for “Passive Matrix LCD) OLED stands for Organic Light Emitting Diode How Do They Work? TFT displays are also known as an “Active Matrix TFT LCD module” … Read more FAQ: What is the Difference Between a TFT, LCD, and OLED?

Sherman, set the wayback machine to 1985: We are going to take a look at the original HD44780 Data Sheet. Some time back, we wrote about the legendary HD44780 controller, to which the modern character LCD industry owes much of its existence. Having been in the business of designing embedded electronics for some time, we … Read more A Look Back in Tech History: The HD44780 Controller Data Sheet

Did you know that ePaper modules emulate ink used  for paper? Check out the meaning of the glossary term electrophoresis and how it relates to ePaper module displays. Need ePaper for Your Project? For assistance in determining what ePaper module is the best one for your application, please contact our knowledgeable and friendly support staff by email, phone, or … Read more A Quick ePaper Primer

Modern Character LCD display modules have been possible since 1987 when Hitachi introduced the HD44780 LCD controller. Since then, Hitachi no longer manufactures this integrated circuit (IC), but modern LCD controller ICs make it a point to be HD44780-compatible. Controller Compatibility The character LCD display modules offered by Crystalfontz America Inc. are no exception to … Read more The Legendary HD44780 Controller

Okystar Technology Co., Ltd is subsidiary of Okystar Technology Group Co., Ltd, which holds 4 subsidiary companies and more than 100 skilled workers,5. technicians.Okystar Tech Co.,Ltd was built in 2004.We mainly manufacture and export 3D Printer, Board&shield, sensor module, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Controller board,etc.

After 10 years development, our company has grown into a large high-tech group corporation integrated industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules.

The Hitachi HD44780 LCD controller is an alphanumeric dot matrix liquid crystal display (LCD) controller developed by Hitachi in the 1980s. The character set of the controller includes ASCII characters, Japanese Kana characters, and some symbols in two 28 character lines. Using an extension driver, the device can display up to 80 characters.

The Hitachi HD44780 LCD controller is limited to monochrome text displays and is often used in copiers, fax machines, laser printers, industrial test equipment, and networking equipment, such as routers and storage devices.

Compatible LCD screens are manufactured in several standard configurations. Common sizes are one row of eight characters (8×1), and 16×2, 20×2 and 20×4 formats. Larger custom sizes are made with 32, 40 and 80 characters and with 1, 2, 4 or 8 lines. The most commonly manufactured larger configuration is 40×4 characters, which requires two individually addressable HD44780 controllers with expansion chips as a single HD44780 chip can only address up to 80 characters.

Character LCDs use a 16 contact interface, commonly using pins or card edge connections on 0.1 inch (2.54 mm) centers. Those without backlights may have only 14 pins, omitting the two pins powering the light. This interface was designed to be easily hooked up to the Intel MCS-51 XRAM interface, using only two address pins, which allowed displaying text on LCD using simple MOVX commands, offering cost effective option for adding text display to devices.

R/W : Read/Write. 0 = Write to display module, 1 = Read from display module (in most applications reading from the HD44780 makes no sense. In that case this pin can be permanently connected to ground and no processor pins need to be allocated to control it.)

In 8-bit mode all transfers happen in one cycle of the enable pin with all 8 bits on the data bus and the RS and RW pins stable. In 4-bit mode, data are transferred as pairs of 4-bit "nibbles" on the upper data pins, D7-D4 with two enable pulses and the RS and RW pins stable. The four most significant bits (7–4) must be written first, followed by the four least significant bits (3–0). The high/low sequence must be completed each time or the controller will not properly receive further commands.

Selecting 4-bit or 8-bit mode requires careful selection of commands. There are two primary considerations. First, with D3-D0 unconnected, these lines will always appear low (0b0000) to the HD44780. Second, the LCD may initially be in one of three states:

The same command is sent three times, Function Set with 8 bit interface D7-D4 = 0b0011, the lower four bits are don"t care, using single Enable pulses. If the controller is in 4 bit mode the lower four bits are ignored so they can"t be sent until the interface is in a known size configuration.

In all three starting cases the bus interface is now in 8 bit mode, 1 line, 5×8 characters. If a different configuration 8 bit mode is desired an 8 bit bus Function Set command should be sent to set the full parameters. If 4 bit mode is desired 0b0010 should be sent on D7-D4 with a single enable pulse. Now the controller will be in 4 bit mode and a full 4 bit bus Function Set command sequence (two enables with command bits 7-4 and 3–0 on subsequent cycles) will complete the configuration of the Function Set register.

The original HD44780 character generator ROM contains 208 characters in a 5×8 dot matrix, and 32 characters in a 5×10 dot matrix. More recent compatible chips are available with higher resolution, matched to displays with more pixels.

Character LCDs provide a project with a compact, easy-to-read display for basic textual information. The most common type of character LCD available to developers ship on a circuit board which also contains a Hitachi HD44780 controller chip or one of a number of controllers that are compatible with the Hitachi device, such as the Seiko-Epson SED1278. The HD44780 is now the de facto standard for character LCD controllers.

The HD44780 connects to the outside world across a standard 14-pin interface. Most LCDs come with 16 pins — the extra two, usually marked A and K, are used to access the display’s backlight anode and cathode connections, and are optional. The full set of 16 pins is:

The HD44780 supports displays ranging from one line of eight characters (8 x 1) to four lines of 40 characters (40 x 4), and you can easily find displays of these dimensions and any in between, including the very commonplace 16 x 2 and 20 x 4 sizes. Each HD44780 is designed to support up to 8 x 2, ie. 16 characters, so displays with greater dimensions use two, three or four controllers, all connected through a single 14-pin bus. Each HD44780 is smart enough to co-operate with the others so that you don’t have to worry about which particular one your imp is talking to.

Fourteen pins can present something of a challenge when it comes to hooking up a character LCD to imps with a low number of GPIO pins, such as the imp001. The HD44780 has a 4-bit mode which means you can dispense with four of the eight data pins, but that still leaves seven pins required for data and an eighth if you want to set the display contrast dynamically.

Fortunately, you can use one of the various backpack boards designed to bridge the HD44780’s 14-pin bus (and the two backlight pins) to either I²C or SPI. I²C is particularly good for imp applications because it requires only two pins at the imp end of the bus.

Adafruit’s I²C/SPI backpack is a good choice. It can handle character LCDs with display dimensions from 8 x 1 to 20 x 4 and only adds around $10 to the price of a project. It is sold separately from the LCD itself, giving you scope to choose exactly the display you prefer, and it includes circuitry to manage the display contrast, which is controlled from a variable resistor on the board itself.

There is one criterion when it comes to choosing a character LCD: its operating voltage. This has to be correct for imp operation, which means the display must operate at 3 or 3.3V. Most of the character LCDs on the market are designed to operate at 5V and these are not suitable for connecting directly to an imp without some form of level adjustment. Though the selection of said screens isn’t as broad as it is for 5V devices, you should be able to find a 3.3V display that meets your needs.

Writing to the HD44780 — and thus the LCD — involves choosing one of the chip’s two registers, Command and Data, which is done by setting the RS pin high or low, respectively. Next set the RW pin low to indicate a write, put the data byte’s bit values on the data pins, and set E to high to tell the chip to process the data. When the HD44780 has had time to do so, you end the process by setting E low. The HD44780 datasheet tells you how long all key tasks take to complete so you know how long to wait before setting E low.

The HD44780 is pre-programmed with all the standard Ascii characters. It also provides eight user-definable characters that you can use to add symbols that are either absent from the controller’s characters — the degrees sign, for instance — or which are unique to your application, such as weather icons. The HD44780 reserves a block of RAM for the user-definable characters, so they won’t be preserved when the controller is power-cycled. However, it does mean you can change any of the characters on the fly, giving you an effectively infinite set of characters to work with.

Electric Imp’s GitHub repo contains a Squirrel class for working with character LCDs connected via Adafruit’s I²C/SPI backpack. The class, CHARLCD, is instantiated with the imp I²C bus to which the display is connected and the backpack’s I²C address, which defaults to 0x20 but can be changed by bridging a series of pads on the back of the board. The new CHARLCD object must then be initialized, using the init() function, with the dimensions of the LCD: the number of characters and the number of rows. For example:

The class provides functions to print characters and strings, set the print position to a chosen row and column, to center text on the screen, to switch the backlight on or off, and to define characters. The HD44780 supports broader functionality: to set a static or blinking cursor, to set the type of cursor (underline or block) and to handle scrolling, for example. Details of these and other features can be found in the controller’s datasheet.
