10.1 Inch a-Si TFT Active Matrix LCD Display for Tablet&Application Mini-PC, 800*RGB*1280 Pixel MIPI Interface

The display is a color active matrix TFT LCD product using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.1 inch diagonally measured active area with WXGA resolutions ( 800 horizontal by 1280 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots By applying 8 bit digital data, 800× RGB (3) × 1280, 16.7M-color images are displayed on the 10.1” diagonal screen.

**Headline: 10.1 Inch a-Si TFT Active Matrix LCD Display for Tablet&Application Mini-PC, 800RGB1280 Pixel MIPI Interface**

1.Product Description

The display is a color active matrix TFT LCD product using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.1 inch diagonally measured active area with WXGA resolutions ( 800 horizontal by 1280 vertical pixel array).
Each pixel is divided into RED, GREEN, BLUE dots By applying 8 bit digital data, 800× RGB (3) × 1280, 16.7M-color images are displayed on the 10.1” diagonal screen.

GeneralInformation
Item	Standard Value	Units
LCD size	10.1	inch
Shipping size	730(H)920(V)0.8(D)	mm
Panel outline dimension	139.76(H)225.8(V)1.0(D)	mm
Active screen size	135.36(H)*216.576(V)	mm
Resolution	800RGB1280	Pixel
Piexel driving element	a-si TFT active matrix	--
Sub pixel size	56.4*169.2	Um
Pixel Format	RGB vertical stripe	--
View direction(Gray inversion）	Free	--
Cell gap	3.25±0.2	Um
Driver IC	JD9365DA-H3	--
Weight	135	g
Scanning Method	Dual scan	--
White Luminance	250	cd/m²
Screen Diagonal	225.4(10.05 inch）	mm
Pixel Pitch	0.16920.1692(HV)	--
Display Mode	AAS,Normally Black	--
NTSC	60%	--
Support Color	16.7M colors	--
Surface Treatment	HC 细磨砂	--
Electrical interface	MIPI	--
Connector Name/Designation	0.3P 1.0H FPC W/Cover EASY-ON R/A SMT TYPE	--
LCD type	B4 TV101WXU - N91	--
Contrast ratio	1000	--
Storage Temperature	-20~+60	℃
Operation Temperature	-10~+50	℃

2.Features

High Transmittance:6.5 %
0.5 t Array Glass
0.4 t CF Glass

3. Application

Tablet&Application Mini-PC

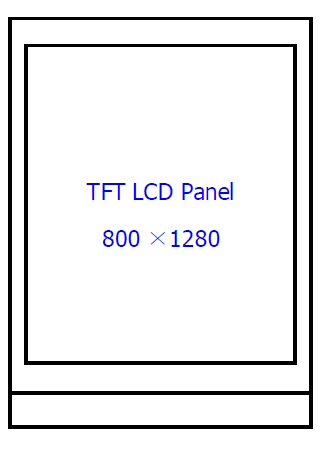

4.Product Drawing
