This is another great I2C 16x2 LCD display compatible with Gadgeteer modules from DFRobot. With limited pin resources, your project will quicly run out of resources using normal LCDs. With this I2C interface LCD module, you only need 2 lines (I2C)to display the information.If you already have I2C devices in your project, this LCD module actually cost no more resources at all. The adress can be set from 0x20-0x27. Fantastic for Arduino or gadgeteer based projects.

Winstar WO1602G is 16 characters x 2 lines COG Character LCD module with metal pin connection. This display is built in with ST7032I controller IC and it supports I2C interface. This series of module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

RX1602I3 and RX1602I5 are 16 Characters × 2 Lines COG+PCB I2C LCD display modules with LED backlight. The module dimension is 66.0x28.0 mm with active area size 38.0 × 7.98 mm. These 2 modules using ST7032i IC support I2C serial interface. RX1602I3/I5 are extension models of RX1602A5 STN module (LCD display 16x2 with I2C interface) by adding a PCB with four mounting holes. The new add-on allows customers for easy mounting and quick assembly. The additional PCB has 3 types of input port i.e. port of Pitch 2.54, connector of Pitch 1.0, and Pitch 0.5.

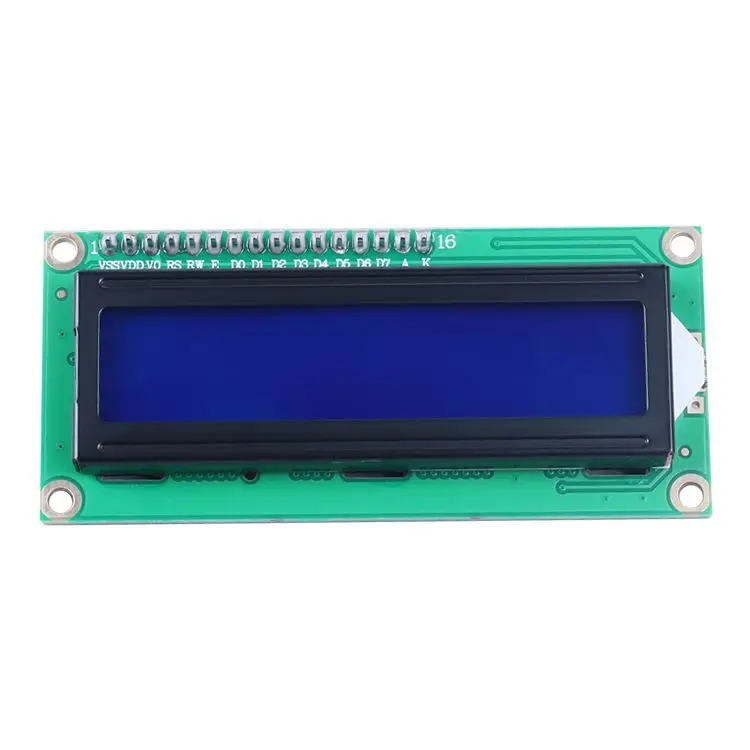

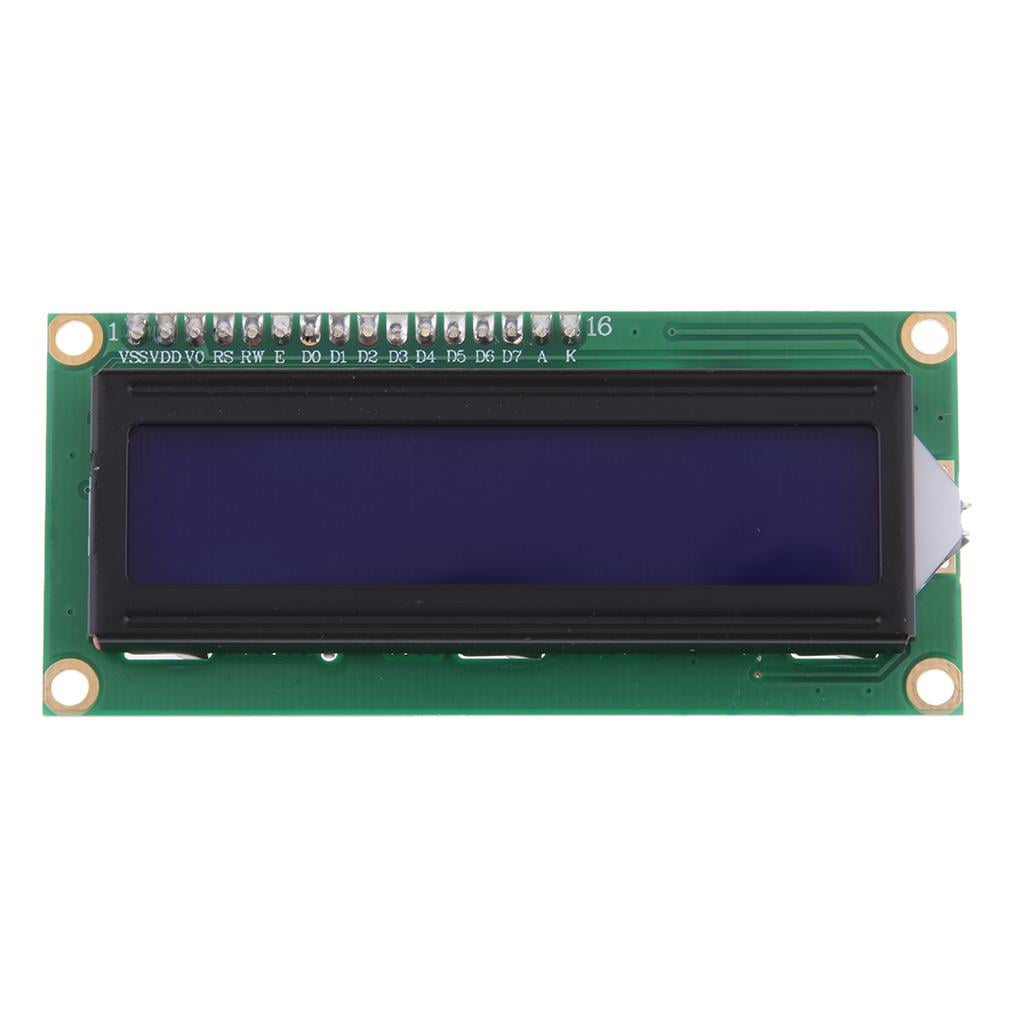

An LCD display that can display a max of 16x2 charactors. with the help of the I2C bus convertor and related libraried, you can easily use this module with just 2 wires.

LCD character modules are “characteristically” simple display devices known for their very low power consumption, low cost and long-term reliability. They are designed to display alpha-numeric characters in preset patterns and do not have much. In most cases, they are small displays with only 8 or 16 or 32 characters, utilized for status reports and simple communication. It is the most popular display for hobbyist because of its ease of operation.

Orient Display offers many standard sizes including (characters x lines) 8×1, 8×2, 16×2, 16×4 , 20×2, 20×4 , 24×4, 40×4, and many more. Orient Display’s character LCD displays cover small LCD character display modules for tiny devices to large character LCD displays for medical equipments.

Orient Display character LCD modules use industrial standard Hitachi HD44780 controller or compatible controllers such as Sitronix ST7066U, Samsung S6A0069, so they can be quickly integrated into a new product or used as a replacement in your existing products.

The LCD panel technologies include TN, STN, FSTN, FFSTN or VA (Vertical Alignment) types and also with positive mode and negative mode and options of reflective, transflective or transmissive polarizers. There are different LED backlights available in various colors including yellow-green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.

The viewing angles for these character LCD displays are available with 6:00, 12:00, 3:00, and 9:00. Orient Display offers various IC options of character fonts including English/Japanese, western European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. These LCD character modules and LCD modules can be used on industrial and consumer’s applications including printers, microwaves, water machines, medical devices, car and home audio, white goods, game machines, toys, industrial meters, etc.

Please see our character LCD display list here. If you can’t find any in the list, please check with our engineers to search our factory database or have a custom-made option.

Winstar WO1602G is 16 characters x 2 lines COG Character LCD module with metal pin connection. This display is built in with ST7032I controller IC and it supports I2C interface. This series of module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

An LCD display that can display a max of 16x2 charactors. with the help of the I2C bus convertor and related libraried, you can easily use this module with just 2 wires.

The principle of the LCD1602 liquid crystal display is to use the physical characteristics of the liquid crystal to control the display area by voltage, that is, the graphic can be displayed.

I2C uses only two bidirectional open-drain lines, Serial Data Line (SDA) and Serial Clock Line (SCL),pulled up with resistors. Typical voltages used are +5 V or +3.3 V although systems with other voltages are permitted. It can be operated as long as it supports the I2C development board.

Features: Easy to use; Less I/O ports are occupied; Support IIC Protocol; The I2C LCD1602 library is easy to get; With a potentiometer used to adjust backlight and contrast; Blue backlight; Power supply: 5v; I2C address is: 0x27.

You can display the digital information or English sentense on the LCD screen by using Arduino, Raspberry Pi or other MCU which supports i2c protocol.
