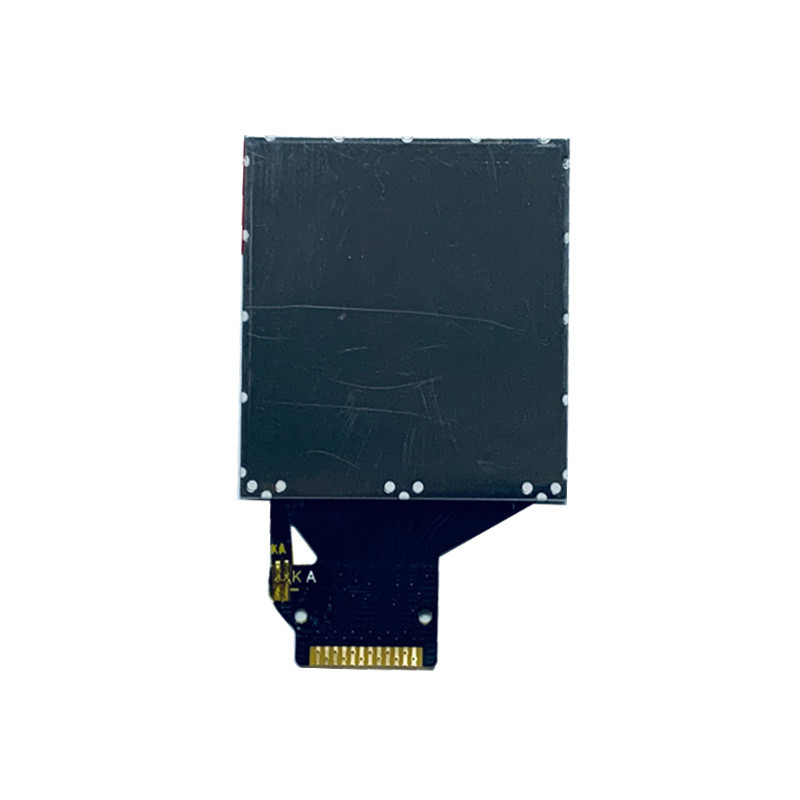

1.3 Inch LCD IPS 240*240 pixel 4-SPI interface 560 nits TFT LCD Display

Product Details of 1.3 Inch LCD IPS 240*240 pixel 4-SPI interface 560 nits TFT LCD Display for Sale

Product Introduction

Headline: 1.3 Inch LCD IPS 240*240 pixel 4-SPI interface 560 nits TFT LCD Display



1. General Information



General Information

Item

Standard Value

Units

LCD Size

1.3 inch

 inch

Panel Type

IPS

--

Resolution

240(RGB)×240

pixel

Display Mode

Normally Black

--

Number of Colors

262k

--

Viewing Direction

ALL

--

Module Size

26.16x29.22x1.5

(W x H x T) (mm)

Panel Active Area

23.4(H)x23.4(V)

(mm)

NTSC

50%

--

Luminance

560

cd/m2

Contrast Ratio

800

--

Pixel Pitch

0.0975(H)x0.0975V)

mm

Pixel Arrangement

RGB Vertical Stripe

--

Driver IC

ST7789V

--

Driver IC RAM Size

RAM

bit

Operating temperature

-20~+70

 ℃

Storage temperature

-30~+80

 ℃

Interface

4-SPI

--



2. Product Drawing
