An LCD module (LCM) is a complete “display engine” that marries a liquid-crystal panel with its driver IC, backlight assembly and interface electronics into one plug-and-play unit.

Built on the foundation of a raw TFT-LCD glass cell, it adds row/column drivers, a timing controller (TCON), polarizers and an LED light-guide so designers can source a single part-number instead of juggling discrete components.

When the host MCU or SBC sends RGB or LVDS data, the on-board IC stores one frame in internal GRAM, outputs precise gate/source waveforms and simultaneously regulates the LED current, giving instant 16.7 M-color images without extra circuitry.

Compared with a bare glass panel, an LCD module not only slashes development cycles but also guarantees optical performance, EMC compliance and mechanical fit, greatly accelerating time-to-market for any device with a screen.

Working Principle of an LCD Module
The core function of an LCD module is to convert low-level digital video into a visible, back-lit image while managing all auxiliary functions internally.

Its operation can be understood in two domains: electro-optical modulation and system-level interfacing.

1. Electro-Optical Modulation
The modulation section behaves like a voltage-controlled light valve.
When the TCON receives pixel data:

- Gate drivers scan each row while source drivers deliver 0–5 V grey-scale voltages to sub-pixels.
- Liquid-crystal molecules rotate polarized light; the amount of rotation determines how much backlight passes through the RGB color filters, creating the final hue and luminance .

2. System-Level Interfacing
An FPC or board-to-board connector carries power, backlight current and the chosen data protocol—SPI, RGB, MIPI-DSI or LVDS.

An on-board DC-DC boost generates +10 V gate-on/−6 V gate-off rails, while a constant-current driver sinks 20–120 mA into the LED string, eliminating the need for external power trees.

Example of Status Feedback

- Module powered → backlight PWM pin reads 25 kHz, 80 % duty (green indicator).
- No video clock → TCON enters standby, LED current drops to 5 %; system draws < 2 mA.
- Over-temp > 85 °C → embedded NTC pulls fault pin low, host MCU reduces brightness .

Importance of LCD Modules
Shrinking Development Risk
Engineers no longer need to fine-tune gamma curves or match LED chromaticity bins—the vendor pre-ages the backlight and programs the LUT, delivering ΔE < 2 color accuracy out-of-box.

Slashing BOM and Tooling Cost
A single FPC replaces dozens of discrete components; plastic bezel and mounting bosses are integrated, saving $1–$3 mechanical hardware per unit.

Guaranteeing Certification Head-Start
Most modules ship with pre-scanned EMI spectra and IEC-62471 photobiology reports, allowing整机 to pass CE/FCC faster.

Types of LCD Modules
1. By Panel Technology
TN LCD Module:
Fast 1–5 ms response, 120 Hz gaming friendly, but 45° viewing-angle shift; lowest cost for volume consumer goods .

IPS LCD Module:
Crystals rotate horizontally, delivering 85°/85°/85°/85° viewing cone and 95–100 % sRGB—ideal for medical monitors and shared automotive displays .

MVA LCD Module:
Vertical alignment gives 3 000:1 static contrast, perfect for dark-room gauges, yet slightly slower pixel response .

2. By Integration Level
Standard LCD Module:
Panel + driver IC + backlight; customer adds touch, bezel and controller.

Touch-Integrated LCD Module:
Capacitive or resistive sensor laminated at factory; reduces air-gap reflections and speeds assembly.

Smart (TFT-LCD) Module:
On-board MCU with UART/I²C command set, SPI flash for fonts/images—perfect for Arduino or Raspberry Pi projects .

3. By Interface

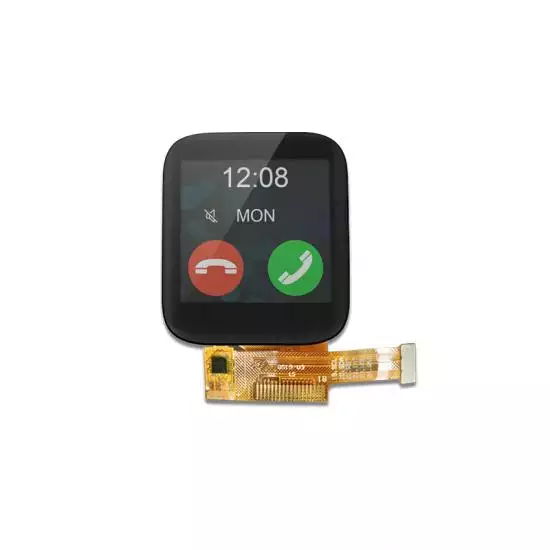

SPI LCD Module:
4-wire serial, 20 MHz max, < 5 in diagonal—great for wearables.

RGB Parallel LCD Module:
24-bit, 33–60 Hz refresh, 3.5–10.1 in mainstream industrial HMI.

MIPI-DSI LCD Module:
1–4 lanes, 1 Gbps/lane, 6.86 in vehicle-mounted landscape displays .

LVDS LCD Module:
8-bit × 4 pairs, noise-immune, 10.1 in 800 × 1280 IPS panel typical .

Applications of LCD Modules
Consumer Smart Devices
3.5–6.86 in IPS or TN modules power smart-home panels, handheld game consoles and e-cigarettes where every millimetre counts .

Industrial HMI & Automation
4.3 in and 7 in RGB-interface modules with −20 °C to +70 °C rating replace mechanical push-buttons on PLCs, drives and CNC pendants .

Medical & Laboratory Equipment
IPS modules with 1000:1 contrast and 900 nits backlight provide crystal-clear waveform traces for patient monitors and defibrillators .

Outdoor Kiosks & EV Charging Posts
10.1 in LVDS IPS modules, 250 nits upgraded to 1 200 nits via high-current LED rails, survive 85 °C solar loading while maintaining 178° readability .

Selection Recommendations
For battery-powered handhelds, pick a 3.5 in SPI IPS smart module—320 × 480 resolution, < 150 mW at 50 % brightness and built-in gamma flash.
For outdoor payment terminals, choose a 7 in LVDS IPS LCD module with optical bonding, 1 000 nits boost and IK08 cover glass to guarantee sunlight readability and vandal resistance.

LCD modules are now the fastest path to add a vivid, reliable screen to any product, perfectly combining display, driver and backlight in one tested assembly.

Their wide use in phones, cars, factories and medical gear reflects their importance in keeping development cycles short and end-products competitive.
