What Is an LCD Touch Screen?

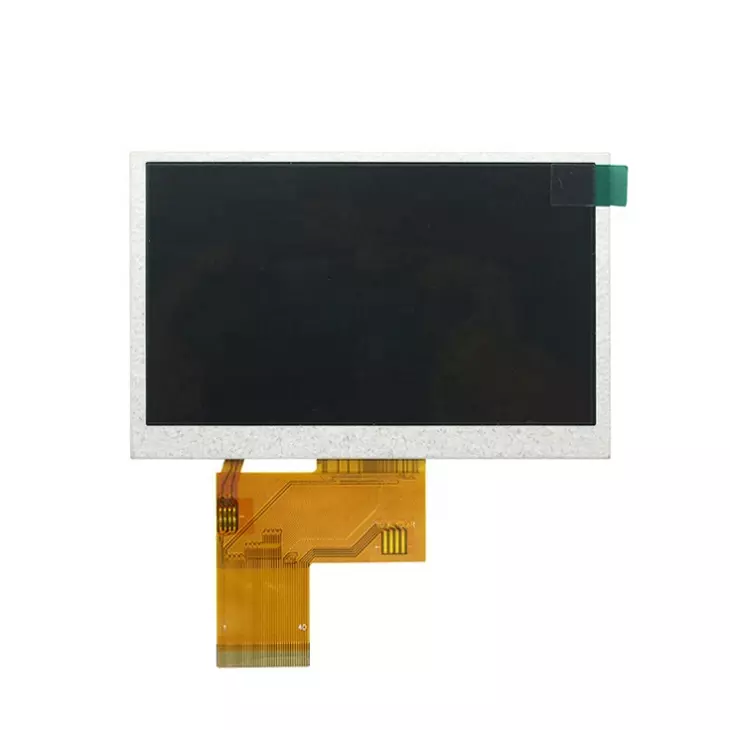

An LCD touch screen is a flat-panel display module that combines a liquid-crystal display (LCD) with a transparent touch-sensor layer, allowing the user to input commands directly by finger or stylus while simultaneously viewing visual feedback.

Built on the foundation of a standard TFT-LCD cell, it adds either a resistive membrane or a capacitive matrix that converts physical contact into X-Y coordinates, then feeds those data to an onboard controller that communicates over I²C, SPI or USB.

When the user touches the surface, the sensor layer detects a change in resistance, capacitance or infrared interruption; the controller calculates the exact location and relays it to the host system within 3–10 ms, triggering an on-screen response such as button press, zoom or swipe.

Compared with a traditional display-only LCD, an LCD touch screen not only outputs high-resolution images but also eliminates the need for a separate keyboard or mouse, greatly enhancing device compactness and user experience.

Working Principle of an LCD Touch Screen
The core function of an LCD touch screen is to merge two parallel processes—image generation and touch detection—into one seamless module.

Its operation can be understood in two layers: display imaging and touch sensing.

1. Display Imaging
The imaging section behaves like a conventional TFT-LCD.
When the timing controller (TCON) receives video data:

- Gate drivers scan each row while source drivers deliver pixel-level voltages.
- Polarized light is rotated by liquid-crystal cells and filtered through RGB color filters, producing 16.7 M colors at 500 cd/m² brightness and 1920 × 1080 resolution .

2. Touch Sensing
A transparent sensor layer is laminated on top of the LCD.

For capacitive types, a grid of micro-fine ITO (indium tin oxide) traces forms a capacitive field; finger contact disturbs this field, and the touch IC calculates the centroid position.

For resistive types, top and bottom ITO membranes meet under pressure, creating a voltage divider that the IC reads .

Example of Status Feedback

- Single-touch → “Contact” signal triggered (green LED on): coordinate sent.
- Multi-touch → “Gesture” signal triggered (blue LED on): pinch or zoom recognized.
- No touch → baseline auto-calibrates; system enters low-power scan at 30 Hz .

Importance of LCD Touch Screens
Enabling Intuitive Human–Machine Interfaces
Especially in medical devices and industrial panels, LCD touch screens replace dozens of physical buttons, reducing wiring and sealing failures while offering multilingual, reconfigurable graphics.

Reducing Overall System Footprint
By integrating display and input into one assembly, designers eliminate external keypads, saving 20–40 % front-panel space and speeding final assembly.

Compliance with Rugged Standards
Modern touch-LCD modules now ship with 1 mm anti-glare glass, IK08 impact rating, and −30 °C to +80 °C operating range, meeting IP65 front-seal requirements for outdoor kiosks .

Types of LCD Touch Screens
1. By Touch Technology
Resistive LCD Touch Screen:
Pressure-sensitive membrane works with gloved hands or stylus; cost-effective for factories and restaurants .

Projected-Capacitive (PCAP) LCD Touch Screen:
Multi-touch, 10-point capability, 3 ms response, supports edge-swipe and pinch-zoom; dominant in smartphones and automotive infotainment .

Infrared (IR) LCD Touch Screen:
IR LEDs and photodiodes create an invisible grid over the LCD; extremely durable for 42-inch and larger kiosks because no overlay film is required .

2. By Display Enhancement
Sunlight-Readable LCD Touch Screen:
Optical bonding plus 1 200 nit LED backlight yields 1 000:1 effective contrast under 100 000 lux direct sun, ideal for agriculture and marine displays .

Low-Power LCD Touch Screen:
Memory-type LC (MLC) cuts refresh current 40 %; perfect for battery-powered IoT terminals that update only when touched .

Wide-Temperature LCD Touch Screen:
Uses silicone O-rings and fluorinated grease to operate from −40 °C to +85 °C, meeting cold-chain logistics specs .

3. By Interface Integration
HDMI + USB Controller Board:
Plug-and-play for Raspberry Pi or Windows PCs; no driver writing needed.

LVDS + I²C Custom FPC:
Embedded designers route video and touch through one thin cable, reducing EMI and connector count .

Applications of LCD Touch Screens
Consumer Smartphones & Tablets
This is the highest-volume segment; 6-inch 1080p PCAP modules with incell touch yield sub-2 mm z-height and 120 Hz refresh for smooth scrolling .

Industrial HMI Panels
4.3-inch 480 × 272 resistive or PCAP modules with 500 cd/m² brightness and 3 ms response are standard on PLCs, CNC pendants and packaging machines .

Medical Hand-Held Devices
Sunlight-readable, anti-microbial glass and glove-on PCAP help nurses update patient records at bedside while withstanding frequent alcohol wipe-downs .

Outdoor Kiosks & EV-Chargers
13.3-inch PCAP units with IK08 glass, IP65 sealing and 1 200 nit backlights survive 55 °C solar loading and vandal attempts in unsupervised locations .

Selection Recommendations
For indoor consumer gadgets, a 1080p incell PCAP LCD touch screen with HDMI/USB controller offers the fastest development cycle and slimmest stack-up.
For outdoor industrial equipment, choose a sunlight-readable, wide-temp resistive or PCAP module with optical bonding and IK08 glass to guarantee 50 000 h backlight life and −40 °C cold-start.

LCD touch screens are now an essential part of modern device design, perfectly combining visual output and tactile input in one rugged assembly.

Their wide use in phones, cars, factories and medical gear reflects their importance in keeping interfaces intuitive, compact and cost-effective.

At Union Display, we are committed to providing high-quality LCD touch-screen solutions that meet the strict standards of global OEMs.

With ISO-7 clean-room optical bonding, 100 % aging tests and full customization support, every LCD touch screen we ship delivers stable, dependable performance in the field.

To learn more, visit the Union Display official website—and feel free to contact us for datasheets, reference designs or sample kits.
