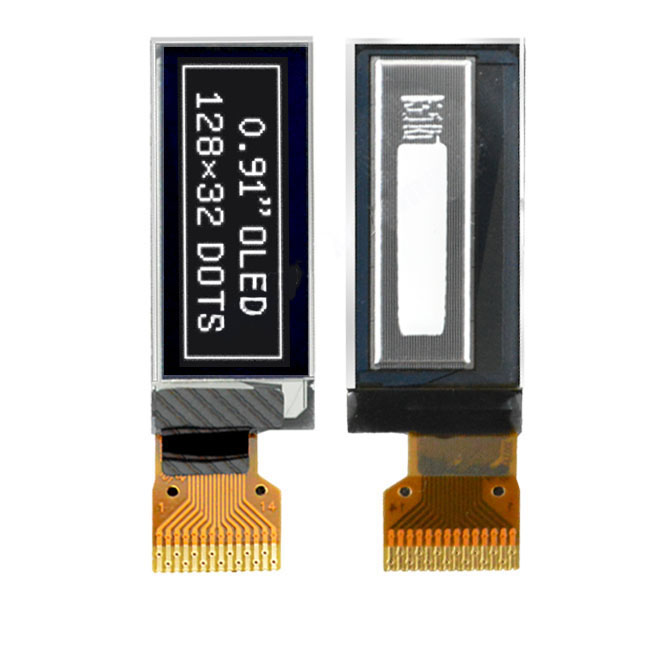

What is a PMOLED Screen?



PMOLED (Passive Matrix Organic Light Emitting Diode) is a passive-driven type of OLED display technology that controls pixel illumination through the intersection of row and column electrodes. Unlike AMOLED, which relies on thin-film transistors (TFTs) for individual pixel control, PMOLED uses external circuits to apply current to specific electrode intersections—enabling simple structure, low manufacturing costs, and energy efficiency for static content display. As a foundational OLED variant, it remains a staple in small-size, low-power electronic devices globally.



Core Working Principle & Structure of PMOLED



PMOLED’s operation hinges on organic material electroluminescence and matrix electrode control, with a streamlined five-layer structure and clear working logic:



1. Key Structural Components

A PMOLED panel consists of five stacked layers, from bottom to top:

  • Substrate: Transparent glass or flexible plastic (for bendable models) that supports the entire structure.
  • Anode (ITO Layer): Indium tin oxide (ITO) film—transparent and conductive to provide "holes" (electron vacancies) for the 发光 process.
  • Organic Layers: Includes hole transport layer (transfers holes), emission layer (organic semiconductor that emits light), and electron transport layer (transfers electrons).
  • Cathode: Low-work-function alloy (e.g., magnesium-silver alloy) that emits electrons when voltage is applied.
  • Protective Coating: Thin film to prevent moisture/oxygen damage to organic materials (critical for longevity).

2. Step-by-Step Working Mechanism

  1. Electrode Activation: External circuits send signals to specific row (cathode) and column (anode) electrodes, creating a current at their intersection.
  2. Carrier Injection: Electrons from the cathode and holes from the anode are injected into the organic layers, migrating toward the emission layer.
  3. Light Emission: When electrons and holes recombine in the emission layer, excess energy is released as photons (light). Brightness is proportional to the applied current.
  4. Scanning & Refresh: The screen uses row-by-row scanning to activate pixels sequentially. Each pixel emits light only during its scanning interval, with the human eye perceiving continuous images via persistence of vision.


The core distinction lies in drive mode, which dictates performance and use cases. Below is a comparative breakdown:

Feature PMOLED (Passive Matrix) AMOLED (Active Matrix)
Drive Method Row/column electrode intersection + external circuits Independent TFT (thin-film transistor) per pixel + storage capacitor
Pixel Control No individual components; scanned sequentially Precise, continuous control via TFT
Resolution Support Limited (max ~480x480); ideal for <3" screens High (up to 4K+); suitable for >5" screens
Refresh Rate Low (30-60Hz); prone to motion blur High (90-120Hz+); smooth dynamic content
Power Consumption Low for static text/icons; high for dynamic content Low for dynamic content; variable with brightness
Manufacturing Cost 30-50% lower (simpler structure, no TFT array) Higher (complex TFT fabrication)
Lifespan Shorter (higher drive voltage degrades organics) Longer (stable TFT current control)






When choosing PMOLED modules, three parameters take priority for targeted use cases:

  • Brightness: Measured in nits. Typical values: 200-500 nits (indoor use, e.g., smart thermostats); 500-800 nits (outdoor wearables).
  • Operating Voltage: 3.3-5V (low-voltage for battery-powered devices) vs. AMOLED’s 2.8-4.2V.
  • Viewing Angle: 160°+ (wider than traditional LCD, thanks to OLED’s self-luminous property).
  •

Primary Application Scenarios of PMOLED



PMOLED excels in small-size, cost-sensitive, and static-content-focused devices. Key markets include:



1. Wearable Technology

  • Smartwatches/Fitness Trackers: 1.2-2.1" PMOLED screens (e.g., Fitbit Charge series) offer low power consumption for 7+ day battery life, ideal for displaying heart rate and step counts.
  • Smart Rings: Ultra-compact 0.9-1.1" modules leverage PMOLED’s thin profile (≤1mm) for discreet design.

2. IoT & Home Appliances

  • Smart Thermostats: 2.4-3.0" PMOLED displays show temperature and settings with minimal energy use (e.g., Nest E alternatives).
  • Washing Machines/Small Appliances: Simple icon-based interfaces that require only static status updates.
  •

3. Industrial & Medical Devices

  • Blood Glucose Meters: 1.5-2.0" screens display test results clearly, with low power to extend device lifespan.
  • Remote Controls: Backlit PMOLED buttons for home automation remotes (cost-effective vs. LCD backlighting).
  •

Future Trends in PMOLED Technology



While AMOLED dominates large screens, PMOLED is evolving for niche markets:

  • Flexible Substrates: Plastic-based PMOLED modules (bend radius ≤5mm) for curved wearables (e.g., smart bracelets).
  • Low-Power Innovations: New organic materials reduce dynamic-content 功耗 by 20%, extending battery life for IoT sensors.
  • Hybrid Interfaces: Combining PMOLED (static icons) with e-paper (text) for dual-mode low-power displays.
  •
