TFT LCD (Thin-Film Transistor Liquid Crystal Display) is an active-matrix liquid crystal display technology that uses thin-film transistors as switching components for each pixel. Unlike passive-matrix LCDs, TFT technology enables precise control of individual pixels, delivering higher contrast, faster response times, and more accurate color reproduction—making it the dominant display solution in consumer electronics, industrial equipment, and automotive systems.

Core Working Principle of TFT LCD

The operation of TFT LCD relies on the light-modulating properties of liquid crystals and the switching control of thin-film transistors. Here’s a step-by-step breakdown:

1. Light Source Initialization: LED backlight (the most common modern source) emits white light that passes through a bottom polarizer, converting it into linearly polarized light.
2. Liquid Crystal Modulation: The polarized light travels through a layer of liquid crystal molecules. When no voltage is applied (NW mode, "normally white"), the molecules twist 90°, rotating the light’s polarization direction to match the top polarizer—allowing light to pass through and create a bright pixel.
3. TFT Switch Control: When voltage is applied via the TFT (a tiny semiconductor switch), the liquid crystal molecules align vertically, eliminating light rotation. The polarized light is blocked by the top polarizer, forming a dark pixel.
4. Color Formation: Each pixel is divided into red, green, and blue sub-pixels with corresponding color filters. By adjusting the voltage applied to each sub-pixel, different gray levels are produced, which combine to display full-color images.
5.

• LCD Panel: Consists of two glass substrates, liquid crystal layer, and color filter array. The substrate gap (controlled by spacers) and alignment layers determine liquid crystal orientation.
• TFT Array: A grid of thin-film transistors (one per pixel) that act as electronic switches, ensuring stable voltage retention for 16ms (matching 60Hz refresh rates) with the help of storage capacitors.
• Driver Circuits: Includes gate drivers (row control) and source drivers (column data). For example, the GDTL101LL-S01 module uses LVDS interface drivers to process 1280x720 resolution signals.
• Backlight Unit: LED arrays (edge-lit or direct-lit) provide uniform illumination. High-brightness models like GDTT084CA reach 1200 Nit for outdoor visibility.
• Interface Module: Common interfaces include MIPI (mobile devices), LVDS (industrial screens), and SPI (small modules). The GDTY0130H100N uses MIPI for low-power embedded applications.
•

Critical Technical Parameters for Selection

TFT LCD’s versatility stems from customizable parameters. Key application areas include:

1. Automotive Displays: Modules like GDTL101LL-S01 (-30°C~85°C operating temp) power instrument clusters and infotainment systems, with anti-glare coatings for driver safety.
2. Industrial Equipment: 4.3" to 12.1" screens (e.g., GDTT084CA) equip HMI panels, supporting high brightness for factory floors and stable performance in dusty environments.
3. Medical Devices: High-resolution models (1024x768) deliver accurate imaging for ultrasound machines, with low blue-light backlights to reduce eye strain during long procedures.

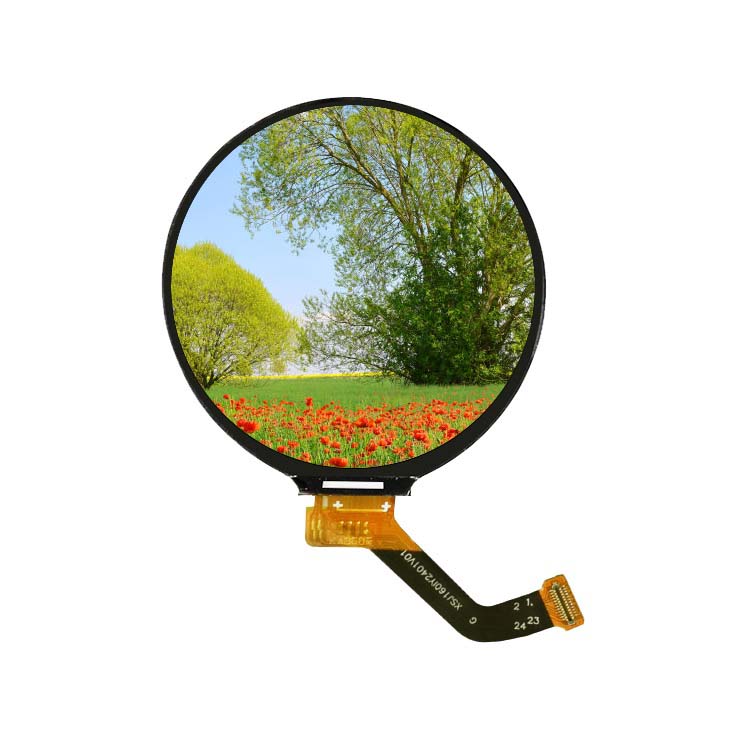

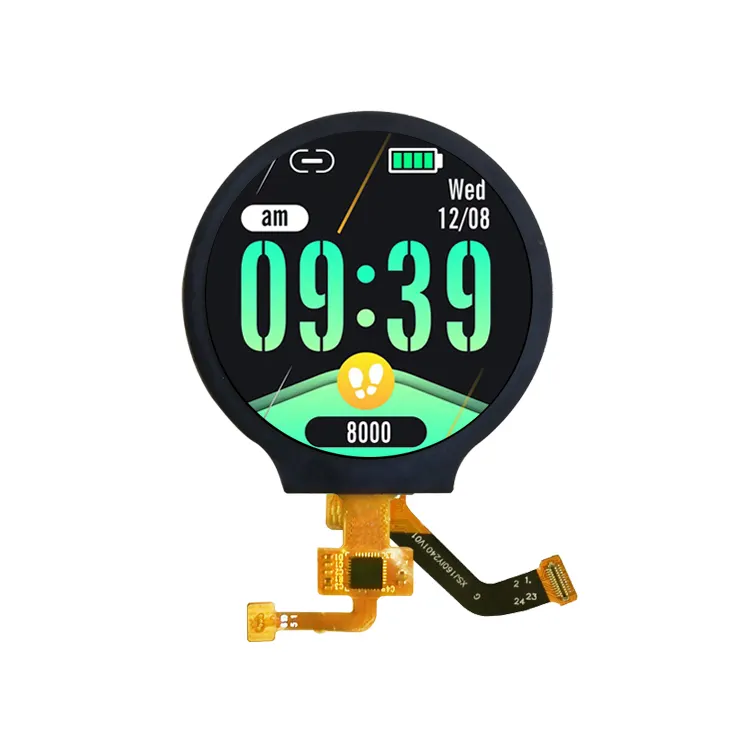

4. Handheld Devices: Compact 1.3" circular modules (GDTY0130H100N) with MIPI interfaces are used in smartwatches, balancing portability and display quality.
5.

Future Trends in TFT LCD Technology

While OLED dominates premium mobile displays, TFT LCD continues to evolve:

• Mini LED Backlighting: Adds thousands of local dimming zones (e.g., 1000+ zones) to boost contrast ratios to 1,000,000:1, narrowing the gap with OLED.
• Low-Power Innovations: New liquid crystal materials reduce power consumption by 30%, extending battery life for portable devices.
• Flexible TFT LCD: Bendable substrates enable curved displays for automotive dashboards, offering design flexibility without OLED’s cost premium.
