What is a 4 Inch Round Display?



A 4 inch round display refers to a circular display panel with a diagonal size of 4 inches (≈101.6mm), typically used in devices requiring compact, aesthetically distinctive interfaces. Unlike traditional rectangular screens, its curved form factor aligns with human visual habits for circular data presentation (e.g., clocks, gauges) while enabling innovative product designs. Dominated by TFT LCD and OLED technologies, 4 inch round displays balance portability and usability, becoming a key component in high-end wearables, medical devices, and industrial control systems.



Core Technologies: 4 Inch Round Display Types Compared



The two primary technologies for 4 inch round displays—TFT LCD and OLED—differ significantly in performance, cost, and use cases. Below is a detailed comparison:

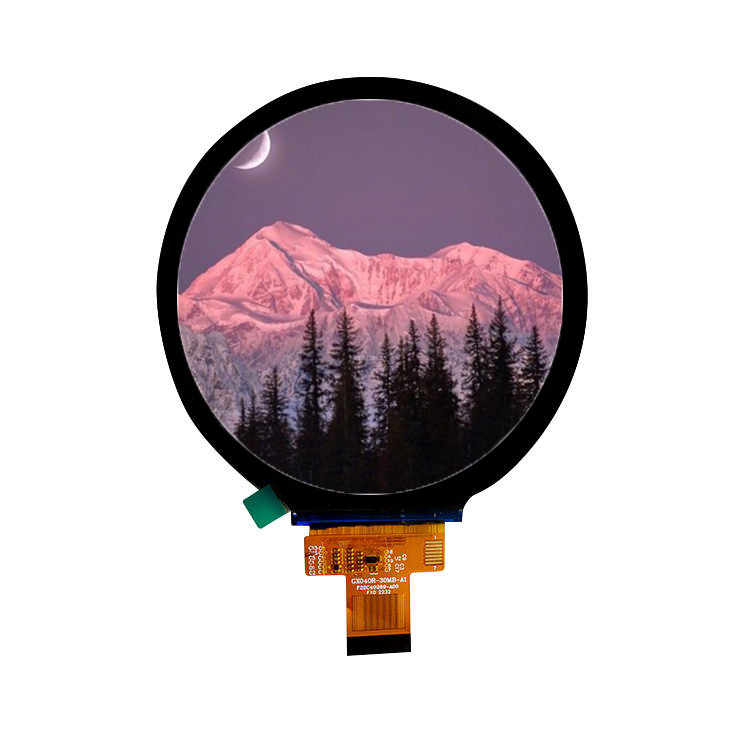

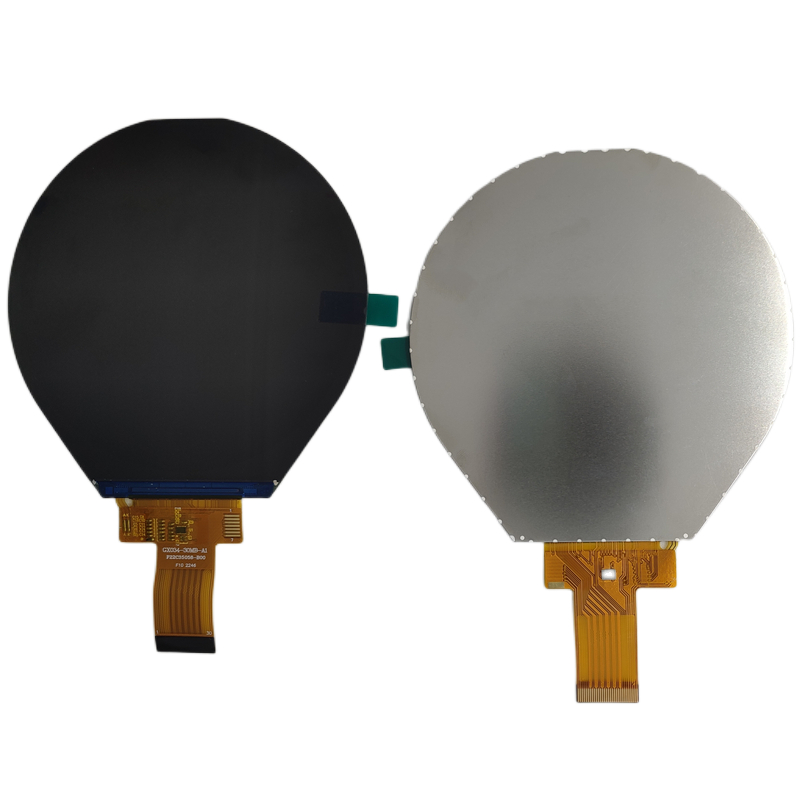

1. TFT LCD Round Displays

The most common variant for 4 inch circular screens, leveraging mature TFT active-matrix driving and backlight illumination. Key characteristics include:

  • Structure: Integrates IPS (In-Plane Switching) panels for wide viewing angles, backlight units (edge-lit LED), and driver ICs (e.g., FL7707N).
  • Advantages: Lower manufacturing cost (30-50% vs. OLED), longer lifespan (30,000-50,000 hours), and stable performance in high-temperature environments.
  • Limitations: Thicker profile (due to backlight layer) and lower contrast (1000:1-3000:1) compared to OLED.
  •

2. OLED Round Displays

Self-luminous technology ideal for premium applications, with each pixel emitting light independently. Key characteristics include:

  • Structure: No backlight required; consists of organic 发光 layers sandwiched between electrodes, enabling ultra-thin designs (≤2mm).
  • Advantages: Near-infinite contrast (true black display), faster response times (microsecond 级), and flexible substrates for curved devices.
  • Limitations: Higher cost, potential "burn-in" risk, and shorter lifespan (organic material aging).


Critical parameters vary by technology and application. Below is a benchmark based on mainstream industrial models:

Parameter TFT LCD (e.g., TST 040 HD BY-41) OLED Equivalent Application Impact
Resolution 720x720 (329 PPI, pixel-free display) 720x720 (329 PPI) or 1080x1080 (484 PPI) 329 PPI suffices for wearables; 484 PPI for medical imaging
Brightness 300-1000 cd/m² (customizable) 200-800 cd/m² 500+ cd/m² required for outdoor handheld devices
Interface MIPI (low-power, high-speed) MIPI or SPI MIPI preferred for 720x720 resolution signal transmission
Operating Temperature -10°C~60°C (consumer grade); -30°C~85°C (automotive) 0°C~50°C (standard); -20°C~70°C (enhanced) Wide temp ranges critical for industrial/automotive use
Touch Function Optional (capacitive, 5-point touch) Integrated (on-cell capacitive) Touch support essential for smartwatch interfaces




The 4 inch size strikes a balance between compactness and readability, making it ideal for these sectors:

1. Wearable Technology

Premium smartwatches and fitness trackers adopt 4 inch round displays for their watch-like aesthetics. For example:

  • Health Monitoring: Displays real-time heart rate, blood oxygen, and sleep data in circular gauges, leveraging 329 PPI clarity for easy reading.
  • Design Flexibility: OLED variants enable curved cases, while TFT LCD models offer longer battery life (7+ days) for outdoor fitness bands.

2. Medical & Healthcare Devices

4 inch round displays are integrated into portable medical tools for intuitive data presentation:

  • Blood Pressure Monitors: Circular screens show pressure readings as analog dials, reducing user interpretation errors.
  • Handheld Ultrasound Probes: High-brightness TFT LCD models (800 cd/m²) display real-time imaging in clinical environments.

3. Industrial & IoT Equipment

Industrial handheld devices and IoT controllers use 4 inch round displays for rugged, space-efficient interfaces:

  • PDA Terminals: Circular screens display barcode scan results and inventory data, with MIPI interfaces ensuring stable signal transmission in factories.
  • Smart Meters: Energy or water meters adopt low-power TFT LCD variants to show usage data with minimal power consumption.

4. Automotive Interfaces

Compact 4 inch round displays serve as secondary automotive screens:

  • Instrument Cluster Sub-displays: Show fuel levels or navigation prompts in circular gauges, matching traditional dashboard aesthetics.
  • Rear-Seat Entertainment Controls: Touch-enabled OLED models provide media control interfaces in luxury vehicles.
  •

Industry Challenges & Innovation Solutions

4 inch round displays face unique hurdles due to their shape and size, with ongoing innovations addressing these pain points:



1. Manufacturing Efficiency

Challenge: Circular cutting reduces glass substrate utilization to ~75%, increasing costs.

Solution: Dynamic 拼版 algorithms 提升利用率至 82%, while laser transfer technology lowers production costs for advanced models.

2. Software Adaptation

Challenge: Most apps are designed for rectangular screens, causing content distortion.

Solution: Dedicated circular UI frameworks (e.g., CirOS) offer pre-built 环形控件，and adaptive engines automatically adjust rectangular layouts to fit circular boundaries.

3. Thermal Management

Challenge: High integration (display + sensors) leads to heat buildup in compact devices.

Solution: SiP (System-in-Package) technology integrates drivers and sensors, while graphene 散热膜 dissipates heat efficiently.



Conclusion

The 4 inch round display combines unique aesthetics with practical functionality, serving as a versatile interface across wearables, medical, and industrial sectors. By understanding the tradeoffs between TFT LCD and OLED technologies, and selecting parameters tailored to specific use cases, designers can leverage this form factor to create intuitive, visually appealing devices. As manufacturing and software ecosystems mature, 4 inch round displays will continue to expand their presence in innovative electronics.
