A lot goes into the design of quality electronics regardless of the intended application. Akey componentof embedded systems in electronics is the microcontroller. While diverse, an electronic designer needs to settle for a microcontroller type that suits their electronic needs. PIC microcontrollers are one such type.

PIC microcontrollersare programmable and the world’s tiniest. It is capable of carrying out a diverse task range. Therefore, you will find them in alarm systems, computer control systems, phones, alarm systems, etc. Understanding the diverse types of PIC microcontrollers informs the design process and programming of PIC microcontrollers. Want to learn more? Continue reading.

PIC microcontrollers, alternatively inferred asprogrammable interface controllers, came to the fore in 1993. Primarily designed and developed to support PDP computers in controlling their auxiliary devices, it currently has an expanded scope.

The PIC microcontrollers are based on Harvard architecture, which makes them popular. It stems from the ease in which it can get programmed,low cost, wide availability, and a simple interfacing capability with other auxiliary components. Additionally, it possesses a huge user base besides capacity for serial programming.

As anintegrated chip, a PIC microcontroller consists of a ROM, RAM, timers, CPU, and counters that support protocols like CAN, UART, and SPI for interfacing purposes. It also has flash memory, I/O ports, EEPROM, UART, SSP, ADC, and PSP besides ICSPand LCD. Such components form a fundamental aspect of the PIC microcontroller architecture.

The architecture of the PIC microcontroller defines its functionality. Besides considering the four classifications of the PIC microcontroller that rely on the internal architecture, understanding the different PIC microcontrollers’ types becomes ideal before the design process. Classifications include baseline PIC, enhanced mid-range PIC, mid-range PIC, and PIC18.

PIC microcontrollers also need programming to tailor them to their specific applications. As a designer, you need to factor in the PIC microcontroller programming software to deploy before development. It allows for its proper functioning upon completion. In most instances, the typical programming language often features the embedded C language. Let us now look into the architecture and programming process of the PIC microcontroller.

It only becomes possible to design and program a PIC microcontroller after understanding its architecture. The architecture entails I/O ports, CPU, A/D converter, interrupts, oscillator, counters/timers, memory organization CPP module, and serial communication.

It is similar to other microcontroller CPUs. It has a CU, AC, ALU, accumulator, and MU, among other components. Every aspect has its use. For instance, a control unit (CU) controls everything connected to the CPU. An arithmeticlogic unit (ALU) carries out arithmetic operations besides undertaking logical decisions. A memory unit (MU) stores instructions, etc.

The MU or memory organization module consists of ROM, RAM, and STACK. RAM comes unstable and stores data momentarily in its registers. RAM registers get classified either as general-purpose (GPR) or special function registers (SFR). On the other hand, ROM stores data permanently and, for a microcontroller case, the program. It all functions through the execution of instructions by the CPU. EEPROM allows for programming of the ROM numerous times instead of what happens in a typicalread-only memory (ROM). Flash memory is also PROM and thus can write, read, and erase programs multiple times. Lastly, STACK stores and executes the information from the completion of the interrupt execution.

All PIC16 contain five ports, including Port A, B, C, D, and E. Port A is a 16-bit port for output and input based on the TRISA register. The next is Port B, which comes as an 8-bit port for output or input functions, while Port C is similar to Port B but with its operation specified by the TRISC register. Port D acts as the slave port for Bus connection, while Port E comes as a 3-bit port that controls the digital or analog converter signals.

PIC microcontrollers have four counters/timers, whereas the 8-bit timer or the rest can accommodate eight or sixteen-bit mode, depending on your choice. It generates accuracy actions such as particular time delays among two operations.

PIC microcontrollers always require a PIC programmer, especially when building a PIC microcontroller project. Programming comes by way of an embedded C language, and as such, a designer needs to familiarizing with all these aspects before building their PIC controller project. But what does it all entail?

Before getting started on the PIC microcontroller programming front, it is crucial to understand how a standard microcontroller gets developed. However, the underlying considerations entail picking an ideal project for the microcontroller program, such as an LED flash system. Designing the circuit also becomes vital. Here, aspects such as circuit components, diagrams, and connections come into consideration.

The programming of PIC microcontrollers often gets carried out through the “MP-Lab” software. It requires installation before proceeding to install the compiler. Compilers include GCC compiler, CCS compiler, etc. After completion of the installation process, all you need is to follow the process below.

Pick a suitable compiler based on your needs besides your project’s location path. You can pick the CCS or the GCC compiler depending on your PIC microcontroller needs. After that, choose the browse option then the “ccsloader” within the PICC folder from the program files. At this point, a source group folder gets created in the intended folder.

At this stage, it becomes vital to assign the appropriate name to your project before clicking “Next” to save the project. Within the target folder, a source group folder gets created, which you select the file menu and pick the new file from the drop-down list.

After coming up with the PIC microcontroller code, you have to load it into the microcontroller in a process inferred as dumping. Microcontrollers solely comprehend the machine-level language featuring 0’s and 1’s. As such, the dumping process requires specific code loading software.

It is crucial to select and install your preferred software program from many options in the market. Additionally, the PIC programmer kit will come complete with a hardware kit. Plug the PIC microcontroller into the hardware kit and follow the process below to dump the code into the PIC microcontroller.

Plenty of PIC microcontrollers exist in the market. It is, therefore, always difficult to settle on the correct PIC microcontroller type and size when talking to your PCB or circuit assembly company. However, based on your need, we at RayMing PCB and Assembly will advise you accordingly. What’s more? You will get top-rate quality assembly services for your PIC microcontroller at reasonable prices.

The PIC16f877a/PIC16f877 has a simple programming process besides convenience when it comes to using. Because of this, it proves a popular microcontroller option within the industry. It comes either 8-bit or 16-bit and has a flash memory tech allowing for numerous write-erase processes. While ideal because the total amount of pins (40 in total and 33 for output and input) mainly applies in digital electronic circuits and PIC microcontroller projects. It is instrumental in home automation devices and systems, industrial instruments, remote sensors, and safety and security devices.

It comes as an 8-bit CMOS microcontroller developed on high-performance RISC architecture. The PIC12f675 is small in size and cost-effective, thus proves popular among engineers and hobbyists. The design is perfect for low-end systems and applications because of its 2Kbytesflash memory. It also contains 6 GPIO pins that can handle not more than 25mA of current, meeting the threshold of many sensors and peripheral devices.

It is a renowned and the most utilized PIC microcontroller type based on its pioneering stature. The PIC16f84 comes as an 8-bit mid-range microcontroller with a 1024 word program memory. It also has a RAM of 68bytes and a lasting EPROM storage of 64bytes. The striking factor about PIC 16f84 is that it can get reprogrammed using thein-circuit ICSP.

It is an 8-bit flash-based CMOS microcontroller that is simple to program. The PIC microcontroller packs the powerful PIC® MCU architecture within the 8-pin package. It has various features that make it popular, such as the one-channel comparator besides the 128byte EEPROM. It is ideal for application in industrial, automotive, and consumer electronics.

It is a powerful and simple-to-program PIC microcontroller that is based on the CMOS flash-based 8-bit PIC microcontroller. Additionally, it packs the PIC® architecture within the 28-pin package. PIC16f886 possesses a 256byte EEPROM, is self-programming, and has two comparators, among other vital features. It makes it a popular choice for applications in sectors like industrial, automotive, consumer and appliances.

The popular PIC microcontroller mainly gets deployed in embeddedand automation systems. It comes as either TQFP, PDIP, or QFN. The PDIP has 40 pins, while the rest contains a 44-pin interface. It contains a 10-bit ADC, a 256byte EEPROM data memory, and a RAM of 1536 bytes.

It comes as a popular 8-bit PIC microcontroller and comes with an improved NanoWatt technology and flash processor. The PIC microcontroller has three distinctive packages in SSOP, PDIP, and QFN. The SSOP has a 20 pin package, while the PDIP and QFN have 18 pin and 28 pin packages, respectively.

It is a powerful and simple-to-program CMOS and flash-based 8-bit PIC microcontroller. The PIC16f676 packs the powerful PIC® MCU architecture within the 14-pin package. It is a 10-bit A/D converter complete with eight channels, a single comparator, besides an EEPROM data memory. It has applications in industrial, automotive, consumer, and appliance entry-level products, especially those requiring field re-programmability.

The 8-pin flash-based CMOS PIC microcontroller comes with a nanoWatt tech. It offers benefits associated with the mid-range x14 architecture, including standardized features. Such features make it a popular PIC microcontroller option for automotive and industrial applications.

The popular and powerful PIC microcontroller comes as an 8-bit CMPS FLASH-based microcontroller type. It contains 34 I/O pins and comes with one 16-bit and 8-bit timer, 10-bit A/D converter, SPI, I2C, and USART peripherals.

It is a popular and relatively new PIC microcontroller type that cannot work on older device models. The PIC16f628 is based on the FLASH program memory of 3.5, 2 comparators, and a single CCP. What makes it an excellent option entails low voltage programming, programmable BOR, on-chip voltage reference, and other features.

The 8-bit PIC microcontroller from Microchip comes with a 20-pin interface. It incorporates the high-performance RISC CPU that assists in the execution of instructions. The microprocessor also has a crystal oscillator of 20MHz for interfacing purposes and the creation of clock pulses.

The popular PIC microcontroller comes with a FLASH memory of 32KB and proves compatible with PIC17 and PIC16 instruction sets. It uses advanced CAN technology and applies to the automotive and industrial sectors.

The PIC microcontroller comes optimized and equipped with the RISC architecture. It operates on flash memory and has a CPU speed of 10 DMIPS/MIPS, making it a toast for some people. Its maximum ADC is 10 bits with a CCP of 1.

The popular PIC microcontroller comes as a high-performance, low-cost, and 8-bit static microcontroller. It uses flash CMO technology with a total of 8 pins. It also possesses a DRT (device reset timer) that eliminates any requirement for external reset circuitry.

It is always vital to understand everything about PIC microcontrollers, including the diverse types, program them, etc. Such information becomes useful in designing integrated circuits and electronics as a whole. Therefore, consider all insights about the intricacies of the diverse PIC microcontrollers to stay ahead of your design game.

※Price Increase NotificationThe TFT glass cell makers such as Tianma,Hanstar,BOE,Innolux has reduced or stopped the production of small and medium-sized tft glass cell from August-2020 due to the low profit and focus on the size of LCD TV,Tablet PC and Smart Phone .It results the glass cell price in the market is extremely high,and the same situation happens in IC industry.We deeply regret that rapidly rising costs for glass cell and controller IC necessitate our raising the price of tft display.We have made every attempt to avoid the increase, we could accept no profit from the beginning,but the price is going up frequently ,we"re now losing a lot of money. We have no choice if we want to survive. There is no certain answer for when the price would go back to the normal.We guess it will take at least 6 months until these glass cell and semiconductor manufacturing companies recover the production schedule. (Mar-03-2021)

ER-TFT023-1 is 320x240 dots 2.3" color tft lcd module display with ILI9342 controller,optional 4-wire resistive touch panel and optional capacitive touch panel ,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.3"TFT Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno.For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

LCD with capacitive touch + microcontroller integration ,,7 inch 1024*600 HDMI LCD Display with Touch Screen,10.1 Inch Tft Lcd Programmable Touch Display With Controller Board ,10.1 inch Programmable LCD Module with Software + Touch Screen ,Microcontrollers with a Touch-Sensing Interface ,STONE 5.0 inch HMI TFT LCD Display With Button Control Board And ,7.0 inch HMI TFT LCD Panel with Driver + Controller Board + ,10.1 inch Programmable LCD Module with Software + Touch Screen Support PIC/ Any Microcontroller,,STONE Embedded 480*270 resistive 4.3 inch TFT LCD Module +Touch ,10.1,ElecLab Raspberry Pi Touchscreen Monitor 7 Inch DSI Capacitive LCD Display 800x480 RS232/RS485 Speaker Bracket for Raspberry Pi 4B 3B+ 3B 3A+ 2B B+,Embedded Panel 10.1 inch Frameless TFT LCD Touch Controller with Wide Input Voltage - AliExpress Electroni LCD Modules,Electronic Components & Supplies, Cheap LCD Modules,High Quality Electronic Components & Supplies,LCD Modules, , c Components & Supplies,5 inch Capacitive Touch Screen TFT LCD Display 800x480 HDMI LCD for Raspberry Pi, BB Black, Jetson Nano Support Systems Windows 10/8.1/8/7, Game ,10.1 Inch Tft Lcd Programmable Touch Display With Controller Board Support Any Microcontroller - Lcd Modules - AliExpress,7.0,1.3inch LCD Display HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH, IPS Screen 240x240 Pixels RGB, 65K Display Color with Embedded Controller ,waveshare 1.8inch LCD Display Module for Raspberry Pi Pico Microcontroller Board,160128 Resolution 65K RGB Colors Display TFT Screen,SPI Interface,10.1 Inch HMI TFT LCD Touch Screen Module With Hardware and ,10.1inch HDMI LCD Monitor 1024x600 Hardware Resolution Resistive TFT Touch Screen LCD Display for Raspberry Pi Zero/A+/B/B+/2 B/3 Model B,10.1inch Capacitive Touch Screen LCD (E), 1024600, HDMI, IPS, 10 ,10.1inch Resistive Touch Screen LCD, 1024600, HDMI, IPS, Supports ,10.1 Inch Touch Panel TFT LCD with Controller Board +Embedded System for Any Microcontroller

This equipment manual is part of our Intelligent TFT-LCD Module documentation. It provides the information in regards of operation, installation, configuration, function, system as well as its technical design and working principle.

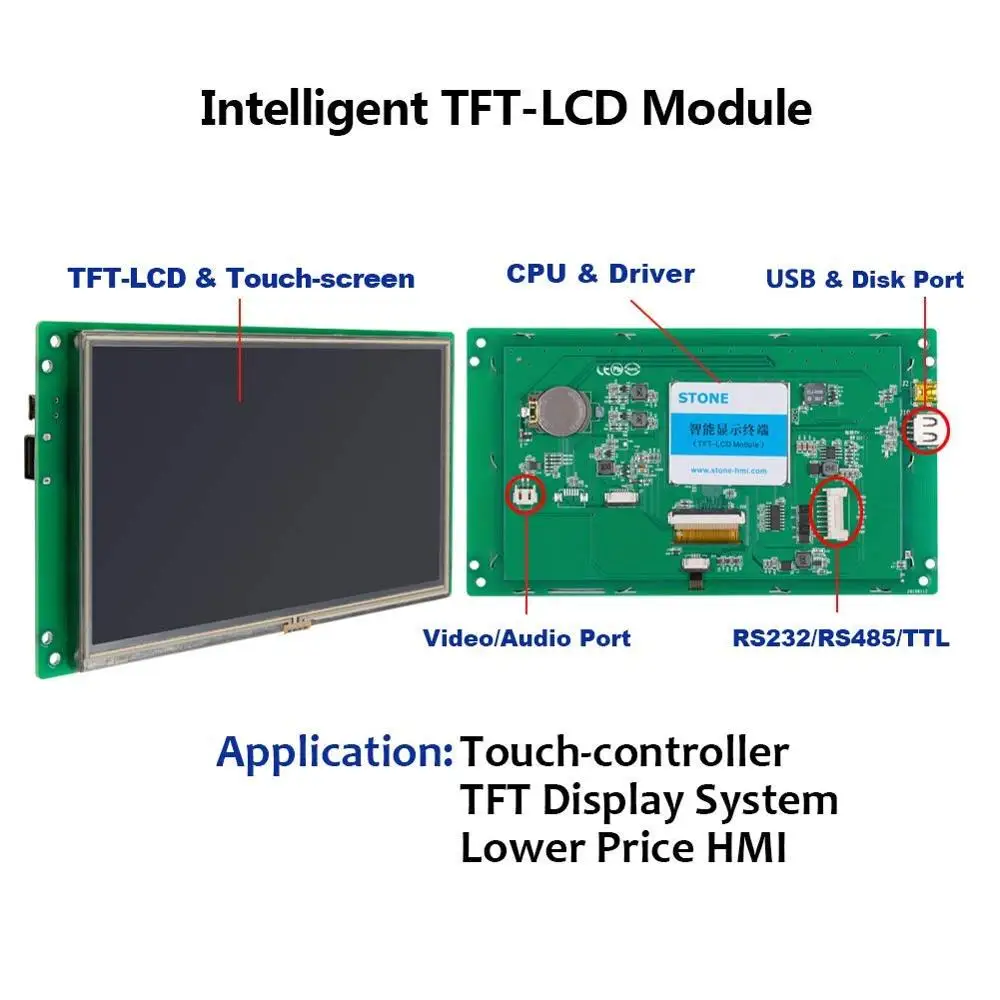

TTL/ LANport,Wi-Fi / Bluetooth,touchscreen, power supply etc., so it is a whole display system based on the powerful & easy operating system,which can be controlled by Any MCU.
