12.1 inch 800 x 3(RGB) x 600 Pixel with 500 nit with 1 channel LVDS Inteface TFT LCD Display

12.1 inch 800 x 600 Pixel with 500 nit with LVDS Inteface TFT LCD Display

Headline：12.1 inch 800 x 3(RGB) x 600 Pixel with 500 nit with 1 channel LVDS Inteface TFT LCD Display This specification applies to the Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support SVGA (800(H) x 600(V)) screen and 16.7M (8-bits) or 262k colors (6-bits). LED driving

Headline：12.1 inch 800 x 3(RGB) x 600 Pixel with 500 nit with 1 channel LVDS Inteface TFT LCD Display

This specification applies to the Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system.

The screen format is intended to support SVGA (800(H) x 600(V)) screen and 16.7M (8-bits) or 262k colors (6-bits).
LED driving board for backlight unit is included in this display

The display designed with wide viewing angle; wide temperature and long life LED backlight is well suited for industial applications.

The display is a RoHS product.

General Information

General Information
Items	Specification	Units
Screen Diagonal	12.1	inch
Active Area	246 (H) x 184.5 (V)	mm
Resoluiton	800 x 3(RGB) x 600	--
Module Outline	260.5(H) x 203.0(V) x 9.0(D) (Typ.)	mm
Interface	1 channel LVDS	--
Viewing Angle	80/80L/R65/75	--
Power Supply	3.3V	--
White Luminance	500	cd/m2
Display Mode	TN, Normally White	--
Nominal Input Voltage VDD	3.3 (typ.)	--
Typical Power Consumption	4.62 (Typ.) All black pattern	--
Weight	600 (max)	--
Contrast Ratio	700	--
Opeartion Temperature	-30~+85	℃
Storage Temperature	-30~+85	℃
Surface Treatment	Anti-Glare,Hardness 3H	--
Support Color	16.7M / 262K colors	--

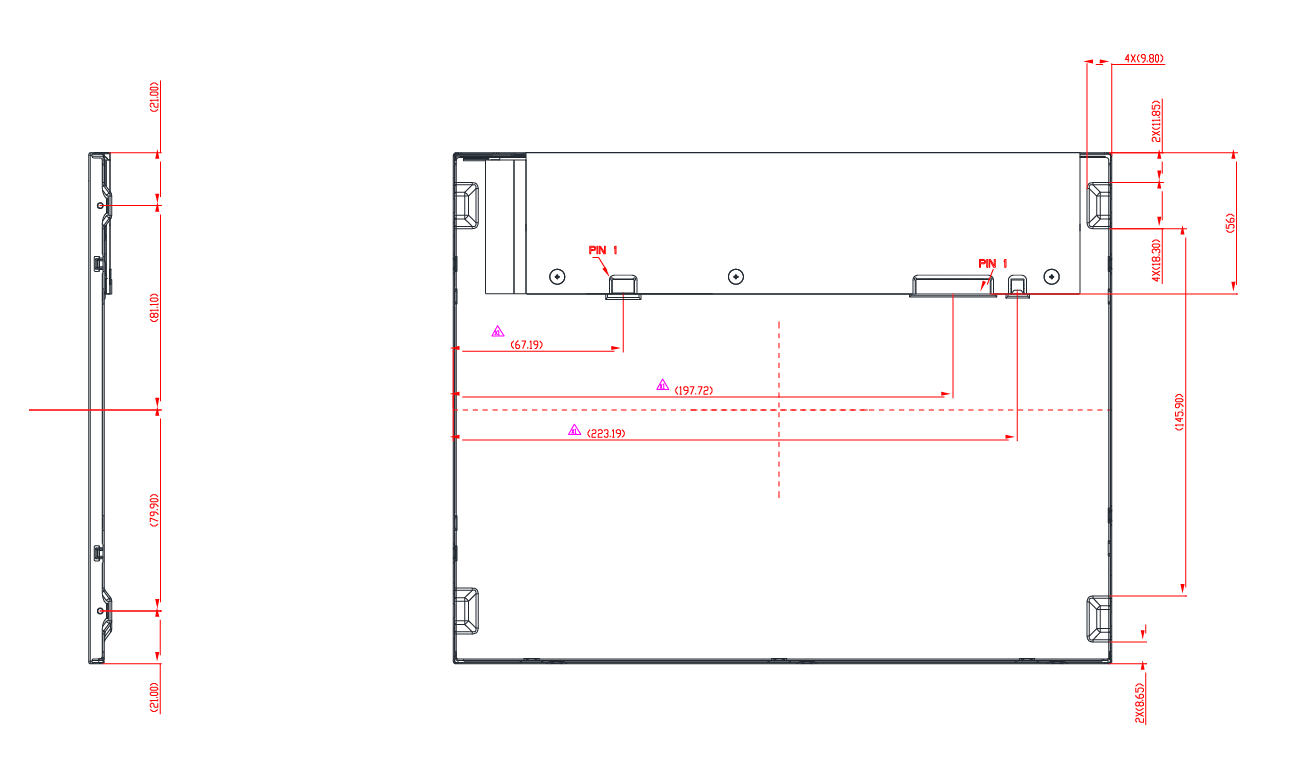

Drawing
