Vehicle specific backup systems are specialized safety units designed to alert drivers and/or bystanders when a particular vehicle is in reverse. The equipment typically includes backup camera, LCD monitor, remote sensors, and/or accessories to assist drivers with avoiding collisions behind them. Although backup systems can be customized for all vehicles, these systems can often be lifesavers for larger vehicles with several blind spots such as trucks and RVs.

Our iBeam 4.3 inch clip-on mirror monitor is the perfect companion to your vehicles backup camera. With universal applications this monitor is an excellent way to increase driver safety when reversing or parking. Simply clip the monitor onto your existing factory mirror and enjoy the benefit of added visibility. Display is virtually undetectable when switched off revealing a flawless factory-quality mirror.

A backup camera (also called a reversing camera or rear-view camera) is a special type of video camera that is produced specifically for the purpose of being attached to the rear of a vehicle to aid in backing up, and to alleviate the rear blind spot. It is specifically designed to avoid a backup collision. The area directly behind vehicles has been described as a "killing zone" due to associated accidents.head unit display. A now common variant is a Surround View system, which assembles a synthetic but positionally accurate top-down view of the vehicle and its adjacencies.

The design of a backup camera is distinct from other cameras in that the image is horizontally flipped so that the output is a mirror image.wide-angle or fisheye lens. While such a lens spoils the camera"s ability to see faraway objects, it allows the camera to see an uninterrupted horizontal path from one rear corner to the other. The camera is typically pointed on a downward angle, to view potential obstacles on the ground as well as the position of approaching walls and docks, rather than straight back.

Backup cameras are common on vehicles that tow difficult-to-see trailers, such as motorhomes. Recently, with the rise in popularity of in-dash DVD players and GPS navigation systems which aid in justifying the expense of adding a color LCD to the driver"s seat, they have become much more common, often available as optional factory accessories on standard passenger trucks and sport utility vehicles, as well as aftermarket accessories. Inside the vehicle, the display is typically wired to automatically sense when the transmission is set in reverse, showing the backup view while in reverse and or providing grid guidelines by detecting the parking lot markings to aid the driver. The display will typically show the map (or other standard content) on the screen in all other gear modes in most cars.

Backup cameras can be added as aftermarket additions to vehicles that does not come with factory-fitted systems. They are available in both wired and wireless versions.

Built-in audio intercoms (one-way or two-way) are used in addition to the camera system for communicating with a spotter outside the vehicle - common when backing large trailers or launching boats.

Night vision cameras use a series of infrared lights for backing in the dark, when the positioning or the intensity of the vehicle"s white reverse lights are insufficient for this purpose.

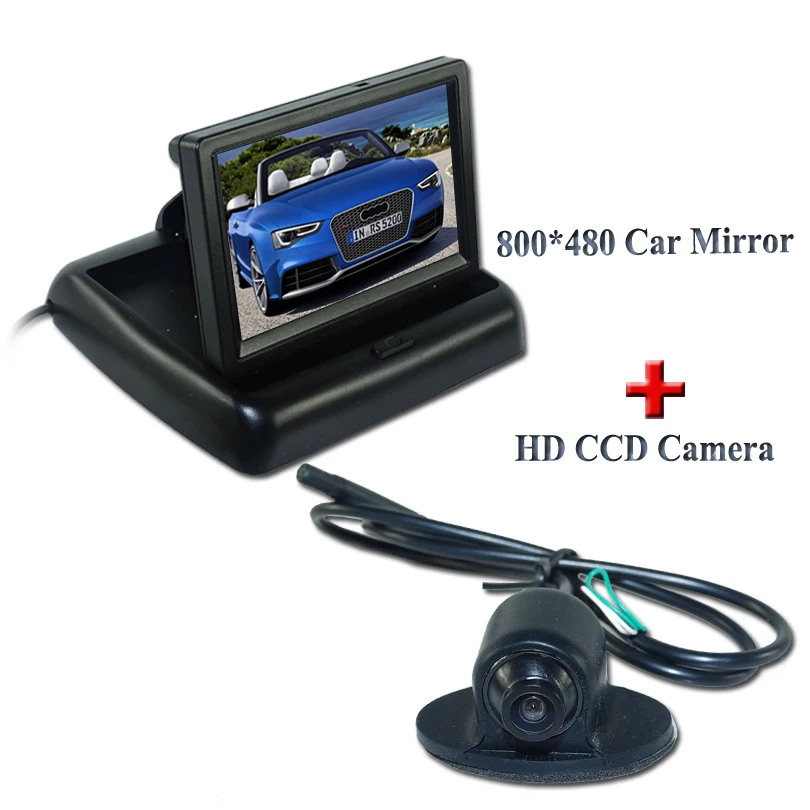

Portable or semi-permanent all-in-one camera systems (also known as dashboard cameras or dashcams) are sold typically for vehicles that don"t have displays permanently installed in the dash. Such systems consist of a small portable screen that can be affixed on the dashboard or on rearview mirror, and a length of wire to reach the cameras, including a backup camera.

Some backup and rear cameras are connected to displays on the rearview mirror and are used in vehicles to detect activity behind the car to "avoid the tooling, software, hardware, and testing costs associated with integrating the display/feature in other areas of the vehicle."

Custom cameras: brake light cameras are combination devices that contain a camera, while still illuminating as a brake light. Some backup cameras also use a combination of LEDs surrounding the camera lens to illuminate the surroundings while in use.

The first backup camera was used in the 1956 Buick Centurion concept car, presented in January 1956 at the General Motors Motorama. The vehicle had a rear-mounted television camera that sent images to a TV screen in the dashboard in place of the rear-view mirror.

Later the 1972 Volvo Experimental Safety Car (VESC) had a backup camera. However, the camera element did not make it into the following Volvo 240 model.

The first production automobile to incorporate a backup camera was the 1991 Toyota Soarer Limited (UZZ31 and UZZ32), which was only available in Japan and not on its U.S. counterpart, the Lexus SC. The Toyota system used a color EMV screen, with a rear-spoiler-mounted CCD camera. The system was discontinued in 1997. In April 2000, Nissan"s Infiniti luxury division introduced the RearView Monitor on the 2002 Infiniti Q45 flagship sedan at the 2000 New York International Auto Show. Introducing coloured onscreen guide lines as a parking distance parameter, the RearView Monitor operated from a license-plate-mounted camera in the trunk that transmitted a mirrored image to an in-dash (7-inch) LCD screen. It was available as optional equipment upon North American market launch in March 2001.Nissan Primera introduced the RearView Monitor backup camera system to territories outside Japan and North America.

Infiniti introduced the first surround-view cameras, making the system available on the 2008 EX35 and marketing it as the Around View Monitor. The system used four cameras located at the front, back and sides of the vehicle, feeding images to an image processing unit; those individual inputs were analyzed, assembled and synthesized to offer a synthetic but positionally accurate top-down view of the car and its surroundings. In most modern systems, the pictures appear in such detail that it"s difficult to believe they were not taken from above the vehicle.

First offered in October 2018, the Japanese market Lexus ES can be optioned with cameras as side view mirrors. The Audi Q8 e-tron and Hyundai Ioniq 5 has also this feature as optional.

This is an advanced type of reversing camera that does not require the use of cables between the camera itself and the display. It functions remotely. Wireless rear-view cameras usually have separate sources of power from the display.Pearl Automation, use solar energy for power.12-volt socket on the car"s dashboard. Some of the displays are also integrated on the rear-view mirror thereby giving it a multipurpose function. Some models also sync directly with one"s phone using an app which then acts as the display. The main advantage of this type of backup camera is that it is extremely easy to install and rarely requires the help of professional when doing it. The installation of these cameras also do not interfere with a car"s look as minimal to no drilling or laying of wires is required. However, this comes at a cost as some of these wireless cameras are quite expensive.

Honda"s LaneWatch provides an 80° field of view that is displaced on the navigation screen with guidelines to help the driver judge distance behind the rear bumper of the vehicle.

The law specified a statutory deadline of February 2011 for issuing the final regulations. However, under the Obama administration the USDOT repeatedly granted itself extensions to the deadline, claiming it needed more time analyze the costs and benefits of the requirement.Second Circuit Court of Appeals, demanding that the USDOT implement regulations on backup cameras within 90 days.

On March 31, 2014, three years past its deadline, the U.S. National Highway Traffic Safety Administration announced that it would require all automobiles sold in the United States built beginning in May 2018 to include backup cameras.Transport Canada issued a similar mandate beginning at the same time.

One CCD COLOR 700TVL Weather/Water-Proof Wide Angle Vehicle Rear View Camera With Wide View Angle, Video, and Night Vision. Approx. 2.8" width x 3.0" height x 2.6" length (size includes surface-mount attachment).

Weather and Waterproof casing with the rain shield. Please note: The casing is weather and waterproof under normal use only and doesn"t require any further adjustment on your part. However, the cables may not be weather and waterproof. To make proofing enabled, the cable connections will require additional sealing/protection that you must provide. Remember, improper installation and using the product in opposition to the manufacturer"s instructions and the manufacturer"s defined terms and conditions of normal usage may result in damage to the weather/waterproofing properties of the camera.

Reverse image - set to display a reversed camera image on the monitor by default(for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror)

Caution: The camera is designed to operate within a range of constantly changing voltage levels produced by a vehicle"s battery and alternator (post engine ignition) under normal use conditions. Some vehicles have a very high momentary voltage at the vehicle starting time and the excessive voltage generation at that time might cause damage to the camera. If your vehicle tends to emit high voltage levels during ignition you will need to install a fuse/voltage regulator/etc. to protect your camera. Please consult with a professional vehicle audio/video equipment installers if needed.

Connect a backup camera to your factory screen with one of our interfaces. You can also now add front cameras to your factory system.  All of our OEM  modules and interfaces are all plug and play, they do not require cutting of your factory wiring.
