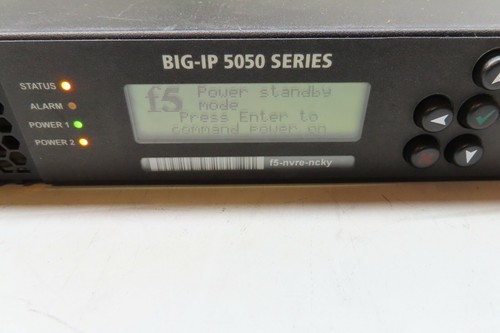

The liquid crystal display, or LCD panel, provides the ability to control theunit without attaching a serial or network cable. The following menus are available on the LCD panel.

Normally, the screens cycle on the LCD panel at a constant rate. However,press the Check button to toggle the LCD panel between Hold and Rotate modes. In Hold mode, a single screen is displayed. The Rotate mode changes the screen displayed on the LCD panel every four seconds.

Pressing theX button puts the LCD panel in Menu mode. The buttons Left Arrow, Right Arrow, Up Arrow, and Down Arrow are functional only when the LCD panel is in Menu mode.

After you put the LCD panel in menu mode, use the Left Arrow, RightArrow, Up Arrow, and Down Arrow buttons to select menu options. There are four menu options:

You can use the Information menu to access help pages about using theLCD panel functionality. You can also find more information on what different LED activity means, and on the failover state of the unit in a redundant system. Table 3.1 shows the options available on the Information menu.

Use the Check button to turn on (checked) or off(cleared) the heartbeat displayed on the LCD screen. This heartbeat displays if the SCCP is running on the system. This heartbeat does not affect the failover mechanism of the system.

This setting controls the brightness of the LCD panelwhen the backlight is off. Use the Left and Right arrow keys to set the brightness of the LCD panel.

The LCD panel provides the ability to manage and monitor the unit without attaching a console or network cable. The different sensors that exist in the hardware platform provides information regarding the hardware health of the system by way of messages on the LCD screen. The following tables list messages that can appear on the LCD screen of iSeries platforms.

To prevent the BIG-IP system from running into such a kind of issue in the future, it"s suggested to shutdown the system by using the command line. If the LCD panel must be used, first press Halt, and then press Power Off.

012a0025:2: Daughter Card AbsentThe BIG-IP system received a critical sensor alert for a missing FIPs card.Run the EUD utility and contactF5 Technical Support.

012a0025:2: LCD Health communicationThe BIG-IP system detected a problem communicating with the LCD module. You may notice that the LCD panel is unresponsive.Restart the fpddservice by running the bigstart restart fpdd command. If the problem persists, attempt to reboot the system and contactF5 Technical Support if required.

012a0025:2: PSU2 AC Vin voltage low(crit)The BIG-IP system detected low input voltage for the PSU.Refer to K52015891: Troubleshooting BIG-IP power supply issues. Contact F5 Technical Support if required.

012a0025:2: Fan tray absentThe BIG-IP system detected that a fan tray was removed.Replace the fan tray if it was removed. Contact F5 Technical Supportif required.
