Tonight’s project is fitting immo 3 sport faces onto an immo 2 cluster with some “knockoff” R32 needles and blue LEDs. Immo 2 and 3 have EPC and immo light icons in different spots and the center warning lights are slightly different. Here in North America we never got a sport version of immo 2 faces but Europe did so those would be direct swap. But in this case I just moved the LEDs to their respective immo 3 locations (not the cleanest method but one I’ve been doing for yea…

It all started in the summer of 2020, when I bought an Audi TT 2002. Unlike my previous cars, it didn’t have a digital speedometer in the instrument cluster’s little LCD-display (Driver Information System DIS in Audi). Due to the lack of digital speedometer, I decided to implement it myself. To cut a long story short, I thought I could take advantage of existing GitHub-project[1]and wrote the code for that setup first. Though I soon realized the setup used in the existing project was different to mine, so I had to start it all over.

Audi TT"s DIS-display shows the radio station or the CD-track in the upmost third of the display. My plan was to replace the radio info with digital speedometer. From the previously mentionedprojectI found out that the radio sends information to the instrument cluster via three one-way data wires. When I pulled my radio out, I found out that my radio didn"t use these three wires, but CAN bus instead.

Before I tapped into CAN bus with Arduino, my plan was to acquire the vehicle speed signal from the radio"s GALA-wire (Graduated Audio Level Adjustment). GALA increases radio volume automatically according to vehicle speed. Since my car has CAN bus, there is no need for GALA-wire and the instrument cluster sends vehicle speed data on the bus every 200 ms. I"m used these CAN-messages in my digital speedometer solution.

After doing a little research on the CAN bus (especially in VW-group cars), I found out that the bus used in my car was a so called Fault Tolerant CAN bus[4]. For me it meant that I couldn"t use off-the-shelf CAN-shields for Arduino.

I designed the circuit board in Autodesk Eagle. I didn"t pay too much attention to the circuit board design specifics, because I knew that manufacturing and shipping of the board would take its own time. I ordered the printed circuit board fromItead.cc.

I found Audi CAN bus message identifier list onCanhack.de[7] and I found the IDs for the first and second text line of the DIS. I also discovered the ID for vehicle speed information ontxboard.de[8].

0x635radio illumination (length: 3 bytes; from left to right: radio display backlight, radio buttons backlight, (?); (dimmest 0x0 - brightest 0x64)

I"ve had to replace the instrument cluster in my 2001 Audi TT Quattro because of a parasitic battery drain. My original cluster is in good shape otherwise; I had the LCD replaced last year and I replaced the stepper motors directly afterward. If not for the parasitic draw, it was perfect.

I am sending it out to have the LCD screen replaced but before I do that, I"ve decided to replace the stepper motors and swap over the mounts from my original cluster.

If a Google search brought you here, you probably know why you need to replace these. But if you didn"t, here"s why: The fuel gauge and temperature gauge in the instrument cluster are electrically driven using stepper motors. When those motors begin to fail, you"ll end up with a gauge that sticks at the top or bottom of its swing, one that is erratic, or one that moves inconsistently. Often, replacing the stepper motor resolves the issue. Fortunately, replacing those stepper motors is straightforward and easy to do.

Replacement stepper motor (2) - I bought these from Tanin Auto Electronix. They are P/N TAEAUDI500-035 and were about $30 each. You"ll need two if you want to replace both the fuel gauge and the temperature gauge (you should do both if you do one).

A scan tool capable of putting the dashboard module into diagnostic mode. I"m using an Autel MaxiDAS. There are alternative methods I"ll discuss later, which will let you install needles without a scan tool but it is a trial and error process.

The stepper motors are attached to the circuit board. To get at them, we need to disassemble the cluster. For that, all you"ll need are a T10 Torx bit and a plastic smudger.

Use the T10 bit to remove the eight (8) Torx screws holding the white plastic back to the black plastic bezel. The bottom two Torx screws secure the spring for the vinyl steering wheel cover (thing). When removing those, keep an eye on the screws. They can shoot across the room when the spring compresses.

Each stepper motor is clipped to a pair of bosses which extend up from the circuit board. These bosses are white plastic and can be brittle. I"ve found that the easiest way to remove the motor is to use a pair of needle nose pliers and snap the little clips off where they attach to the circuit board. This will allow them to be lifted upward without risk of damage to the mounting bosses.

Once the little clips are broken, slip the smudger under the edge of the motor and pry upward. They should pop upward and come free of the board. Note that each contains a 3-pin connector which extends down into the circuit board. When lifted, that connector will come free as well.

Repeat this process until the needles point to the half-way point when the test is run. When you"re happy with the position of the needles, push them in place with the silver center portion sitting about a mm above the gauge face.

Reinstall the cluster in the car and keep an eye on the fuel and temperature gauges for a few days and make sure they are functioning correctly and pointing at the correct positions. If so, call this one done. If not, you"ll have to pull the cluster back out and go through the needle setting process again.

Volkswagen Group of America, Inc. (Volkswagen) is recalling certain 2016-2019 Audi TT Roadster Quattro and TT Coupe Quattro vehicles. In the event of a crash, the fuel tank may become damaged by the fuel tank heat shield bracket .

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

You can email the site owner to let them know you were blocked. Please include what you were doing when this page came up and the Cloudflare Ray ID found at the bottom of this page.

Lcd Display Screen Pixel Repair For Audi A3 A4 A6 Tt . This is a place where I express my thoughts, ideas, and experiences, and connect with a community of like-minded individuals. I am thrilled to have you join me on this journey of self-expression and exploration. Through this platform, I hope to share my passions, insights, and observations, and inspire meaningful conversations. Over the top of the display is a metal cover plate held on by 4 legs bent on the back of the pc board- straighten these and it comes off- work gently then you can remove the lcd glass- be careful don39t loose the 2 pieces of plastic behind the lcd glass- it will not work without both of these-

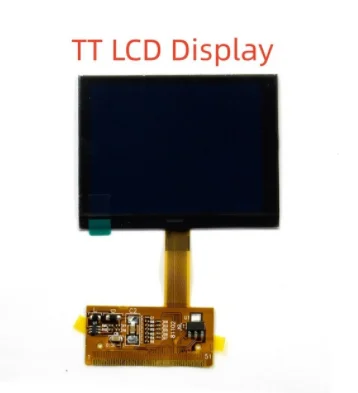

Audi concert car stereo system display pixel problem repairs: lcd pixel problems on the display of the audi concert radio"s display is also very common the ribbon cable replacement solves the problem for good. this cable is usable at those models which were assembled with "zebra strip" too. Fix the center mfa display screen on your audi instrument cluster yourself with a replacement lcd screen from tanin auto electronix. we"ll show you the proce. Lcd cluster tt display screen replacement for audi a3 4 a6 vdo volkswagen passat new $13.99 free shipping seller 100% positive us lcd display screen for audi tt instrument cluster speedometer repair new $16.59 free shipping audi tt 8n fis display lcd mfa pixelfehler reparatur tacho kombiinstrument refurbished $92.05 ($92.05 einheit) shipping. Audi vw lcd repair display screen not working replacement instrument cluster pixel repair instructions. Car styling lcd display screen pixel repair gauge cluster for audi tt 8n series for jaeger 1999 2005 car dash dashboard repair ; fit following cars with bosch, jaeger marelli clusters:audi s3 8l series from 1999 2003 ; audi tt 8n series from 1999 2006 ; audi a6 c5 4b series 1998 2004 bosch or jaeger only › see more product details.

Over the top of the display is a metal cover plate held on by 4 legs bent on the back of the pc board. straighten these, and it comes off. work gently!!! then you can remove the lcd glass. be careful, don"t loose the 2 pieces of plastic behind the lcd glass. it will not work without both of these. If you are experiencing the pixel loss & display failure problems with your audi speedometer cluster, it is time to fix it once and for all!! this listing is for the purchase of a service to repair your 1999 2005 audi tt (mk1), 1998 2001 (b5) a4, s4, 2000 2002 (c5) a6, 1999 2004 allroad instrument cluster center display readout. Repair of lcd display and 1 faulty gauge – £190 full repair – lcd and more than 1 gauge all other faults – £260 other common faults: dashboard lamps blinking pointers going up and down chaotically small displays don’t work dashboard totally dead car won’t start when cold 999999 problem mileage correction audi tt mk1 dash pod repair.

The following is a summary of article Lcd Display Screen Pixel Repair For Audi A3 A4 A6 Tt greatest After simply placing symbols one possibly can one piece of content into as much completely readers friendly editions as you like that individuals tell as well as present Writing stories is a rewarding experience for your requirements. We all receive good lots of Nice images Lcd Display Screen Pixel Repair For Audi A3 A4 A6 Tt beautiful photo however we all solely exhibit the actual about that people imagine are the best about.

The particular articles Lcd Display Screen Pixel Repair For Audi A3 A4 A6 Tt should be only regarding beautiful tryout considering such as the images remember to buy the unique reading. Assist the particular creator simply by purchasing the authentic sentences Lcd Display Screen Pixel Repair For Audi A3 A4 A6 Tt therefore the writter can offer the most effective image along with proceed working Here at looking for perform all sorts of residential and commercial assistance. you have to make your search to get your free quotation hope you are okay have a good day.

video in italiano this tutorial shows how to fix the missing – dreaded pixels issues on audi tt mk1 8n dashpod fis dis lcd display on the below is a list of the parts and tools we personally use in our facility: ✓pixel repair parts for audi: audi tt mk1 pixel repair audi vw lcd repair display screen not working replacement instrument cluster pixel repair instructions. below is a list of the parts and tools we personally use in our facility: ✓pixel repair parts for audi: audi tt mk1 pixel repair very high quality replacement audi tt a3 a4 a6 jaeger full and half size lcd screen with 1 years warranty from this video shows how to replace the fis dis lcd screen of audi a3 8p and audi tt 8j instrument panels with stuck or frozen instrument cluster & speedometer display repair pixelrepair audi a6 (b4) and audi a4 (b5) in this video we are replacing the audi tt lcd display, repair pixel incomplete fault,website: szwxydzyxgs . display exchange & repair for audi tt 8n in this video we exchange the lcd display of a audi tt combi instrument and install a find out how to replace the instrument clusters lcd display of following cars: • audi a2 (models from 2000 to 2005); • audi a3 audi tt speedometer lcd pixel repair. replacing the full screen, to fix failing pixels on the original screen. high quality
