I do not move the scanlines out of the DMA buffer. I consume the data in real time and free up the DMA buffer before it is needed again. There are two DMA buffers used alternately. So while the I2S hardware is filling one, we need to be emptying the other one.

So I keep the camera and the I2S capture engine running continuously. After each VSYNC I immediately stop and restart the I2S engine. More about that in a moment.

After each VSYNC I can momentarily stop and restart the I2S engine, but quickly enough so that I know the next scanline will be the first of the next frame.

I do this in case we do lose scanlines or pixels somehow. (I tested this by momentarily grounding the PCLK signal from the camera to confuse the I2S engine. Of course I get bad-looking frames, but once I remove

32-bit "set-these-bits-mask" with three one-bits in the correct places. Direct port writes allow us to also use a mask to clear all 8 data lines at once.

I CAN WALK AGAIN! yaaay.. Back in the lab making videos.This video is the first of a miniseries showing how to interface a camera to a microcontroller (ESP32...

The parts used here are the LOLIN32 microcontroller. Any ESP32 board can be used. The code is currently independent of the actual processor, so you can use also different platforms.

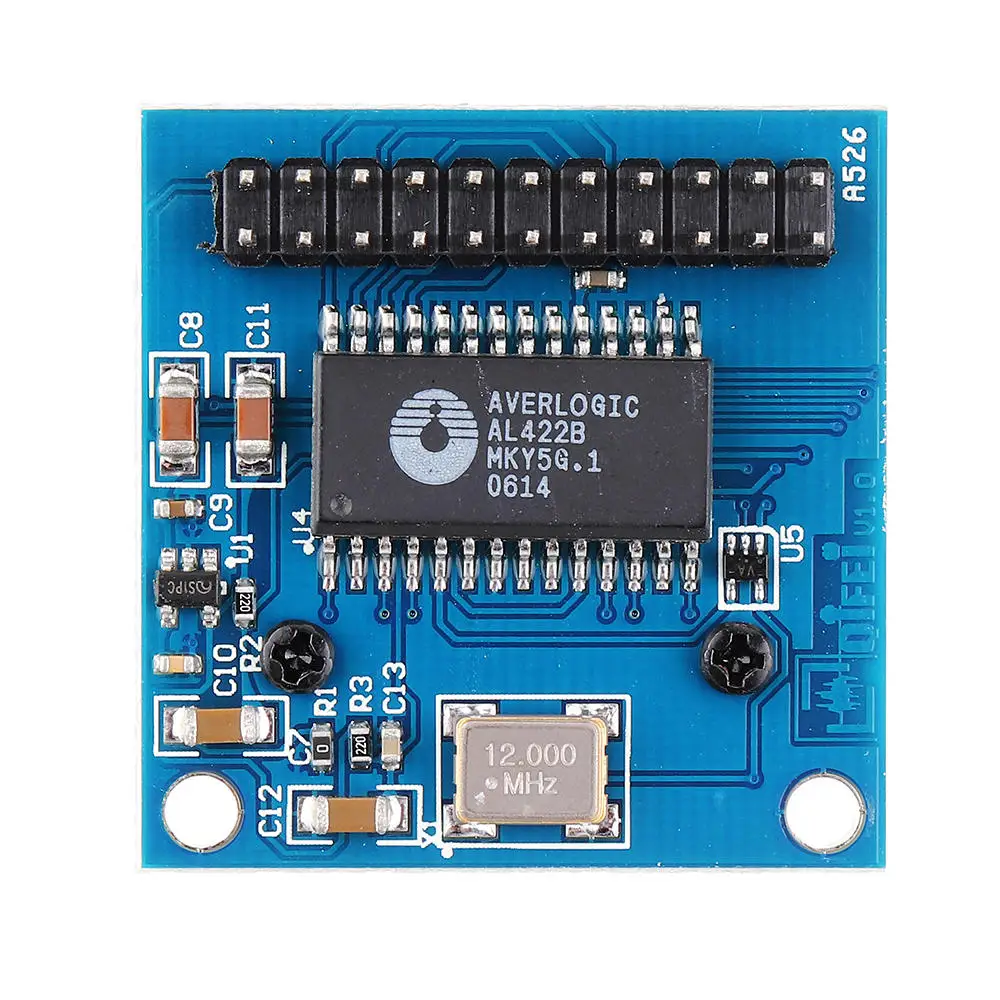

The camera is the cheap OV7670 with FIFO (AL422b). The camera supports up to VGA resolution but the FIFO can only store 3MBit. This is just sufficient for QQVGA or section of higher resolutions.

The “real-time” output is done on the 1.8″ SPI TFT display. Due to the single data line, the update rate is really limited. To be able to run the display on 3.3V the jumper on the back side must be closed.

The pin connections of the devices can also be found in the code. The definitions can be changed except for MOSI and SCK for the SPI interface which is native on these pins on the ESP32. Using other microcontrollers, the corresponding native SPI pins have to be used.

There are some limitations configuring the pins of the ESP32. Pins 34, 35, 36(VP), 39(VN) are read-only. Those can’t be used for I2C, the clock (XCLK) or TFT signals. Pins 0, 2 and 5 are used as boot signals. Those should not be used as inputs to avoid problems while programming. Pin 5 is also attached to the LED on the LOLIN32 board. Pins 6-11 (if available) are a no go since those are wired to the SPI flash memory connected to the ESP32.
