Think is, before I try to modify any library to bend it for the STM32L0 I wanted simply to check my SPI configuration by issuing a simpliest thing, reading LCD ID registers. But that"s the thing, I do not receive any data from ILI9341. I guess all registers are accessible right after the proper reset of the ILI9341, right? So, here is my "init" procedure:

please, see attached screen from my logic analyzer. You can see, CS is brrought low followed by eight clock pulses (500 kHz period) on SCK and 0x04 MSB first on the MOSI and with the DC set low. Afterwards, there is sequence of 4 dummy 0xFF bytes to push out the desired data out from the ILI9341 SPI buffer with the DC set high. But as you can see, there are only zeros on MISO line. Of course, the CS is brought up at the end. I"ve checked the wiring 10 times and I don"t think it is the problem. Maybe, are really all register accessible right after the start of the ILI9341? Or do I have to wirte some data somewhere first?

Over the last few weeks I have been trying to get the TFT display to work with ESP32 and BPL. I used 4.2pre downloaded 8 Jan 2022 with VSCODE WIN10, and unmodified this works OK.

Builds and uploads with no errors BUT BPL is not working, can"t connect to web page and the OLED freezes. No TFT colour change. I have tried placing the tft.init in several places in the BrewPiless.cpp file but it still doesn"t work.

Now I am stuck! It looks as if the tft.init() under the void setup(void){, while compiling, upsets BPL operation. I don’t know enough about programming or the structure of BPL to know how to solve this problem.

My PCB board size is about 100mm-80mm (all hand soldered with a hot air tool, soldering iron, heat bed not to blow my own trumpet, but I am very good at pcb assembly by hand + I find it therapeutic).

So after half a days soldering, I fire up the board and excellent, the ILI9341 is running at a clock speed of 100mhz (not scoped), lightning fast! Dropped the speed to a more reasonable 20mhz and left overnight for a board test (i always do this, as i have lipos connected etc and like to see if there are any heat issues etc after a 24h run). Found no issues the next morning, graphics test still running so powered off the device.

Powered back up after my return from work @20mhz and the graphics test worked fine. Enabled my SD circuitry (solder jumpers), reran the test and both the ILI9341 and SD were both running sweet.

No changes made, powered up on the third day, and nothing but a white screen on the ILI9341? So i say, must have blew the t4 some how. Hot air removed the t4, on goes the new one and again a few runs later and i get a white screen again? Checked all my pin assignments, voltages and they are all good.

I came to the conclusion that as I was forcing the T4 to be powered of of 3v3 as per (https://forum.pjrc.com/threads/64468...V-power-supply) this was somehow messing with the SPI communication. I canned the T4 and designed and built a T4-SAMD51 clone.

I picked up the project again today and de-soldered my SAMD51 T4 clone pcb as I need speed! The T4 would have been perfect, so tried a few code changes, got the screen running in the setup function (static text etc), but as soon as it enters the loop(), you guessed it....white screen. Its as if the t4 is too fast on spi or something, but I have changed the clock speeds down to 5mhz and yield the same results...

To confirm, I had the T4 intermittently working on both the adafruit ili9341 library and the optimised ili9341_t3. I"ve been through 3 T4s and I have 5 different ILI934 displays. (all give the same results, pull ups, no pullups, removed sd circuitry, ran the T4 at 5v I"ve tried it all!)

I ordered a cheap 2.8 inch ILI9341 screen from Amazon (https://www.amazon.co.uk/240x320-Screen-Serial-Module-ILI9341/dp/B07MXH92RL/ref=sr_1_12?dchild=1&keywords=spi+screen&qid=1589230039&sr=8-12) in the hopes of using it in a custom handheld Retropie console. However, I have attempted many different methods, none of which seem to work. I have reason to believe that the screen is not faulty as, when I give power to the backlight, it lights up, so I think that this is a software issue. Does anybody know how I can configure it to work? Many thanks, Dominic.

Now I am testing Back Lit. I found that my guess was wrong. The pin BL is not LED anode, but Low level on. I used a multimeter to check that the current from BL pin to ground is 2.5mA. So I now guess BL is not a signal pin but a pull down LED power pin, sinking 2.5 mA to switch on Back Lit LED. Anyway, I am glad that now I have a huge size 2.8" white LED! :)

Now I have loaded the kernel module fbtft_device name = ici9341. I can also listed the module. But I found that I made another wrong guess - four SPI signal wires are not enough, I also need 3 more GPIO wires RST, DC (select Data or Command mode), and BL (back lit), ... :(

My ICI9341 SPI cable V2.0 does not work, because the signals Touch LCD RST and RS (Register Select) or DC (Data Command Mode Select) are missing. So I have assembled V3.0.

I just found that my Rpi3B+ with Raspbian 2019Apr version already has a fbtft kernel driver which sadly is not the ici I ma using. So I need to build a driver myself. I found the following driver tutorial but found it very tedious. Trying it this Sunday afternoon might corrupt my Rpi OS. So I decided to stall this part of project for a couple of days, to allow me to go through slowly the tutorial.

Could you explain why the resisters are needed? Also, How would you use the 4050 IC rather than the resisters. I just purchased two of these LCDs from Amazon and was going to return them because I didn"t think they worked. I have the resisters at home and will try the them first. It would be great to see the same schematic picture with the 4050 as well. Most importantly though is the why. I really want to understand why it"s all needed and why I"m not seeing anything wired up without the resisters. Thanks !!!!

EDIT as of 12/29/2019 Usage with Arduino connect as usual but power your Arduino with 3.3 volts (just connect 3.3 to the 5V pin on the arduino). Alternatively you can put a 1K series resistor on all pins to drop the voltage going to the unit (and power with 3v3). THESE UNITS WILL NOT WORK IF POWERED WITH 5 AND IF THE SIGNAL LINES ARE 5 VOLTS.

(The following is the touch screen signal line wiring, if you do not need to touch function or the module itself does not have touch function, you can not connect them)

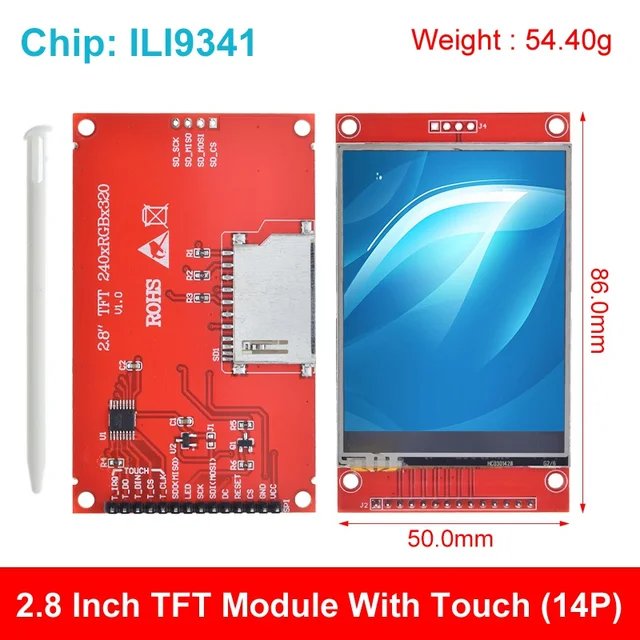

This 2.8″ TFT LCD is a full color display with a resolution of 240 x 320 pixels or 320 x 240 pixels depending on how it is oriented.  It uses the ILI9341 controller with SPI interface.  It also includes a resistive touchscreen with built-in XPT2046 controller.

These modules are breadboard friendly with a 14-pin header on the back that can be inserted into a solderless breadboard or a 14-pin female connector can be used to connect to it if the display is to be mounted.  The display is mounted on a stiff PCB that provides good support, but be sure to press on the header pins or PCB when applying pressure to insert them into a breadboard and not press on the glass to avoid possible damage.

I’m also using the Teensy 4.1 because it is currently the fastest Arduino compatible board (600MHz 32-bit vs Uno 16MHz 16-bit) and this example application of calculating Mandelbrot fractals and updating the LCD can take a long time on an Uno (77-105 seconds) and only takes about 1.25 seconds on the Teensy 4.1.  If using a 3.3V Arduino like a Due, hookup will basically be the same.

Connect the SPI and control lines for the display.  In our example we are using hardware SPI as it gives the best performance.   The SPI pin location will depend on the MCU you are using.

If you just want to check the display functionality and speed, the ‘graphicstest’ example program installed as part of the Adafruit_ILI9341 library is a good one to run.

The program below is a modified version of the Mandelbrot example program that gets installed with the Adafruit_ILI9341 library.  It was pruned down in size and basic touch added.  The program just calculates the Mandelbrot set and draws it to the screen pixel-by-pixel as it is calculated.  The math is fairly intense for each pixel, so it is a good judge of the power of the MCU.  The display update speed is thus limited by the MCU that is doing the calculations and is not limited by the display itself.
