Pixel, also called Picture Element, A pixel is the smallest unit of a digital image or graphic that can be displayed and represented on a digital display device. A pixel is the basic logical unit in digital graphics. Pixels are combined to form a complete image, video, text, or any visible thing on a computer display

LCD display doesn’t operate the same way as CRT displays , which fires electrons at a glass screen, a LCD display has individual pixels arranged in a rectangular grid. Each pixel has RGB(Red, Green, Blue) sub-pixel that can be turned on or off. When all of a pixel’s sub-pixels are turned off, it appears black. When all the sub-pixels are turned on 100%, it appears white. By adjusting the individual levels of red, green, and blue light, millions of color combinations are possible

The pixels of the LCD screen were made by circuitry and electrodes of the backplane. Each sub-pixel contains a TFT (Thin Film Transistor) element.  These structures are formed by depositing various materials (metals and silicon) on to the glass substrate that will become one part of the complete display “stack,” and then making them through photolithography. For more information about TFT LCDs, please refer to “

The etched pixels by photolith process are the Native Resolution. Actually, all the flat panel displays, LCD, OLED, Plasma etc.) have native resolution which are different from CRT monitors

HD TV has 1280×720 = 921,600 pixels; Full HD has 1920x 1080=2,073,600 pixels; 8K TV has 7,680×4,320=33,177,600 pixels. he “K” in 8K stands for Kilo (1000), meaning a TV that has achieved a horizonal resolution of about 8,000 pixels.

Although we can define a LCD display with resolution, a Full HD resolution on screen size of a 15” monitor or a 27” monitor will show different. The screen “fineness” is very important for some application, like medical, or even our cell phone. If the display “fineness” is not enough, the display will look “pixelized” which is unable to show details.

A lot of times, we heard about what is the DPI of your monitor, actually it is not a exact correct saying. Please find the definition of DPI and PPI as below.

DPI stands for dots per inch and refers to the resolution of a printer. It describes the density of ink dots placed on a sheet of paper (or another photographic medium) by a printer to create a physical print.

PPI stands for number of pixels per inch. It is kind of pixel density. PPI describes the resolution of a digital image, not a print. PPI is used to resize images in preparation for printing

But you see other lower resolution available, that is because video cards are doing the trick. A video card can display a lower LCD screen resolution than the LCD’s built-in native resolution. The video cards can combine the pixels and turn a higher resolution into lower resolution, or just use part of the full screen. But video cards can’t do the magic to exceed the native resolution.

Abbreviation: QVGA, VGA, HD, FHD, 1080p, 1440p, 4K etc. It is very straight forward for different applications. For TV buyers, they can simply focus on 4K, 8K etc; for industrial engineers, they most likely focus on VGA, HD, WVGA etc.

Aspect Ratio:  You might hear 4:3 which is full screen, 16:9 is for widescreen; 21:9 is for ultrawide computer monitors and televisions, as well as cinematic widescreen projectors. Some ultrawide monitors are trying to replace dual monitor.

Special names by individual companies: Apple Macbook Pro Retina 6K display, Acer Nitro, ASUS Pro Art , ViewSonic Elite, ASUS TUF ,Samsung edge Infinity-O Display etc.

Many companies have adopted Thin Film Transistor (TFT) technology to improve colour screens. In a TFT screen, also known as active matrix, an extra matrix of transistors is connected to the LCD panel – one transistor for each colour (RGB) of each pixel. These transistors drive the pixels, eliminating at a stroke the problems of ghosting and slow response speed that afflict non-TFT LCDs.

When introduced, TFTs offered screen response times of the order of 25ms, contrast ratios in the region of 200:1 to 400:1 and brightness values between 200 and 250cd/m2 (candela per square metre). At time of writing an affordable 19 LCD TFT monitor should give response time sub 5ms and brightness in the region of 300cd/m2.

The liquid crystal elements of each pixel are arranged so that in their normal state (with no voltage applied) the light coming through the passive filter is polarised so as to pass through the screen. When a voltage is applied across the liquid crystal elements they twist by up to ninety degrees in proportion to the voltage, changing their polarisation and thereby blocking the light’s path. The transistors control the degree of twist and hence the intensity of the red, green and blue elements of each pixel forming the image on the display.

TFT screens can be made much thinner than LCDs, making them lighter, and refresh rates now approach those of CRTs as the current runs about ten times faster than on a DSTN screen. VGA screens need 921,000 transistors (640x480x3), while a resolution of 1024×768 needs 2,359,296 and each has to be perfect. The complete matrix of transistors has to be produced on a single, expensive silicon wafer and the presence of more than a couple of impurities means that the whole wafer must be discarded. This leads to a high wastage rate and is the main reason for the high price of TFT displays. It’s also the reason why in any TFT display there are liable to be a couple of defective pixels where the transistors have failed.

The former is the more common and is the result of a transistor occasionally shorting on, resulting in a permanently turned-on (red, green or blue) pixel. Unfortunately, fixing the transistor itself is not possible after assembly. It is possible to disable an offending transistor using a laser. However, this just creates black dots which would appear on a white background. Permanently turned on pixels are a fairly common occurrence in LCD manufacturing and LCD manufacturers set limits – based on user feedback and manufacturing cost data – as to how many defective pixels are acceptable for a given LCD panel. The goal in setting these limits is to maintain reasonable product pricing while minimising the degree of user distraction from defective pixels. For example, a 1024×768 native resolution panel – containing a total of 2,359,296 (1024x768x3) pixels – which has 20 defective pixels, would have a pixel defect rate of (20/2,359,296)*100 = 0.0008%.

Clearly, TFT panels have undergone significant evolution since the days of the early twisted nematic (TN) technology based panels. On the next few pages we’ll look at how IPS (In-Plane Switching), VA (Vertical Alignment) and MVA (Multi-domain Vertical Alignment) have been developed by manufacturers to enhance the performance of TFT LCD monitors.

In a TFT LCD (thin-film-transistor liquid-crystal display), each pixel has three sub-pixels: a red, green and blue. Each of these sub-pixels has its own transistor which allows the individual pixel to be turned on or off. These pixels and transistors are contained within a layer of insulating liquid between other transparent layers. Pixel size defects on the display can result from malfunctioning transistors or uneven distribution of this insulating liquid inside the display.

There are two main pixel level defects with LCDs -- dead pixels and stuck pixels. These are actually two separate issues, but the words are often used interchangeably. Dead pixels usually occur because the pixel transistor is defective and permanently stuck in an "off" state. The problematic pixel will usually be completely black. Unfortunately, a transistor issue is not fixable but still worth addressing because it"s hard to identify and may actually be a fluid distribution issue. The manufacturer may have an acceptable limit for dead pixels, above which they will replace the monitor, bu these policies vary depending on manufacturer. Stuck pixels, on the other hand, can be due either to poor insulating liquid distribution, or transistors stuck in an "on" state on a particular color. Liquid distribution issues are often fixable, but transistor issues are not.

Stuck pixels due to uneven insulating fluid distribution can often be fixed by applying pressure to the area of the pixel. First turn off the monitor, then get a soft cloth and a pen or eraser with a dull and rounded end. Fold the cloth in two, put it on the monitor in the problem pixel area, then apply some slight pressure onto the cloth with the pen or eraser. Continue applying pressure while you turn the monitor on and see if the pixel color has reset. You could also simply use a pencil eraser and softly rub it directly onto the problem pixel. Try your finger or other methods to create a pressure point and attempt to massage the display.

An alternate method to fix a stuck pixel is by tapping. Keep the monitor on and use a screensaver or blanker to display a black screen or window. First find an item with a dull and rounded end, such as a pencil eraser end, pen end, or a sharpie with the cap on. Items used in the previous method will work just fine. The difference here is that you"ll tap the pixel location on the screen directly with this item, and without using any cloth. Apply enough pressure so you see a small, white glow when you press on the screen. Do this a couple of times and then switch to a white screen or window and see if the pixel is unstuck.

If the previous methods did not work, you can try software designed to locate or fix dead or stuck pixels. DeadPixelTester runs various display tests to help you locate problem pixels but does not attempt flashing colors to try and fix them. UDPixel and PixelRepairer both help to find dead or stuck pixels and can attempt to fix these issues by rapidly flashing colors onto sections of the screen. These software suggestions are all Windows-based freeware. Note that the display of rapidly flashing screens may trigger seizures and epileptic attacks, so use these with care.

Michael Martinez has been working with computers since 1993. He fondly remembers the launch of Windows 95 and the original Pentium processors. Martinez has a Bachelor of Science in computer science.

When compared to the ordinary LCD, TFT LCD gives very sharp and crisp picture/text with shorter response time. TFT LCD displays are used in more and more applications, giving products better visual presentation.

TFT is an abbreviation for "Thin Film Transistor". The colorTFT LCD display has transistors made up of thin films of Amorphous silicon deposited on a glass. It serves as a control valve to provide an appropriate voltage onto liquid crystals for individual sub-pixels. That is why TFT LCD display is also called Active Matrix display.

A TFT LCD has a liquid crystal layer between a glass substrate formed with TFTs and transparent pixel electrodes and another glass substrate with a color filter (RGB) and transparent counter electrodes. Each pixel in an active matrix is paired with a transistor that includes capacitor which gives each sub-pixel the ability to retain its charge, instead of requiring an electrical charge sent each time it needed to be changed. This means that TFT LCD displays are more responsive.

To understand how TFT LCD works, we first need to grasp the concept of field-effect transistor (FET). FET is a type of transistor which uses electric field to control the flow of electrical current. It is a component with three terminals: source, gate, and drain. FETs control the flow of current by the application of a voltage to the gate, which in turn alters the conductivity between the drain and source.

Using FET, we can build a circuit as below. Data Bus sends signal to FET Source, when SEL SIGNAL applies voltage to the Gate, driving voltage is then created on TFT LCD panel. A sub-pixel will be lit up. A TFT LCD display contains thousand or million of such driving circuits.

Topway started TFT LCD manufacturing more than15 years ago. We produce color TFT LCD display from 1.8 to 15+ inches with different resolutions and interfaces. Here is some more readings about how to choose the right TFT LCD.

TFT (Thin-Film Transistor) Displays are active-matrix LCDs with full RGB color screens. These screens feature bright, vivid colors and have the ability to show fast animations, complex graphics and crisp custom fonts. TFTs are perfect displays for providing a rich user interface for all types of products. While typically used in consumer devices like personal DVD players and handheld devices, TFTs are also well suited for industrial application.

TFTs are Active-Matrix LCDs that have tiny switching transistors and capacitors. These tiny transistors control each pixel on the display and require very little energy to actively change the orientation of the liquid crystal in the display. This allows for faster control of each Red, Green and Blue sub-pixel cell thus producing clear fast-moving color graphics.

The transistors in the TFT are arranged in a matrix on the glass substrate. Each pixel on the display remains off until addressed by applying a charge to the transistor. Unlike conventional Passive-Matrix displays, in order to activate a specific pixel, the corresponding row is turned on and a charge is sent down the proper column. This is where only the capacitor at the designated pixel receives a charge and is held until the next refresh cycle. Essentially, each transistor acts as an active switch. By incorporating an active switch, this limits the number of scan lines and eliminates cross-talk issues.

The main problem with TN Film technology is that viewing angles are pretty restrictive, especially vertically, and this is evident by a characteristic severe darkening of the image if you look at the screen from below. Contrast and colour tone shifts can be evident with even a slight movement off-centre, and this is perhaps the main drawback in modern TN Film panels. Some TN Film panels are better than others and there have been improvements over the years to some degree, but they are still far more restrictive with fields of view than other panel technologies.

MVA (Multi-domain Vertical Alignment) displays can offer wide viewing angles, good black depth, fast response times, and good color reproduction and depth. Each pixel within a MVA type TFT consists of three sub-pixels (Red, Green and Blue). Each of these sub-pixels is divided further into two or more sub-pixels, where the liquid crystals are randomly lined up due to the ridged polarized glass. When a charge is applied to the transistor, the crystals twist. With these crystals being randomly placed, it allows the backlight to shine through in all different directions keeping the intended color saturation retained while giving the display a 150deg. viewing angle.

In-Plane Switching (IPS) TFTs were developed to improve on the poor viewing angle and the poor color reproduction of TN TFT panels at that time. The crystal molecules move parallel to the panel plane instead of perpendicular to it. This change reduces the amount of light scattering in the matrix, which gives IPS its characteristic wide viewing angles and good color reproduction. Because of its wide viewing angle and accurate color reproduction (with almost no off-angle color shift), IPS is widely employed in high-end monitors aimed at professional graphic artists.

The name In-Plane Switching comes from the crystals in the cells of the IPS panel lying always in the same plane and being always parallel to the panel’s plane (if we don’t take into account the minor interference from the electrodes). When voltage is applied to a cell, the crystals of that cell all make a 90-degrees turn. By the way, an IPS panel lets the backlight pass through in its active state and shutters it in its passive state (when no voltage is applied), so if a thin-film transistor crashes, the corresponding pixel will always remain black, unlike with TN matrices.

IPS (In-Plane Switching) displays provide consistent, accurate color from all viewing angles without blur or grayscale inversion. IPS displays show clear images with fast response time, and no halo effect is produced when touched. Each pixel within an IPS type TFT consists of three sub-pixels (Red, Green and Blue). Each sub-pixel has a pair of electrodes to control the twisting of the Liquid Crystals. Unlike TN type TFTs where the electrodes are on opposing plates, the electrodes in an IPS TFT are on only one of the glass plates (i.e. in the same plane). When voltage is applied to the electrodes, all the Liquid Crystal molecules align in parallel with that plane and allow light to pass through to the polarizers and RGB color filters. In effect, TN displays force the Liquid Crystal molecules perpendicular to the glass which blocks some light from coming out at wide angles, while IPS displays keep the Liquid Crystal molecules in line to allow light through at all angles.

Low-temperature polycrystalline silicon (LTPS) is polycrystalline silicon that has been synthesized at relatively low temperatures (~650 °C and lower) compared to in traditional methods (above 900 °C). LTPS is important for display industries, since the use of large glass panels prohibits exposure to deformative high temperatures. More specifically, the use of polycrystalline silicon in thin-film transistors (LTPS-TFT) has high potential for large-scale production of electronic devices like flat panel LCD displays or image sensors.

Polycrystalline silicon (p-Si) is a pure and conductive form of the element composed of many crystallites, or grains of highly ordered crystal lattice. In 1984, studies showed that amorphous silicon (a-Si) is an excellent precursor for forming p-Si films with stable structures and low surface roughness. Silicon film is synthesized by low-pressure chemical vapor deposition (LPCVD) to minimize surface roughness. First, amorphous silicon is deposited at 560–640 °C. Then it is thermally annealed (recrystallized) at 950–1000 °C. Starting with the amorphous film, rather than directly depositing crystals, produces a product with a superior structure and a desired smoothness. In 1988, researchers discovered that further lowering temperature during annealing, together with advanced plasma-enhanced chemical vapor deposition (PECVD),could facilitate even higher degrees of conductivity. These techniques have profoundly impacted the microelectronics, photovoltaic, and display enhancement industries.

Transflective LCDs combine elements of both transmissive and reflective characteristics. Ambient light passes through the LCD and hits the semi-reflective layer. Most of the light is then reflected back through the LCD. However some of the light will not be reflected and will be lost. Alternately a backlight can be used to provide the light needed to illuminate the LCD if ambient light is low. Light from the backlight passes through a semi-reflective layer and illuminates the LCD. However as with ambient lighting some of the light does not penetrate the semi-reflective layer and is lost.

Transflective LCDs are used in devices that will operate in a wide variety of lighting conditions (from complete darkness to full sunlight). Under dim lighting conditions transflective LCDs offer visual performance similar to transmissive LCDs, whilst under bright lighting conditions they offer visual performance similar to reflective LCDs. However this performance is a tradeoff because the transflective mode is less efficient due to some light loss.

A simple transflective display is shown as below, in which there are two regions, T and R respectively. The cell gap in two regions are different, dT = 2*dR. This is to maintain the reflection and transmission from two regions are the same intensity, and give same color reproduction, because in the T region, light only goes through the LC layer once, while in the R region, light passes through twice.

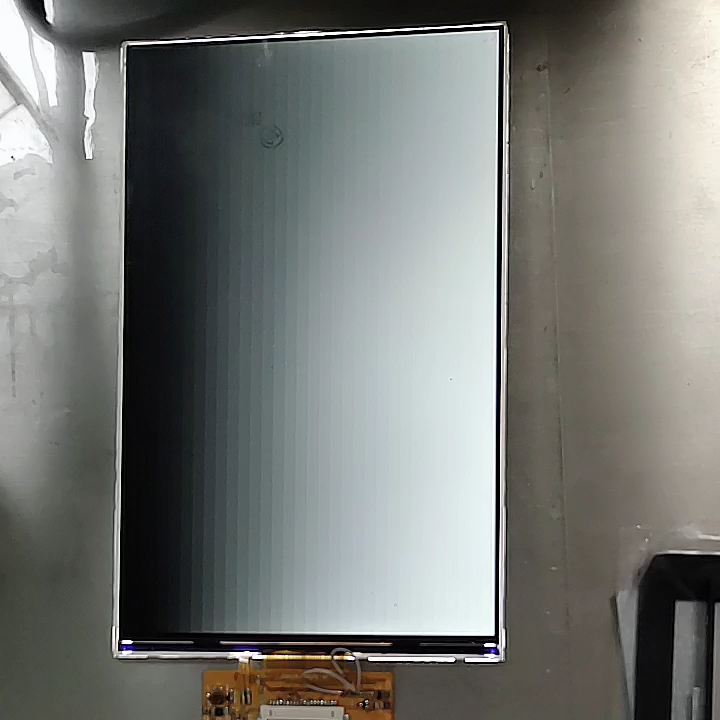

HannStar Display model NMLCD-061IDW1-B00 is a color active matrix thin film transistor (TFT) liquid crystal (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 6.06 (16:10) inch diagonally measured active display area 800x400 dot (800 horizontal by 480 RGB vertical pixel ) resolution.

That annoying dead pixel on your TFT, OLED, or LCD screen might just be stuck and easy to fix. We"ll show you how to do it. You can still return your monitor if this doesn"t work; nothing we recommend here will void your warranty.

Yes, you should test any new monitor for bad pixels. You can simply run your screen through a palette of basic colors, as well as black and white in full-screen mode using a tool like EIZO Monitor Test.

EIZO Monitor Test is an online tool that lets you find and eventually fix stuck pixels. It packs many options into a single test window, but it"s easy to use once you have an overview.

To test your screen, check all the boxes you want to include in your test. We recommend the default setting of having all boxes checked. If you"re testing multiple monitors, you can open the test on an additional monitor. When you"re ready, click Start test to launch the full-screen test window.

Below you see the first test pattern. Each screen has an explainer in the bottom right detailing what you should look for. Next, you"ll see a menu that lets you go from one test to the next on the left. Move through the black and white screens and all the solid colors (green, blue, and red) and check our screen. To exit, press the ESC key or the exit symbol in the top right.

This is a very thorough test not only meant to identify bad pixels but also powerful enough to test the quality of your monitor. Unfortunately, with Flash no longer supported by most browsers, you"ll probably have to use the executable version to make it work.

Move the mouse to the top of the test window, and a menu will appear. There is an info window that you can turn off with a button in the top right corner of the menu. Then click on the Homogenuity test point and move through the three colors as well as black and white.

Fingers crossed, you won"t discover anything out of the ordinary. In the unfortunate case that you do, let"s see whether it"s a stuck or a dead pixel and what you can do about it.

A stuck pixel, sometimes wrongfully referred to as a hot pixel, is defective because it receives incomplete information. Hence, it appears in one of the colors that its three sub-pixels can form, i.e., red, green, or blue. Strictly speaking, hot pixels only appear in digital cameras when electrical charges leak into the camera"s sensor wells. Sometimes, stuck pixels fix themselves.

In a dead pixel, all sub-pixels are permanently off, which will make the pixel appear black. The cause could be a broken transistor. In rare cases, however, even a black pixel may just be stuck.

Unfortunately, you can"t fix a dead pixel. You can, however, fix a stuck pixel. As I explained above, it"s hard to tell the two apart. Either way, these are the methods you can try:

Finally, you can try a manual method that involves rubbing the stuck pixel with a damp cloth or a pointy but soft item, like the rubber/eraser at the end of a pencil.

The tool will load a black browser window with a square of flashing pixels. Press the green button in the bottom right to go full-screen. Drag the flashing square to where you found the stuck pixel and leave it there for at least 10 minutes.

UDPixel, also known as UndeadPixel, is a Windows tool. It can help you identify and fix pixels using a single tool. The program requires the Microsoft .NET Framework. If you"re not on Windows or don"t want to install any software, scroll down for the online tools below.

Should you spot a suspicious pixel, switch to the Undead pixel side of things, create sufficient amounts of flash windows (one per stuck pixel), and hit Start. You can drag the tiny flashing windows to where you found odd pixels.

The PixelHealer lets you flash a combination of black, white, all basic colors, and a custom color in a draggable window with customizable size. You can even change the flashing interval and set a timer to close the app automatically.

Let it run through all colors in Auto mode to spot whether you have any weird pixels on your screen. If you do, start the fix, which will rapidly flash your entire screen with black, white, and basic color pixels.

Should none of these tools resolve your stuck or dead pixel issue, here is one last chance. You can combine any of the tools detailed above and the magic power of your own hands. There is a very good description of all available techniques on wikiHow. Another great step-by-step guide can be found on Instructables.

This works because, in a stuck pixel, the liquid in one or more of its sub-pixels has not spread equally. When your screen"s backlight turns on, different amounts of liquid pass through the pixel to create different colors. When you apply pressure, you"re forcing the liquid out, and when you release the pressure, chances are the liquid will push in, spreading around evenly as it should.

When all attempts to revive your bad pixel fail, the next best thing you can do is to make peace with it. One ugly pixel won"t break your screen, and eventually, you"ll forget about it. If the defect affects more than a single pixel, however, or just bothers you a lot, you can always replace your monitor.

First, check the warranty. The manufacturer or the marketplace where you purchased the monitor might cover dead pixels. Note that most manufacturers define a maximum number of allowable bad pixels for specific resolutions, and the warranty won"t apply until your monitor crosses that threshold.

Bright or dark sub-pixels can occur during the production of the LCD Monitor panel but does not affect the LCD Monitor functionality. The customer may notice the bright or dark spots if the film of the liquid crystal does not perform as expected while customers uses the LCD monitor. However, this is not considered a defect unless the number of bright and dark subpixels exceeds the maximum allowable threshold (...)

On a monitor with over 12 million pixels (Wide QXGA+, 2560x1600 pixels), for example, LG"s pixel policy says that 12 bright or dark sub-pixels is the maximum you have to tolerate.

Should all of these approaches fail to fix your dead pixel warrior, at least you"ll now know it"s not simple to fix, and, you might actually have to replace the screen.

This application note is part 1 of our 2 part TFT LCD screen series. Part 1 discusses configuring the screen resolution of a TFT with a Raspberry Pi. Part 2 discusses calibrating the touch screen of a TFT. Click here to read part 2.

This application note discusses how to setup a TFT touch screen display with Raspberry Pi. The display chosen for this project is a 7-inch LCD with a capacitive touch feature. The display has 1024x600 pixels of resolution and when calibrated for the Raspberry Pi can display 16.7M colors. With a few changes to the Raspberry Pi configuration files the dimensions of this display can be matched for perfect resolution.

The display in this project is easy to interface with the Raspberry Pi because it has an LVDS to HDMI backpack adapter connected. This makes it simple to connect an HDMI cable between the two devices and begin your project. In a few steps any display can be configured for optimal resolution. Additionally, this display has a capacitive touch screen which can be calibrated through Raspberry Pi for accuracy. These features combined with the large size of the display make it a great choice for a variety of Raspberry Pi projects.

Connecting the TFT to the Raspberry Pi is simple and only requires a few steps. The display has a HDMI connection backpack interfaced with the device so there is no need for soldering or individual pin connections. If you have used Raspberry Pi before, you will notice that the connection to the TFT is standard and straightforward. Before powering the Raspberry Pi you should make all the necessary connections to the screen. Plug in the HDMI. Connect the CTP port with a micro-USB cable. Power the screen with micro-USB cable connected to a USB port on the Raspberry Pi or a power adapter that provides 5V. You only need three connections to the HDMI backpack module on the TFT.

You will need a mouse and keyboard to setup the Raspberry Pi before the touch screen is enabled. You will also need a micro SD card with Noobs loaded onto it before powering. (Installing NOOBS) Lastly you will need an ethernet cable to setup internet to download or update the software. Once you power the Raspberry Pi, Noobs will give you some options of what software platform you want to install. For this project I chose Raspbian (recommended option). (Installing Raspbian) After installation you will likely notice that the graphics are distorted or that the width and height of the screen are not the desired dimensions. This is because Raspberry Pi’s auto-calibrate feature doesn’t recognize this display. So, to get the best picture, we will need to calibrate it manually.

If it’s not terrible, and you can still see what you’re doing on the display, you can do this through Terminal. We want to edit the “config.txt” which loads from the boot file. The other option is to remove the SD card and load the file on the computer or setup SSH and edit the file remotely.

The file will open in a text editor called nano. We need to add the specifics of our display to the file by adding the following commands to the file:

The last three fields of hdmi_cvt can be omitted, and they will refer to the default values. The other commands declare the use of HDMI and create a new mode for the hdmi_cvt specifications. For detailed information on these commands and others that function in the config.txt file refer to the Raspberry Pi documentation website.

If the screen is still not perfectly configured for the device, a few other tweaks can be made to the config.txt file. Adjust the overscan parameters to add or remove pixels on the edges. For example, adding 33 pixels to the “overscan_right” parameter corrects overflow of the image on the right side of the screen. This takes a few trial and error attempts to perfect.

If you notice that turning safe mode off results in a blank screen you could have a bad HDMI connection. First try another HDMI cable. If this does not fix the problem, then we can increase the signal strength of the HDMI by editing the config_hdmi_boost command in the config.txt file. The standard setting in the configuration file is set as:

This default value is 2 and can be increased up to 11 if necessary. Try adding this command at increased increments until the issue is solved. You will need to edit the config.txt file on your computer or remotely for this step.

With only a few changes to the Raspberry Pi’s default configuration file the TFT can become compatible with the Raspberry Pi. This display is a great choice for interfacing with the Raspberry Pi because it has an HDMI connection type which makes for any easy setup. After the resolution and is set to a desired value we can now optimize the touch feature of the display. See here for more information on how to further calibrate this display.
