Technical Specifications of 7-Inch LCD Displays: A Comprehensive Guide for the Display Industry

In the fast - evolving display industry, 7-inch LCD (Liquid Crystal Display) panels have emerged as a versatile solution, widely used in applications ranging from automotive navigation and industrial control to consumer electronics and medical devices. Their compact size, balanced display area, and customizable technical specifications make them a popular choice for both portable and embedded systems. This article delves into the key technical specifications of 7-inch LCD displays, optimized for Google SEO to enhance visibility and provide in - depth insights for manufacturers, designers, and end - users.

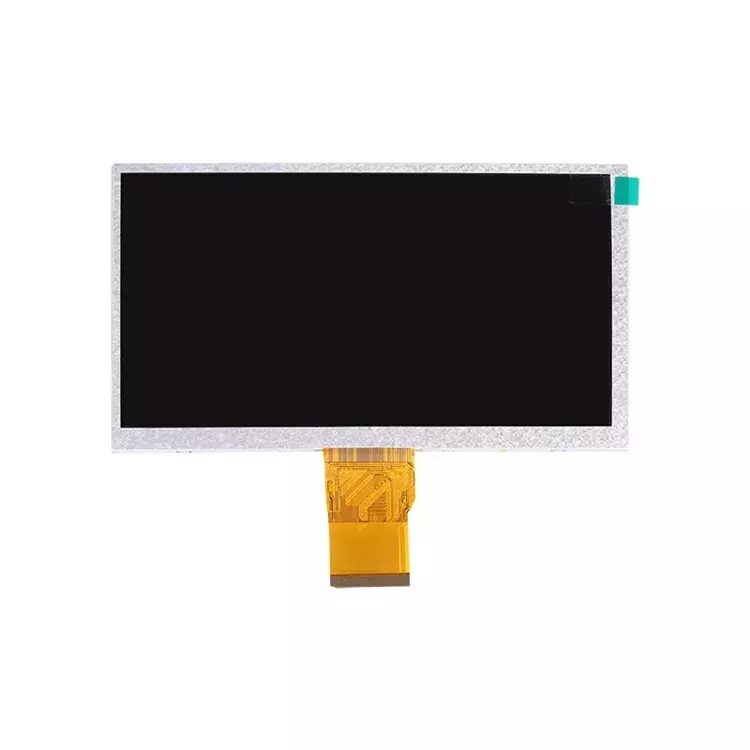

A standard 7-inch LCD display features a diagonal screen size of 7 inches (177.8 mm), with typical active area dimensions of approximately 154 mm (width) × 86 mm (height) for a 16:9 aspect ratio. The thickness of the display module varies based on technology and application:

• Standard TFT-LCD: 3–5 mm (without backlight and housing)
• High-brightness Industrial Models: 5–8 mm (incorporating robust backlight units and protective layers)

The most common aspect ratios for 7-inch LCDs are:

• 16:9: Ideal for multimedia and video applications (e.g., car infotainment systems), with typical resolutions of 800×480 (WVGA) or 1024×600 (WSVGA).
• 4:3: Suited for industrial HMI (Human-Machine Interface) and medical devices, often featuring resolutions like 800×600 (SVGA).

Pixel pitch, the distance between adjacent pixels, ranges from 0.195 mm (for 1024×600) to 0.243 mm (for 800×480), directly impacting visual sharpness and pixel density (PPI, Pixels Per Inch).

• Advantages: Fast response time (1–5 ms), cost-effective, suitable for basic visual tasks.
• Drawbacks: Limited viewing angles (typically 160° horizontal/140° vertical), moderate color accuracy.
• Applications: Low-cost consumer devices, simple industrial indicators.

• Advantages: Wide viewing angles (178° horizontal/vertical), accurate color reproduction (ΔE < 5), stable performance across temperatures.
• Drawbacks: Slightly slower response time (5–10 ms), higher power consumption.
• Applications: Automotive displays, medical monitors, high-end consumer electronics.

• Advantages: High contrast ratio (3000:1+), deep blacks, balanced performance for both color and viewing angles (170° horizontal/vertical).
• Drawbacks: Moderate response time (8–15 ms), slightly lower color gamut than IPS.
• Applications: E-readers, outdoor signage, mid-range industrial controls.

• 800×480 (WVGA): Pixel density ≈ 133 PPI, suitable for basic visual tasks.
• 1024×600 (WSVGA): Pixel density ≈ 169 PPI, ideal for detailed graphics and text.
• 1280×800 (WXGA): Pixel density ≈ 214 PPI, used in high-definition portable devices.

• Brightness:
• Indoor Models: 200–500 nits (cd/m²), suitable for environments with controlled lighting (e.g., home appliances, POS systems).
• Outdoor/High-Brightness Models: 800–1500 nits, equipped with anti-glare coatings for direct sunlight visibility (e.g., agricultural machinery, outdoor kiosks).
• Contrast Ratio:
• TN panels: 1000:1–2000:1
• IPS panels: 1000:1–1500:1
• VA panels: 3000:1–5000:1
•

• Color Gamut:
• Standard TN/VA: 60–70% NTSC (suitable for basic color tasks).
• High-end IPS: 85–95% NTSC or 99% sRGB (critical for medical imaging, graphic design peripherals).
• Color Depth: 6-bit (64K colors) or 8-bit (262K colors), with FRC (Frame Rate Control) technology often used to simulate 16.7M colors in entry-level models.

• Static Power: 0.5–1.5 W (standby mode, backlight off), dependent on panel technology and resolution.
• Dynamic Power:
• TN/VA: 1.5–3 W (with backlight at 50% brightness).
• IPS: 2–4 W (higher power due to wider viewing angle layers).
• Backlight Type: LED (standard), with lifespan exceeding 50,000 hours in most models.

• LVDS (Low-Voltage Differential Signaling): Most common for embedded systems, supporting resolutions up to WXGA with minimal signal loss (cable length ≤ 15 meters).
• HDMI 1.4: Enables high-definition input (up to 1080p downscaled to native resolution), popular in consumer devices.
• RGB Parallel Interface: Legacy interface for simple control systems, requiring 18–24 signal lines.

• I2C/SPI/UART: For touch panel integration and display configuration (e.g., brightness adjustment, color calibration).
• USB: Used for firmware updates and touch data transmission in capacitive touch-enabled models.

• Temperature Range:
• Commercial Grade: 0°C to 50°C (suitable for indoor consumer electronics).
• Industrial Grade: -20°C to 70°C (with temperature compensation circuits for stable performance in harsh environments).
• Humidity Resistance: 10–90% RH (non-condensing), with IP65-rated models available for dust and water resistance (e.g., outdoor vending machines).

• Shock/Vibration Resistance:
• Industrial models: Compliant with IEC 60068-2-6 (vibration: 10–2000 Hz, 2G acceleration) and IEC 60068-2-27 (shock: 50G, 11ms).
• Touch Panel Compatibility: Supports resistive (for gloved operation) or capacitive (multi-touch) touch technologies, with thicknesses ranging from 0.5mm (capacitive) to 1.5mm (resistive).

• Key Specs: IPS panel (wide viewing angles for passengers), high-brightness (500+ nits), AEC-Q100 certification (automotive-grade temperature/humidity resistance).
• Example: 7-inch IPS display with 1024×600 resolution, integrated with GPS and Bluetooth, used in mid-range car dashboards.

• Key Specs: Resistive touch panel (rugged operation), industrial-grade temperature range (-40°C to 85°C), LVDS interface for long-distance signal transmission.
• Example: 7-inch WVGA TN display in factory control panels, featuring IP65 protection and anti-glare coating.

• Key Specs: Capacitive touch, high pixel density (≥200 PPI), low power consumption (3W max) for extended battery life.
• Example: 7-inch WXGA IPS display in portable gaming consoles, supporting 16.7M colors and 10-point multi-touch.

• Key Specs: High color accuracy (ΔE < 3), compliance with IEC 60601 medical standards, anti-microbial coatings on touch surfaces.
• Example: 7-inch SVGA IPS display in portable patient monitors, with 8-bit color depth and 4:3 aspect ratio for detailed medical data visualization.

7-inch LCD displays strike a balance between portability and display real estate, making them a versatile choice across industries. By understanding their technical specifications—from display technology and resolution to environmental resistance and interface options—manufacturers can develop tailored solutions, while buyers can make informed decisions based on application requirements. As the display industry continues to prioritize compactness and customization, 7-inch LCDs will remain a key component in driving innovation across consumer, industrial, and automotive sectors.
