1.77 Inch TN TFT LCD for Smartwatch, 128*160 Pixel 6 O'Clock 180 nits MCU 8bit Interface

1.77 inch 128*160 pixel 6 O'Clock 180 nits MCU8bit Interface TFT lcd display This is a color active matrix Thin Film Transistor(TFT) Liquid Crystal Display(LCD) that uses TFT as a switching device.The resolution of the panel is 128(RGB)*160 pixels and can display up to 262K color. This is a color active matrix Thin Film Transistor(TFT) Liquid Crystal Display(LCD) that uses TFT as a switching device.The resolution of the panel is 128(RGB)*160 pixels and can display up to 262K color.
Product Details of 1.77 Inch TN TFT LCD for Smartwatch, 128*160 Pixel 6 O'Clock 180 nits MCU 8bit Interface for Sale

Product Introduction

Headline : 1.77 Inch TN TFT LCD for Smartwatch, 128*160 Pixel 6 O'Clock 180 nits  MCU 8bit Interface


1.Product Descripiton



This is a color active matrix Thin Film Transistor(TFT) Liquid Crystal Display(LCD) that uses TFT as a switching device.The resolution of the panel is 128(RGB)*160 pixels and can display up to 262K color.



General Information

Item

Standard Value

Units

LCD Size

1.77

 inch

Panel Type

TN TFT

--

Resolution

128*160

pixel

Display Mode

Normally White,Transmissive

--

Contrast Ratio

300(Typ.)

--

Luminance of LCD Surface

180(Typ.)

cd/m2

Driver IC

ST7735S

--

Light sourse

2 White LEDs

--

Interface

MCU8bit

--

Operating Temperature

-20~+70

Storage Temperature

-30~+80

LCM Module Size

 34.00(H)×43.78(V)×2.60(T)

mm

Active Area(A.A.)

28.03(H)×35.04(V)

mm

Pixel Pitch

219(H)×219(V)

um

Connecting Method

COG+FPC+BL

--

Analog/Logic Voltage

VDD=2.8V IOVDD=1.8V

--

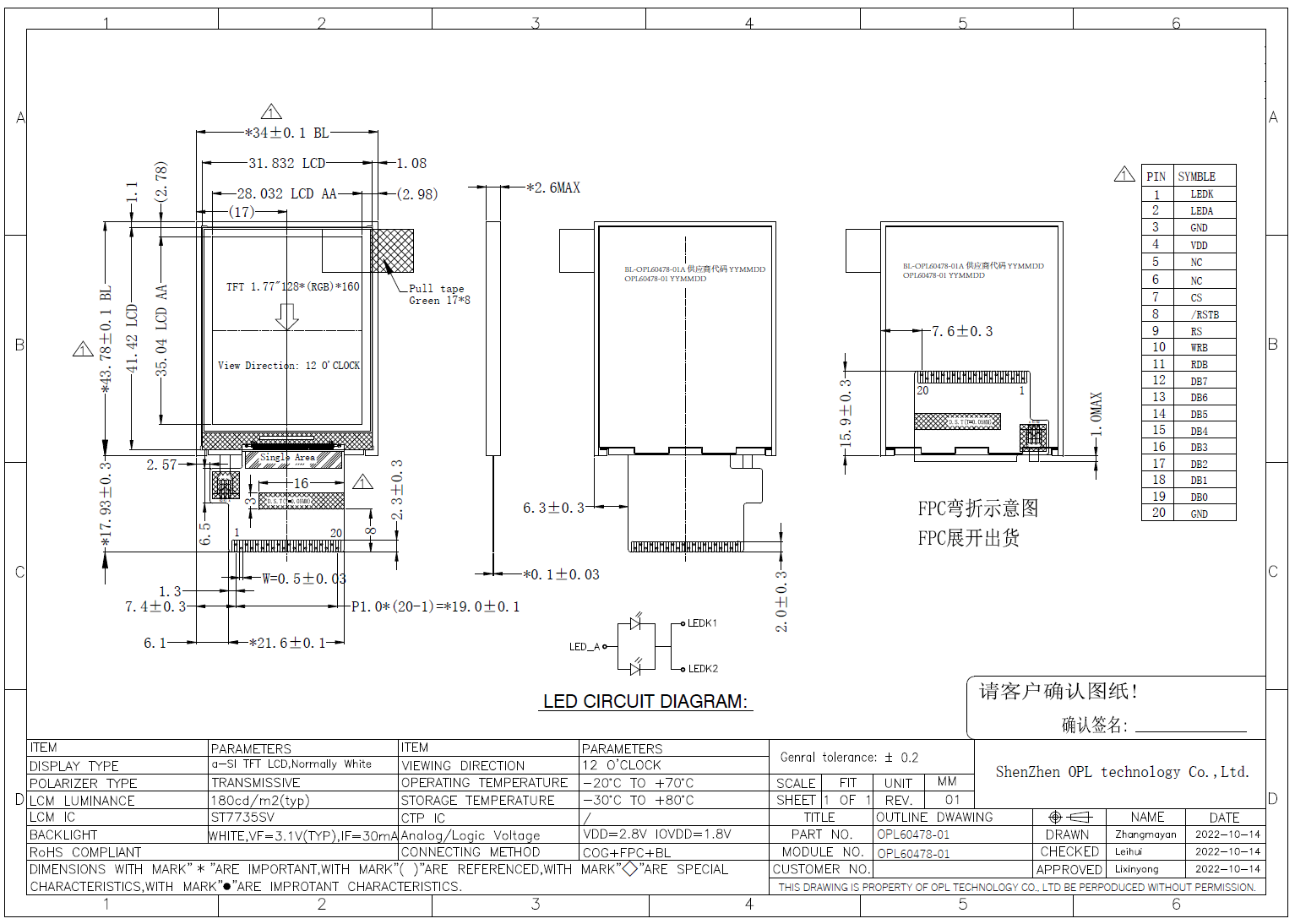

2.Product Drawing
