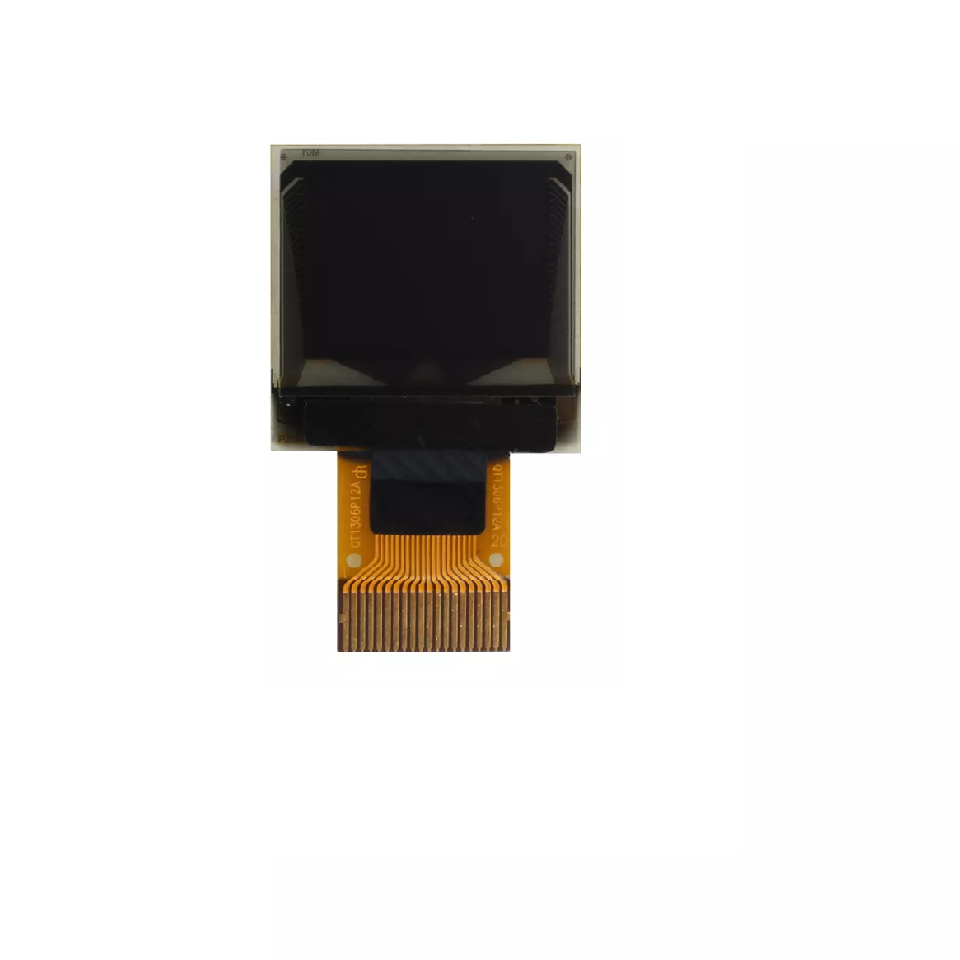

0.66 Inch PMOLED Display Module for Measuring Equipment, 64*48 Pixel SSD1315 Driver Ic White Color 4-wire SPI Interface COG Package

This 0.66-inch PMOLED display module uses 64*48 pixels, equipped with SSD1306 driver IC and white color. The interface adopts 4-SPI interface and 20-pin COG package, which is suitable for various measurement equipment. This product is of excellent quality and provides efficient and clear display, making it your ideal choice.

Send Inquiry

Product Details of 0.66 Inch PMOLED Display Module for Measuring Equipment, 64*48 Pixel SSD1315 Driver Ic White Color 4-wire SPI Interface COG Package for Sale

Product Introduction

**Headline:0.66 Inch PMOLED Display Module for Measuring Equipment, 64*48 Pixel SSD1306 Driver Ic White Color 4-SPI Interface 20 pin COG Package**

1.Product information

General Information
ITEM	STANDARD VALUES	UNITS
Display Mode	Passive Matrix	--
Display Color	Monochrome (White)	--
Drive Duty	1/48	Duty
Resolution	64*48	Pixel
Panel Size	18.4618.11.2	mm
Active Area	13.42*10.06	mm
Pixel Pitch	0.21*0.21	mm
Pixel Size	0.19*0.19	mm
Driver IC	SSD1306	--
FPC Number	NFP1306-12	--
Interface	4-SPI	--
Operating Temperature	-40~+85	℃
Storage Temperature	-40~+85	℃
Brightness	120	cd/m2

2.Product Drawing
