cog 128x64 graphic lcd module supplier

A wide variety of 128x64 cog lcd options are available to you, You can also choose from original manufacturer, 128x64 cog lcd,As well as from tft, ips, and standard.

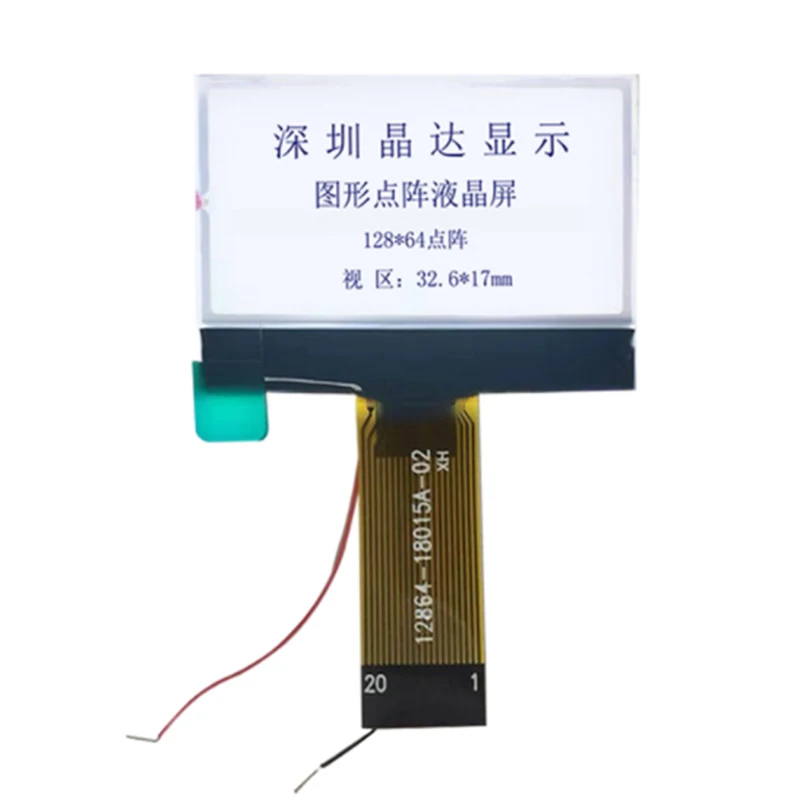

A 1.7″ monochrome, 128×64 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a six O’clock viewing direction and a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled chip on glass with 1/65 Duty and 1/9 Bias. This LCD uses Controller IC ST7565P or equivalent with an option to choose between serial interface (4-line SPI) and parallel interface (6800 or 8080). This is an ROHS compliant product manufactured with ISO standards and procedures.

A 2.9″ monochrome, 128×64 dot matrix, COG (Chip on Glass) Graphic LCD Module in STN Negative Blue LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight.

It has a twelve O’clock viewing direction and a transmissive polarizer suitable for darker environment. This product is assembled chip on glass with 1/65 Duty and 1/9 Bias. 12864 COG LCD display LCD uses Controller IC ST7565P or equivalent with an option to choose between serial interface (4-line SPI) and parallel interface (6800 or 8080). This is an ROHS compliant product manufactured with ISO standards and procedures.

Newhaven 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This NHD-C12864WC-FSW-FBW-3V3 display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.

Available in character and graphic formats, COG (Chip-On-Glass) LCD Displays are designed without a PCB. The LCD driver/controller is bonded directly to the glass of the display. This allows COG displays to be smaller in size, more cost effective and a highly customizable display solution compared to typical LCD modules with a board.

128x64 Dot Matrix COG, FSTN Gray background with White LED backlight, bottom (or 6:00) viewing angle, Transflective (positive), 3.0V LCD, 3.0V LED, RoHS Compliant. This LCD glass display has a wide temperature range: -20° Celcius to +70° Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit).

FSTN (Film-compensated Super-twisted Nematic) provides a sharper contrast than STN by adding a film. The cost is approximately 5% higher than STN. FSTN works great for indoor and outdoor applications and is mainly used in graphic displays and higher end products. The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.

Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.Get in touch with a team member today to accessorize your display!

Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product"s package) will be free from defects in material or workmanship.

Displaytech offers a full line of monochrome COG and graphic LCD modules with or without your choice of backlight. Below you will find the products that Displaytech customers prefer over any other standard single-color LCDs. Our selection of 128x64, 128x32, 128x240 and 240x64 graphic FSTN LCD modules are our most popular! The popularity of these displays allows Displaytech to offer highly competitive pricing and flexible stocking options.

Vitek provide a full line of graphic COG LCD Modules and monochrome COG Module with or without your choice of backlight. There are four version, 16x1 LCD module, 16x2 LCD module, 128x32 LCD module and 128x64 LCD module. The popularity of these displays allows Vitek to offer highly competitive price and various different options.
