This is SainSmart MEGA2560 + 7 inch TFT LCD module with the TFT LCD shield kit For arduino enthusiasts.It includes one pcs of SainSmart MEGA2560 , 7 inch TFT LCD display and a TFT LCD shield for Arduino MEGA2560.This kit helps you to avoid complicated wiring processes and save you much time to accomplish your goal. You can feel free to enjoy the touch function and SD card function by using our codes.We will provided you the whole document including the example project of the kit. We will supply you the technical support after your purchase.

This is the new MEGA2560 R3. In addition to all the features of the previous board, the MEGA now uses an ATMega16U2 instead of the ATMega8U2 chip. This allows for faster transfer rates and more memory. No drivers needed for Linux or Mac (inf file for Windows is needed and included in the Arduino IDE), and the ability to have the Uno show up as a keyboard, mouse, joystick, etc.

The MEGA2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The MEGA2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.

It is 100% compatible with the normal MCU like ARM AVR PIC and 8051,especially on Arduino family such as Arduino Due and Arduino MEGA2560(R3). The module uses the LCD controller Chip SSD1963 with 7 inch LCD including the touchscreen.

LCD-specificed intialization code is provided, so that you can save time to optimize power control register and gamma curves for best display performance. We have test the provided code, it gives the best display performanace

This is Sainsmart TFT LCD Extend shield for arduino due .Using this shield can help you out of the bothers to use other cables. You just need to plug the module to arduino due through this shield.

The shield defines that all the the data transmit ports are PC1-PC8 and PC12-PC19,the controll pins are PD0-PD3.The perfect design could realize that the data transmits in high speed.The SPI interface is designed in the ISP header of arduino due so that the SPI transfer with DMA could be achieved in high speed with no drag.

This shiled is just for Arduno MEGA2560. If you need the LCD Extend shield for Arduino Due,you need a similar shield which is also provided from our store.

This shiled is just for 7 inch TFT LCD.If you need the LCD Extend shield for 3.2/3.5/...,you need a similar shield which is also provided from our store.

cte tft lcd sd shield for arduino in stock

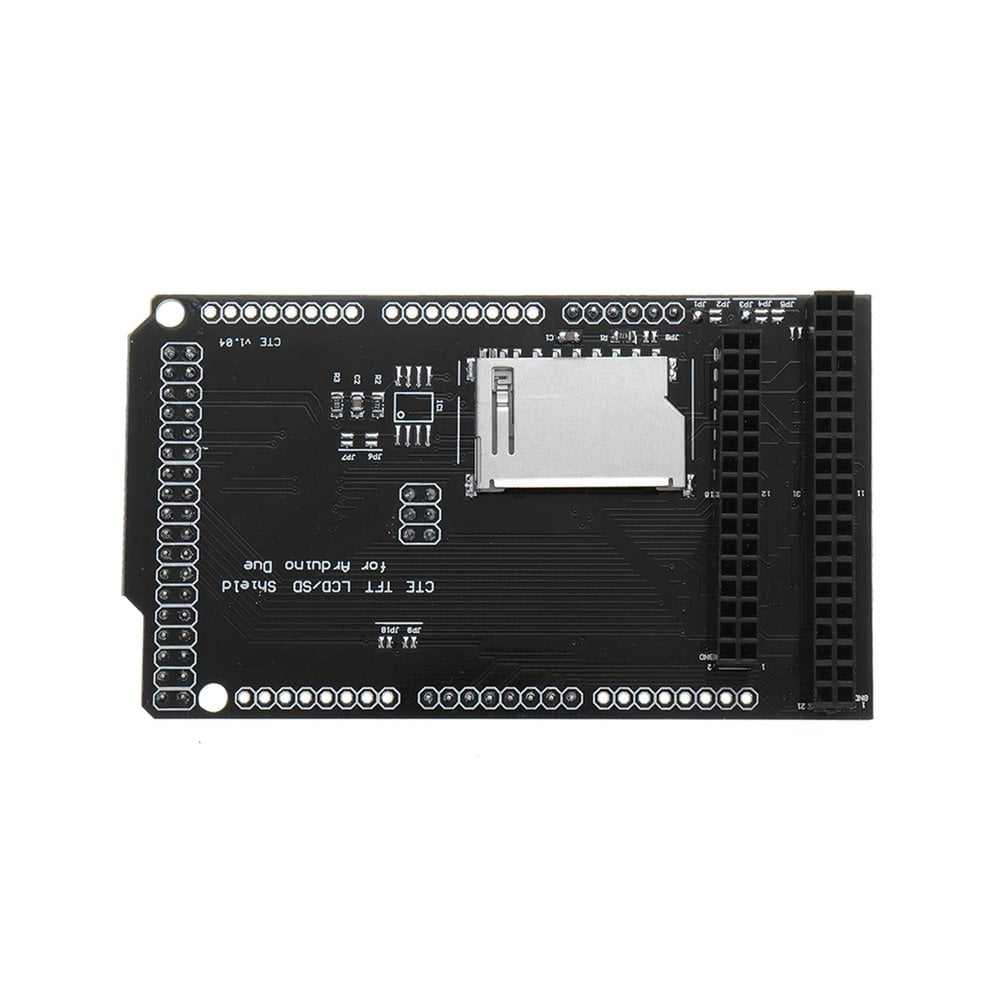

The IO of arduino MEGA is officially 5V, TFT LCD use 3.3V IO. This CTE TFT LCD/SD shield for arduino MEGA provides the connection to a TFT LCD Module directly without flying wires.

The shield use TRUE 5v to 3.3V level translation IC, therefore, it is compatible with many TFT LCD modules. Compatibility is highest when compared to ordinary TFT Shield, which use resistors or buffer to "shift" 5V to 3.3V. Compatibility issues may arise when using this method to translate IO level to 3.3V, especially at high write speed.

The shield route all the LCD data pins to port PC1-PC8 and PC12-19, control pins to PD0-PD3, this design can achieve high speed data transfer (three cycles per write strobe to the LCD) to maximize LCD display speed. The SPI interface (for SD or flash control) is route to the ISP header of arduino DUE, so that high speed SPI transfer with DMA can be achieved.

On board SPI flash footprint with adjustable CS selection, for upgrade to include Font IC to draw text to the LCD and also support for SPIFlash library.
