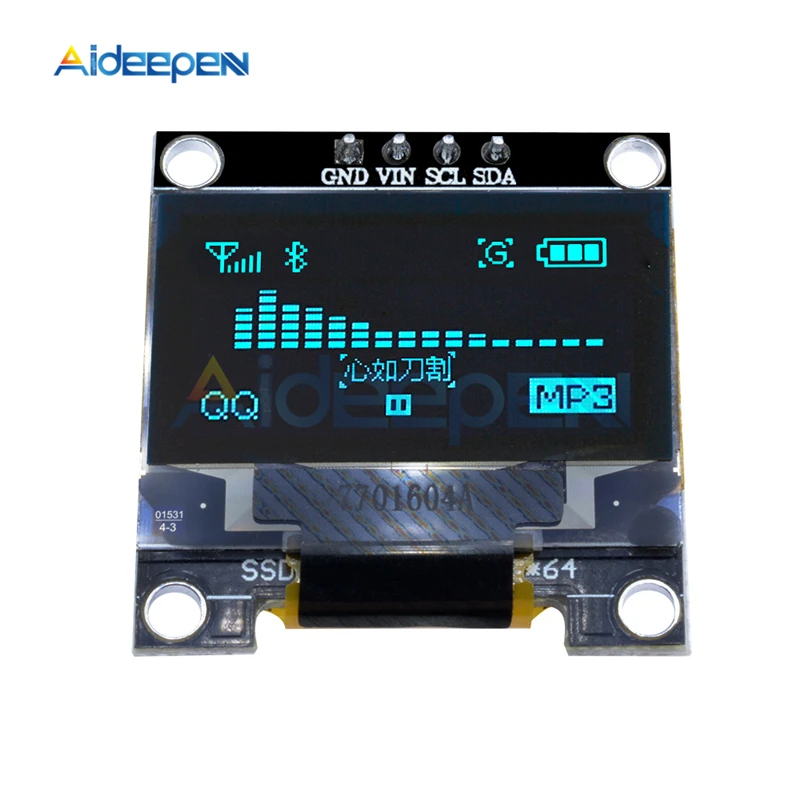

This is a thin, extremely low-power 128x64 graphic LCD display module. It has no backlight, so consumes no power illuminating the display. However, if you wanted to backlight the module, the rear polarizer is transflective, so you could add your own lighting solution there. This display is perfectly suited for hand-held or any application requiring low power consumption or a very thin display. A row of icons is shown automatically top of the display without having to be rendered. This display has an integrated controller and the tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connectors (typical would be Omron XF2L18351A/ DigiKey P/N OR754CT-ND).

Do you need a display that draws the lowest current possible? Want long lasting battery-powered LCD project? Well, you have come to the right place. We compiled this list of digital displays that consume the least amount of power. These displays are perfect for when you are trying to extend the battery life of your product by pulling the least amount of current possible.

Other than a pen and paper, ePaper provides the lowest power consumption available for electronic displays. It does this via an electrochemical process that requires zero power once the pixels are in their desired location. These displays are ideal for when the content is not updated very often. Low-power ePapers only use power during updates, so the longer time between updates, the lower the power consumed.

The beauty of OLED displays and power consumption is that OLEDs only draw current for pixels that are on. For instance, when displaying a black and white checkerboard pattern, an OLED display consumes 50% less current than when displaying a completely white screen. Keeping that in mind, user interfaces can be designed to conserve as much power as possible by limiting how many pixels are lit.

Ultra-low-power displays consume very little energy, and the two primary technologies used for these types of displays are bistable and low refresh rate displays. They are used when there is a need for a battery-powered device, want maximum life between charges, and the content being displayed does not change very frequently.

The common uses for ultra-low-power displays are e-readers and electronic price tags. Some of the other applications we have seen are secondary displays for handheld devices and battery-powered products like locks, remote-mounted homes, and industrial products.

Probably the most well know bi-stable low-power display is e-paper technology historically used on e-readers. This technology is available in both monochrome and color.

In a monochrome e-paper display, millions of tiny liquid-filled capsules contain black and white charged ink particles. These capsules are sandwiched between a grid of electrodes. Applying a charge to the electrodes causes the ink particles to migrate to the top of the capsule, and depending on the polarity of the charge, it changes the color of the surface of the display.

E-paper is a reflective technology and, with good ambient light, has an excellent contrast ratio. One of the characteristics of e-paper is that the background is white, whereas many reflective display technologies like LCD have a gray or greenish background. One disadvantage is that E-paper requires front lighting if used in low-light conditions.

Displaying static images on an e-paper display uses very little energy (uW). However, it can require more power (mW) to update the screen than other technologies like LCD in the same size and resolution.

The backlight uses most of the power in a standard TFT display. For example, on a 7” TFT panel, the backlight uses almost 80% of the energy consumed for an average brightness display. The digital circuitry utilizes the remaining power to sustain the picture.

The first step of building a low-power TFT is to move to a reflective or transflective display and eliminate the power consumption of the backlight when the display can use ambient light.

Choosing a Transflective display is a good trade-off since it comes with a backlight that, when turned, the display becomes reflective. However, there is some trade-off in that the reflectance of a transflective display is lower than a pure reflective display. We use an advanced LCD driver chip to reduce the power further to drive the display at different refresh rates.

We use an advanced LCD driver chip to reduce the power further, which allows the display to be driven at different refresh rates. The drivers have two modes; a standard TFT mode that enables the display to operate like a standard TFT being able to do video rate, 60Hz, updates, and a low-power mode where the display refreshes at a rate of 1Hz. This mode is excellent for holding static images and using very little energy. Figure 2.0 depicts the driving methodology. Using these drivers, you can reduce the power of the digital portion of the display by 60%.

Table 2.0 shows a comparison study that we did for a thermostat application to compare different low-power technologies. In this study, the display is active for 15 minutes, and then it shows static images for the remainder of the day.

Conclusion: Depending on your application, either low-power TFT or e-paper may be suitable. If power is critical for your application and requires maintaining an image on display for long periods, consider these great technologies.

US Micro Products has designed displays with both technologies for special low-power applications and can do the same for your product. So let us help you with your display requirements; we have expertise that spans multiple markets and technologies.
