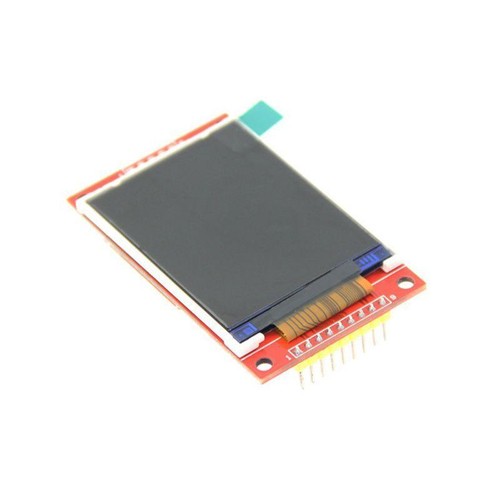

Module Size:67mm(length)*40mm(width)*4mm(thickness), Active Area: 47.5mm(Length)x36.5mm(Width)Package Included:1*2.2" 2.2 inch 4-Wire SPI TFT LCD Display ModuleHow to use it?1. use 5v to led pin, 3.3v to vcc and 1k / 1.5k resistor voltage dividers to get it to work. 1k resistor in series from Arduino to tft logic pin, 1.5k from tft pin to ground.

ER-TFT022-1 is 240x320 dots 2.2" color tft lcd module display with ILI9341 controller,optional capacitive touch panel with controller FT6236U and resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.2"TFT Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno.For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

A full color 240xRGBx320 pixel TFT display module with 2.2" diagonal active area. Very small text and images look sharp on this graphic display, with its dense pixel pitch of 0.141 x 0.141 millimeters. The TFT"s 6:00 o" clock viewing direction works well for devices that must be easy to read above eye level without fading, such as signal analyzers or other benchtop laboratory equipment.

With a built-in Sitronix ST7789V or compatible display controller, the logic voltage range of 2.5v to 3.3v allows direct connection to 3.3v processors.

Buy with confidence. Our Logistics department is experienced at sending products anywhere in the world where permitted. This TFT display module has a limited 1-year warranty and free technical support.

HY-TFT220 is a 2.2 inch TFT LCD Screen module, 220*176 (resolution), 65K color, 28pins interface , not just a LCD breakout, but include the Touch screen, SD card. So it’s a powerful extension module for your project.

This Screen includes a controller HX8340, it’s 8 bit data interface, easy to drive by many MCU like STM32 ,AVR and 8051.HY-TFT220 is designed with a touch controller in it . The touch IC is XPT2046 , and touch interface is included in the 40 pins breakout. Another useful extension in this module is the SD Card socket . It use the SPI mode to operate the SD card, the SPI interface include in the 40pins breakout.

The UTFT library is required to be installed to get this screen model display. This library is especially designed for TFT LCD screen model. The library requires the following connections.

Note: The TFT controller model needs to be declared in the initializing statement. UTFT myGLCD(38,39,40,41) needs to be modified as myGLCD(ITDB22,38,39,40,41) when using Arduino Mega2560.UTFT myGLCD(ITDB22,19,18,17,16) needs to be commented when using Aduino UNO. Otherwise it just show a blank screen. In practice, RS, WR, CS, RSET can be connected to any free pin. But the pin number must be in accord with myGLCD(RS,WR,CS,RST).

The LCD has a 2.2" 4-wire resistive touch screen lying over it. The Touch library needs to be installed to get it works. This library is designed for 2.4’’ TFT, 2.8” TFT LCD screen module.

The default setting is not accurate for 2.2” TFT module, so you need to calibrate when using 2.2” TFT module. A program to calibrate the touch screen is included in the example. If you touch screen is inaccurate, you need to run touch_calibration. Follow the on-screen instruction to calibrate the touch screen. Better not use your finger to calibrate it, use your accessory touch pen to pressure the frontsight with stength. Then record the calibration parameters and apply them in ITDB02_Touch.cpp in your touch screen library.
