It is a smartLCD. You can not test it by only voltage. You need to install it on your E-Bike and pedal for 3-5 seconds. Then the LCD will show battery level normally.

1.Heartbeat price: Collaborative pricing strategy of motor, controller,throttle&brake lever&switch,LCD&LED display,PAS,front light,cutting extra cost and helping with get more profit margins for customers

P2:This means the control for your Speed sensor if you doubt that you have an issue with the speed sensor so better to check the default value in your manual.

C5: This parameter is responsible for the maximum operating current & as we mentioned you can use this to reset your controller. please make sure to check your e-bike manual before changing any value.

Standard Connector Sequence Table Sequence No. Wire Colour Functions 1 Red（VCC） Display Power Cord 2 Blue（K） Controller Power Switch Cable 3 Black（GND） Display Ground Wire 4 Green（RX） Display Data Receiving Wire 5 Yellow（TX） Display Data Sending Wire

3. Functions a. Display Speed Display, Motor Power Ratio Display, Battery Level Display, Error Indication, Total Mileage, Single Mileage, Cruise Control, Brake Indication, Light Signal， b. Control and Setting Power Switch, Front Light Control, 6km/h Cruise Control, Real-time Cruise Control, Wheel Diameter Setting, 5-Gear Motor Power Setting, Top Speed Setting, Sleep Interval Setting, Backlight Brightness Setting, Voltage Level Setting c. Communications Protocol: UART

2www.czfound.com info@czfound.comwww.foundmotor.com info@foundmotor.comDisplay Details

3www.czfound.com info@czfound.comwww.foundmotor.com info@foundmotor.com Maximum Speed: MAX Average Speed: AVG Measuring Unit: MPH or KM/H The display will calculate the actual travelling speed based on the wheeldiameter and signal data (number of magnet steel is needed for Hall motors).

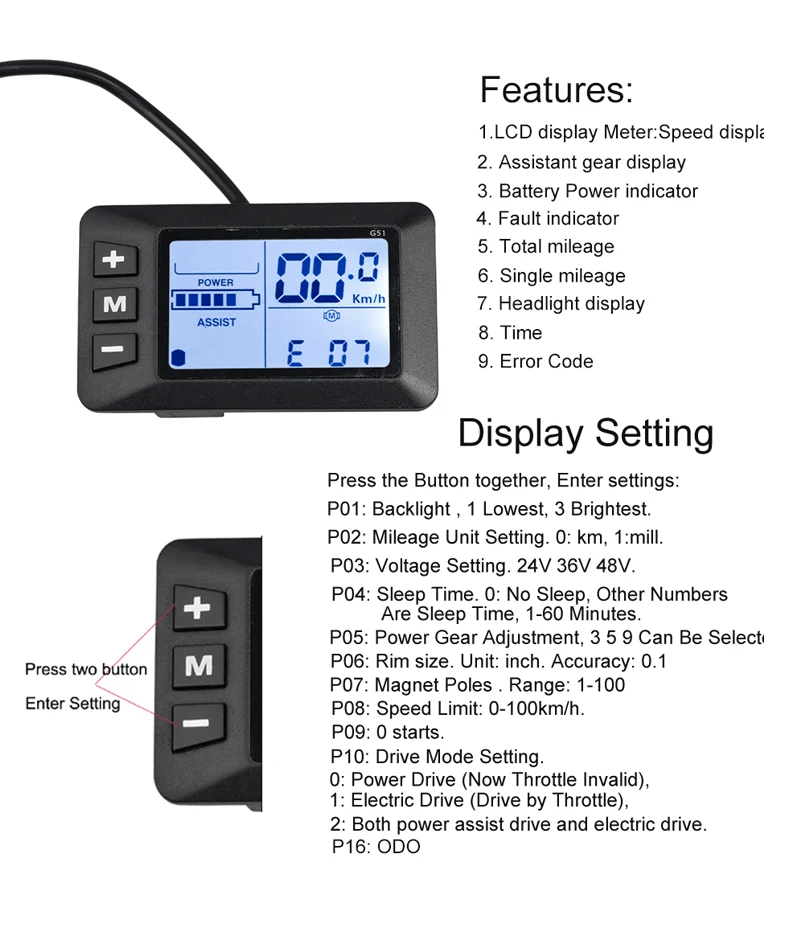

3.7 SettingsP00: Restore Factory Settings Set this value to 10 and switch to next setting,the display items will show all contents and restore original factory settings.P01: Backlight Brightness (1: darkest; 3: brightest)P02: Mileage Unit (0: KM; 1: MILE)P03: Voltage Class 24V / 36V / 48VP04: Sleep Interval(0: never, other value means display sleep interval) Unit: minuteP05: Power Assist Gear0/3 Gear Mode: Gear 1: 2V Gear 2: 3V Gear 3: 4V1/5 Gear Mode: Gear 1: 2V Gear 2: 2.5V Gear 3: 4V Gear 4: 3.5V Gear 5:4VP06: Wheel Diameter Unit: inch Precision: 0.1P07: Magnet Steel Number (for Speed Test) Range: 1-100P08: Speed LimitRange: 0-50km/h, parameter 50 indicates no speed limit.1. Non-communications status (panel-controlled)When the current speed exceeds the speed limit, the PWM output will be shutdown; when the current speed falls to lower than the speed limit, the PWM 4www.czfound.com info@czfound.comwww.foundmotor.com info@foundmotor.comoutput will be activated and the driving speed will be set as the current speed ±1km/h (only applies to assist power speed, not applicable to the handlebarspeed).2. Communications status (controller-controlled) The driving speed will be kept constant as the limited value. Error Value: ±1km/h (applicable to both the assist power/handlebar speed) Note: The above-mentioned values are measured by metric unit (kilometers).When the measuring unit is switched to imperial unit (mile), the speed valuedisplayed on the panel will be automatically switched to corresponding imperialunit, however the speed limit value in the imperial unit interface won’t changeaccordingly.P09: Direct Start / Kick-to-Start Setting 0: Direct Start 1: Kick-to-StartP10: Drive Mode Setting 0: Power Assist – The specific gear of the assist drive decides the assistpower value. In this status the handlebar does not work. 1: Electric Drive – The vehicle is driven by the handlebar. In this status thepower gear does not work. 2: Power Assist + Electric Drive – Electric drive does not work in zero-startstatus.P12: Power Assist Intensity Range: 0-5P13: Power Magnet Steel Number 5 / 8 / 12pcsP14: Current Limit Value: 12A by default; Range: 1-20AP15: UnspecifiedP16: ODO Zero-OutLong press the up key for 5 seconds and ODO value will be erased.P17: (Customer Designated) Auto Cruise Option. 0: No Auto-cruise1: Auto-Cruise On. Trigger time of auto-cruise is decided by the controller.P18: (K5S, APT Protocol Bound) Forward / Backward PAS Option.0: Forward. 1: Backward.P19: (K5S Protocol Bound) Throttle Level Option.0: No throttle level. 1: Has throttle levels.P19: (K5S Protocol Bound) 6km/h Cruise Throttle Definition. 0: Throttlehas no 6km/h cruise definition. 1: Throttle has 6km/h cruise definition.

Note: Due to product upgrade, the product you purchased may beslightly different from the descriptions in this user manual, and thiswon’t affect normal usage.
