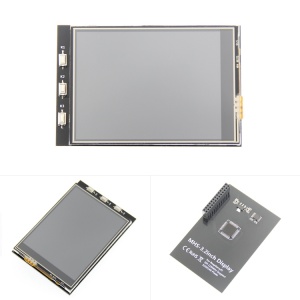

The 3.2 inch TFT LCD module is a special design for Raspberry Pi for portable application. It features a 3.2” display with 320x240 16bit color pixels and resistive touch screen. The LCD is well mated with Pi board and interface with Pi via the high speed SPI port, and support console, X windows, displaying images or video etc. It also provides 4 press buttons for user defined functions.

RPi LCD needs to use a SPI interface, but in the original image file of Raspberry Pi, the displayer is driven via a HDMI port. So the original image is not applicable for RPi LCD, and you should install the LCD driver to your Pi or use the Ready-to-use image file provided by Sainsmart,click here.

Download the LCD driver and extract it to your Raspbian OS (e.g. copy the driver to your Pi by sftpor using U disk). Then run the following command via putty:

This LCD can be calibrated using a program called xinput_calibrator which is pre-installed on the offer image. However, it was not pre-installed on original Raspbian OS. So in this case, you should get and install the program manually with

After running these commands, there will be a prompt for four-point calibration shown in the LCD screen. Click the points one by one to finish the touch calibration. Then, the new calibration data will be displayed in the terminal, as shows below. Please get these data for future use.

sainsmart 3.2 tft lcd raspberry pi wiki quotation

SainSmart 3.2" TFT LCD Display is a LCD touch screen module. It has 40pins interface and SD card and Flash reader design. It is a powerful and mutilfunctional module for your project.The Screen include a controller SSD1289, it"s a support 8/16bit data interface , easy to drive by many MCU like STM32 ,AVR and 8051. It is designed with a touch controller in it . The touch IC is ADS7843 , and touch interface is included in the 40 pins breakout. It is the version of product only with touch screen and touch controller.

sainsmart 3.2 tft lcd raspberry pi wiki quotation

The 3.2 inch TFT LCD module is a special design for Raspberry Pi for portable application. It features a 3.2” display with 320x240 16bit color pixels and resistive touchscreen.

The 3.2 inch TFT LCD module is a special design for Raspberry Pi for portable application. It features a 3.2” display with 320x240 16bit color pixels and resistive touchscreen.

sainsmart 3.2 tft lcd raspberry pi wiki quotation

The RPi LCD can be driven in two ways: Method 1. install driver to your Raspbian OS. Method 2. use the Ready-to-use image file of which LCD driver was pre-installed.

2) Connect the TF card to the PC, open the Win32DiskImager software, select the system image downloaded in step 1 and click‘Write’ to write the system image. ( How to write an image to a micro SD card for your Pi? See RPi Image Installation Guides for more details)

3) Connect the TF card to the Raspberry Pi, start the Raspberry Pi. The LCD will display after booting up, and then log in to the Raspberry Pi terminal,(You may need to connect a keyboard and HDMI LCD to Pi for driver installing, or log in remotely with SSH)

1. Executing apt-get upgrade will cause the LCD to fail to work properly. In this case, you need to edit the config.txt file in the SD card and delete this sentence: dtoverlay=ads7846.

This LCD can be calibrated through the xinput-calibrator program. Note: The Raspberry Pi must be connected to the network, or else the program won"t be successfully installed.

sainsmart 3.2 tft lcd raspberry pi wiki quotation

The TFT isn"t "plug & play" with the Raspberry, a patch has to be applied to the kernel to be able to interface via SPI with the ST7735R controller chip on the TFT. Once working, the display will act as a framebuffer device.

As it takes over three hours to compile the kernel on the PI, I will show how to cross compile from another Linux PC. In my case, it is Ubuntu 12.10 running within VMWare on a Windows 7 Quad core PC. Kernel compile time is 15 mins.

-Copy config from the Raspberry Pi to the Ubuntu box using SCP. Replace "raspberrypi" below with the IP address of your Raspberry Pi if hostname lookup fails.

If you are planning on displaying the console on the TFT, then enabling these options in .config will allow you to change the font size and rotate the display later on.

To enable parallel processing for a faster compile. If you have a dual core processor add -j 3 to the end of the command below. If you have quad core, add -j 6

The last step below is to SCP the files from from Ubuntu to the Raspberry Pi. If you have trouble SCPing into your Ubuntu box you may need to install open SSH on Ubuntu with sudo apt-get install openssh-server. This step also copies the files from my home folder "mark"... yours would be different.

If you build the st7735 driver pair as built-in, add these options to the end of the line in /boot/cmdline.txt. This will display the console on the TFT.

sainsmart 3.2 tft lcd raspberry pi wiki quotation

2) Log into the command line interface for Raspberry Pi(Initial user name: pi, Password: raspberry), Get the latest drive from GitHub (the raspberry pie needs to connect to the Internet), Execute the following commands:

sainsmart 3.2 tft lcd raspberry pi wiki quotation

The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
