Chip ID : 0x9595 compatible with adafruit library. Force driver code 0x7575, rotation 1 for lcd. Touchscreen should work with these values YP=A1, YM=7 and XM=A2, XP=6. (may have to try reversing some of the touchscreen mappings on one of the axis)

2.4 diagonal LCD TFT displayBright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight controlColorful, 18-bit 262,000 different shades4-wire resistive touchscreen8 bit digital interface, plus 4 control linesUses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD5V compatible, use with 3.3V or 5V logicFor Arduino UNO R3Specifications:Size:72 x 52 x 12 mmWeight:33 gPackage weight:43 gPackage included:1 x 2.4 TFT LCD Shield SD Socket Touch Panel Module

Features: 2.4 diagonal LCD TFT display Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control Colorful, 18-bit 262,000 different shades 4-wire resistive touchscreen 8 bit digital interface, plus 4 control lines Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2,3 and analog 4 and 5. Pin 12 is available if not using the micro SD 5V compatible, use with 3.3V or 5V logic For Arduino UNO R3 Specifications: Size: 72 x 52 x 12 mm Weight: 33 g Package weight: 43 g Package included: 1 x 2.4 TFT LCD Shield SD Socket Touch Panel Module.

2.4" TFT LCD Shield Touch Panel Module TF Reader Micro SD For Arduino UNO R3. 2.4" TFT LCD Shield Touch Panel Module TF Reader Micro SD For Arduino UNO R3 We have more options please find your favorites in our store by searching“Shenzhen Estone Trading” 2.4" diagonal LCD TFT display Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control Colorful, 18-bit 262,000 different shades 4-wire resistive touchscreen 7781 controller with built in video RAM buffer 8 bit digital interface, plus 4 control lines Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD 5V compatible, use with 3.3V or 5V logic Board Size:7.1x5.1cm(approx)

This module is designed to plug directly into Arduino UNO R3 (or its clone) boards. It is compatible with CH340 and Atmega16u2 version boards, as well as Mega 2560. This LCD shield may also work with other boards, but the compatibility can"t be guaranteed.

A reference price is provided by the seller of the item (reland_tech). Percentage off and savings amounts are based on the seller"s reference price. Sellers are not required to provide a reference price, but if they do, it should be (a) the Manufacturer"s Suggested Retail Price (MSRP) or similar List Price of the product; or (b) the price at which the item has been recently offered for sale and for a reasonable period of time.

This is a 2.4 inch TFT touch screen expansion board using standard Arduino Shield interface and it has good compatibility. It integrates a 2.4-inch touch screen, I2C temperature sensor, TF card holder, level conversion circuit, and the secondary development is less difficult.

Arduino has always helped to build projects easily and make them look more attractive.  Programming an LCD screen with touch screen option might sound as a complicated task, but the Arduino libraries and shields had made it really easy. In this project we will use a 2.4” Arduino TFT LCD screen to build our own Arduino Touch Screen calculator that could perform all basic calculations like Addition, Subtraction, Division and Multiplication.

Begin by carefully starting the rear connector of the TFT shield onto the Arduino uno. Go slowly and ensure that all pins are inserted correctly and are straight.

Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4" diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades)! 240x320 pixels with individual pixel control. It has way more resolution than a black and white 128x64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

There are many tutorials on Arduino shields for 2.4 inch TFT LCD displays. In this road test I apply different tutorials to check the performance and issues of this specific shield: AZ-Delivery 2.4 inch TFT LCD display with resistive 4-wire touchscreen and an integrated SD card reader.AZ-Delivery 2.4 inch TFT LCD display.

TFT LCD is a variant of a liquid-crystal display (LCD) that uses thin-film-transistor (TFT) technology. That improves image quality, better contrast and addressability.

Depends on the needs of your project. Arduino UNO processor frequency is low. With the Arduino UNO full-color TFT LCDs are suitable to display simple data and commands. The TFT controller used cannot switch internal display RAM, so you can"t use the double buffer technique for animations but still you can only re-draw small sections of screen.

Given the limitations of the Arduino UNO the bigger the display the worse the performance. The size of this display is adequate to meet that compromise between number of pixels, display area and capabilities of the Arduino UNO.

This module consumes most of the resources available in Arduino UNO. This is not a limitation of the module itself. In return, using a parallel interface allows you to quickly update the image. If you want to take advantage of all its functionality (LCD + touch screen + SD card), only pins 0 and 1 (RX and TX, respectively) and pin 19 (A5) remain unused. If the SD card is not used, pins 10, 11, 12 and 13 are additionally available. With a suitable layout, some SPI devices could be connected even if the SD card is used.

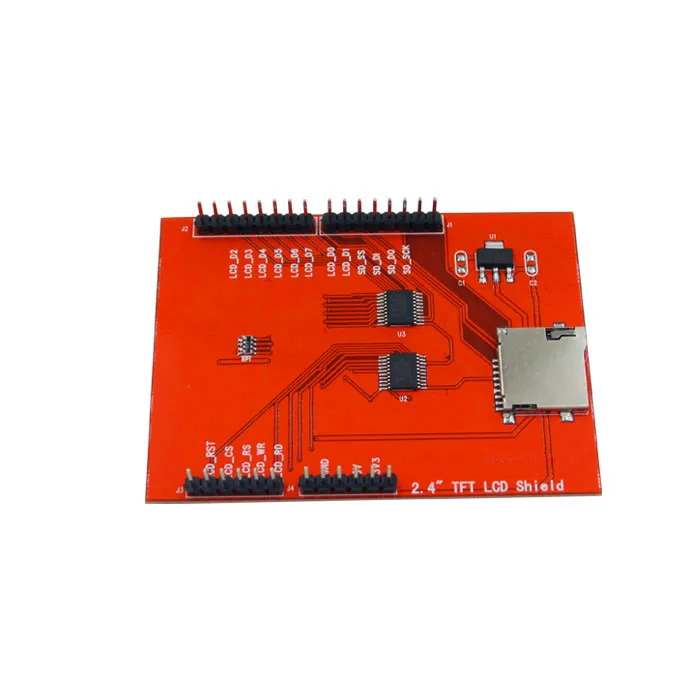

The PCB silkscreen indicates the main function of each pin, the labels are easy to read, although it does not show labels for the touch screen pins:Pin 9 - Touch X+ / LCD_D1

The SD card reader is very well located between the USB connector and the power connector, it does not touch either of them as it happens in other lcd tft shield modules and it is easily accessible to insert and remove the SD cards.

You can directly use the shield with any arduino uno. In this case we are using an Arduino UNO that exposes all the pins both on the header and on the board. In such a way that you do not need another shield to access the pins not used by the screen

ShieldCompatible with Arduino. 5V compatible, can be used with 3.3V or 5V logic. On-board 3.3 V (300mA LDO controller). The design is very well thought out and fits Arduino UNO perfectly.

2x74LVC245A Octal Bus Transceiver With 3-State outputs. This octal bus transceiver is designed for 1.65-V to 3.6-V VCC operation. The LVC245A is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses effectively are isolated. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment. This chip solves the problem of how to interface 3.3V logic devices to a 5.0V logic chip such as the Arduino. Most 3.3V devices do not like being run with 5V signals and can be damaged or flaky. The 74LVC245 is designed so that even when it runs at 1.8V, it still happily accepts 5V signals in one pin and converts it to a lower logic level on the opposite pin. It has 8 pipes it can convert but it won"t work with bi-directional/pull-up based devices such as I2C or 1-Wire. It does work great for SPI, Serial, Parallel bus, and other logic interfaces.

If you want to take advantage of all its functionality (LCD + touch screen + SD card), only pins 0 and 1 (RX and TX, respectively) and pin 19 (A5) remain unused. If the SD card is not used, pins 10, 11, 12 and 13 are additionally available. With a suitable layout, some SPI devices could be connected even if the SD card is used.

The ILI9341 which can control each pixel with a small number of pins. The shield connects ILI9341"s data pins 0-7 to Arduino digital pins 2-8 (allowing parallel communication, not SPI). ILI"s RESET goes to pin to Arduino analog pin A4.CS (chip select) to A3. RS (CD command/data) to A2. WR and RD to A1 and A0.

Includes a resistive 4-wire touchscreen (touchpad). The touch screen is attached on the surface of the display. Touch screen needs two analog inputs and two digital outputs. It connects through 4 wires, which share arduino pins 8, 9, A2, A3 with the ILI9341 driver. So you can"t write to LCD display and read the touch screen in the same time. I. Driver chip is XPT2046.

The backlight provides a uniform background, bright enough to be used in reasonably high ambient lighting conditions. All colors and shapes are "sharp".

The resistive touch screen does not appear to appreciably affect the optical characteristics. Works properly, It takes a little pressure with the stylus for it to respond like in old mobile phones. You notice how it sinks into the screen when you press with the stylus. The stylus that comes with the module makes it easy to use if your interface design uses small controls. Some touch screen libraries offer better accuracy by specifying the resistance of the touch screen in the X direction. Resistance can be easily measured with a multimeter by connecting the test leads to the LCD_D1 - X + and LCD_DS X- terminals. Touch is sensitive to pressure.

The SD card reader works well. Accessing the SD card with the functions available in the SD library included in the IDE version used does not present any problem. SD cards are recognized and can be written or deleted.
