Spice up your Arduino project with a beautiful touchscreen display shield with built in microSD card connection. This TFT display is 2.4" diagonal and colorful (18-bit 262,000 different shades)! 240x320 pixels with individual pixel control. As a bonus, this display has a optional capacitive touch panel and resistive touch panel with controller XPT2046 attached by default.

The shield is fully assembled, tested and ready to go. No wiring, no soldering! Simply plug it in and load up our library - you"ll have it running in under 10 minutes! Works best with any classic Arduino (UNO/Due/Mega 2560).

This display shield has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. You can connect more sensors, buttons and LEDs.

2.4 tft lcd shield ili9341 price

ER-TFTM024-3 is 240x320 dots 2.4" color tft lcd module display with ILI9341 controller board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 8080 8-bit /9-bit/16-bit /18-bit parallel ,3-wire,4-wire serial spi interface.Built-in optional microSD card slot,touch panel controller and 2.4 inch 4-wire resistive touch panel and Capacitive touch panel. It"s optional for font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable mounting on board by default and suggested. Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.4"TFT Touch Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

2.4 tft lcd shield ili9341 price

Features:2.4" diagonal LCD TFT Touch Panel displayBright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight controlColorful, 18-bit 262,000 different shades4-wire resistive touchscreen8 bit digital interface, plus 4 control linesUses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD5V compatible, use with 3.3V or 5V logicFor Arduino UNO R3 MEGA2560

2.4 tft lcd shield ili9341 price

Features:2.4" diagonal LCD TFT Touch Panel displayBright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight controlColorful, 18-bit 262,000 different shades4-wire resistive touchscreen8 bit digital interface, plus 4 control linesUses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD5V compatible, use with 3.3V or 5V logicFor Arduino UNO R3 MEGA2560

2.4 tft lcd shield ili9341 price

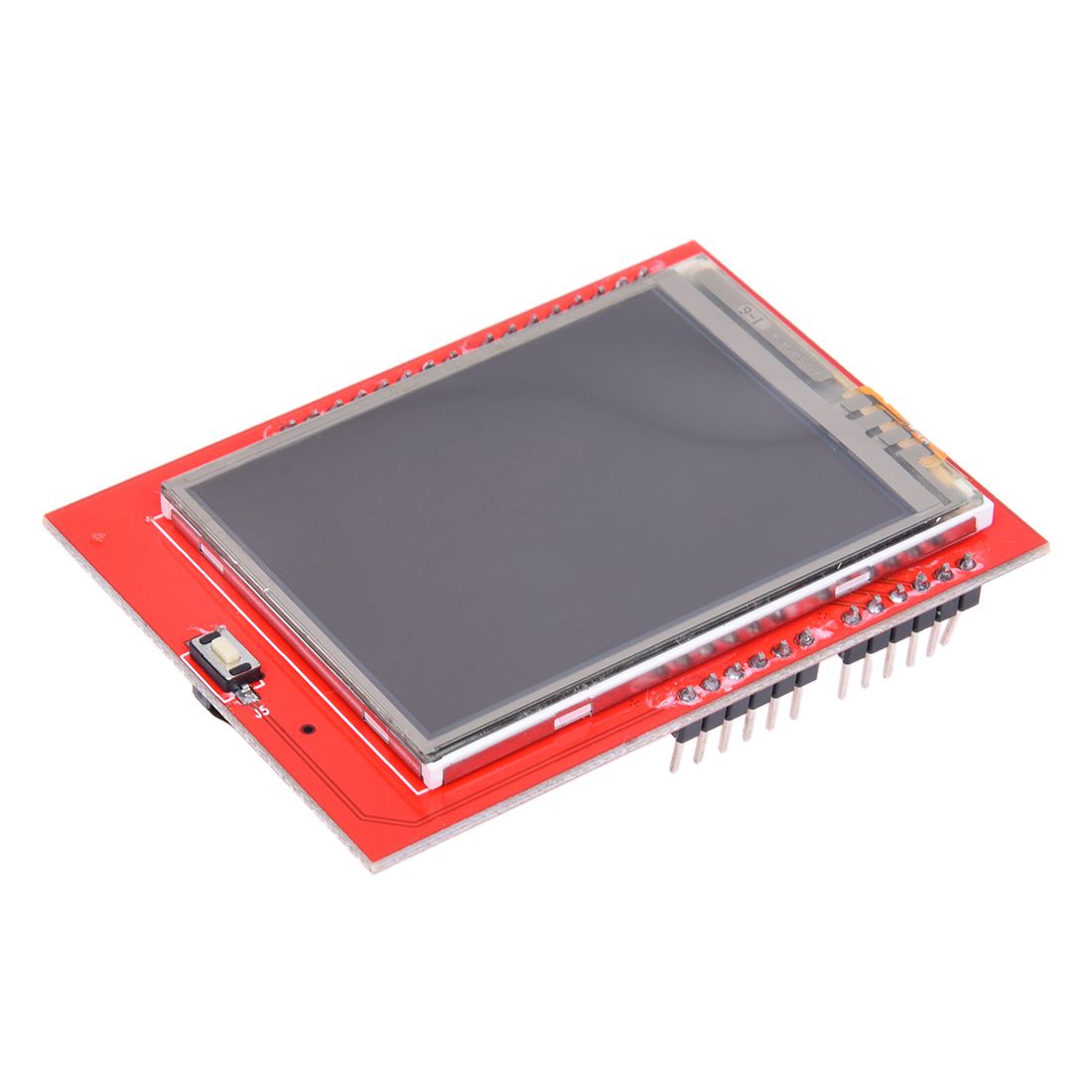

2.4 inch TFT LCD Display Shield Touch Panel ILI9341 240X320 for Arduino UNO MEGA Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the Micro-SD 5V compatible, use with 3.3V or 5V logic For Arduino UNO R3 MEGA2560 material:CCL colour:RED Package included:1*2.4 inch TFT LCD Display Shield Touch Panel Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
