infrared touch screen monitors factory

Touch displays enable the user to interact with a computer, control system or device without the use of a keyboard or mouse. We have a variety of HMI touch displays and touch screens compatible with HMI from Automation Direct for Human Machine Interface.A touch screen display can be found nearly everywhere. You interact with a touchscreen monitor constantly; they have become very commonplace in our daily lives. Cell phones, ATM’s,kiosks, ticket vending machines,manufacturing plantsand more all use touchscreen monitors. Read further to discover the 5 types of touch screens.

TRU-Vu Monitors offers a wide range of industrial touch screen display monitors, including  Sunlight Readable touch screens, panel mount touch monitors and Medical touch screens with P-Cap touch. We also offer Resistive touch, Capacitive touch, SAW touch,  and IR industrial touch panels, with USB and RS-232 interfaces. New models are HID Compliant, eliminating the need to load drivers. We provide the best heavy duty LCD touch screen panels for industrial use; all are TAA-Compliant.  Which one Is right for you?

The most important decision in choosing the best touch screen display for your application will be the type of touch technology screens to use. There are five major types of touch screens, each with its own advantages and disadvantages.  Some have multi touch capability. All are TAA-Compliant touch screens.

Our convenient touch screen comparison chart will provide a quick overview of advantages and disadvantages of each type. We offer over a dozen models of HMI touch displays.

Touch screens will obviously require cleaning and disinfecting due to the high number of contact and touch points. Special care must be taken not to damage the touch screen display face, especially for 5-wire resistive touchscreen monitors. Their surface can easily be permanently damaged by corrosive cleaning agents (bleach, ammonia, etc.) or abrasive materials (dirty cloths, steel wool). Please see ourmonitor cleaning guidelines, andmonitor COVID-disinfecting guidelinesfor more specific details. These guidelines will help ensure you keep your touch screens clean, and safely disinfected from germs or viruses.

CDS offers LCD Panel Kits and Touch Solutions from stock which include Display panels with interface card and Control OSD and Cable-Set, including Embedded Touch Displays and Touch Screen Components. The CDS kit solutions include a display and the driving electronics such as AD board and backlight drivers all in one package optimised for the panel of your choice.Many of the CDS displays are configured with a controller card, and internal cable sets with each of these combinations set up as an LCD display kit which ensures a single part number can be ordered at any time and our customers are guaranteed consistency of supply.

Our industrial display touch screen monitors can help your factory personnel and workshops handle complex industrial tasks on intuitive factory grade touch screens. Our wide range of rugged LCD displays with multi-touch and various touch technologies such as resisitive, SAW, optical imaging, projected capacitive and infrared are tough and suitable for virtually any industrial applications. We can help you choose the best touch screen technology and solution that fits best with your needs, and close the gap between your vision and implementation of the digital factory.

Viewsonic"s Touch Screen Solutions helped us simplify the hassle of operating complex machinery in our factory. It really helped us improve our factory line operations and reduced labor input.”

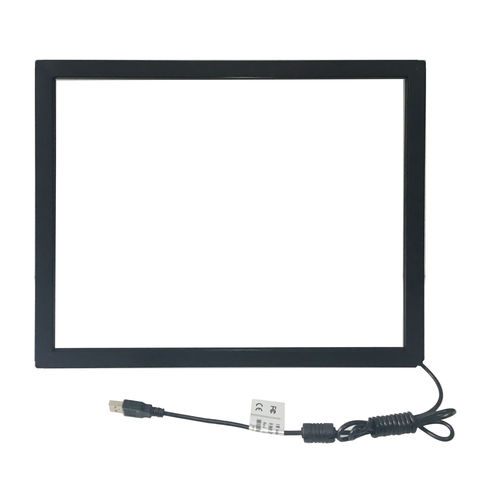

Infrared technology relies on the interruption of an infrared light grid in front of the display screen. The touch frame contains a row of infrared LEDs and photo transistors, each mounted on two opposite sides to create a grid of invisible infrared light. The frame assembly comprises printed wiring boards, on which the electronics are mounted and is concealed behind an infrared-transparent bezel. Infrared touch screens are often used in manufacturing and medical applications because they can be completely sealed and operated using any number of hard or soft materials.

HOW IT WORKSThe bezel shields the electronics from the operating environment while allowing the infrared beams to pass through. The infrared controller sequentially pulses the LEDs to create a grid of infrared light beams. When a stylus, such as a finger, enters the grid, it obstructs the beams One or more phototransistors detect the absence of light and transmit a signal that identifies the x and y coordinates.

Durability: Because touches are activated by the interruption of the infrared beam grid, the infrared touchscreen isn’t affected by scratches, fingerprints and other forms of minor damage.

Sensitivity:Infrared touchscreens are susceptible to erroneously triggered commands, for example, if a foreign object comes into contact with the screen. Infrared touchscreens are more sensitive to water and moisture, as even small amounts of moisture may interfere with their operation.

The TSItouch Infrared (IR) based solution allows for a high accuracy interactive experience. Infrared touch screens operate on the basis of light-beam interruption, commonly referred to as beam break, to determine the location of touch events. Infrared uses an array of X-Y infrared LED and photo detector pairs around the edges of the screen to detect a disruption in the pattern of LED beams. These LED beams cross each other in vertical and horizontal patterns.

As an object touches the screen, it interrupts the light-beam causing a loss of light at the sensor. This loss of light is used to determine the location of the touch event, helping the sensors pick up the exact location of the touch. A major benefit of such a system is that it can detect essentially any input including a finger, gloved finger, stylus, or pen. Available in sizes up to 500"

You do not need to calibrate the image projector before lecturing; with LED lighting technology, IFPDs provide a clear image all the way; and thanks to the IR touchscreen, you can annotate your presentation with almost anything, a dry/wet finger, pen, or stylus.

Commonly, the overlay is a piece of protective glass hemmed in by the IR touch frame, in which Infrared LEDs and photodetectors are embedded. A kind of optical bezel will be inserted between the glass and the frame to fix the frame and transmit infrared light emitted by those LEDs.

Through the optical bezel, IR LEDs emit invisible infrared beams forming grids on the surface of the overlay, Photodetectors are installed across from the LEDs to detect interruptions of beams if touch events on the overlay happen.

As long as an opaque object touches the surface, it will blot out the light beams. Photoreceptors in both directions (vertical and horizontal) can detect this interruption by that object, finally localize the x and y coordinates, and then send the signal to the processor to respond with relevant action.

Better display – without other substance between the LCD and overlay, IR touch screens offer the best light transmission, so they can render more vivid images without color and brightness loss.

Supports multi-touch – with windows and android 9.0 double OS, it can support as many as 40 touchpoints simultaneously. That means it can support up to 4 students interacting together on an IFPD.

Short response time – commonly less than 8ms, IR touch screens localized touch events by detecting light interruption, so they are accurate and quick to respond with actions.

More flexible in customizing screen sizes – by adjusting the numbers of LEDs and photodetectors embedded in the overlay frame, you can fit any custom-made monitor with an infrared touch interface

Clear images – compared with many camera or projector-based systems, equipment with IR touch screens often adopts backlight LED. So, wherever lighting environment they perform in, they can provide clear images to the audience.

No loss of screen display– Since LEDs and sensors are designed to be fixed in the frame that is around the monitor, the screen can display an unrestricted view.

Write with any object – you can write on an IR touch screen with anything, a bare finger, a gloved finger, wet hands, or a pen, as long as it is not transparent.

No calibration – a traditional smart projector board may require regular calibration to display correct pictures, however, devices with IR touchscreen do not need to calibrate the IR LEDs and sensors to guarantee a normal function.

No pressure is required to write – Resistive touch screen technology perceives the writing track by pressure, which can damage the screen after a long time of usage, while IR touch screen technology by detecting light interruption, so you can write freely without having to push hard on the screen.

Of touch screen technologies, infrared and projected capacitive are the top two types that are mostly utilized. However, they are applied to different applications due to the differences between them.

For PCAP touch screens, There is a layer of transparent electrode film that is fixed between the LCD panel and the cover glass, when the human finger touches the screen, the current through that film changes, and the signal of x and y position will be transferred to the computer.

For IR touch screens, the equipment detects the finger’s position by detecting the block of invisible lights from the infrared LEDs that are embedded in the touchscreen frames.

So you will often see a bezel in the IR touchscreen, which is used to transfer the infrared light to the surface of the overlay, while the PCAP touchscreen does not require the bezels.

IR touchscreen can be activated by anything that is not transparent, whereas PCAP types only accept bare fingers, thin surgical gloves, or cotton gloves.

The electrode film in PCAP touchscreens is expensive, especially when it comes to large screens, but for IR ones, when it is applied to large-scale screens, you only need to add a few LEDs and correspondent detectors, apparently, the IR touchscreen solution is more cost-effective in large interactive displays, such as the interactive digital board, which are used for presentation in business meetings.

The infrared touchscreen is lightweight and easy to use and does not take up much space. Other tougher infrared touchscreen have a light display that does not cause any damage to the touch, or if the light is fading away from the source of light.@@@@@

When it comes to infrared touchscreen, one of the most popular types of business buyers. Alibaba.com offers a wide range of infrared touchscreen options, from the 2 popular infrared touchscreen types to business buyers and for those that want to improve the performance of their products. Infrared touchscreen options are available on Alibaba.com, with the wide range of infrared touchscreen options available from wholesalers at Alibaba.@@@@@

Infrared touchcreens come in different sizes and capacities. Some infrared touchcreens come in different sizes, while others come in different sizes.@@@@@

Alibaba.com has a wide variety of infrared touchscreen machines available at wholesale prices. Many buyers prefer an infrared touchscreen machines that are affordable, non-invasive.
