Over time, the purpose of using mobile phones or Smartphones has changed. Comparatively, it has now become a basic necessity of every individual. Smartphone has dramatically transformed the lives of individuals. It has now become a mini-computer that everyone carries in their pocket. Instead, you can have multiple things at your fingertips in a few seconds. While there are plenty of things to look for, AMOLED vs OLED is also a part of it.

This article will introduce you to AMOLED vs OLED display technologies. Then, we will discuss the properties of both display technologies, followed by the difference between AMOLED vs OLED.

It stands for Natural Light-Emitting Diode, a type of LED technique that utilises LEDs wherein the light is of organic molecules that cause the LEDs to shine brighter. These organic LEDs are in use to make what are thought to be the best display panels in the world.

When you make an OLED display, you put organic films among two conductors to make them. As a result, a bright light comes out when electricity is used—a simple design with many advantages over other ways to show things.

OLEDs can be used to make emissive displays, which implies that each pixel can be controlled and emits its very own light. As a result, OLED displays have excellent picture quality. They have bright colours, fast motion, and most importantly, very high contrast. Most of all, “real” blacks are the most important.  The simple design of OLEDs also makes it easy to create flexible displays that can bend and move.

PMOLED stands for Passive Matrix Organic Light Emitting Diode. The PMOLEDs are easy to find and much cheaper than other LEDs, but they cannot work for a long duration as their lifespan is very short. Therefore, this type of display is generally for small devices up to 3 inches.

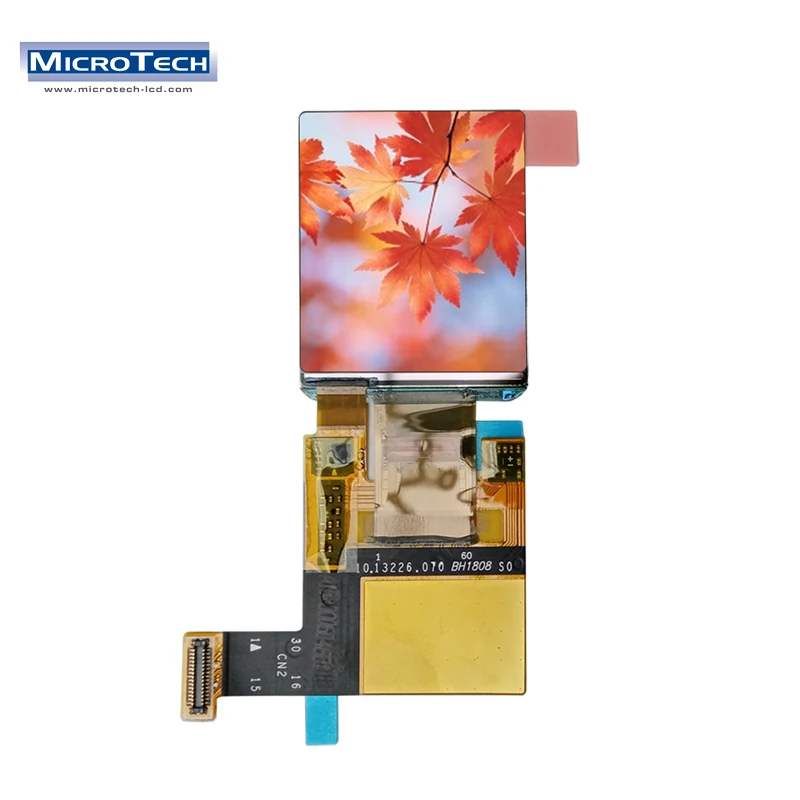

AMOLED stands for Active Matrix Organic Light Emitting Diode. This type of display is generally for large platforms. It contains TFT, which further consists of a storage capacitor. It also works on the same principle as OLED displays.

AMOLED offers no restriction on the size of the display. The power consumption of AMOLED is much less than other display technologies. The AMOLED provides incredible performance. It is thinner, lighter, and more flexible than any other display technology like LED, or LCD technology.

The AMOLED display is widely used in mobiles, laptops, and televisions as it offers excellent performance. Therefore, SAMSUNG has introduced AMOLED displays in almost every product. For example, Full HD Super AMOLED in Samsung Galaxy S4 and Samsung Galaxy Note 3, Super AMOLED in Samsung Galaxy S3, HD Super AMOLED in Samsung Galaxy Note, and HD Super AMOLED Plus in Samsung Galaxy S3. Apart from this, it is also used in AMOLED vs OLED creating the following:

So far, we have discussed OLED and AMOLED display technologies. Now, we will look at some of the differences between OLED and AMOLED display technology:

OLED comprises thin layers of the organic component, which emits light when the current passes through it. In this technology, each pixel transmits its own light. On the other side, AMOLED consists of an additional layer of thin-film transistors (TFTs). In AMOLED, the storage capacitors are used to maintain the pixel states.

While the technology is different among various manufacturers, Samsung’s edge AMOLED displays use plastic substrates with poly-Si TFT technology similar to how LG uses it in their POLED technology. This technology is what makes the possibility to build curved displays using an active-matrix OLED panel.

OLED display much deeper blacks as compared to AMOLED displays. You cannot see the screen in AMOLED display under direct sunlight. The AMOLED display quality is much better than the OLEDs as it contains an additional layer of TFTs and follows backplane technologies.

The OLED devices are simple solid-state devices consisting of a thin layer of organic compounds in an emissive electroluminescent layer where the electricity generates.

These organic compounds are present between the protective layers of glass or plastic. Comparatively, AMOLED comprises an active matrix of OLED pixels along with an additional layer of TFTs. This extra layer is responsible for controlling the current flow in each pixel.

The OLED display offers a high level of control over pixels. Hence, it can be turned off completely, resulting in an excellent contrast ratio compared to the AMOLED displays and less power consumption. On the other side, AMOLED has faster refresh rates than OLEDs. Also, they offer a tremendous artificial contrast ratio as each pixel transmits light but consumes more power than OLEDs.

OLED displays are comparatively much thinner compared to LCDs. Hence, it provides more efficient and bright presentations. In addition, OLED offers support for large display sizes compared to traditional LCDs. AMOLEDs remove the limitation of display sizes. one can fit it into any display size.

Putting all the points mentioned above in view, the key difference to understand appropriately is that POLED is an OLED display with a plastic substrate. On the other hand, AMOLED is Samsung’s word for its display technology which is mainly for marketing. Therefore, most phone manufacturers having AMOLED displays mean that they are using Samsung displays. It is as simple as that. To add to that, all the curved display technology is made possible because of the usage of the plastic substrate.

So, based on the points mentioned above, the difference between OLED and AMOLED displays, you can choose any of the two display technology at your convenience. Both are good, offer excellent performance, and are customised according to your requirements.

The AMOLED display has a higher quality than OLEDs since it has an additional layer of TTs and uses backplane technologies. When compared to OLED screens, AMOLED displays are far more flexible. As a result, they are substantially more expensive than an OLED display.

Window to the digital world, the display is one of the first seen features when selecting a smartphone, so a show must be good, and an AMOLED display offers the same. Offering a great viewing experience, here are the top 3 AMOLED screen smartphones available in the market right now:

Realme 10 Pro Plus 5G features a 6.7-inch AMOLED display with 394 PPI display. It runs on MediaTek Dimensity 1080. On the rear, the Realme 10 Pro Plus 5G has a triple-camera setup with 108-megapixel primary sensor, 8-megapixel ultra-wide angle sensor, 2-megapixel sensor.

Coming to the front, it has a 16-megapixel selfie camera housed in the punch-hole display. It comes with a 5000mAh battery that supports 67W smart flash charging. The Realme 10 Pro Plus 5G is one of the best segments with a AMOLED FHD display.

The Xiaomi Redmi Note 12 Pro 5G runs on MediaTek Dimensity 1080 chipset bundled with Mali-G68 MC4 graphics processor and up to 12GB RAM. The display front comes with a 6.67-inch AMOLED display with FHD and 395 PPI.

The cameras have a triple rear camera setup with a 50-megapixel primary sensor, an 8-megapixel ultra-wide angle sensor, and a 2-megapixel macro sensor. In addition, it has a 16-megapixel selfie camera. It has a 5,000 mAh battery with 67W fast charging. The AMOLED display on the Redmi Note 12 Pro 5G is a treat for all media enthusiasts.

OPPO has recently launched the OPPO Reno8 5G with MediaTek Dimensity 1300 chipset coupled with Arm Mali-G77 MC9 GPU and up to 8GB of RAM. In addition, it comes with a 6.43-inch curved AMOLED display with support for HDR10+.

On the rear, it comes with a triple-camera setup with a 50-megapixel primary sensor, an 8MP ultra-wide angle sensor, a 2-megapixel macro camera. In addition, it has a 32-megapixel selfie camera integrated inside the punch-hole on display on the front. It comes with a 4,500mAh battery that supports 80W fast charging and can charge the phone 100 per cent in just 15 minutes. Since it comes with an Full HD+ AMOLED display on the display front, it is a treat for gamers and media consumption lovers.

Major smartphone manufacturers attempt to provide their consumers with the most delicate devices possible that incorporate the most up-to-date technologies. In AMOLED vs OLED, AMOLED is a type of OLED and a more prominent example of both OLED and POLED, so there’s no debate about which is superior.

An organic light-emitting diode (OLED or organic LED), also known as organic electroluminescent (organic EL) diode,light-emitting diode (LED) in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current. This organic layer is situated between two electrodes; typically, at least one of these electrodes is transparent. OLEDs are used to create digital displays in devices such as television screens, computer monitors, and portable systems such as smartphones and handheld game consoles. A major area of research is the development of white OLED devices for use in solid-state lighting applications.

There are two main families of OLED: those based on small molecules and those employing polymers. Adding mobile ions to an OLED creates a light-emitting electrochemical cell (LEC) which has a slightly different mode of operation. An OLED display can be driven with a passive-matrix (PMOLED) or active-matrix (AMOLED) control scheme. In the PMOLED scheme, each row and line in the display is controlled sequentially, one by one,thin-film transistor (TFT) backplane to directly access and switch each individual pixel on or off, allowing for higher resolution and larger display sizes.

OLED is fundamentally different from LED which is based on a p-n diode structure. In LEDs doping is used to create p- and n- regions by changing the conductivity of the host semiconductor. OLEDs do not employ a p-n structure. Doping of OLEDs is used to increase radiative efficiency by direct modification of the quantum-mechanical optical recombination rate. Doping is additionally used to determine the wavelength of photon emission.

An OLED display works without a backlight because it emits its own visible light. Thus, it can display deep black levels and can be thinner and lighter than a liquid crystal display (LCD). In low ambient light conditions (such as a dark room), an OLED screen can achieve a higher contrast ratio than an LCD, regardless of whether the LCD uses cold cathode fluorescent lamps or an LED backlight. OLED displays are made in the same way as LCDs, but after TFT (for active matrix displays), addressable grid (for passive matrix displays) or indium-tin oxide (ITO) segment (for segment displays) formation, the display is coated with hole injection, transport and blocking layers, as well with electroluminescent material after the first 2 layers, after which ITO or metal may be applied again as a cathode and later the entire stack of materials is encapsulated. The TFT layer, addressable grid or ITO segments serve as or are connected to the anode, which may be made of ITO or metal.transparent displays being used in smartphones with optical fingerprint scanners and flexible displays being used in foldable smartphones.

In 1960, Martin Pope and some of his co-workers at New York University developed ohmic dark-injecting electrode contacts to organic crystals.work functions) for hole and electron injecting electrode contacts. These contacts are the basis of charge injection in all modern OLED devices. Pope"s group also first observed direct current (DC) electroluminescence under vacuum on a single pure crystal of anthracene and on anthracene crystals doped with tetracene in 1963volts. The proposed mechanism was field-accelerated electron excitation of molecular fluorescence.

The first Polymer LED (PLED) to be created was by Roger Partridge at the National Physical Laboratory in the United Kingdom. It used a film of poly(N-vinylcarbazole) up to 2.2 micrometers thick located between two charge-injecting electrodes. The light generated was readily visible in normal lighting conditions though the polymer used had 2 limitations; low conductivity and the difficulty of injecting electrons.

Research into polymer electroluminescence culminated in 1990, with J. H. Burroughes et al. at the Cavendish Laboratory at Cambridge University, UK, reporting a high-efficiency green light-emitting polymer-based device using 100nm thick films of poly(p-phenylene vinylene).plastic electronics and OLED research and device production grew rapidly.et al. at Yamagata University, Japan in 1995, achieved the commercialization of OLED-backlit displays and lighting.

In 1999, Kodak and Sanyo had entered into a partnership to jointly research, develop, and produce OLED displays. They announced the world"s first 2.4-inch active-matrix, full-color OLED display in September the same year.

Manufacturing of small molecule OLEDs was started in 1997 by Pioneer Corporation, followed by TDK in 2001 and Samsung-NEC Mobile Display (SNMD), which later became one of the world"s largest OLED display manufacturers - Samsung Display, in 2002.

The Sony XEL-1, released in 2007, was the first OLED television.Universal Display Corporation, one of the OLED materials companies, holds a number of patents concerning the commercialization of OLEDs that are used by major OLED manufacturers around the world.

On 5 December 2017, JOLED, the successor of Sony and Panasonic"s printable OLED business units, began the world"s first commercial shipment of inkjet-printed OLED panels.

A typical OLED is composed of a layer of organic materials situated between two electrodes, the anode and cathode, all deposited on a substrate. The organic molecules are electrically conductive as a result of delocalization of pi electrons caused by conjugation over part or all of the molecule. These materials have conductivity levels ranging from insulators to conductors, and are therefore considered organic semiconductors. The highest occupied and lowest unoccupied molecular orbitals (HOMO and LUMO) of organic semiconductors are analogous to the valence and conduction bands of inorganic semiconductors.

Originally, the most basic polymer OLEDs consisted of a single organic layer. One example was the first light-emitting device synthesised by J. H. Burroughes et al., which involved a single layer of poly(p-phenylene vinylene). However multilayer OLEDs can be fabricated with two or more layers in order to improve device efficiency. As well as conductive properties, different materials may be chosen to aid charge injection at electrodes by providing a more gradual electronic profile,quantum efficiency (up to 19%) by using a graded heterojunction.

During operation, a voltage is applied across the OLED such that the anode is positive with respect to the cathode. Anodes are picked based upon the quality of their optical transparency, electrical conductivity, and chemical stability.electrons flows through the device from cathode to anode, as electrons are injected into the LUMO of the organic layer at the cathode and withdrawn from the HOMO at the anode. This latter process may also be described as the injection of electron holes into the HOMO. Electrostatic forces bring the electrons and the holes towards each other and they recombine forming an exciton, a bound state of the electron and hole. This happens closer to the electron-transport layer part of the emissive layer, because in organic semiconductors holes are generally more mobile than electrons. The decay of this excited state results in a relaxation of the energy levels of the electron, accompanied by emission of radiation whose frequency is in the visible region. The frequency of this radiation depends on the band gap of the material, in this case the difference in energy between the HOMO and LUMO.

Experimental research has proven that the properties of the anode, specifically the anode/hole transport layer (HTL) interface topography plays a major role in the efficiency, performance, and lifetime of organic light-emitting diodes. Imperfections in the surface of the anode decrease anode-organic film interface adhesion, increase electrical resistance, and allow for more frequent formation of non-emissive dark spots in the OLED material adversely affecting lifetime. Mechanisms to decrease anode roughness for ITO/glass substrates include the use of thin films and self-assembled monolayers. Also, alternative substrates and anode materials are being considered to increase OLED performance and lifetime. Possible examples include single crystal sapphire substrates treated with gold (Au) film anodes yielding lower work functions, operating voltages, electrical resistance values, and increasing lifetime of OLEDs.

Balanced charge injection and transfer are required to get high internal efficiency, pure emission of luminance layer without contaminated emission from charge transporting layers, and high stability. A common way to balance charge is optimizing the thickness of the charge transporting layers but is hard to control. Another way is using the exciplex. Exciplex formed between hole-transporting (p-type) and electron-transporting (n-type) side chains to localize electron-hole pairs. Energy is then transferred to luminophore and provide high efficiency. An example of using exciplex is grafting Oxadiazole and carbazole side units in red diketopyrrolopyrrole-doped Copolymer main chain shows improved external quantum efficiency and color purity in no optimized OLED.

Organic small-molecule electroluminescent materials have the advantages of a wide variety, easy to purify, and strong chemical modifications. In order to make the luminescent materials to emit light as required, some chromophores or unsaturated groups such as alkene bonds and benzene rings will usually be introduced in the molecular structure design to change the size of the conjugation range of the material, so that the photophysical properties of the material changes. In general, the larger the range of π-electron conjugation system, the longer the wavelength of light emitted by the material. For instance, with the increase of the number of benzene rings, the fluorescence emission peak of benzene, naphthalene, anthracene,anthracenes, biphenyl acetylene aryl derivatives, coumarin derivatives,Ching W. Tang et al.Eastman Kodak. The term OLED traditionally refers specifically to this type of device, though the term SM-OLED is also in use.

Molecules commonly used in OLEDs include organometallic chelates (for example Alq3, used in the organic light-emitting device reported by Tang et al.), fluorescent and phosphorescent dyes and conjugated dendrimers. A number of materials are used for their charge transport properties, for example triphenylamine and derivatives are commonly used as materials for hole transport layers.perylene, rubrene and quinacridone derivatives are often used.3 has been used as a green emitter, electron transport material and as a host for yellow and red emitting dyes.

Because of the structural flexibility of small-molecule electroluminescent materials, thin films can be prepared by vacuum vapor deposition, which is more expensive and of limited use for large-area devices. The vacuum coating system, however, can make the entire process from film growth to OLED device preparation in a controlled and complete operating environment, helping to obtain uniform and stable films, thus ensuring the final fabrication of high-performance OLED devices.However, small molecule organic dyes are prone to fluorescence quenching

Polymer light-emitting diodes (PLED, P-OLED), also light-emitting polymers (LEP), involve an electroluminescent conductive polymer that emits light when connected to an external voltage. They are used as a thin film for full-spectrum colour displays. Polymer OLEDs are quite efficient and require a relatively small amount of power for the amount of light produced.

Vacuum deposition is not a suitable method for forming thin films of polymers. If the polymeric OLED films are made by vacuum vapor deposition, the chain elements will be cut off and the original photophysical properties will be compromised. However, polymers can be processed in solution, and spin coating is a common method of depositing thin polymer films. This method is more suited to forming large-area films than thermal evaporation. No vacuum is required, and the emissive materials can also be applied on the substrate by a technique derived from commercial inkjet printing.Langmuir-Blodgett film.

Typical polymers used in PLED displays include derivatives of poly(p-phenylene vinylene) and polyfluorene. Substitution of side chains onto the polymer backbone may determine the colour of emitted lightring opening metathesis polymerization.

Phosphorescent organic light-emitting diodes use the principle of electrophosphorescence to convert electrical energy in an OLED into light in a highly efficient manner,

The heavy metal atom at the centre of these complexes exhibits strong spin-orbit coupling, facilitating intersystem crossing between singlet and triplet states. By using these phosphorescent materials, both singlet and triplet excitons will be able to decay radiatively, hence improving the internal quantum efficiency of the device compared to a standard OLED where only the singlet states will contribute to emission of light.

Applications of OLEDs in solid state lighting require the achievement of high brightness with good CIE coordinates (for white emission). The use of macromolecular species like polyhedral oligomeric silsesquioxanes (POSS) in conjunction with the use of phosphorescent species such as Ir for printed OLEDs have exhibited brightnesses as high as 10,000cd/m2.

a) Bottom-emitting and b) top-emitting OLED structures; c,d) Schematic diagrams based on bottom-emitting and top-emitting OLEDs with low and high contrast ratio, respectively.

The bottom-emission organic light-emitting diode (BE-OLED) is the architecture that was used in the early-stage AMOLED displays. It had a transparent anode fabricated on a glass substrate, and a shiny reflective cathode. Light is emitted from the transparent anode direction. To reflect all the light towards the anode direction, a relatively thick metal cathode such as aluminum is used. For the anode, high-transparency indium tin oxide (ITO) was a typical choice to emit as much light as possible.thin film transistor (TFT) substrate, and the area from which light can be extracted is limited and the light emission efficiency is reduced.

An alternative configuration is to switch the mode of emission. A reflective anode, and a transparent (or more often semi-transparent) cathode are used so that the light emits from the cathode side, and this configuration is called top-emission OLED (TE-OLED). Unlike BEOLEDs where the anode is made of transparent conductive ITO, this time the cathode needs to be transparent, and the ITO material is not an ideal choice for the cathode because of a damage issue due to the sputtering process.transmittance and high conductivity.

Since both electrodes are reflective in TEOLED, light reflections can happen within the diode, and they cause more complex interferences than those in BEOLEDs. In addition to the two-beam interference, there exists a multi-resonance interference between two electrodes. Because the structure of TEOLEDs is similar to that of the Fabry-Perot resonator or laser resonator, which contains two parallel mirrors comparable to the two reflective electrodes),

In the case of OLED, that means the cavity in a TEOLED could be especially designed to enhance the light output intensity and color purity with a narrow band of wavelengths, without consuming more power. In TEOLEDs, the microcavity effect commonly occurs, and when and how to restrain or make use of this effect is indispensable for device design. To match the conditions of constructive interference, different layer thicknesses are applied according to the resonance wavelength of that specific color. The thickness conditions are carefully designed and engineered according to the peak resonance emitting wavelengths of the blue (460 nm), green (530 nm), and red (610 nm) color LEDs. This technology greatly improves the light-emission efficiency of OLEDs, and are able to achieve a wider color gamut due to high color purity.

In "white + color filter method," red, green, and blue emissions are obtained from the same white-light LEDs using different color filters.uneven degradation rate of blue pixels vs. red and green pixels. Disadvantages of this method are low color purity and contrast. Also, the filters absorb most of the light waves emitted, requiring the background white light to be relatively strong to compensate for the drop in brightness, and thus the power consumption for such displays can be higher.

Color filters can also be implemented into bottom- and top-emission OLEDs. By adding the corresponding RGB color filters after the semi-transparent cathode, even purer wavelengths of light can be obtained. The use of a microcavity in top-emission OLEDs with color filters also contributes to an increase in the contrast ratio by reducing the reflection of incident ambient light.

Transparent OLEDs use transparent or semi-transparent contacts on both sides of the device to create displays that can be made to be both top and bottom emitting (transparent). TOLEDs can greatly improve contrast, making it much easier to view displays in bright sunlight.Head-up displays, smart windows or augmented reality applications.

Stacked OLEDs use a pixel architecture that stacks the red, green, and blue subpixels on top of one another instead of next to one another, leading to substantial increase in gamut and color depth,

In contrast to a conventional OLED, in which the anode is placed on the substrate, an Inverted OLED uses a bottom cathode that can be connected to the drain end of an n-channel TFT especially for the low cost amorphous silicon TFT backplane useful in the manufacturing of AMOLED displays.

Although the shadow-mask patterning method is a mature technology used from the first OLED manufacturing, it causes many issues like dark spot formation due to mask-substrate contact or misalignment of the pattern due to the deformation of shadow mask. Such defect formation can be regarded as trivial when the display size is small, however it causes serious issues when a large display is manufactured, which brings significant production yield loss. To circumvent such issues, white emission devices with 4-sub-pixel color filters (white, red, green and blue) have been used for large televisions. In spite of the light absorption by the color filter, state-of-the-art OLED televisions can reproduce color very well, such as 100% NTSC, and consume little power at the same time. This is done by using an emission spectrum with high human-eye sensitivity, special color filters with a low spectrum overlap, and performance tuning with color statistics into consideration.

Organic vapour jet printing (OVJP) uses an inert carrier gas, such as argon or nitrogen, to transport evaporated organic molecules (as in organic vapour phase deposition). The gas is expelled through a micrometre-sized nozzle or nozzle array close to the substrate as it is being translated. This allows printing arbitrary multilayer patterns without the use of solvents.

Like ink jet material deposition, inkjet etching (IJE) deposits precise amounts of solvent onto a substrate designed to selectively dissolve the substrate material and induce a structure or pattern. Inkjet etching of polymer layers in OLED"s can be used to increase the overall out-coupling efficiency. In OLEDs, light produced from the emissive layers of the OLED is partially transmitted out of the device and partially trapped inside the device by total internal reflection (TIR). This trapped light is wave-guided along the interior of the device until it reaches an edge where it is dissipated by either absorption or emission. Inkjet etching can be used to selectively alter the polymeric layers of OLED structures to decrease overall TIR and increase out-coupling efficiency of the OLED. Compared to a non-etched polymer layer, the structured polymer layer in the OLED structure from the IJE process helps to decrease the TIR of the OLED device. IJE solvents are commonly organic instead of water-based due to their non-acidic nature and ability to effectively dissolve materials at temperatures under the boiling point of water.

Transfer-printing is an emerging technology to assemble large numbers of parallel OLED and AMOLED devices efficiently. It takes advantage of standard metal deposition, photolithography, and etching to create alignment marks commonly on glass or other device substrates. Thin polymer adhesive layers are applied to enhance resistance to particles and surface defects. Microscale ICs are transfer-printed onto the adhesive surface and then baked to fully cure adhesive layers. An additional photosensitive polymer layer is applied to the substrate to account for the topography caused by the printed ICs, reintroducing a flat surface. Photolithography and etching removes some polymer layers to uncover conductive pads on the ICs. Afterwards, the anode layer is applied to the device backplane to form the bottom electrode. OLED layers are applied to the anode layer with conventional vapor deposition, and covered with a conductive metal electrode layer. As of 2011mm × 400mm. This size limit needs to expand for transfer-printing to become a common process for the fabrication of large OLED/AMOLED displays.

Experimental OLED displays using conventional photolithography techniques instead of FMMs have been demonstrated, allowing for large substrate sizes (as it eliminates the need for a mask that needs to be as large as the substrate) and good yield control.

For a high resolution display like a TV, a thin-film transistor (TFT) backplane is necessary to drive the pixels correctly. As of 2019, low-temperature polycrystalline silicon (LTPS)– TFT is widely used for commercial AMOLED displays. LTPS-TFT has variation of the performance in a display, so various compensation circuits have been reported.excimer laser used for LTPS, the AMOLED size was limited. To cope with the hurdle related to the panel size, amorphous-silicon/microcrystalline-silicon backplanes have been reported with large display prototype demonstrations.indium gallium zinc oxide (IGZO) backplane can also be used.

OLEDs can be printed onto any suitable substrate by an inkjet printer or even by screen printing,plasma displays. However, fabrication of the OLED substrate as of 2018 is costlier than that for TFT LCDs.registration — lining up the different printed layers to the required degree of accuracy.

OLED displays can be fabricated on flexible plastic substrates, leading to the possible fabrication of flexible organic light-emitting diodes for other new applications, such as roll-up displays embedded in fabrics or clothing. If a substrate like polyethylene terephthalate (PET)

OLEDs enable a greater contrast ratio and wider viewing angle compared to LCDs, because OLED pixels emit light directly. This also provides a deeper black level, since a black OLED display emits no light. Furthermore, OLED pixel colors appear correct and unshifted, even as the viewing angle approaches 90° from the normal.

LCDs filter the light emitted from a backlight, allowing a small fraction of light through. Thus, they cannot show true black. However, an inactive OLED element does not produce light or consume power, allowing true blacks.nm. The refractive value and the matching of the optical IMLs property, including the device structure parameters, also enhance the emission intensity at these thicknesses.

OLEDs also have a much faster response time than an LCD. Using response time compensation technologies, the fastest modern LCDs can reach response times as low as 1ms for their fastest color transition, and are capable of refresh frequencies as high as 240Hz. According to LG, OLED response times are up to 1,000 times faster than LCD,μs (0.01ms), which could theoretically accommodate refresh frequencies approaching 100kHz (100,000Hz). Due to their extremely fast response time, OLED displays can also be easily designed to be strobed, creating an effect similar to CRT flicker in order to avoid the sample-and-hold behavior seen on both LCDs and some OLED displays, which creates the perception of motion blur.

The biggest technical problem for OLEDs is the limited lifetime of the organic materials. One 2008 technical report on an OLED TV panel found that after 1,000hours, the blue luminance degraded by 12%, the red by 7% and the green by 8%.hours to half original brightness (five years at eight hours per day) when used for flat-panel displays. This is lower than the typical lifetime of LCD, LED or PDP technology; each rated for about 25,000–40,000hours to half brightness, depending on manufacturer and model. One major challenge for OLED displays is the formation of dark spots due to the ingress of oxygen and moisture, which degrades the organic material over time whether or not the display is powered.

However, some manufacturers" displays aim to increase the lifespan of OLED displays, pushing their expected life past that of LCD displays by improving light outcoupling, thus achieving the same brightness at a lower drive current.cd/m2 of luminance for over 198,000hours for green OLEDs and 62,000hours for blue OLEDs.hours for red, 1,450,000hours for yellow and 400,000hours for green at an initial luminance of 1,000cd/m2.

Degradation occurs three orders of magnitude faster when exposed to moisture than when exposed to oxygen. Encapsulation can be performed by applying an epoxy adhesive with dessicant,Atomic Layer Deposition (ALD). The encapsulation process is carried out under a nitrogen environment, using UV-curable LOCA glue and the electroluminescent and electrode material deposition processes are carried out under a high vacuum. The encapsulation and material deposition processes are carried out by a single machine, after the Thin-film transistors have been applied. The transistors are applied in a process that is the same for LCDs. The electroluminescent materials can also be applied using inkjet printing.

The OLED material used to produce blue light degrades much more rapidly than the materials used to produce other colors; in other words, blue light output will decrease relative to the other colors of light. This variation in the differential color output will change the color balance of the display, and is much more noticeable than a uniform decrease in overall luminance.

Improvements to the efficiency and lifetime of blue OLEDs is vital to the success of OLEDs as replacements for LCD technology. Considerable research has been invested in developing blue OLEDs with high external quantum efficiency, as well as a deeper blue color.

Blue TADF emitters are expected to market by 2020WOLED displays with phosphorescent color filters, as well as blue OLED displays with ink-printed QD color filters.

As an emissive display technology, OLEDs rely completely upon converting electricity to light, unlike most LCDs which are to some extent reflective. E-paper leads the way in efficiency with ~ 33% ambient light reflectivity, enabling the display to be used without any internal light source. The metallic cathode in an OLED acts as a mirror, with reflectance approaching 80%, leading to poor readability in bright ambient light such as outdoors. However, with the proper application of a circular polarizer and antireflective coatings, the diffuse reflectance can be reduced to less than 0.1%. With 10,000 fc incident illumination (typical test condition for simulating outdoor illumination), that yields an approximate photopic contrast of 5:1. Advances in OLED technologies, however, enable OLEDs to become actually better than LCDs in bright sunlight. The AMOLED display in the Galaxy S5, for example, was found to outperform all LCD displays on the market in terms of power usage, brightness and reflectance.

While an OLED will consume around 40% of the power of an LCD displaying an image that is primarily black, for the majority of images it will consume 60–80% of the power of an LCD. However, an OLED can use more than 300% power to display an image with a white background, such as a document or web site.

OLEDs use pulse width modulation to show colour/brightness gradations, so even if the display is at 100% brightness, any pixel that"s, for example, 50% grey will be off for 50% of the time, making for a subtle strobe effect. The alternative way to decrease brightness would be to decrease the constant power to the OLEDs, which would result in no screen flicker, but a noticeable change in colour balance, getting worse as brightness decreases.

Almost all OLED manufacturers rely on material deposition equipment that is only made by a handful of companies,Canon Tokki, a unit of Canon Inc. Canon Tokki is reported to have a near-monopoly of the giant OLED-manufacturing vacuum machines, notable for their 100-metre (330 ft) size.Apple has relied solely on Canon Tokki in its bid to introduce its own OLED displays for the iPhones released in 2017.

OLED technology is used in commercial applications such as displays for mobile phones and portable digital media players, car radios and digital cameras among others, as well as lighting.Philips Lighting has made OLED lighting samples under the brand name "Lumiblade" available onlineNovaled AG based in Dresden, Germany, introduced a line of OLED desk lamps called "Victory" in September, 2011.

Nokia introduced OLED mobile phones including the N85 and the N86 8MP, both of which feature an AMOLED display. OLEDs have also been used in most Motorola and Samsung color cell phones, as well as some HTC, LG and Sony Ericsson models.ZEN V, the iriver clix, the Zune HD and the Sony Walkman X Series.

The Google and HTC Nexus One smartphone includes an AMOLED screen, as does HTC"s own Desire and Legend phones. However, due to supply shortages of the Samsung-produced displays, certain HTC models will use Sony"s SLCD displays in the future,Nexus S smartphone will use "Super Clear LCD" instead in some countries.

OLED displays were used in watches made by Fossil (JR-9465) and Diesel (DZ-7086). Other manufacturers of OLED panels include Anwell Technologies Limited (Hong Kong),AU Optronics (Taiwan),Chimei Innolux Corporation (Taiwan),LG (Korea),

DuPont stated in a press release in May 2010, that they can produce a 50-inch OLED TV in two minutes with a new printing technology. If this can be scaled up in terms of manufacturing, then the total cost of OLED TVs would be greatly reduced. DuPont also states that OLED TVs made with this less expensive technology can last up to 15 years if left on for a normal eight-hour day.

The use of OLEDs may be subject to patents held by Universal Display Corporation, Eastman Kodak, DuPont, General Electric, Royal Philips Electronics, numerous universities and others.

Flexible OLED displays have been used by manufacturers to create curved displays such as the Galaxy S7 Edge but they were not in devices that can be flexed by the users.

On 31 October 2018, Royole, a Chinese electronics company, unveiled the world"s first foldable screen phone featuring a flexible OLED display.Samsung announced the Samsung Galaxy Fold with a foldable OLED display from Samsung Display, its majority-owned subsidiary.MWC 2019 on 25 February 2019, Huawei announced the Huawei Mate X featuring a foldable OLED display from BOE.

Textiles incorporating OLEDs are an innovation in the fashion world and pose for a way to integrate lighting to bring inert objects to a whole new level of fashion. The hope is to combine the comfort and low cost properties of textile with the OLEDs properties of illumination and low energy consumption. Although this scenario of illuminated clothing is highly plausible, challenges are still a road block. Some issues include: the lifetime of the OLED, rigidness of flexible foil substrates, and the lack of research in making more fabric like photonic textiles.

The number of automakers using OLEDs is still rare and limited to the high-end of the market. For example, the 2010 Lexus RX features an OLED display instead of a thin film transistor (TFT-LCD) display.

A Japanese manufacturer Pioneer Electronic Corporation produced the first car stereos with a monochrome OLED display, which was also the world"s first OLED product.Yazaki,Hyundai Sonata and Kia Soul EV use a 3.5-inch white PMOLED display.

By 2004, Samsung Display, a subsidiary of South Korea"s largest conglomerate and a former Samsung-NEC joint venture, was the world"s largest OLED manufacturer, producing 40% of the OLED displays made in the world,AMOLED market.million out of the total $475million revenues in the global OLED market in 2006.

Samsung SDI announced in 2005, the world"s largest OLED TV at the time, at 21 inches (53 cm).million pixels. In addition, the company adopted active matrix-based technology for its low power consumption and high-resolution qualities. This was exceeded in January 2008, when Samsung showcased the world"s largest and thinnest OLED TV at the time, at 31inches (78cm) and 4.3mm.

In October 2008, Samsung showcased the world"s thinnest OLED display, also the first to be "flappable" and bendable.mm (thinner than paper), yet a Samsung staff member said that it is "technically possible to make the panel thinner".cd/m2. The colour reproduction range is 100% of the NTSC standard.

At the Consumer Electronics Show (CES) in January 2010, Samsung demonstrated a laptop computer with a large, transparent OLED display featuring up to 40% transparency

Samsung"s 2010 AMOLED smartphones used their Super AMOLED trademark, with the Samsung Wave S8500 and Samsung i9000 Galaxy S being launched in June 2010. In January 2011, Samsung announced their Super AMOLED Plus displays, which offer several advances over the older Super AMOLED displays: real stripe matrix (50% more sub pixels), thinner form factor, brighter image and an 18% reduction in energy consumption.

On 8 January 2013, at CES Samsung unveiled a unique curved 4K Ultra S9 OLED television, which they state provides an "IMAX-like experience" for viewers.

Samsung introduced the Galaxy Round smartphone in the Korean market in October 2013. The device features a 1080p screen, measuring 5.7 inches (14 cm), that curves on the vertical axis in a rounded case. The corporation has promoted the following advantages: A new feature called "Round Interaction" that allows users to look at information by tilting the handset on a flat surface with the screen off, and the feel of one continuous transition when the user switches between home screens.

At the 2007, Las Vegas Consumer Electronics Show (CES), Sony showcased a 11-inch (28 cm), (resolution 960×540) and 27-inch (69 cm), full HD resolution at 1920 × 1080 OLED TV models.contrast ratios and total thicknesses (including bezels) of 5mm. In April 2007, Sony announced it would manufacture 1000 11-inch (28 cm) OLED TVs per month for market testing purposes.XEL-1, was the first commercial OLED TV

In May 2007, Sony publicly unveiled a video of a 2.5-inch (6.4 cm) flexible OLED screen which is only 0.3 millimeters thick.mm thick 3.5 inches (8.9 cm) display with a resolution of 320×200 pixels and a 0.3mm thick 11-inch (28 cm) display with 960×540 pixels resolution, one-tenth the thickness of the XEL-1.

In July 2008, a Japanese government body said it would fund a joint project of leading firms, which is to develop a key technology to produce large, energy-saving organic displays. The project involves one laboratory and 10 companies including Sony Corp. NEDO said the project was aimed at developing a core technology to mass-produce 40inch or larger OLED displays in the late 2010s.

In October 2008, Sony published results of research it carried out with the Max Planck Institute over the possibility of mass-market bending displays, which could replace rigid LCDs and plasma screens. Eventually, bendable, see-through displays could be stacked to produce 3D images with much greater contrast ratios and viewing angles than existing products.

On 17 February 2011, Sony announced its 25" (63.5cm) OLED Professional Reference Monitor aimed at the Cinema and high end Drama Post Production market.

On 25 June 2012, Sony and Panasonic announced a joint venture for creating low cost mass production OLED televisions by 2013.CES 2017 called A1E. It revealed two other models in 2018 one at CES 2018 called A8F and other a Master Series TV called A9F. At CES 2019 They unveiled another two models one the A8G and the other another Bravia Series TV called A9G. Then, at CES 2020, they revealed the A8H, which was effectively a A9G in terms of picture quality but with some compromises due to its lower cost. At the same event, they also revealed a 48-inch version of the A9G, making this its smallest OLED TV since the XEL-1.

On 9 April 2009, LG acquired Kodak"s OLED business and started to utilize white OLED technology.LG Electronics produced one model of OLED television, the 15-inch (38 cm) 15EL9500

In January 2015, LG Display signed a long-term agreement with Universal Display Corporation for the supply of OLED materials and the right to use their patented OLED emitters.

Lumiotec is the first company in the world developing and selling, since January 2011, mass-produced OLED lighting panels with such brightness and long lifetime. Lumiotec is a joint venture of Mitsubishi Heavy Industries, ROHM, Toppan Printing, and Mitsui & Co.

On 6 January 2011, Los Angeles-based technology company Recom Group introduced the first small screen consumer application of the OLED at the Consumer Electronics Show in Las Vegas. This was a 2.8" (7cm) OLED display being used as a wearable video name tag.cm) OLED displays on a standard broadcaster"s mic flag. The video mic flag allowed video content and advertising to be shown on a broadcasters standard mic flag.

On 6 January 2016, Dell announced the Ultrasharp UP3017Q OLED monitor at the Consumer Electronics Show in Las Vegas.Hz refresh rate, 0.1 millisecond response time, and a contrast ratio of 400,000:1. The monitor was set to sell at a price of $4,999 and release in March, 2016, just a few months later. As the end of March rolled around, the monitor was not released to the market and Dell did not speak on reasons for the delay. Reports suggested that Dell canceled the monitor as the company was unhappy with the image quality of the OLED panel, especially the amount of color drift that it displayed when you viewed the monitor from the sides.Hz refresh rate and a contrast ratio of 1,000,000:1. As of June, 2017, the monitor is no longer available to purchase from Dell"s website.

Apple began using OLED panels in its watches in 2015 and in its laptops in 2016 with the introduction of an OLED touchbar to the MacBook Pro.iPhone X with their own optimized OLED display licensed from Universal Display Corporation.iPhone XS and iPhone XS Max, and iPhone 11 Pro and iPhone 11 Pro Max.

A third model of Nintendo"s Switch, a hybrid gaming system, features an OLED panel in place of the original model"s LCD panel. Announced in the summer of 2021, it was released on 8 October 2021.

In 2014, Mitsubishi Chemical Corporation (MCC), a subsidiary of Mitsubishi Chemical Holdings, developed an OLED panel with a 30,000-hour life, twice that of conventional OLED panels.

The search for efficient OLED materials has been extensively supported by simulation methods; it is possible to calculate important properties computationally, independent of experimental input,

On 18 October 2018, Samsung showed of their research roadmap at their 2018 Samsung OLED Forum. This included Fingerprint on Display (FoD), Under Panel Sensor (UPS), Haptic on Display (HoD) and Sound on Display (SoD).

Various venders are also researching cameras under OLEDs (Under Display Cameras). According to IHS Markit Huawei has partnered with BOE, Oppo with China Star Optoelectronics Technology (CSOT), Xiaomi with Visionox.

In 2020, researchers at the Queensland University of Technology (QUT) proposed using human hair which is a source of carbon and nitrogen to create OLED displays.

P. Chamorro-Posada, J. Martín-Gil, P. Martín-Ramos, L.M. Navas-Gracia, Fundamentos de la Tecnología OLED (Fundamentals of OLED Technology). University of Valladolid, Spain (2008). ISBN 978-84-936644-0-4. Available online, with permission from the authors, at the webpage: Fundamentos de la Tecnología OLED

Kho, Mu-Jeong, Javed, T., Mark, R., Maier, E., and David, C. (2008) "Final Report: OLED Solid State Lighting – Kodak European Research" MOTI (Management of Technology and Innovation) Project, Judge Business School of the University of Cambridge and Kodak European Research, Final Report presented on 4 March 2008 at Kodak European Research at Cambridge Science Park, Cambridge, UK., pages 1–12.

Kamtekar, K. T.; Monkman, A. P.; Bryce, M. R. (2010). "Recent Advances in White Organic Light-Emitting Materials and Devices (WOLEDs)". Advanced Materials. 22 (5): 572–582. Bibcode:2010AdM....22..572K. doi:10.1002/adma.200902148. PMID 20217752. S2CID 205234304.
