Vishay’s 7-segment LED displays are used in a wide variety of end products including test and measurement equipment, point-of-sale terminals, telecom systems, office equipment, consumer electronics, and medical equipment. Options include 7 mm, 10 mm, and 13 mm leaded and surface-mount packages, and color choices including green, red, orange-red, yellow, soft orange, super red, and super yellow.

Finding and choosing the right seven segment display can be very difficult and time-consuming. There are several technologies out there, with vastly different specifications, advantages, and disadvantages. Reading this article, will provide you new insights on what seven segment displays that will suit your project or product.

This post aims to give you a better understanding of what different 7 segment display technologies are available on the market and how they can be applied in various use-cases. We will cover the following seven segment display options:

Good appearance if designed right. Low-cost versions typically have a poor appearance with clearly visible segments in the off state. Good for dark & indoor environment

* 2x2 cm^2 outer dimension of a 1x7 segment display, approximately equivalent to 1 cm2 active display area. The calculations are based on 100 display updates per day. The presented figures are the average energy consumption from multiple datasheets available online.

In this seven segment display comparison, we include both emissive displays and reflective displays. An emissive display versus a reflective display are significantly different when comparing factors such as energy consumption and optical performance. For instance, a reflective display cannot be used without ambient light, but an emissive display is close to impossible to read in direct sunlight. Additional factors that will be covered in this article include cost, form factor, electrical driving, connector options.

If you’re looking for an ultra-low-powered display technology, a segmented LED display is ruled out, and most likely, so is a backlit LCD display. What you need is a reflective display. This leaves us with three choices; reflective LCD, the E Ink display, and the Rdot display.

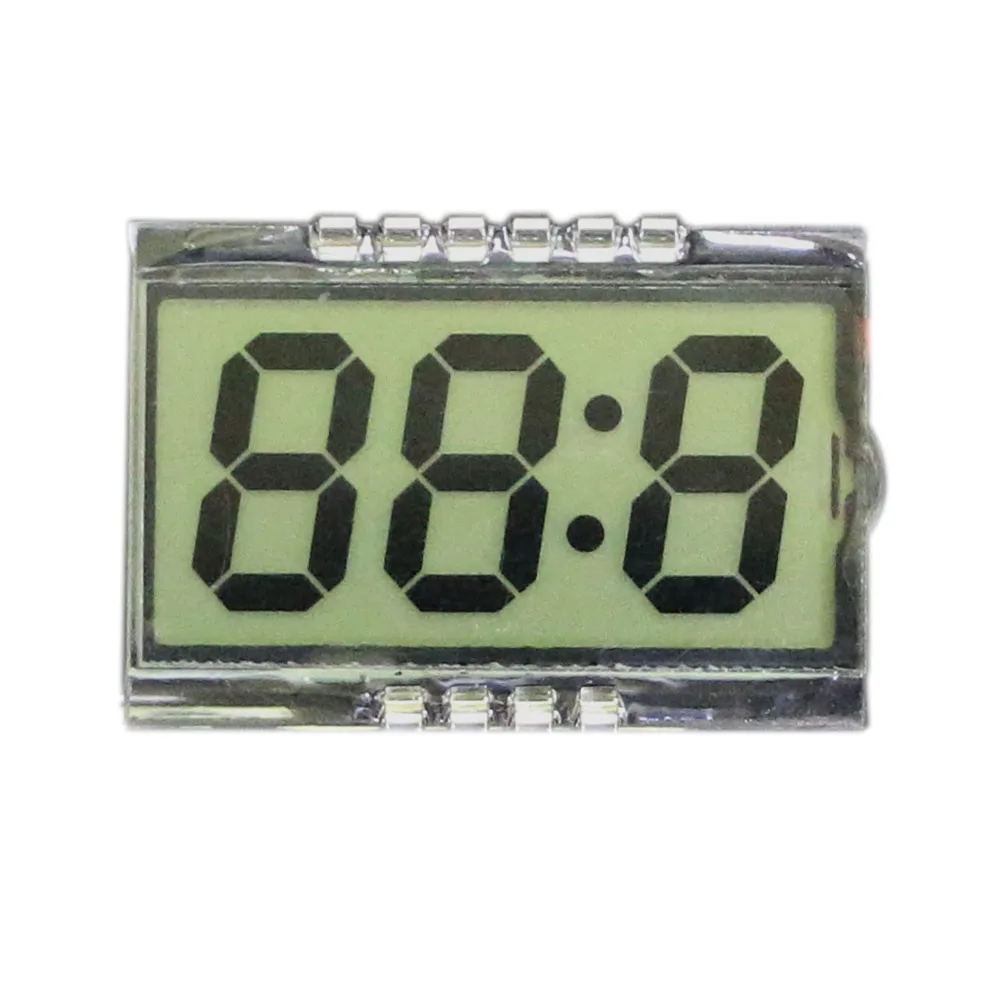

Reflective LCDs are less complex in terms of energy consumption. Our research indicates that the average power consumption for one square centimeter active display area will consume around 6.6 µW. This figure will not be significantly affected depending on the number of display updates you perform.

The E Ink display is close to fully bistable, which means that it will not consume any energy for static images. Close to all energy is consumed when the display content is changed. One display update is usually around 4mW during 1 second per 1 square centimeter. With 100 number changes per day, the total power consumption is approximately 4.6 µW/cm2.

The Rdot display has similar bistability characteristics as E Ink, but the screen will not retain the image as long as an E Ink display. The image retention time can be anywhere from 0 minutes up to 24 hours, depending on the use-case. For this example, we use a display with 15 minutes of image retention time. At 100 display updates per day, the Rdot display will consume around 1.2µW/cm2. One noteworthy feature to remember is that if the display is no longer powered, the current number on the seven segment display will naturally fade out during the next hour or so - you don’t have to actively turn it off.

The cost per unit will always influence the decision regarding which seven segment display technology to use. Before writing this article, a lot of work went into requesting offers from manufacturers worldwide to generate an average cost for all identified display technologies. The vast number of available variations, such as different types of liquid crystals, different connector types, different LED options, etc., makes it nearly impossible to end up at one generalized and representative number. For small one-digit seven segment displays in approximately 100 000 units per year, we are however able to draw the following conclusions:

The Rdot display is the only seven segment display that is bendable. The screen choice will therefore become very easy if your project requires a flexible display. The Rdot display is printed on a transparent plastic substrate that is bendable. The bend radius can be optimized to match your requirements simply through choosing the right thickness of the plastic substrate on which the display stack is printed upon.

Our preferred approach to evaluate the optical performance of various seven segment display types is to request samples from the producers. Seeing is believing. The very standard LCD and LED technologies will be easily accessible through multiple vendors. E Ink and Rdot have

My personal opinion is that the visual appearance of backlit and reflective LCDs, as well as segment LED displays, is not that appealing. One particular factor is that the segments in the unpowered state are still very visible in relation to the background. Another parameter is the viewing angle dependency. Most low-cost LCDs and LEDs are far from being perfectly non-angle dependent. Some are even impossible to read if you observe from only a 30° angle or more.

Both E Ink and the Rdot displays have close to no viewing angle dependency. E Ink has also managed to create very good black in the dark state, but still only 40% white reflection in the bright state which makes it fairly dark in poor light. The seven segment displays from Rdot will fade into the background color perfectly with accurate driving, which makes the Rdot display together with the E Ink display more visually appealing than the other options.

A robust display solution that can reliably work at least throughout the entire product lifetime is apparently a critical factor. From our perspective, the robustness can be broken down into three subparameters; lifetime, operating conditions, and ruggedness. We all know that seven segment displays have been around for a long time. Segment LCDs and LEDs are very mature and optimized. Typical operating conditions range from at least -40 °C to +85 °C, and the display lifetime will exceed almost all expected product lifetimes. Put simply, they are extremely robust. However, they do have one problem. They are fabricated on glass, meaning that they can crack or shatter. The typical solution to make them more rugged is through making the substrates thicker and also to add other safety measures in the display-device integration. This is the reason why there’s often a significant distance from the surface of the device to the display.

The Rdot display is fabricated on a flexible substrate that will not crack or shatter. E Ink also offers some flexible displays with similar properties. Both E Ink and Rdot will not yet compete on robustness in all environments. The operating temperature range spans from 0 °C to 50 °C for the majority of E Ink films, while the Rdot can guarantee -5 °C to 40 °C to this date. Lifetime is also slightly limited for the two seven segment technologies. The lifetime will depend on the number of display updates that are performed. E Ink suppliers communicate a lifetime number ranging from 1 million up to 10 million display updates. The Rdot display has a lifetime that is currently below 1 million updates.

The rdot display is most likely the best choice. It is very low cost, ultra low powered, and very environmentally friendly since it utilizes resource-efficient screen printing production and can be constructed with only organic materials.

A seven-segment display is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays.

Seven-segment displays are widely used in digital clocks, electronic meters, basic calculators, and other electronic devices that display numerical information.

Some early seven-segment displays used incandescent filaments in an evacuated bulb; they are also known as numitrons.potted box. Minitrons are filament segment displays that are housed in DIP packages like modern LED segment displays. They may have up to 16 segments.

Many early (c. 1970s) LED seven-segment displays had each digit built on a single die. This made the digits very small. Some included magnifying lenses onto the design in an attempt to make the digits more legible.

The seven-segment pattern is sometimes used in posters or tags, where the user either applies color to pre-printed segments, or applies color through a seven-segment digit template, to compose figures such as product prices or telephone numbers.

For many applications, dot-matrix LCDs have largely superseded LED displays in general, though even in LCDs, seven-segment displays are common. Unlike LEDs, the shapes of elements in an LCD panel are arbitrary since they are formed on the display by photolithography. In contrast, the shapes of LED segments tend to be simple rectangles, reflecting the fact that they have to be physically moulded to shape, which makes it difficult to form more complex shapes than the segments of 7-segment displays. However, the high recognition factor of seven-segment displays, and the comparatively high visual contrast obtained by such displays relative to dot-matrix digits, makes seven-segment multiple-digit LCD screens very common on basic calculators.

The seven-segment display has inspired type designers to produce typefaces reminiscent of that display (but more legible), such as New Alphabet, "DB LCD Temp", "ION B", etc.

Using a restricted range of letters that look like (upside-down) digits, seven-segment displays are commonly used by school children to form words and phrases using a technique known as "calculator spelling".

Seven-segment displays may use a liquid crystal display (LCD), a light-emitting diode (LED) for each segment, an electrochromic display, or other light-generating or controlling techniques such as cold cathode gas discharge (Panaplex), vacuum fluorescent (VFD), incandescent filaments (Numitron), and others. For gasoline price totems and other large signs, vane displays made up of electromagnetically flipped light-reflecting segments (or "vanes") are still commonly used. A precursor to the 7-segment display in the 1950s through the 1970s was the cold-cathode, neon-lamp-like nixie tube. Starting in 1970, RCA sold a display device known as the Numitron that used incandescent filaments arranged into a seven-segment display.electroluminescent display.

In a simple LED package, typically all of the cathodes (negative terminals) or all of the anodes (positive terminals) of the segment LEDs are connected and brought out to a common pin; this is referred to as a "common cathode" or "common anode" device.IC sockets. Integrated displays also exist, with single or multiple digits. Some of these integrated displays incorporate their own internal decoder, though most do not: each individual LED is brought out to a connecting pin as described.

Multiple-digit LED displays as used in pocket calculators and similar devices used multiplexed displays to reduce the number of I/O pins required to control the display. For example, all the anodes of the A segments of each digit position would be connected together and to a driver circuit pin, while the cathodes of all segments for each digit would be connected. To operate any particular segment of any digit, the controlling integrated circuit would turn on the cathode driver for the selected digit, and the anode drivers for the desired segments; then after a short blanking interval the next digit would be selected and new segments lit, in a sequential fashion. In this manner an eight digit display with seven segments and a decimal point would require only 8 cathode drivers and 8 anode drivers, instead of sixty-four drivers and IC pins.

Although to a naked eye all digits of an LED display appear lit, only one digit is lit at any given time in a multiplexed display. The digit changes at a high enough rate that the human eye cannot see the flashing (on earlier devices it could be visible to peripheral vision).

The seven segments are arranged as a rectangle of two vertical segments on each side with one horizontal segment on the top, middle, and bottom. Often the rectangle is hexagons, though trapezoids and rectangles can also be used), though in the case of adding machines, the vertical segments are longer and more oddly shaped at the ends in an effort to further enhance readability. The seven elements of the display can be lit in different combinations to represent the Arabic numerals.

The segments are referred to by the letters A to G, where the optional decimal point (an "eighth segment", referred to as DP) is used for the display of non-integer numbers.gfedcba and abcdefg. In the gfedcba representation, a byte value of 0x06 would turn on segments "c" and "b", which would display a "1".

Alternate patterns: The numeral 1 may be represented with the left segments, the numerals 6 and 9 may be represented without a "tail", and the numeral 7 represented with a "tail":

In Unicode 13.0, 10 codepoints had been given for segmented digits 0–9 in the Symbols for Legacy Computing block, to replicate early computer fonts that included seven-segment versions of the digits.

Four binary bits are needed to specify the numbers 0–9, but can also specify 10–15, so usually decoders with 4 bit inputs can also display Hexadecimal (Hex) digits. Today, a combination of uppercase and lowercase letters is commonly used for A–F;

Most letters of the Latin alphabet can be reasonably implemented using seven segments. Though not every letter is available, it is possible to create many useful words. By choosing better synonyms, it is possible to work around many shortcomings of seven-segment alphabet encodings. Some uppercase letters ("I", "O", "S", "Z") look identical to numerical digits ("1", "0", "5", "2"), though it is possible to use lower-case "o" and "i", or putting "I" on the left. Lowercase letters "b" and "q" are identical to the alternate numerical digits "6" and "9". Depending on the situation, some of these problem characters can be used when no numeric values are used in the same word/phrase, see examples below.

Short messages giving status information (e.g. "no dISC" on a CD player) are also commonly represented on 7-segment displays. In the case of such messages it is not necessary for every letter to be unambiguous, merely for the words as a whole to be readable.

There are enough patterns to show all the letters but few representations are unambiguous and intuitive at the same time.sixteen-segment and dot matrix displays are better choices than seven-segment displays.

For "6" and "9", the CD4511B, MC14558B, TC5002, SN74x46/SN74x47/SN74x48/SN74x49 displays both numbers without a "tail", where "x" is the TTL logic family.

The 7446/7447/7448/7449Siemens FLH551-7448/555-8448 chips used truncated versions of "2", "3", "4", "5" and "6" for digits A–E. Digit F (1111 binary) was blank.

Soviet programmable calculators like the Б3–34 used the symbols "−", "L", "C", "Г", "E", and " " (space), allowing the error message EГГ0Г to be displayed.

There are also fourteen- and sixteen-segment displays (for full alphanumerics); however, these have mostly been replaced by dot matrix displays. Twenty-two-segment displays capable of displaying the full ASCII character set

"Advert for RCA NUMITRON Display Devices". Electronic Design. Hayden. 22 (12): 163. 1974-06-07. Archived from the original on 2014-03-31. Retrieved 2012-06-22.

Diehl, H. P.; De Mulder, H. D. (April 1981). "junior cookbook: a few healthy recipes to keep your computer in shape" (PDF). elektor (UK) – up-to-date electronics for lab and leisure. Vol. 1981, no. 72. pp. 4-28 – 4-31 [4-30 Figure 4]. Archived (PDF) from the original on 2020-07-03. Retrieved 2020-07-03.

Nührmann, Dieter (1981). Written at Achim, Bremen, Germany. Werkbuch Elektronik (in German) (3 ed.). Munich, Germany: Franzis-Verlag GmbH. p. 695. ISBN 3-7723-6543-4.

"Application Note 3210 – Quick-Start: Driving 7-Segment Displays with the MAX6954" (PDF) (Application note) (3 ed.). Maxim Integrated. March 2008 [2004-06-25]. Archived (PDF) from the original on 2017-03-20. Retrieved 2013-05-06.

electronic hexadecimal calculator/converter SR-22 (PDF) (Revision A ed.). Texas Instruments Incorporated. 1974. p. 7. 1304-389 Rev A. Archived (PDF) from the original on 2017-03-20. Retrieved 2017-03-20.

electronic calculator – TI programmer (PDF). Texas Instruments Incorporated. 1977. p. 7. Archived (PDF) from the original on 2017-03-28. Retrieved 2017-03-28.

Beuth, Klaus; Beuth, Annette (1990). Digitaltechnik. Elektronik (in German). Vol. 4 (7 ed.). Würzburg, Germany: Vogel Buchverlag[de]. pp. 301–303. ISBN 3-8023-0584-1.

"DL-3422 4-digit 22-segment alphanumeric Intelligent Display preliminary data sheet". Internet Archive. Litronix 1982 Optoelectronics Catalog. p. 82. Retrieved 2016-09-03.

The display is one of the popular types of production in embedded displays and devices. All these things have one thing in common, the timer on your kitchen appliances, digital clocks, and bomb timers in movies. The similarity is that they all use seven-segment displays to show numbers. This article will help you dig deeper into the world of thesedigital displaysand explain everything about them. Keep reading for a consolidated series of all the information you need about the 7-segment production.

A7 segment displayis one of the oldest forms of the electronic display device for displaying decimal numerals in embeddedapplications. It is An alternative to the complex dot matrix displays.

A seven-segment display uses Light Emitting Diodes to release light energy inphotons. The production emits light to show digits in all seven segments, with the eighth segment being a decimal point.

The decimal point comes in handy when connecting two or more seven-segment displays.The reason is to show decimal digits or give a multi-digit presentation.

However, their main advantage is that you can fit multiple of them in a small compact package forming aseven-segment display. A concept possible thanks to the display"s small size.

You can choose various features for the seven-segment display, including the different types of color and size. However, the most common type is the 14.20mm red 7-segment display since it consumes less current than the other varieties.

In this type of display, all anode connections of the LED segment join toLogic "1". Illuminating individual components occurs by applying aground logic, also known as "LOW" or Logic "0". This process happens via an emitter follower or a voltage-current collector to the cathode of a particular segment.

As the name suggests, the standard pin connects to the eight cathode pins and thelight-emitting diodes. This display is unlike the CA display that connectsall the anode pins.

For the display to work, all cathode connections of the LED segments join to the logic "0" or ground. Individual components illuminate when a "HIGH" or Logic "1" signalapplies. The signal applies via an emitter follower to forward bias the respective anode terminals.

Below is an image of a common anode 7-segment displaythat explainshow this gadget works.This type has an efficient production and is a standard LED display among logic board enthusiasts.

A 7-segment display works by illuminating a particular set of LEDs to display digits or alphabetical characters. For instance, we need to light LED segments corresponding to a, b, g, c, and d to show the numerical digit 3.

The readily available 7-segment counter IC"s such as the CMOS 4511 makes it possible.This IC is useful in displays for projects with simplecircuits. The IC can also increase or decrease the number on display and drive a one seven-segment display module.

Notwithstanding, using a seven-segment display and an MCU/MPU will connect the eight segment pins to the I/O pins of the microcontroller. The com pin will connect to the ground of the emitter follower depending on the type (CA/CC).

You can then toggle the IO pins in a particular sequence to display specific numbers. As you can see, below is a table showing this specific sequence. The table shows each line for displaying a specific number in the seven-segment display.

For instance, to glow the number "6," we will illuminate all the LEDs except the one in "b" using the bit pattern 10000010. We can similarly display "7" by glowing LEDs associated with a, b, and c. The bit pattern will be 11111000.

In summary, there are two types of seven-segment displays: Common Anode and Common Cathode. Both have their pros and cons.Common Anodes are more popular than Common Cathodes because they require less power consumption to display numerical values. However, Common Cathodes offer better contrast ratios.Both displays are helpful in many everyday applications, including display technology such as digital clocks, numeric keypads, and alphanumeric displays.
