1.8 inch 128x160 spi serial tft lcd display module factory

ER-TFT018-2 is 128x160 dots 1.8" color tft lcd module display with ILI9163C controller ,optional 4-wire resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 1.8"TFT Touch Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

ER-TFTM018-2 is 128x160 dots 1.8" color tft lcd display with ILI9163 controller and breakoutboard,optional power supply for 3.3V or 5V and optional 4-wire resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 4-wire serial spi interface. We offer two types connection,one is pin header and the another is ZIF connector with flat cable mounting on board by default and suggested. Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for1.8"TFT LCD Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno. For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code andDevelopment Kitat the bottom of this page.

A wide variety of tft display 1.8 options are available to you, such as original manufacturer, odm and agency.You can also choose from tft, ips and standard tft display 1.8,

TFT Displays provide rich colors, detailed images, and bright graphics with their full-color RGB mode. TFT displays are perfect for applications including industrial instruments, coffee machines, automation, GPS navigator, energy control, and medical devices.

Got three of them all working(1 with Arduino Leonardo and 2 with NodeMCU ESP8266).arduino will need a solution to the 5v out 3.3v in(10s solder job) NodeMCU is directly compatible.i used adafruits code.Very happy. getting more. also hiletgo products have all been functional so far. becoming a fan.Update: switched to TFT_eSPI.h library. Wow. Orders of magnitude faster display now. A bit trickier to setup but well worth it.

This is a single-chip controller/driver for 262K-color, graphic type TFT-LCD.  It consists of 396 source line and 162 gate line driving circuits. This chip is capable of connecting directly to an external microprocessor, and accepts Serial Peripheral Interface (SPI), 8-bit/9-bit/16-bit/18-bit parallel interface.

Note: ILI9163C Datasheets improperly (not traditional) refer to SPI as a Serial Interface. Please see timing diagram in 6.2.1 called "3-line Serial Interface Protocol"

The DT018ATFT does not support 4-Wire SPI (also known as "4-line Serial Interface Protocol", 8-bit data, which includes a separate D/C signal line). DT018ATFT does not support this since the signal in ILI9163C datasheet called "SPI4" is hard coded to 0. However, a custom version of the FPC can be tooled to expose the proper 4-Wire SPI signals - please contact us for more details.

The provided display driver example code is designed to work with Microchip, however it is generic enough to work with other micro-controllers. The code includes display reset sequence, initialization and example PutPixel() function.

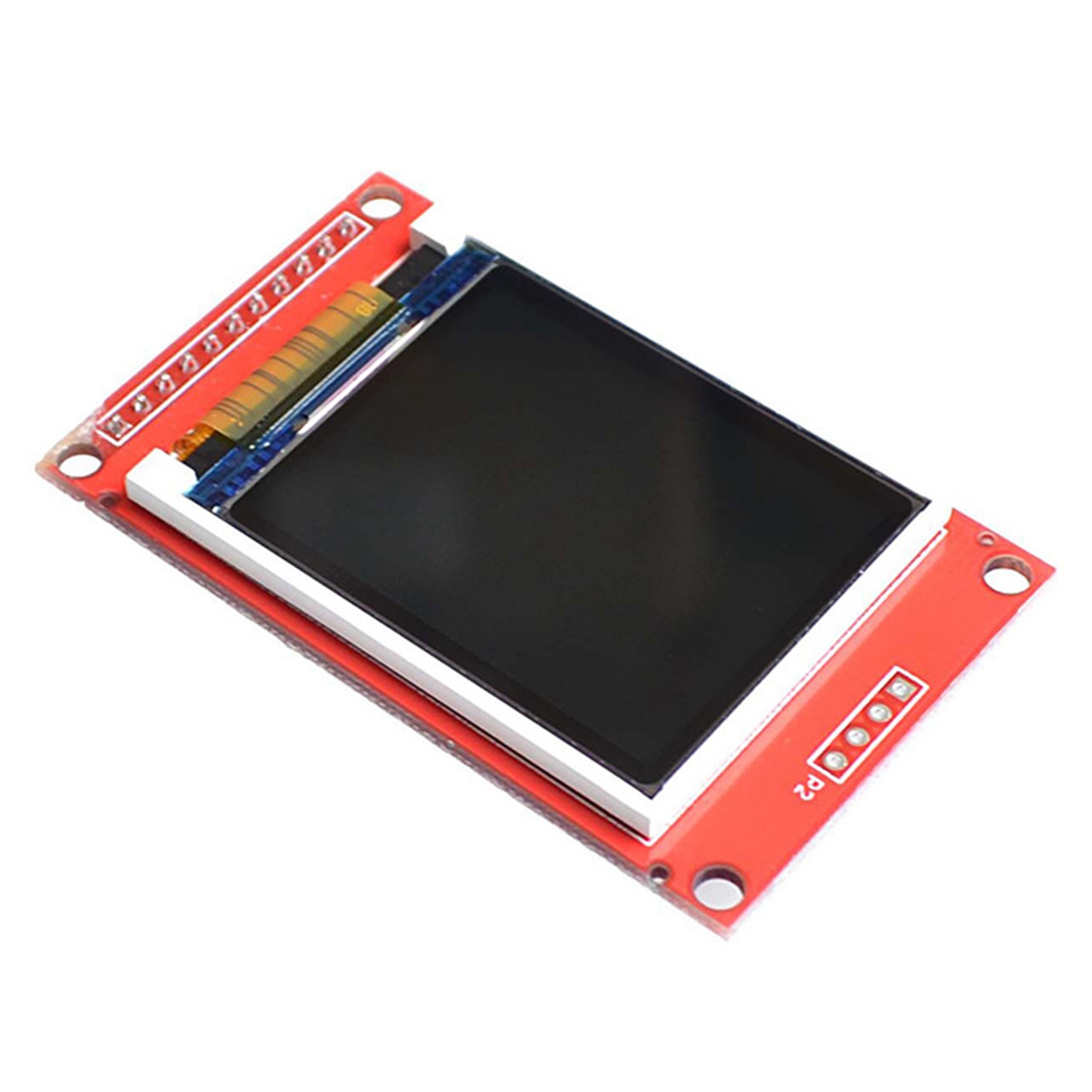

This lovely little display breakout is the best way to add a small, colourful and bright display to any project.Since the 1.8 Inch TFT LCD Module display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 1.8 display has 128160 colour pixels. Unlike the low cost Nokia 6110 and similar LCD displays, which are CSTN type and thus have poor colour and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display full 18-bit colour (262,144 shades!).

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

Features :1.8-inch serial SPI colour display moduleSupport analogue SPI and hardware SPIThe LCD has a wide viewing angle, the contrast is also very suitable.Good quality display.
