1602 lcd modules with serial factory

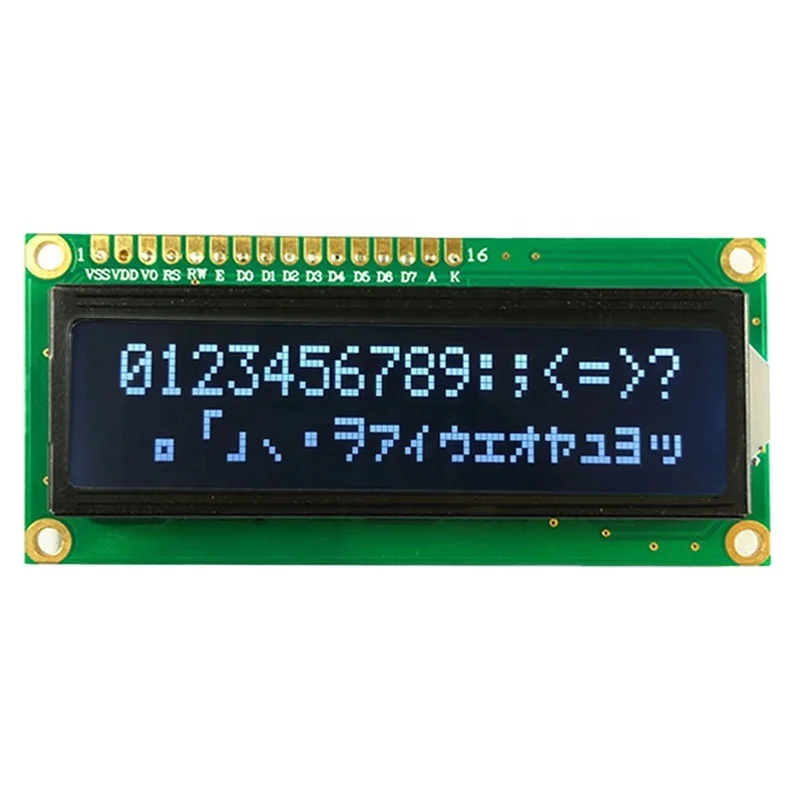

ERM1602DNS-5 is 16 characters wide,2 rows character lcd module,ST7070 controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel+3/4-wire serial spi interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,fstn-lcd positive,white text on the black color,high contrast,wide operating temperature range,wide view angle,rohs compliant,built in character set supports English/Japanese text, see the ST7070 datasheet for the full character set. It"s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

ERMC1602SBS-2 is 16 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,stn- blue lcd negative,white text on the blue color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It"s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

This is I2C interface 16×2 LCD display module, a high-quality 2 line 16 character LCD module with on-board contrast control adjustment, backlight and I2C communication interface. For Arduino beginners, no more cumbersome and complex LCD driver circuit connection. The real significance advantages of this I2C Serial LCD module will simplify the circuit connection, save some I/O pins on Arduino board, simplified firmware development with widely available Arduino library.

To reduce waste and cost. An identical connector is already soldered to the module where the cable connects to the modules and so the additional connector is non-value added.

Starting August 1, 2015 the "Drive Bay Kit Configurator" located at https://www.crystalfontz.com/products/select_kit.html will no longer be functional for ordering one of our Serial or USB displays (CFA533, CFA631, CFA632, CFA633, CFA634, CFA635, and CFA735) in a bracket or SLED. This functionality is being moved to the Customize and Add to Cart process when checking out. This will allow for further customization by our customers to better fit their needs.

The new part numbers will have the bracket / SLED and overlay type as a PREFIX to the configured part number. The choice for bracket / SLED to a display order will be via the cart options. Our CFA835 displays were introduced with these configuration options.

Pricing at the time of the PCN was issued was published as TBD. This update notices publishes pricing for the CFA632 family of modules effective 2013-07-01

As part of our continuous improvement process, the CFA632 family of modules has been redesigned to fall more in line with our other Value Add families of intelligent modules.

The firmware has been revised to support the hardware changes from the Samsung S6A0073 LCD controller to the Rockworks RW1067, and the Holtek HT48R30 one-time-programmable controller being replaced with the Cypress PSoC CY8C27443 for improved functionality

Engineering samples should be available Quarter 3, 2013. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.

As part of our continuous improvement process, the CFA632 family of modules has been redesigned to fall more in line with our other Value Add families of intelligent modules.

Samsung S6A0073 LCD controller is EOL. Module has been redesigned to incorporate the Rockworks RW1067. The Holtek HT48R30 one-time-programmable controller replaced with the Cypress PSoC CY8C27443 for improved functionality.

This new hardware version is designed to be as fit and form compatible as possible with the current shipping hardware. There are major changes to the PCB layout due to the re-design of the CFA632 family.

Engineering samples should be available Quarter 3, 2013. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.

Manufacturing improvements allow for building the CFA632 series with MLCC capacitors. The MLCC have a longer life than the electrolytic capacitors currently being used.

Engineering samples should be available by the end of Quarter 1, 2011. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.

The previous CFA632-YMC-KS and CFA632-YMC-KU (new CFA632-YDI-KS and CFA632-YDI-KU) changed from STN to double negative (FFSTN) LCD for improved appearance.

The new version is designed to be Fit, Form, and Function compatible with previous versions of the CFA632 series. Semi-Custom and Defined Parts will have updated part numbers.

Engineering samples should be available by the end of Quarter 1, 2011. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.

RX1602A2 is COG type character LCD module. This LCD 1602 Display Module is powered by voltage 5V. Backlight is optional, you can choose module with backlight or without it. Raystar provides various LED backlight combinations for RX1602A2 16 character x 2 lines LCD display module, such as white and yellow-green.

This Character Display LCD 1602 has built-in IC ST7032 offering a selection of fonts, including English/Japanese, European and Cyrillic, etc. The 1602 display module supports many interfaces, for instance, 6800, SPI and I2C. If you’d like to obtain full datasheet of RX1602A2 LCD display, please contact us for more info!

This is another great I2C 16x2 LCD display compatible with Gadgeteer modules from DFRobot. With limited pin resources, your project will quicly run out of resources using normal LCDs. With this I2C interface LCD module, you only need 2 lines (I2C)to display the information.If you already have I2C devices in your project, this LCD module actually cost no more resources at all. The adress can be set from 0x20-0x27. Fantastic for Arduino or gadgeteer based projects.
