ER-TFT024-3 is 240x320 dots 2.4" color tft lcd module display with ILI9341 controller and optional 4-wire resistive touch panel and capacitive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.4"TFT Touch Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

You may wish to have NEWHAVEN NHD-2.4-240320,our part number ER-TFT024-4 should meet this requirment that is the completely the same withNEWHAVEN NHD-2.4-240320.

ER-TFT024-4 is still not our general product ,we don"t have enough stock .You have to email ([email protected]) our sales to buy samples or orders. Besides the minimum order quantity is no less than 500pcs per order.The production lead time is 5-6 weeks.

ER-TFTM024-3 is 240x320 dots 2.4" color tft lcd module display with ILI9341 controller board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 8080 8-bit /9-bit/16-bit /18-bit parallel ,3-wire,4-wire serial spi interface.Built-in optional microSD card slot,touch panel controller and 2.4 inch 4-wire resistive touch panel and Capacitive touch panel. It"s optional for font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable mounting on board by default and suggested. Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.4"TFT Touch Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

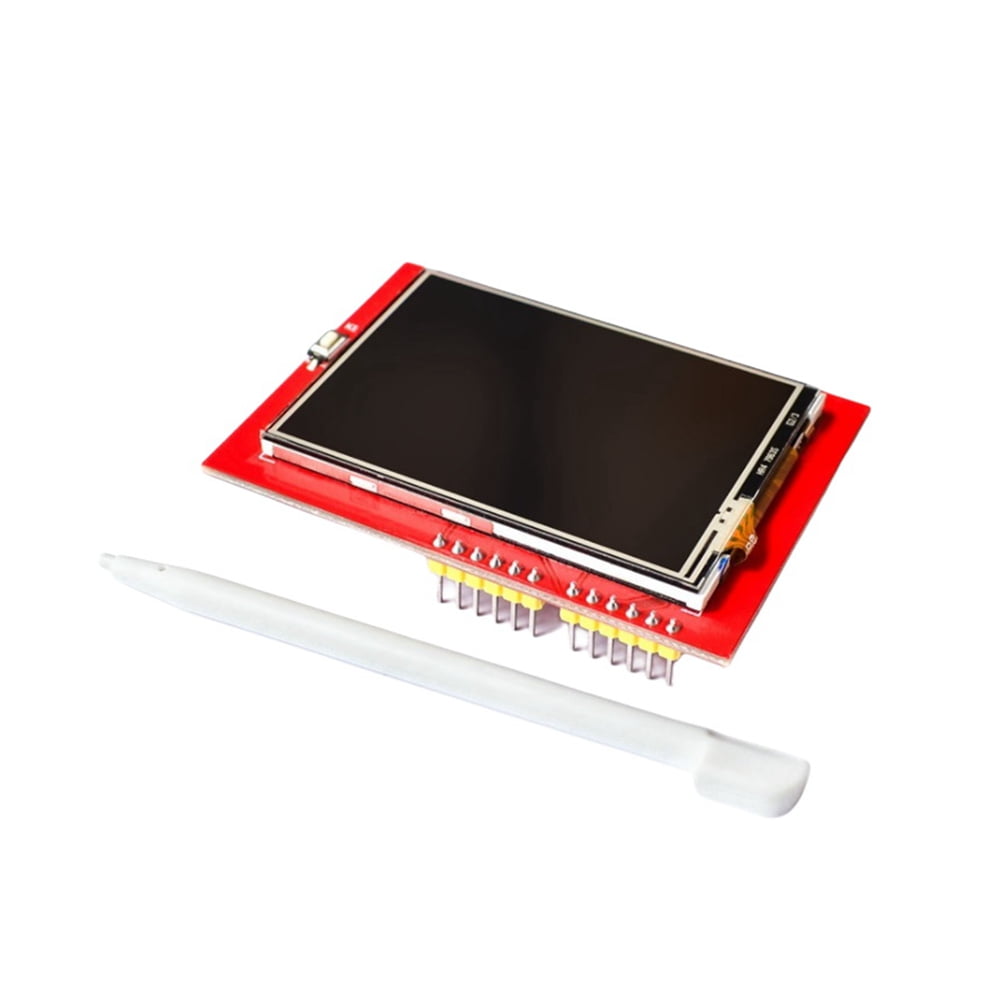

This graphic display module is a 2.4" diagonal, full color TFT. Suitable for embedded applications, it is low-power, uses a white LED backlight, and has an integrated touch panel which has its connection brought out to the main TAB connector for the display.

Features:2.4" diagonal LCD TFT Touch Panel displayBright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight controlColorful, 18-bit 262,000 different shades4-wire resistive touchscreen8 bit digital interface, plus 4 control linesUses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD5V compatible, use with 3.3V or 5V logicFor Arduino UNO R3 MEGA2560

Build up your Arduino project with a beautiful large touchscreen display shield with built-in microSD card connection. This TFT display is big (2.4″ diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades)! 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

Orient Display offers many types of standard resistive touch panels. All of them are low cost 4 wire types. We can also custom made 5 wires or 8 wires resistive touch panels. The connection of resistive touch panels are mostly FPC. Orient Display can provide resistive touch panels separately or integrated with LCD displays. The standard resistive touch panels include, 1.44”, 1.77”, 2.0”, 2.2” , 2.4”, 2.8”, 3.0”, 3.5”, 4.3”,5.0”, 7.0”, 8.0”, 10.1”, 12.0”, 14” , 15.6” etc. with different aspect ratio. Please contact: Sales Inquiries, Customer Service or Technical Support for more details and availability.

The history of resistive touch panels starts in the 1970s. For years, that was the most common touch input technology. But it has been quickly replaced by CTP (capacitive touch panels) especially the emerge and development of iPhone starting 2007.

The resistive touchscreen consists of a glass layer with a conductive coating on top and a polyester top sheet with a conductive coating on the bottom. The conductive surfaces are held apart by “spacer dots”, usually glass beads that are silk-screened onto the coated glass. On a 5-wire resistive design (the most commonly used kind of resistive screen in large format POS applications), a voltage is applied to the 4 corners of the glass layer. When a person presses on the top sheet, its conductive side comes in contact with the conductive side of the glass, effectively closing a circuit (this is called pressure sensing). The voltage at the point of contact is read from a wire connected to the top sheet.

If you have any questions about Orient Display resistive touch panels. Please feel free to contact: Sales Inquiries, Customer Service or Technical Support.

Raystar is a global leading LCD panel supplier and specialized in producing TFT LCD Panel, including Color TFT, Monochrome TFT Display and bar type TFT Display. Raystar Color TFT displays are available in various resolutions and offers a wide product range of small to medium-sized TFT-LCD modules from 0.96” to 12.3". The interface options are in MCU / RGB / SPI / UART / 8080 / LVDS. TFT Panel with control board or TFT LCD Panel with micro controller are also available.

This module is designed to plug directly into Arduino UNO R3 (or its clone) boards. It is compatible with CH340 and Atmega16u2 version boards, as well as Mega 2560. This LCD shield may also work with other boards, but the compatibility can"t be guaranteed.

Winstar is a global leading Manufacturer of TFT LCD display based in Taiwan and China. Winstar offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 2.4" TFT LCD, 2.8" TFT LCD, 3.2" TFT LCD, 3.5" TFT Display, 4.3 inch TFT LCD, 5 TFT LCD, 5.6 TFT LCD, 5.7 inch Display, 7 " TFT LCD, 8" TFT, 9" TFT, 10.1" TFT LCD, 10.2" TFT LCD, 12.1" TFT LCD , 12.3" TFT LCD (diagonal size of the active area) and so on . There are more than 250 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers" requirement.

Winstar TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD, Winstar Clever System TFT and Touch screen display. These displays include landscape or portrait modes. Winstar has Mono TFT displays and full color TFTs in line, these displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. Winstar TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
