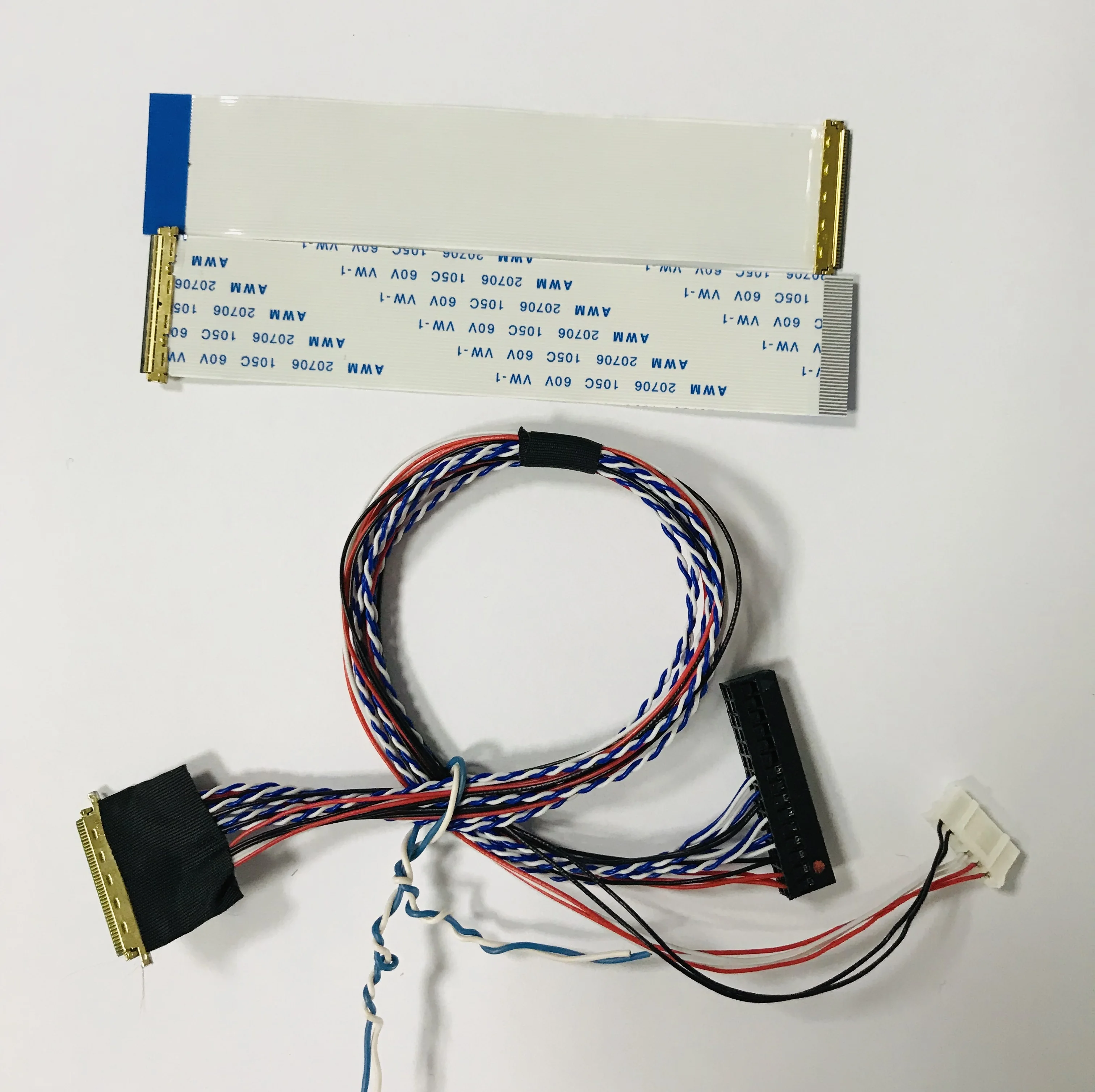

Designed for board to display interconnections, FDC-Flat Display Connections consist of standard FFC-Flat Flexible Cables and connectors such as DF-9, DF-19, FI-SE, FI-X at one or both ends.

Pins20 pins for external connectors on desktops, notebooks, graphics cards, monitors, etc. and 30/20 pins for internal connections between graphics engines and built-in flat panels.

DisplayPort 1.0–1.1a allow a maximum bandwidth of 10.8Gbit/s (8.64Gbit/s data rate) over a standard 4-lane main link. DisplayPort cables up to 2 meters in length are required to support the full 10.8Gbit/s bandwidth.fiber optic, allowing a much longer reach between source and display without signal degradation,HDCP in addition to DisplayPort Content Protection (DPCP). The DisplayPort1.1a standard can be downloaded for free from the VESA website.

DisplayPort version 1.2a was released in January 2013Adaptive Sync.AMD"s CES 2014 on a Toshiba Satellite laptop by making use of the Panel-Self-Refresh (PSR) feature from the Embedded DisplayPort standard,

The transmission mode used by the DisplayPort main link is negotiated by the source and sink device when a connection is made, through a process called Link Training. This process determines the maximum possible speed of the connection. If the quality of the DisplayPort cable is insufficient to reliably handle HBR2 speeds for example, the DisplayPort devices will detect this and switch down to a lower mode to maintain a stable connection.: §2.1.1 The link can be re-negotiated at any time if a loss of synchronization is detected.: §1.7.3

All features of DisplayPort will function across any DisplayPort cable. DisplayPort does not have multiple cable designs; all DP cables have the same basic layout and wiring, and will support any feature including audio, daisy-chaining, G-Sync/FreeSync, HDR, and DSC.

DisplayPort cables differ in their transmission speed support. DisplayPort specifies seven different transmission modes (RBR, HBR, HBR2, HBR3, UHBR10, UHBR13.5, and UHBR20) which support progressively higher bandwidths. Not all DisplayPort cables are capable of all seven transmission modes. VESA offers certifications for various levels of bandwidth. These certifications are optional, and not all DisplayPort cables are certified by VESA.

Cables with limited transmission speed are still compatible with all DisplayPort devices, but may place limits on the maximum resolution or refresh rate available.

DisplayPort cables are not classified by "version". Although cables are commonly labeled with version numbers, with HBR2 cables advertised as "DisplayPort1.2 cables" for example, this notation is not permitted by VESA.1.4 display requires a "DisplayPort1.4 cable", or that features introduced in version 1.4 such as HDR or DSC will not function with older "DP1.2 cables". DisplayPort cables are classified only by their bandwidth certification level (RBR, HBR, HBR2, HBR3, etc.), if they have been certified at all.

Not all DisplayPort cables are capable of functioning at the highest levels of bandwidth. Cables may be submitted to VESA for an optional certification at various bandwidth levels. VESA offers four levels of cable certification: Standard, DP8K, DP40, and DP80.: §4.1 These certify DisplayPort cables for proper operation at the following speeds:

In April 2013, VESA published an article stating that the DisplayPort cable certification did not have distinct tiers for HBR and HBR2 bandwidth, and that any certified standard DisplayPort cable—including those certified under DisplayPort1.1—would be able to handle the 21.6Gbit/s bandwidth of HBR2 that was introduced with the DisplayPort 1.2 standard.1.2 standard defines only a single specification for High Bit Rate cable assemblies, which is used for both HBR and HBR2 speeds, although the DP cable certification process is governed by the DisplayPort PHY Compliance Test Standard (CTS) and not the DisplayPort standard itself.: §5.7.1, §4.1

The DP8K certification was announced by VESA in January 2018, and certifies cables for proper operation at HBR3 speeds (8.1Gbit/s per lane, 32.4Gbit/s total).

In June 2019, with the release of version 2.0 of the DisplayPort Standard, VESA announced that the DP8K certification was also sufficient for the new UHBR10 transmission mode. No new certifications were announced for the UHBR13.5 and UHBR20 modes. VESA is encouraging displays to use tethered cables for these speeds, rather than releasing standalone cables onto the market.

It should also be noted that the use of Display Stream Compression (DSC), introduced in DisplayPort1.4, greatly reduces the bandwidth requirements for the cable. Formats which would normally be beyond the limits of DisplayPort1.4, such as 4K (3840×2160) at 144Hz 8bpc RGB/Y′CBCR 4:4:4 (31.4Gbit/s data rate when uncompressed), can only be implemented by using DSC. This would reduce the physical bandwidth requirements by 2–3×, placing it well within the capabilities of an HBR2-rated cable.

This exemplifies why DisplayPort cables are not classified by "version"; although DSC was introduced in version 1.4, this does not mean it needs a so-called "DP1.4 cable" (an HBR3-rated cable) to function. HBR3 cables are only required for applications which exceed HBR2-level bandwidth, not simply any application involving DisplayPort1.4. If DSC is used to reduce the bandwidth requirements to HBR2 levels, then an HBR2-rated cable will be sufficient.

The DisplayPort standard does not specify any maximum length for cables, though the DisplayPort 1.2 standard does set a minimum requirement that all cables up to 2 meters in length must support HBR2 speeds (21.6Gbit/s), and all cables of any length must support RBR speeds (6.48Gbit/s).: §5.7.1, §4.1 Cables longer than 2 meters may or may not support HBR/HBR2 speeds, and cables of any length may or may not support HBR3 speeds or above.

DisplayPort cables and ports may have either a "full-size" connector or a "mini" connector. These connectors differ only in physical shape—the capabilities of DisplayPort are the same regardless of which connector is used. Using a Mini DisplayPort connector does not affect performance or feature support of the connection.

Pin 20 on the DisplayPort connector, called DP_PWR, provides 3.3V (±10%) DC power at up to 500mA (minimum power delivery of 1.5W).: §3.2 This power is available from all DisplayPort receptacles, on both source and display devices. DP_PWR is intended to provide power for adapters, amplified cables, and similar devices, so that a separate power cable is not necessary.

Standard DisplayPort cable connections do not use the DP_PWR pin. Connecting the DP_PWR pins of two devices directly together through a cable can create a short circuit which can potentially damage devices, since the DP_PWR pins on two devices are unlikely to have exactly the same voltage (especially with a ±10% tolerance).1.1 and later standards specify that passive DisplayPort-to-DisplayPort cables must leave pin 20 unconnected.: §3.2.2

However, in 2013 VESA announced that after investigating reports of malfunctioning DisplayPort devices, it had discovered that a large number of non-certified vendors were manufacturing their DisplayPort cables with the DP_PWR pin connected:

Recently VESA has experienced quite a few complaints regarding troublesome DisplayPort operation that ended up being caused by improperly made DisplayPort cables. These "bad" DisplayPort cables are generally limited to non-DisplayPort certified cables, or off-brand cables. To further investigate this trend in the DisplayPort cable market, VESA purchased a number of non-certified, off-brand cables and found that an alarmingly high number of these were configured improperly and would likely not support all system configurations. None of these cables would have passed the DisplayPort certification test, moreover some of these cables could potentially damage a PC, laptop, or monitor.

The stipulation that the DP_PWR wire be omitted from standard DisplayPort cables was not present in the DisplayPort1.0 standard. However, DisplayPort products (and cables) did not begin to appear on the market until 2008, long after version 1.0 had been replaced by version 1.1. The DisplayPort1.0 standard was never implemented in commercial products.

To support a particular format, the source and display devices must both support the required transmission mode, and the DisplayPort cable must also be capable of handling the required bandwidth of that transmission mode. (See: Cables and connectors)

Color depth of 8bpc (24bit/px or 16.7 million colors) is assumed for all formats in these tables. This is the standard color depth used on most computer displays. Note that some operating systems refer to this as "32-bit" color depth—this is the same as 24-bit color depth. The 8 extra bits are for alpha channel information, which is only present in software. At the transmission stage, this information has already been incorporated into the primary color channels, so the actual video data transmitted across the cable only contains 24 bits per pixel.

Unavailable on USB-C – The DisplayPort Alternate Mode specification for sending DisplayPort signals over a USB-C cable does not include support for the dual-mode protocol. As a result, DP-to-DVI and DP-to-HDMI passive adapters do not function when chained from a USB-C to DP adapter.

Direct Drive Monitor (DDM) 1.0 standard was approved in December 2008. It allows for controller-less monitors where the display panel is directly driven by the DisplayPort signal, although the available resolutions and color depth are limited to two-lane operation.

Embedded DisplayPort (eDP) is a display panel interface standard for portable and embedded devices. It defines the signaling interface between graphics cards and integrated displays. The various revisions of eDP are based on existing DisplayPort standards. However, version numbers between the two standards are not interchangeable. For instance, eDP version 1.4 is based on DisplayPort 1.2, while eDP version 1.4a is based on DisplayPort 1.3. In practice, embedded DisplayPort has displaced LVDS as the predominant panel interface in modern laptops and modern smartphones.

eDP 1.0 was adopted in December 2008.Hz sequential color monitors, and a new display panel control protocol that works through the AUX channel.framebuffer memory in the display panel controller.
