curved lcd panel factory

Curved displays are one of the most popular displays by browsing through social media platforms, customizing LED content and a new way to display a wide range of curved displays. Curved lcd panels are one of the most popular and browsing social media platforms, curved displays have become very popular in browsing through social media.

Wholesalers can use the curved lcd panel to display more functions using a smartphone. curved lcd panels are one of the most widely used online tools.

curved lcd panel factory

We follow our enterprise spirit of Quality, Efficiency, Innovation and Integrity. We aim to create much more worth for our buyers with our abundant resources, highly developed machinery, experienced workers and great providers for Curved Touch Panel, 75 Interactive Touch Screen, Touch Screen Tft Lcd, Lcd Touch Panel,32 Touch Screen Overlay. We are sincerely looking forward to cooperate with customers all over the world. We believe we can satisfy you. We also warmly welcome customers to visit our company and purchase our products. The product will supply to all over the world, such as Europe, America, Australia,Oslo, Costa rica,Kazakhstan, Hanover.We solution have passed through the national skilled certification and been well received in our key industry. Our specialist engineering team will often be ready to serve you for consultation and feedback. We"ve been able to also provide you with no cost samples to meet your needs. Best efforts are going to be produced to supply you the very best service and solutions. For anyone who is considering our business and solutions, please speak to us by sending us emails or get in touch with us right away. As a way to know our items and enterprise. lot more, you"ll be able to come to our factory to find out it. We"ll constantly welcome guests from around the globe to our firm. o build enterprise. elations with us. You should really feel absolutely free to make contact with us for small business and we believe we"ll share the top trading practical experience with all our merchants.

curved lcd panel factory

Our mission should be to turn out to be an innovative supplier of high-tech digital and communication devices by furnishing benefit added design and style, world-class manufacturing, and repair capabilities for Curved Lcd, Tft Lcd Touch Screen Display, Big Lcd Panel, Tft Monochrome Display,Active Matrix Tft Color Lcd. We welcome new and previous customers from all walks of lifetime to speak to us for future organization relationships and mutual achievement! The product will supply to all over the world, such as Europe, America, Australia,USA, Colombia,Ghana, Mumbai.Satisfaction and good credit to every customer is our priority. We focus on every detail of order processing for customers till they have received safe and sound products with good logistics service and economical cost. Depending on this, our products are sold very well in the countries in Africa, the Mid-East and Southeast Asia.

curved lcd panel factory

With high-quality monitor 43 inch curved, bluetooth card reader, casino card reader, reasonable prices and good after-sales service, we have won the praise of many friends.Our company pursues the idea that we should change if we want to make progress and we should constantly improve our products if we want to have better curved lcd panel. We are committed to providing our customers with better service, higher quality products, more competitive prices and more timely shipping. The company has a team of high-quality corporate talents. Under the guidance of scientific corporate philosophy, it has formed an elite team with great team spirit, full of vitality and great execution ability. On the basis of fully introducing and absorbing domestic and foreign technologies, we have successfully developed many high-quality products. The company has strong strength, perfect quality assurance, reasonable price and high-quality service, which has won the affirmation and trust of users from all walks of life at home and abroad and people in the industry. We identify talents with emphasis on quality, performance and ability, use talents to implement a full post appointment system, and insist on matching job duties with personnel quality conditions. In the process of continuous development in these years, we have been thinking about the value of our own survival, we have always stood in the objective angle to measure the significance of our existence.

Crystal Display Systems are proud to introduce the curved transparent LCD display! Amazing curved transparent LCD panels perfect for retail displays...

Jun 04, 2009 · NEC"s huge CRV43 LCD display – which offers a gently curving 43-inch 2,880 x 900 resolution panel – has finally got a release date and price, though don"t expect much change from $8k....

Before you start shopping for the best curved monitor for your needs, first consider what size makes the most sense for your space and computing purposes. While a 27-inch curved...

Haier TV Service Center Near Me. Or Any Other Brand Of curved lcd screen replacement Kind Of Quarries. Call Us – 8890993526 , 8769913298 . terms of curved lcd screen replacement...

LCD technology is rapidly evolving. There are several types of “viewing technology” now available. Some are a function of the raw LCD panel fabrication process, others a result of optically bonded...

Universal LED Backlight Kit for 7" to 15" LCD Panels for LED/CCFL Replacement. $21.95. $4.99 shipping. Asus monitor stand vg279q With Screws No Base. $5.00. $13.90 shipping. CCFL Backlight Assemblies...

Based on continuous research and development, we are now developing the Hybrid Card Reader in stock, 23 6 inch circle gaming monitor, RFID Card Reader in stock business. We"re professional curved lcd panel manufacturers and suppliers in China, providing the best customized service with low price. We warmly welcome you to wholesale bulk cheap curved lcd panel in stock here from our factory.

curved lcd panel factory

An industrial HD LCD panel with energy-saving LED technology, A+-quality, wide viewing angle and capacitive multi- touch panel, makes these the perfect interactive Touch solution for digital signage, way-finding, classrooms, dealerships, supermarkets, hotels, sports arenas, fashion shows, industrial 4.0 projects, interactive visualisations and many other uses.

curved lcd panel factory

Owing to excellent sales performances of curved gaming monitors and Samsung’s aggressive promotional push, curved monitor shipment is projected to reach 12.86 million units in 2020, a 24% increase YoY, according to TrendForce’s latest investigations.

TrendForce analyst Anita Wang indicates that the curved monitor market is both hypercompetitive and highly concentrated, in terms of having very few monitor brands and display panel suppliers. Furthermore, since the manufacturing process is more complex for curved monitors than for flat screen monitors, enormous experience in the industry is required to achieve a high yield rate. Regarding the ranking of manufacturers’ curved monitor shipment in 2020, Samsung ranks first, supported by its in-house manufacturing facilities and by SDC’s panel capacities. AOC/Philips ranks second in shipment, due to the companies’ in-house manufacturing competencies and vast experience in the industry, as well as high sales performances of their curved gaming monitors. Third-ranked MSI is focused on the high-end curved gaming monitor segment. Despite the lack of in-house manufacturing capacities, MSI’s curved monitors are equipped with high-performance specs and features; as well, the company offers a comprehensive line of gaming products. MSI also released its products to coincide with the start of curved gaming monitors’ popularity in the market. MSI and Samsung are neck and neck in curved gaming monitor market share. The above three competitors (Samsung, AOC/Philips, and MSI) are projected to occupy almost 70% market share collectively in 2020.

With regards to display panel suppliers, SDC’s recent efforts in expanding its presence in the curved monitor and gaming monitor markets have been successful. In 2019, Samsung reached an 81% share in the VA curved monitor market, but the company subsequently decided to exit the market despite its leading performance. The curved monitor supply chain is expected to be impacted in 2021 as a result of Samsung’s exodus. On the other hand, second- and third-ranked curved panel suppliers AUO and CSOT are gearing up to dominate the market left by Samsung, while emerging panel supplier HKC has expressed its intention to do the same.

TrendForce believes that, as SDC drastically reduces its supply of curved display panels in 2021, whether other suppliers can step up to meet the market demand remains to be seen. As such, TrendForce expects curved monitor shipment to undergo its first decrease in 2021.

curved lcd panel factory

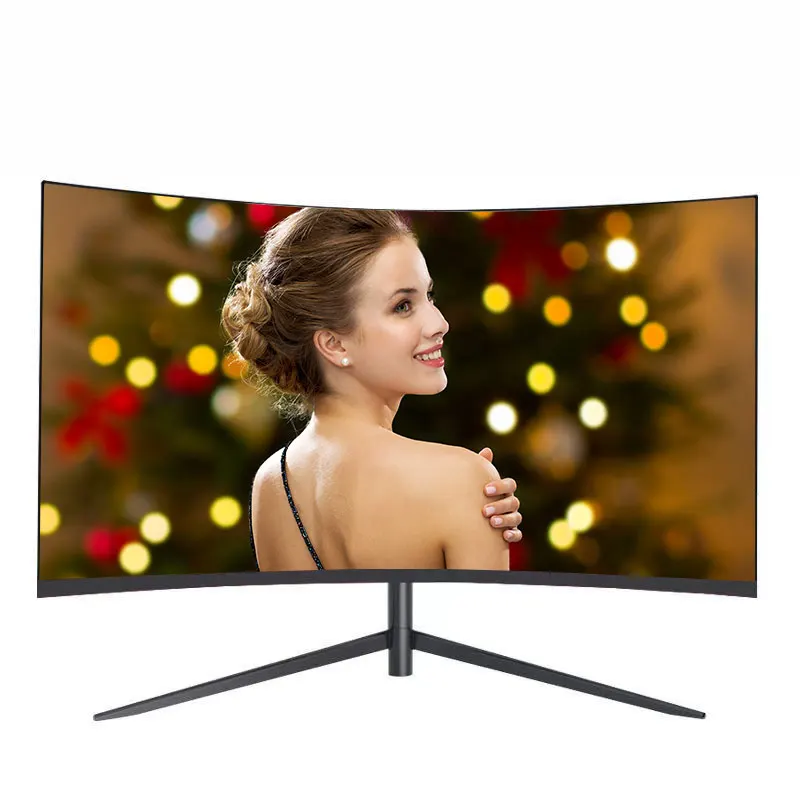

We combine technological innovation with cost advantages, and the Factory 32 Inch Curved LCD Panel Curved Monitor Gaming Desktop PC 2K Qhd 144Hz we provide has a competitive advantage in the global market, and we strive to create value for our customers. We thank customers for their continued support and trust over the years, and thank customers for introducing customers to the company. Your trust and support are the direction of our efforts! We will continue to try the best to supply you good quality products and solutions and the best service.

curved lcd panel factory

Important technical improvements of LCD, such as LED backlighting and wide viewing Angle, are directly related to LCD. And account for an LCD display 80% of the cost of the LCD panel, enough to show that the LCD panel is the core part of the entire display, the quality of the LCD panel, can be said to directly determine the quality of an LCD display.

The production of civil LCD displays is just an assembly process. The LCD panel, the main control circuit, shell, and other parts of the main assembly, basically will not have too complex technical problems.

Does this mean that LCDS are low-tech products? In fact, it is not. The production and manufacturing process of the LCD panels is very complicated, requiring at least 300 process processes. The whole process needs to be carried out in a dust-free environment and with precise technology.

The general structure of the LCD panel is not very complex, now the structure of the LCD panel is divided into two parts: the LCD panel and the backlight system.

Due to the LCD does not shine, so you need to use another light source to illuminate, the function of the backlight system is to this, but currently used CCFL lamp or LED backlight, don’t have the characteristics of the surface light source, so you need to guide plate, spreadsheet components, such as linear or point sources of light evenly across the surface, in order to make the entire LCD panel on the differences of luminous intensity is the same, but it is very difficult, to achieve the ideal state can be to try to reduce brightness non-uniformity, the backlight system has a lot to the test of design and workmanship.

In addition, there is a driving IC and printed circuit board beside the LCD panel, which is mainly used to control the rotation of LCD molecules in the LCD panel and the transmission of display signals. The LCD plate is thin and translucent without electricity. It is roughly shaped like a sandwich, with an LCD sandwiched between a layer of TFT glass and a layer of colored filters.

LCD with light refraction properties of solid crystals, with fluid flow characteristics at the same time, under the drive of the electrode, can be arranged in a way that, in accordance with the master want to control the strength of the light through, and then on the color filter, through the red, green, blue three colors of each pixel toning, eventually get the full-screen image.

According to the functional division, the LCD panel can be divided into the LCD panel and the backlight system. However, to produce an LCD panel, it needs to go through three complicated processes, namely, the manufacturing process of the front segment Array,the manufacturing process of the middle segment Cell, and the assembly of the rear segment module. Today we will be here, for you in detail to introduce the production of the LCD panel manufacturing process.

The manufacturing process of the LCD panel Array is mainly composed of four parts: film, yellow light, etch and peel film. If we just look at it in this way, many netizens do not understand the specific meaning of these four steps and why they do so.

First of all, the motion and arrangement of LCD molecules need electrons to drive them. Therefore, on the TFT glass, the carrier of LCD, there must be conductive parts to control the motion of LCD. In this case, we use ITO (Indium Tin Oxide) to do this.ITO is transparent and also acts as a thin-film conductive crystal so that it doesn’t block the backlight.

The different arrangement of LCD molecules and the rapid motion change can ensure that each pixel displays the corresponding color accurately and the image changes accurately and quickly, which requires the precision of LCD molecule control.ITO film needs special treatment, just like printing the circuit on the PCB board, drawing the conductive circuit on the whole LCD board.

This completes the previous Array process. It is not difficult to see from the whole process that ITO film is deposited, photoresist coated, exposed, developed, and etched on TFT glass, and finally, ITO electrode pattern designed in the early stage is formed on TFT glass to control the movement of LCD molecules on the glass. The general steps of the whole production process are not complicated, but the technical details and precautions are very complicated, so we will not introduce them here. Interested friends can consult relevant materials by themselves.

The glass that the LCD board uses makes a craft also very exquisite. (The manufacturing process flow of the LCD display screen)At present, the world’s largest LCD panel glass, mainly by the United States Corning, Japan Asahi glass manufacturers, located in the upstream of the production of LCD panel, these manufacturers have mastered the glass production technology patents. A few months ago, the earthquake caused a corning glass furnace shutdown incident, which has caused a certain impact on the LCD panel industry, you can see its position in the industry.

As mentioned earlier, the LCD panel is structured like a sandwich, with an LCD sandwiched between the lower TFT glass and the upper color filter. The terminal Cell process in LCD panel manufacturing involves the TFT glass being glued to the top and bottom of a colored filter, but this is not a simple bonding process that requires a lot of technical detail.

As you can see from the figure above, the glass is divided into 6 pieces of the same size. In other words, the LCD made from this glass is finally cut into 6 pieces, and the size of each piece is the final size. When the glass is cast, the specifications and sizes of each glass have been designed in advance.

Directional friction:Flannelette material is used to rub the surface of the layer in a specific direction so that the LCD molecules can be arranged along the friction direction of the aligned layer in the future to ensure the consistency of the arrangement of LCD molecules. After the alignment friction, there will be some contaminants such as flannelette thread, which need to be washed away through a special cleaning process.

After the TFT glass substrate is cleaned, a sealant coating is applied to allow the TFT glass substrate to be bonded to the color filter and to prevent LCD outflow.

Finally, the conductive adhesive is applied to the frame in the bonding direction of the glass of the color filter to ensure that external electrons can flow into the LCD layer. Then, according to the bonding mark on the TFT glass substrate and the color filter, two pieces of glass are bonded together, and the bonding material is solidified at high temperatures to make the upper and lower glasses fit statically.

Color filters are very important components of LCD panels. Manufacturers of color filters, like glass substrate manufacturers, are upstream of LCD panel manufacturers. Their oversupply or undersupply can directly affect the production schedule of LCD panels and indirectly affect the end market.

As can be seen from the above figure, each LCD panel is left with two edges after cutting. What is it used for? You can find the answer in the later module process

Finally, a polarizer is placed on both sides of each LCD substrate, with the horizontal polarizer facing outwards and the vertical polarizer facing inwards.

When making LCD panel, must up and down each use one, and presents the alternating direction, when has the electric field and does not have the electric field, causes the light to produce the phase difference and to present the light and dark state, uses in the display subtitle or the pattern.

The rear Module manufacturing process is mainly the integration of the drive IC pressing of the LCD substrate and the printed circuit board. This part can transmit the display signal received from the main control circuit to the drive IC to drive the LCD molecules to rotate and display the image. In addition, the backlight part will be integrated with the LCD substrate at this stage, and the complete LCD panel is completed.

Firstly, the heteroconductive adhesive is pressed on the two edges, which allows external electrons to enter the LCD substrate layer and acts as a bridge for electronic transmission

Next is the drive IC press. The main function of the drive IC is to output the required voltage to each pixel and control the degree of torsion of the LCD molecules. The drive IC is divided into two types. The source drive IC located in the X-axis is responsible for the input of data. It is characterized by high frequency and has an image function. The gate drive IC located in the Y-axis is responsible for the degree and speed of torsion of LCD molecules, which directly affects the response time of the LCD display. However, there are already many LCD panels that only have driving IC in the X-axis direction, perhaps because the Y-axis drive IC function has been integrated and simplified.

The press of the flexible circuit board can transmit data signals and act as the bridge between the external printed circuit and LCD. It can be bent and thus becomes a flexible or flexible circuit board

The manufacturing process of the LCD substrate still has a lot of details and matters needing attention, for example, rinse with clean, dry, dry, dry, ultrasonic cleaning, exposure, development and so on and so on, all have very strict technical details and requirements, so as to produce qualified eyes panel, interested friends can consult relevant technical information by a search engine.

LCD (LC) is a kind of LCD, which has the properties of light transmission and refraction of solid Crystal, as well as the flow property of Liquid. It is because of this property that it will be applied to the display field.

However, LCD does not emit light autonomously, so the display equipment using LCD as the display medium needs to be equipped with another backlight system.

First, a backplate is needed as the carrier of the light source. The common light source for LCD display equipment is CCFL cold cathode backlight, but it has started to switch to an LED backlight, but either one needs a backplate as the carrier.

CCFL backlight has been with LCD for a long time. Compared with LED backlight, CCFL backlight has many defects. However, it has gradually evolved to save 50% of the lamp and enhance the transmittance of the LCD panel, so as to achieve the purpose of energy-saving.

With the rapid development of LED in the field of lighting, the cost has been greatly reduced.LCD panels have also started to use LED as the backlight on a large scale. Currently, in order to control costs, an LED backlight is placed on the side rather than on the backplate, which can reduce the number of LED grains.

At the top of the diffusion plate, there will be 3~4 diffuser pieces, constantly uniform light to the whole surface, improve the uniformity of light, which is directly related to the LCD panel display effect. Professional LCD in order to better control the brightness uniformity of the screen, panel procurement, the later backlight control circuit, will make great efforts to ensure the quality of the panel.

Since the LCD substrate and the backlight system are not fixed by bonding, a metal or rubber frame is needed to be added to the outer layer to fix the LCD substrate and the backlight system.

After the period of the Module, the process is completed in LCM (LCDModule) factory, the core of this part of the basic does not involve the use of LCD manufacturing technology, mainly is some assembly work, so some machine panel factories such as chi mei, Korea department such as Samsung panel factory, all set with LCM factories in mainland China, Duan Mo group after the LCD panel assembly, so that we can convenient mainland area each big monitor procurement contract with LCD TV manufacturers, can reduce the human in the whole manufacturing and transportation costs.

However, neither Taiwan nor Korea has any intention to set up factories in mainland China for the LCD panel front and middle manufacturing process involving core technologies. Therefore, there is still a long way to go for China to have its own LCD panel industry.

curved lcd panel factory

Like many innovations, curved glass for smartphones has had its share of false starts, retreats, and reintroductions. From the introduction of flat glass with contoured edges to curving of the glass out of the plane of the glass surface, the industry has moved from placing curved glass over flat screens to using curved glass over curved LCD and OLED displays in a short period of time. New software will continue to take advantage of and fuel development of the new displays with both three-dimensional images and increasing use of the edges of the screen to display information.

Initially, curved glass and the capabilities it allows will be a critical differentiator for leading manufacturers in the field. We can then expect curved glass to move into the mainstream and become an essential feature for all serious competitors. As this happens, it’s important to note that the molds used to shape curved glass are just as important as the specialized glass itself in ensuring the powerful potential of this technology is fully realized.

Graphite is the material of choice for forming curved glass molds, and the quality of that material can have a huge impact on the quality of glass it forms, the longevity of the molds, and the economics and yield of the process itself. While the process of creating curved glass is theoretically simple, the key challenge for manufacturers will be to keep up with the demand.

The smartphone industry is rapidly accepting curved screen glass as a standard component. Curved glass screens are formed in graphite molds, and the graphite material choice can impact several factors in the cost of production and negatively affect time to market. The ideal graphite material will have a finer microstructure and closely match the CTE of the glass. It will balance material hardness to allow effective machining while extending mold life. The result will be higher yield, better glass quality with less secondary processing, and less need to replace costly molds.

curved lcd panel factory

We combine technological innovation with cost advantages, and the Factory 32 Inch Curved LCD Panel Curved Monitor Gaming Desktop PC 2K Qhd 144Hz we provide has a competitive advantage in the global market, and we strive to create value for our customers. We thank customers for their continued support and trust over the years, and thank customers for introducing customers to the company. Your trust and support are the direction of our efforts! We will continue to try the best to supply you good quality products and solutions and the best service.

curved lcd panel factory

먼저, 곡면형 디스플레이 패널을 제조하기 위한 벤딩(bending) 작업의 본격적인 수행에 앞서 몇 가지 준비 사항이 있다. 이를 강화유리 기판으로 만든 오픈 셀을 예로 하여 설명한다.First, there are a few preparations prior to the full-scale performance of the bending operation for manufacturing the curved display panel. An open cell made of a tempered glass substrate will be described as an example.

우선, 테이핑 처리된 평면형 LCD 패널 오픈 셀(10)을 준비한다. 벤딩 작업의 대상물은 LCD 패널 제조사에서 일반적으로 제조하여 판매하는 "오픈 셀"이 될 수 있다. 도 1에 도시된 것처럼, 오픈 셀(10)에 있어서 액정층(13)을 사이에 두고 서로 대면하면서 가장자리 부분이 밀봉재로 접합되어 그 액정층(13)을 밀폐된 공간에 가두는 제1 및 제2 기판(12-1, 12-2)은 강화유리로 만들어져 있다. 그 제1 강화유리 기판(12-1)에는 복수의 표시 신호선(즉, 게이트선과 데이터선, 다수의 박막 트랜지스터(TFT)와 화소 전극 등)이 형성되어 있고, 제2 강화유리 기판(12-2)에는 색 필터(color filter)와 공통 전극이 형성된다. 제1 및 제2 강화유리 기판(12-1, 12-2)에 형성된 전극들과 구동회로가 장착된 PCB 간의 전기적인 연결을 제공하는 복수의 탭(22)이 기판의 한쪽 모서리에 형성된다. 벤딩 작업의 대상물은 복수의 탭(22)이 결합된 오픈 셀이거나 또는 그 복수의 탭(22)에 PCB 회로까지 연결된 오픈 셀일 수 있다.First, a flat-type LCD panel open cell 10 having a taping process is prepared. The object of the bending operation may be an open cell which is generally manufactured and sold by an LCD panel manufacturer. As shown in Fig. 1, the open cells 10 are provided with a first and a second liquid crystal layer 13 facing each other with the liquid crystal layer 13 interposed therebetween, 2 substrates 12-1 and 12-2 are made of tempered glass. A plurality of display signal lines (that is, gate lines and data lines, a plurality of thin film transistors (TFTs) and pixel electrodes, and the like) are formed on the first tempered glass substrate 12-1. A color filter and a common electrode are formed. A plurality of tabs 22 are formed on one edge of the substrate to provide an electrical connection between the electrodes formed on the first and second tempered glass substrates 12-1 and 12-2 and the PCB on which the drive circuit is mounted. The object of the bending operation may be an open cell to which a plurality of tabs 22 are coupled or an open cell connected to the plurality of tabs 22 to the PCB circuit.

오픈 셀(10)의 준비와는 별도로, 도 2에 예시된 것과 같이, 오픈 셀(10)을 수납하는 패널 전방 프레임(30)도 준비한다. 패널 전방 프레임(30)은 오픈 셀(10)의 가장자리 둘레를 감싸면서 받쳐주되 후술할 벤딩 장치(70)로 소정의 곡률만큼 휘어진 오픈 셀(10)을 휘어진 상태를 유지하도록 붙잡아준다. 본 발명은 곡률의 값이 3,000R 이하의 특히 바람직하게는 1,500R 이하부터 700R까지도 아무런 문제없이 휘어진 오픈 셀을 제조할 수 있다.Apart from the preparation of the open cell 10, as shown in Fig. 2, a panel front frame 30 accommodating the open cell 10 is also prepared. The panel front frame 30 holds and holds the open cell 10 bent around a periphery of the open cell 10 by a predetermined curvature with a bending device 70 described later. The present invention can manufacture a curved open cell with a curvature value of 3,000R or less, particularly preferably 1,500R or less to 700R without any problem.

패널 전방 프레임(30)은 두 개의 가로 프레임(36)과 두 개의 세로 프레임(38)이 사각 고리를 형성하도록 연결된 구조로 되어 있다. 오픈 셀(10)의 휘어진 상태를 유지해줄 수 있기 위해 강도가 우수한 금속재 또는 플라스틱재로 만드는 것이 바람직하다. 한 쌍의 가로 프레임(36)과 한 쌍의 세로 프레임(38) 중 어느 하나는 제2 곡률로 휘어진 형상이고, 나머지 한 쪽은 직선형이다. 즉, 패널 전방 프레임(30)은 가로방향으로 휘어진 형상이거나 또는 세로방향으로 휘어진 형상일 수 있다. 도면에 예시된 패널 전방 프레임(30)은 가로방향으로 휘어진 형상이다.The panel front frame 30 has a structure in which two horizontal frames 36 and two vertical frames 38 are connected to form a square loop. It is preferable to make a metal material or a plastic material having excellent strength so as to maintain the bent state of the open cell 10. Either one of the pair of horizontal frames 36 and the pair of vertical frames 38 has a shape curved at a second curvature, and the other is linear. That is, the panel front frame 30 may be curved in the lateral direction or curved in the longitudinal direction. The panel front frame 30 illustrated in the figure is a shape bent in the transverse direction.

가로 프레임(36)과 세로 프레임(38)은 각각 한 몸체로 연결된 바닥부(32)와 측벽부(34)를 구비한다. 바닥부(32)와 측벽부(34)는 모두 대략 1~2센티미터의 폭을 갖는 띠 모양이다. 측벽부(34)는 수직 상방으로 일정한 높이를 갖고, 바닥부(32)는 측벽부(34)의 하단에서 90도(휘어지지 않은 부분) 또는 90도 이내의 각도(휘어진 부분. 제2 곡률을 형성하는 각도)로 절곡되어 상기 폭으로 연장된 부분이다.The horizontal frame 36 and the vertical frame 38 each have a bottom portion 32 and a side wall portion 34 connected to each other in one body. The bottom portion 32 and the side wall portion 34 are all in the form of stripes having a width of approximately 1 to 2 centimeters. The side wall portion 34 has a constant height vertically upward and the bottom portion 32 has an angle of 90 degrees (a non-bent portion) or an angle of 90 degrees (a curved portion, (I.e., at an angle of forming).

패널 전방 프레임(30)의 곡률(제2곡률)은 후술할 벤딩장치(70)의 곡면형 받침부(50)(와 오픈셀 누름부(60)의 곡률(제1곡률)보다 약간 큰 값을 갖는 것이 바람직하다. 제2곡률은 제1곡률에 비해 5~30R 정도 더 큰 값을 갖는 것이 바람직하다. 예컨대, 패널 전방 프레임(30)의 제2 곡률이 예를 들어 1,500R이라면, 곡면형 받침부(50) 상면(52)의 제1곡률은 1,470~1,495R 정도인 것이 바람직하다. 이처럼 패널 전방 프레임(30)의 휘어짐 정도가 벤딩장치(70)에 의한 오픈 셀(10)의 휘어짐 정도보다 5~30R 정도 덜 휘어진 것으로 만들면, 오픈 셀(10)을 패널 전방 프레임(30)에 수납할 때 작업성을 좋게 하기 위함이다. 만약, 상기 두 곡률의 관계가 "제2곡률 < 제1곡률+5R"이면 오픈 셀(10)을 패널 전방 프레임(30) 안에 수납할 때 오픈 셀(10)이 측벽부(34)에 걸려 쉽게 수납하기가 어려워지기 때문이다. 상기 두 곡률의 차이가 30R보다 더 크면, 오픈 셀(10)이 패널 전방 프레임(30) 안에 수납되고 난 후 제1곡률에서 제2곡률로 펴지는 정도가 지나치게 많아서 바람직하지 않다.The curvature (second curvature) of the panel front frame 30 is set to be slightly larger than the curvature (first curvature) of the curved surface receiving portion 50 (and the open cell pressing portion 60) of the bending device 70 It is preferable that the second curvature has a value larger by about 5 to 30 R than the first curvature For example, if the second curvature of the panel front frame 30 is, for example, 1,500 R, It is preferable that the first curvature of the upper surface 52 of the panel 50 is about 1,470 to 1,495 R. When the degree of warping of the panel front frame 30 is less than the degree of warping of the open cell 10 by the bending device 70 If the curvature is less than 5 to 30R, the workability is improved when the open cell 10 is housed in the panel front frame 30. If the relationship between the two curvatures is "second curvature

오픈 셀(10)은 벤딩 공정에 의해 휘어진 상태 그대로 그것의 앞면 가장자리 둘레 부분이 패널 전방 프레임(30)의 바닥부(32)에 걸쳐지는 형태로 패널 전방 프레임(30)에 수납, 고정된다. 오픈 셀(10)이 그렇게 휘어져 수납된 상태로 유지되도록 하기 위한 고정수단도 함께 준비한다. 고정수단은 세로 프레임(38)에 장착되는 세로 고정부재(42)와 가로 프레임(36)에 장착되는 가로 고정부재(44)를 포함할 수 있다. 이들 세로 및 가로 고정부재(42, 44) 역시 서로 직각에 가깝게 절곡된 바닥부(32)와 측벽부(34)로 구성될 수 있다. 세로 고정부재(42)는 직선형인 반면, 가로 고정부재(44)는 가로 프레임(36)과 같은 곡률을 가진 곡선형으로 마련하는 것이 바람직하다. 도면에는 프레임(30)의 각 변에 세로 고정부재(42)와 가로 고정부재(44)가 각각 한 개씩 결합되는 것으로 도시되어 있지만, 이는 예시적인 것에 불과하며, 세로 고정부재(42)와 가로 고정부재(44) 각각은 길이를 짧게 하여 복수 개로 구성할 수도 있다.The open cell 10 is received and fixed in the panel front frame 30 in such a form that the front edge circumferential portion of the open cell 10 is bent over the bottom portion 32 of the panel front frame 30 while being bent by the bending process. A fixing means for holding the open cell 10 so bent and held is also prepared. The fastening means may include a longitudinal fixing member 42 mounted to the longitudinal frame 38 and a transverse fixing member 44 mounted to the transverse frame 36. These vertical and horizontal fixing members 42 and 44 may also be composed of a bottom portion 32 and a side wall portion 34 which are bent at a right angle close to each other. It is preferable that the vertical fixing member 42 is linear while the horizontal fixing member 44 is provided in a curved shape having the same curvature as the horizontal frame 36. [ Although the figure shows the longitudinal fixing member 42 and the lateral fixing member 44 as being joined to each side of the frame 30 one by one, this is merely an example, and the vertical fixing member 42 and the horizontal fixing member 44 Each of the members 44 may have a plurality of shortened lengths.
