psoc 6 tft display for sale

The TFT Display Shield Board (CY8CKIT-028-TFT) has been designed such that a TFT display, audio devices, and sensors can interface with Infineon"s PSoC 6™ MCUs.

The TFT Display Shield Board is compatible with the PSoC 6™ WiFi-BT Pioneer Kit CY8CKIT-062-WiFi-BT and the PSoC 6™ BLE Pioneer Kit CY8CKIT-062-BLE. Refer to the respective kit guides for more details.

This is a quick video showing our new 1.3 inch TFT LCD. This is a small, full-color TFT. It"s controlled via 4-wire SPI. It has a ST7789H2 controller. This display runs off a single 3.3v supply which controls the logic and backlight.

This is a TFT Seeedunio kit for our tiny TFT with adapter board. This kit includes the small TFT mounted to an adapter board, already connected to a Seeeduino loaded with demonstration code. That means all you need to do when the kit arrives is plug in the USB cord to power to see a functioning display.

The included TFT is a crisp 1.3", 16.7M full color, 240x240 IPS display. The adapter board is designed with the display in mind, so there is no PCB overlap. Plus the board includes a backlight driver so the entire display, including the backlight, can be driven with a single 3.3v power input.

This weekend as I was getting ready for the workshop, my son, Nicholas, was making fun of me for my user interface.  To fix this I decided to show how you could move platforms.  Specifically to the CY8CKIT-062-WiFi-BTwhich you can buy from mouser.com

You could literally just change the target and things would work… almost.  The one exception is that this development kit doesn’t have a thermistor.  So, I soldered a different kind of temperature sensor, called a TMP36, onto the kit which means I have to make a few small code updates to the temperatureThread.

The TMP36 is a single wire temperature sensor that gives you a voltage that is directly proportional to the temperature.  Specifically, it is 10mV per degree C.

Start this process by attaching the TMP36.  On the back of the CY8CKIT-028-TFT I solder three wires onto the temperature sensor.  One to 3.3v, one to ground and one to A5.  Here is the picture of my ugly ugly solder job.  Yes, that is duct-tape holding it onto the back of the shield.  And yes that is a prototype sticker.

In order to switch between the thermistor and the TMP36 I create two #defines based on the target that is currently active.  This is cool because the Mbed OS creates these #defines automatically.

Next, I create the code to measure the temperature using the AnalogIn object. Notice that it is connected to the Arduino A5 pin. Also notice that when the TMP36 is active I have a different readTemp function so I don’t need to change anything else to get the temperature.

With that little update I can now build, program and test. Notice that my display is still working… and I can change the temperature by holding the TMP36 between my fingers.

But, I haven’t really addressed Nicholas’ complaint, the GUI.  To do this I am going to use the Segger emWin library to control the TFT display.  Go to the library manager and add the library.

The emWin library doesn’t know anything about how the TFT is attached.  So, I created a driver library which you can use for all of the Cypress development kits.

Then update the displayAtXY function to also print on the display.  By doing it here I don’t have to change anything else in the code because this is the only function that draws on the screen.

Today we are looking at the Cypress PSoC 6 WiFi-BT Pioneer Kit, an evaluation board designed to give both beginners and professionals an easy access point to their PSoC 6 line of dual MCUs.

The PSoC 6 consists of two MCUs, one primary Arm Cortex-M4 running at 150MHz, and a secondary 100MHz Arm Cortex M0+ for low power operation. The chip also features 1MB Flash and 288KB SRAM, connectivity for analog and digital peripherals, and Cypress patented CapSense touch-sensing system.

While the chips themselves are clearly powerful and fully featured, the Cypress PSoC 6 WiFi-BT Pioneer Kit (hereafter Pioneer Kit) offers a lot more outside of the SoC than in it.

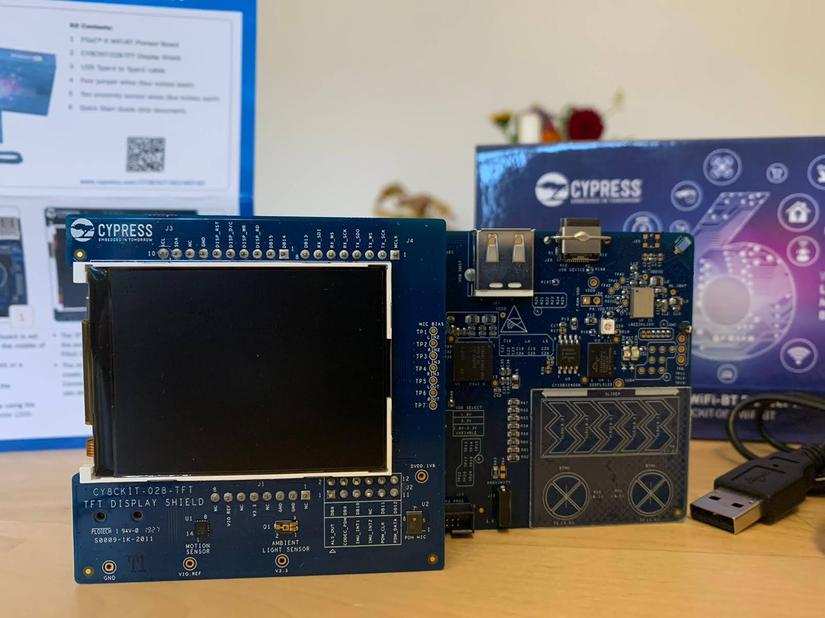

The Pioneer Kit consists of an evaluation board for the PSoC 6, an LCD screen with some added sensor peripherals, a USB-a to USB Type-C connector, and several jumper cables that can double as aerials for the onboard capacitive proximity sensor.

The board breaks out most of the PSoC 6"s features, including the aforementioned CapSense proximity sensor, a five-segment CapSense slider, two CapSense buttons, and various options for I/O arranged to grant compatibility to Arduino Uno footprint peripherals. The board"s pin layout is designed to give compatibility with 3.3v Arduino shields when not using the LCD screen.

That is a lot to pack into a simple screen, but it"s been well thought out. Since it was designed alongside the evaluation boards for the PSoC 6, example code is already available, showing how these peripherals can work in working programs.

While cheaper boards feature the PSoC 6 (some of which we"ll be covering in the coming weeks), this kit gives you everything you need to prototype connected embedded IoT devices, and at $80, it promises a lot.

From a personal viewpoint, the Pioneer Kit was an exciting prospect. As I"ve said in the past, I"ve dabbled with many evaluation boards and MCUs, but this was my first experience with PSoC 6 and Cypress" tools.

Cypress advises using the ModusToolbox software environment for working with the PSoC 6 chipset. Based on Eclipse IDE, it should feel pretty familiar to those who"ve worked in Eclipse-based IDEs. The software is free, though it requires an account to download.

You"ll find a large selection of example projects in the ModusToolbox IDE (also available on GitHub). I feel like I"ve hardly scratched the surface of what I can do with the Pioneer Kit. One thing is for sure, with what I have here, I could learn almost everything I need to know about the PSoC 6 chipset, and as evaluation boards go, this is one of the most fully-featured I"ve used to date.

As I mentioned above, complete beginners might find getting started with the Cypress PSoC 6 WiFi-BT Pioneer Kit a little daunting. For everyone else, this is the perfect board for learning about the PSoC 6 dual-core chipsets and how they interact with the world around them.

Clicker 2 for PSoC® 6 is a compact development kit with two mikroBUS™ sockets for click board connectivity, an ideal solution for rapid development of custom applications. It is equipped with the PSoC® 6, a dual-core 32-bit CY8C6347BZI-BLD53 Microcontroller Unit (MCU). This powerful device is a combination of ARM® Cortex™ based dual-core MCU with low-power flash technology and digital programmable logic, programmable analog resources, industry-leading CapSense® technology, and other standard communication and timing peripherals. One of the key features of this MCU is the support for the BLE 5 compliant wireless connectivity. Supported by the PSoC® Creator and equipped with the KitProg2 compatible onboard programmer, this board is the ultimate development platform for building portable and IoT applicationsin the entire range of Clicker 2 products.

Power Management. Clicker 2 for PSoC® 6 is equipped with the LTC3586, a high-efficiency USB power manager, and battery charger, featuring the proprietary PowerPath™ and Bat-Track™ technologies, from Linear Technology. The LTC3586 power manager takes care of all the power options of the Clicker 2 for PSoC® 6, providing stable and low ripple voltage outputs for all parts of the board while ensuring proper Li-Po battery charging conditions. The power manager IC allows charging of the Li-Po battery while the Clicker 2 for PSoC® 6 board is connected to the USB port of the computer.

Programming. The programming can be done using the PSoC Creator IDE or stand-alone PSoC Programmer software application. The onboard KitProg2 compatible programmer is automatically detected by the software when Clicker 2 for PSoC board is connected, with no additional configuration steps required. PSoC Creator IDE and PSoC Programmer software applications are available for download from the Infineon official download page, as well as from the download links, below

The PSoC® 6 WiFi-BT Pioneer Kit (CY8CKIT-062-WiFi-BT) is an ultra-low power, high-performance, secure hardware platform that enables design and debug of the PSoC 62 MCU and the Murata LBEE5KL1DX Module (CYW4343W WiFi + Bluetooth combo chip).

The PSoC 6 WiFi-BT Pioneer Kit has been designed for users to develop next-generation Internet of Things (IoT) applications. It comes with the PSoC 62 MCU, which provides IoT developers with an ultra-low power, flexible and secure MCU architecture. User"s can choose from the various combinations of power, performance and peripherals provided by the PSoC 62 MCU architecture, to enable features such as extended battery life, small form factors, and security for connected devices. This kit also comes with a Murata LBEE5KL1DX Module (based on the CYW4343W), which provides robust and reliable Wi-Fi AND Bluetooth connectivity in one chip.

The PSoC 6 WiFi-BT Pioneer Kit provides Arduino™ UNO V3 and Digilent Pmod™ compatible headers, enabling plug and play of various shield boards to broaden the user"s development scope. It comes with an on-board debugger/programmer (KitProg) to easily debug and program the target device. In addition, software libraries and code examples are provided to help user"s along with their development process.

Default baud rate value for the serial port is 9600. Default baud rate value is set in the platform config file: https://github.com/ARMmbed/mbed-os/blob/master/platform/mbed_lib.json.

Additional datasheets, footprints and schematics for CY8CKIT-028-TFT are listed on our Part Details page. You can also find images and similar parts to CY8CKIT-028-TFT on this page.

Distributor pricing and stock information is available for CY8CKIT-028-TFT on our Product Comparison page. Access via the "View Pricing & Stock" button to view CY8CKIT-028-TFT price breaks, MOQs, lead times, inventory and SKUs from distributors.

Submit any questions directly to the customer support team of the distributor listing the product. For the CY8CKIT-028-TFT you can contact the distributor directly for product support, shipping queries etc.

Authorised distributors including Chip One Stop, Farnell, element14, Newark Electronics and Avnet America have stock available or on a lead time for CY8CKIT-028-TFT.

You can fill out our help required form which you can use to request a quote for CY8CKIT-028-TFT from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.

ILI9341 is a 262144-color single-chip SOC driver for a TFT liquid crystal display with resolution of 240x320 dots (RGB), comprising a 720-channel source driver, a 320-channel gate driver, 172800 bytes GRAM for graphic display data of 240x320 dots (RGB), and power supply circuit.

ILI9341 supports parallel 8-/9-/16-/18-bit data bus MCU interface, 6-/16-/18-bit data bus RGB interface and 3-/4-line serial peripheral interface (SPI).

ILI9341 can operate with 1.65V ~ 3.3V I/O interface voltage and an incorporated voltage follower circuit to generate voltage levels for driving an LCD.

ILI9341 supports full color, 8-color display mode and sleep mode for precise power control by software and these features make the ILI9341 an ideal LCD driver for medium or small size portable products such as digital cellular phones, smart phone, MP3 and PMP where long battery life is a major concern.

This example demonstrates displaying 2D graphics on a TFT display using the emWin graphics library and the AppWizard GUI design tool in FreeRTOS. The application initializes the system peripherals and creates a task that cycles through demo images in response to button presses.

This code example requires CY8CKIT-028-TFT; TFT display shield board. This shield comes with PSoC™ 6 Wi-Fi Bluetooth® pioneer kit. It can also be purchased standalone and used with other supported kits.

Note: The PSoC™ 6 Bluetooth® LE pioneer kit (CY8CKIT-062-BLE) and the PSoC™ 6 Wi-Fi Bluetooth® pioneer kit (CY8CKIT-062-WIFI-BT) ship with KitProg2 installed. The ModusToolbox™ software requires KitProg3. Before using this code example, make sure that the board is upgraded to KitProg3. The tool and instructions are available in the Firmware Loader GitHub repository. If you do not upgrade, you will see an error like "unable to find CMSIS-DAP device" or "KitProg firmware is out of date".

The following example clones the "mtb-example-psoc6-emwin-tft-freertos" application with the desired name "EmwinTftFreeRtos" configured for the CY8CKIT-062-WIFI-BT BSP into the specified working directory, C:/mtb_projects:

project-creator-cli --board-id CY8CKIT-062-WIFI-BT --app-id mtb-example-psoc6-emwin-tft-freertos --user-app-name EmwinTftFreeRtos --target-dir "C:/mtb_projects"

If using a PSoC™ 64 "Secure" MCU kit (for example, CY8CKIT-064B0S2-4343W, CY8CKIT-064S0S2-4343W), the PSoC™ 64 device must be provisioned with keys and policies before being programmed. Follow the instructions in the "Secure Boot" SDK user guide to provision the device. If the kit is already provisioned, copy-paste the keys and policy folder to the application folder.

Observe the startup screen with the Infineon logo on the display. Follow the instructions that come on the screen after two seconds. Press the user switch to move between pages when the user LED is OFF.

This project uses a CY8CKIT-028-TFT; TFT display shield together with a pioneer board. The TFT shield has a Newhaven 2.4″ 320×240 TFT display with a Sitronix ST7789 display controller and uses the 8080-series parallel interface.

emWin middleware documentation on GitHub for understanding the structure of the emWin package, supported drivers, and a quick start guide to create and run your first emWin project from scratch. The documentation page also contains configuration details on a wide variety of display drivers provided by emWin.

AppWizard project: The GUI that is displayed on the screen is designed using the AppWizard software. The code example includes the corresponding AppWizard project.

Major update to support ModusToolbox™ v3.0. This version is not backward compatible with previous versions of ModusToolbox. Migrated the CE to use the latest emWin version V1.30_6.26d
