graphics dots lcd module in stock
A graphic LCD is typically required when the display of more than just text is required. Many of the LCD controllers on our graphic LCD displays also include a CGROM (character generator ROM) to be able to easily use characters as well as graphics. Some of our graphic LCD displays have the ability to render graphics in grayscale, enabling you to show images and elements of your UI (user interface) with more depth and definition.
We offer the largest selection and lowest prices for graphic STN/FSTN LCD displays in the United States. Whether you need one or one-thousand, Crystalfontz America has the graphic LCD for your product.
A big, bold, beautiful blue LCD with white back-lit pixels. This LCD is the graphical upgrade to those popular 16×2 LCDs, but allows full graphical control. This is Negative Transmissive white character with blue background.
160x100 Dot Matrix COG, FSTN, Gray background, White Edge lit, Bottom view, Wide temp, Transflective (positive), 3.0V LCD, 3.3V LED, RoHS Compliant. This COG display has a wide temperature range: -20° Celcius to +70° Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit).
FSTN (Film-compensated Super-twisted Nematic) provides a sharper contrast than STN by adding a film. The cost is approximately 5% higher than STN. FSTN works great for indoor and outdoor applications and is mainly used in graphic displays and higher end products. The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.
Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.Get in touch with a team member today to accessorize your display!
Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product"s package) will be free from defects in material or workmanship.
128x64 Dot Matrix COG, FSTN Gray background with White LED backlight, bottom (or 6:00) viewing angle, Transflective (positive), 3.0V LCD, 3.0V LED, RoHS Compliant. This LCD glass display has a wide temperature range: -20° Celcius to +70° Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit).
FSTN (Film-compensated Super-twisted Nematic) provides a sharper contrast than STN by adding a film. The cost is approximately 5% higher than STN. FSTN works great for indoor and outdoor applications and is mainly used in graphic displays and higher end products. The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.
Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.Get in touch with a team member today to accessorize your display!
Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product"s package) will be free from defects in material or workmanship.
NHD-12864AZ-FL-YBW | Monochrome Graphic Module | 128x64 Pixels | Transflective LCD | Yellow/Green Backlight | STN (+) Positive Yellow/Green Display | Non-Stocked

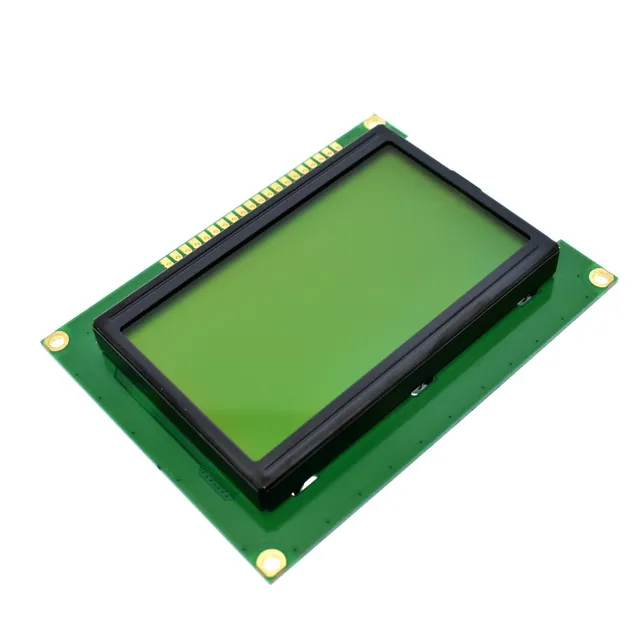

Newhaven 128x64 graphic Liquid Crystal Display module shows dark pixels on a bright yellow/green background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This NHD-12864AZ-FL-YBW display has an optimal view of 6:00, operates at 5V supply voltage and is RoHS compliant.
All bezels are available with an anti-glare screen. The bezels are simply inserted into the frontal cutout. This gives your unit a professional look, and at the same time the anti-glare screen prevents the integrated display from being touched or getting dirty. The anti-glare screen makes the display considerably easier to read. Please refer to the tables for dotmatrix modules for the order numbers of the various bezels. You will find more information on bezels in our data sheet, which is available in PDF format, or on our accessories page.
Bought a new smartphone or want to check on the old smartphone matrix display? In this program you can test your LCD screen for the presence of dead / broken pixels and repair it. You can detect any stuck or dead pixel on your LCD screen.
