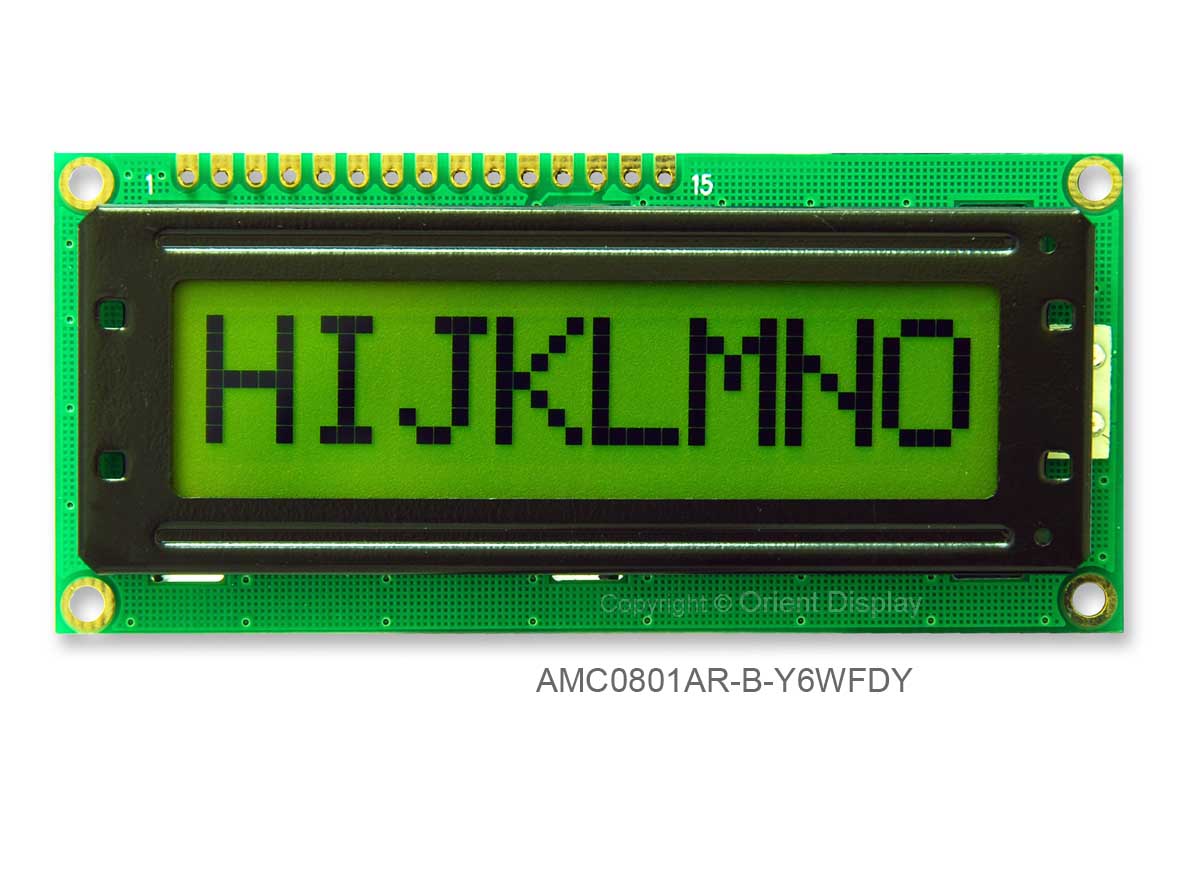

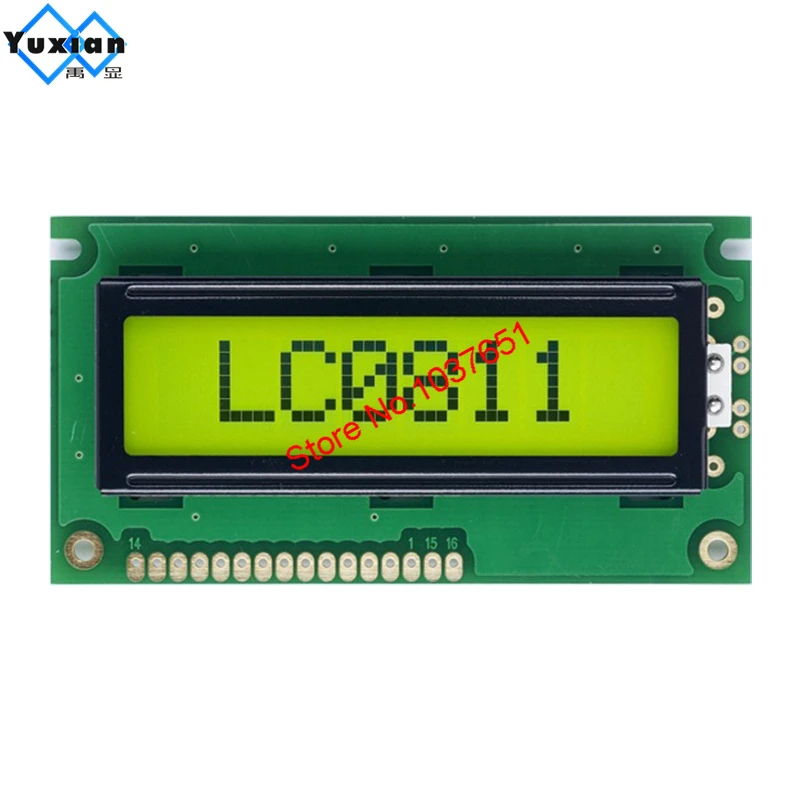

An 8×1 dot matrix Character LCD Module display in STN Positive Yellow Green LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow Green LED Backlight. It has a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled Chip On board with 1/8 Duty and a Controller IC S6A0069 or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.

lcd character display 8x1 is a root category including various types of character displays, including character display panels, arduino character display, character display modules, and more. The displays have an LED backlight and are able to display characters such as letters, numbers, and punctuation marks for application in various kinds of machines, data loggers, and measurement devices.

Different lcd character display 8x1 options are equipped with controllers or driver chips that contain built-in character or font tables and have become widely popular in multiple industries. You can find routers that come preloaded with characters for multiple languages, including English font, along with many other international languages that are also available. There are also options for either negative mode or positive mode on monochrome display, so you can find lcd character display 8x1 options that are able to achieve the right appearance you want for your use.

You can find a different range of displays under this category to suit your specific application, such as alphanumeric displays, scrolling message character displays, and various size configurations, including 16x2 character displays, 16x4 character displays, 20x2 character displays, 20x4 character displays, 24x2 character displays, 40x2 character displays, 8x1 character displays, 20x2 character displays, 40×4 character displays, and many more different sizes.

If you"re looking to source bulk lcd character display 8x1 products for your business or wholesale lcd character display 8x1 modules for reselling, you can find multiple options on Alibaba.com to suit your needs. Products are available at different price ranges to suit different wallets.

In this tutorial I am going to explain about the pin out, working and control systems of character lcd’s. Character lcd’s comes in many sizes for example 8×1, 8×2, 8×4, 16×1, 16×2, 20×1, 20×2, 20×4, 24×1, 24×2, 24×4, 32×1, 32×2, 40×1, 40×2 and 40×4. In these MxN dimensions, M represents number of coulombs & N represents number of rows.

All these Lcd’s available in market have 14 or 16 pins depending on the vendor/supplier. Also they all contains a same lcd controller in them which controls all their activities. Talks to external peripherals(like microcontrollers) receives data from external devices and displays them on lcd display screen. Generally every character lcd has HD44780 controller in it which controls every operation of character lcd. Some variants and competitors of HD44780 also placed step in embedded market but they are not popular for exampleAIP31066 , KS0066 , SPLC780 and ST7066 lcd controller.

In these 14 pins, 8 are data pins(FromDB-0toDB-7). Three are lcd control pinsRS(Register Select),R/W(Read-Write) &En(Enable). Two are lcd power pinsVcc(+5v)Vss(Gnd). The last pin islcd contrast pin(V0).

If lcd contains 16 pins than the extra 2 pins are LED+ and LED- pins. LED+ and LED- are for lcd’s back light, if you want to switch on the back light of lcd then use these pins other wise leave them void.

Character lcd’s which have pins arranged in two lines like headers, their pin-out is given below. Female header pin-out is shown below. Vendors for ease pre-solder the lcd pins and provide a female header for connections.

Mostly character lcds contains HD44780U lcd controller in them. HD44780 was developed by Hitachi. A single HD44780 can handle up to 80 characters. In 40×4 lcd display total characters which we can display on lcd are 40×4=160. So to control 160 characters we need two HD44780 controllers. To work with two HD44780 controllers we need an extra pin to energize the second controller.

Lcd contrast pin is same like fine tuning your television. In televisions we fine tune stations using remote but in character lcd’s we have to manually do it by varying the resistance. Varying the resistance means we control the input current to lcd. Varying resistance will fade or brighten the characters or data appearing on lcd screen.

Character Lcd’s can be interfaced in 8-bit and 4-bit mode with external controllers. In 8-bit mode all the data lines(DB0-DB7) of lcd are utilized. In 4-bit mode only four data pins of lcd are utilized (DB7-DB4). In 4-bit mode first the 8-bit ASCII value is divided in to two nibbles, first the upper nibble is send on data line and then the lower nibble. 4-bit mode is used when we want to save GPIO pins of our external device like microcontoller. An example of lcd connection with remote controller is shown in the picture below.

I prepared a good tutorial on interfacing character lcd in 8-bit and 4-bit mode with microcontrollers. Demo codes are also presented and explained in the post. Click the below button to take the tutorial.
