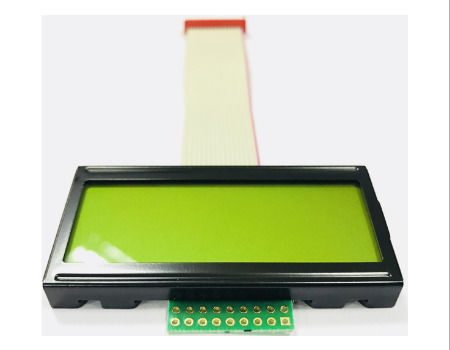

120x32 graphic dot matrix lcd module pricelist

128x32 Dot Matrix COG, FSTN, Gray background, Blue Edge lit, bottom (or 6:00) viewing angle, Transflective (positive), 3.0V LCD, 3.0V LED, RoHS Compliant. This display has a wide temperature range: -20° Celcius to +70° Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit).

FSTN (Film-compensated Super-twisted Nematic) provides a sharper contrast than STN by adding a film. The cost is approximately 5% higher than STN. FSTN works great for indoor and outdoor applications and is mainly used in graphic displays and higher end products. The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.

Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.Get in touch with a team member today to accessorize your display!

Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product"s package) will be free from defects in material or workmanship.

128x32 Dot Matrix COG, FSTN, Gray background, White Edge lit, Bottom view, Wide temp, Transflective (positive), 3.0V LCD, 3.0V LED, RoHS Compliant. This display has a wide temperature range: -20° Celcius to +70° Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit).

FSTN (Film-compensated Super-twisted Nematic) provides a sharper contrast than STN by adding a film. The cost is approximately 5% higher than STN. FSTN works great for indoor and outdoor applications and is mainly used in graphic displays and higher end products. The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.

Focus LCDs can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need.Get in touch with a team member today to accessorize your display!

Focus Display Solutions (aka: Focus LCDs) offers the original purchaser who has purchased a product from the FocusLCDs.com a limited warranty that the product (including accessories in the product"s package) will be free from defects in material or workmanship.

Our serial devices are a dot-matrix LCD series of products that are ready for operation with a driver and a bezel or a snap-in housing. They are connected to a standard RS-232C interface (or, optionally, an RS-422). The data transmission rate can be set to 300, 1,200, 2,400 or 9,600 bps. All cursor control (line feed etc.) is automatic. The displays are equipped with LED lighting that can be switched off by software means.

Dynamic dot-matrix modules permit4 different font sizes to be displayed simultaneously. As a result, text or measurement values can be highlighted and are thus also visible from some distance. In this way, highly individual on-screen displays are made possible without the need for an expensive graphics module. Even small graphics such as icons or company logos can be loaded via the integrated RS-232 interface. All displays are equipped with LED lighting.

LCD graphics units are intelligent graphics displays with a serial RS-232 interface. Two or three integrated character sets and a wide range of graphics functions permit the time- and cost-saving use of the latest LCD graphics displays. Apart from a supply voltage of +5V and RS-232 data, no further signals are required. No additional software or special drivers are required for their operation. All the graphics routines are integrated in the display"s in-built high-level graphics controller. This permits the creation of a clear and attractive display using only a few commands. All functions are positioned with pixel accuracy by means of x/y coordinates (e.g. draw straight line: G x1 y1 x2 y2).

Prices for all graphics units if you order 25 are between 70.25 and 212.23 euros*). You will find more information in the relevant data sheets in PDF format.

ELECTRONIC ASSEMBLY offers 3 LCD graphics displays in different sizes in a snap-in housing: EA KIT120, KIT128 and KIT160. 3 further sizes are available with an anodized mounting panel in black or blue: EA KIT240-6, KIT240-7 and KIT320-8. They are controlled via either an RS-232 or an RS-422 interface.

Prices for all graphics kits if you order 25 are between 104.12 and 465.82 euros*). Smaller quantities can also be delivered at short notice. You will find more information on the touch panel versions on our touch panel page or in our data sheet in PDF format.

The LM12832B Series, manufactured by TOPWAY, is a graphic LCD display module equipped with 240x64 dot matrix pattern. The module is used in operations that require monochrome graphic displays.
