ER-TFT043A2-3 is 480x272 dots 4.3" color tft lcd module display with driver IC ST7282 and optional capacitive touch panel with controller and connector,optional 4-wire resistive touch panel with connector,superior display quality,wide view angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI .

It can be used in any embedded systems,car,mp4,gps,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 4.3"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560,Uno and 8051 Microcontroller Development Board&Kit.

※ Price Increase NotificationThe TFT glass cell makers such as Tianma,Hanstar,BOE,Innolux has reduced or stopped the production of small and medium-sized tft glass cell from August-2020 due to the low profit and focus on the size of LCD TV,Tablet PC and Smart Phone .It results the glass cell price in the market is extremely high,and the same situation happens in IC industry.We deeply regret that rapidly rising costs for glass cell and controller IC necessitate our raising the price of tft display.We have made every attempt to avoid the increase, we could accept no profit from the beginning,but the price is going up frequently ,we"re now losing a lot of money. We have no choice if we want to survive. There is no certain answer for when the price would go back to the normal.We guess it will take at least 6 months until these glass cell and semiconductor manufacturing companies recover the production schedule. (Mar-03-2021)

ER-TFT043-3 is 480x272 dots 4.3" color tft lcd module display with driver IC ILI6480BQ and optional 4-wire resistive touch panel screen,superior display quality,wide view angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI .

It can be used in any embedded systems,car,mp4,gps,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 4.3"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560,Uno and 8051 Microcontroller Development Board&Kit.

Main business are: large size (10.1-65 inch) projection capacitor screen production and sales, all fit / optical binding (3.5-72 inch) OEM production and large-size fit device design, production and sales of three Large business scope.

This LCD is a 480x272 pixel resolution IPS TFT display. The IPS technology delivers sunlight readable image quality with higher brightness, better color reproduction, image consistency and optical characteristics at any angle. This 24-bit true color Liquid Crystal Display includes better FPC design with EMI shielding on the cable. It also has a built-in SC7283 IC driver and offers the same mechanical footprint and pinout as the TN display. This TFT is RoHS compliant and has a 4-wire resistive touch panel.

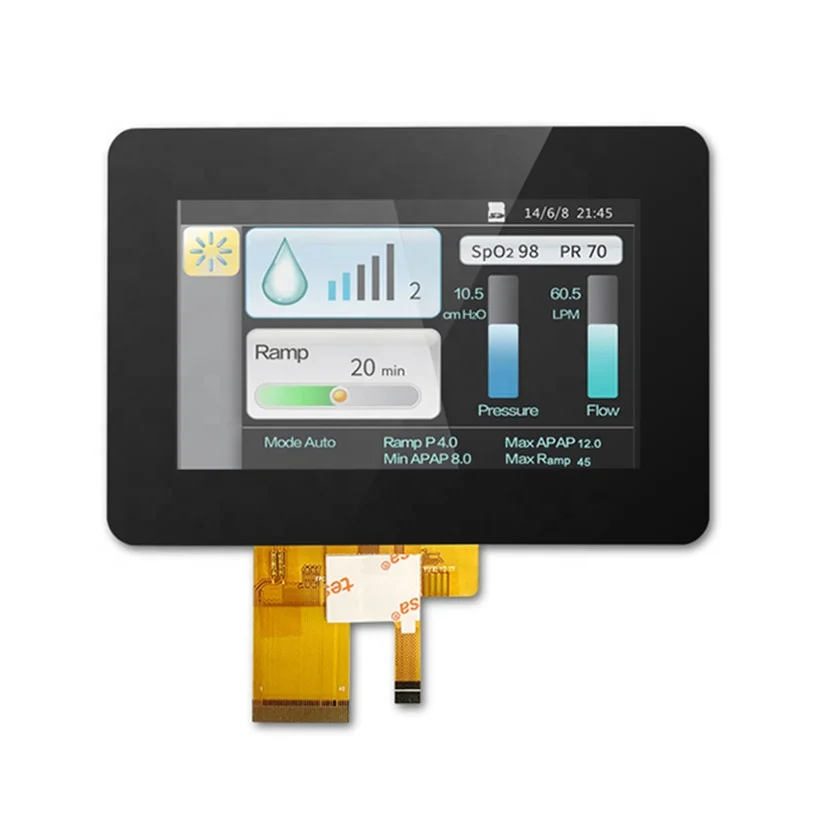

MX-X43NR-40TNG10-061C is a 4.3" TN LCD display air bonding with PCAP glass touch panel. The 4.3 inch LCD display is with WQVGA 480x272 pixels, 40/50/50/50 (U/D/L/R) viewing angle, 500 cd/m2 brightness. The 4.3 inch display is built-in ILI6485 driver IC and 24 BIT-RGB 40 pin interface. The operating temperature for the 3.5 inch LCD can up to -20°C to 70°C. For the 4.3 inch display, we have many options. Brightness can be 350/500/1000 nits. This 4.3 inch LCD module also has TN and IPS technology for choosing. If you need more other 4.3 inch TFT LCD, please feel free to contact us.The 4.3 inch capacitive touch screen is with Glass+Glass structure, built-in GT911 Touch IC. The 4.3” LCD touch screen module is suitable for video door phone, HMI, CCTV monitor, hand-held pos etc.

Maclight 4.3 inch tft lcd have the standard resolution with 480x272 pixels and 800x480 pixels, regular RGB interface with ST7282, OTA5108, HX8257A IC driver, and custom made MCU interface with SSD1963, RA8875 series interface for difference application.

Our 4.3 inch tft lcd have standard working temperature and wide working temperature 4.3" lcd that can up to -30~+80 °c, The 4.3" lcds have standard viewing angle TN TFT LCD type ( 6 o"clock and 12 o"clock) and IPS tft lcd with full viewing angle.

Our 4.3" tft touch screen could combine with resistive touch screen (RTP) and capacitive touch screen( CTP / PCAP), to the 4.3" PCAP, air-gap bonding and optical bonding to the CTP is welcome to us. to the 4.3 inch capacitive touch, we could custom make the CTP cover glass up to 3mm thickness cover glass and anti-finger print, anti-glare surface treatment.

Maclight 4.3 inch tft lcd display is also including 4.3" sunlight readable tft lcd display with 1000 nits high brightness tft lcd, that is suitable for outdoor application.

1. Sizes: please confirm the display area sizes for the project, the typical 4.3" tft lcd display active area is around 95.04*53.86 mm (4.3" diagonal).

2. Resolution: Would the display used in landscape or portrait type, 4.3" tft lcds have 480RGB*272 and 800RGB*480 in landscape type, and 480RGB*800 in portrait type. if we choose the IPS lcd with full viewing angle, we could use the 480RGB*272 and 800RGB*480 landscape lcd, and rotate 90 degree, then turn to portrait 4.3" tft lcd as well.

4. Viewing angle: would the 4.3" lcd be viewed from top viewing or bottom viewing, or would require full viewing angle? Maclight have full viewing angle IPS 4.3 lcd, and 12 o"clock (top), 6 o"clock (bottom) viewing angle for optional.

5. Working environments: if the lcd screen is used indoor, you could choose the standard brightness than lower than 400cd/m2, if used in outdoor, we suggest to choose the tft lcd brightness higher than 500cd/m2, that can be sunlight readable.

7. IC drivers: 4.3" TFT lcd have tradition IC driver ILI6480B, HX8257A, and new ST7282 IC drivers, that can fit the 4.3 lcds from tft lcd manufacturers Innolux, Tianma, BOE, Hannstar etc, because 4.3" lcd is digital RGB interface, the IC driver is not matter when choosing a new 4.3" lcd, or a replacement for other 4.3" lcd.

8. Interface: The typical 4.3" tft lcd module interface is RGB interface, we could make it with MCU interface, and HDMI interface, that is compliance for mainly driver boards in the market.

Please contact us for more 4.3" tft lcd products, we still have many 4.3" lcd not on this list below, and we support custom make 4.3" tft lcd as well.

If you are seeking 4.3" tft lcd, Maclight could provide the one stop 4.3" lcd solution for you, best technical support, 12 months warranty time and after sale services, high quality, competitive price, and stable supply, Welcome to contact us for more 4.3" tft lcd display module information.

Smart TFT LCD display embeds LCD driver, controller and MCU, sets engineer free from tedious UI & touch screen programming. Using Smart TFT LCD module, our customers greatly reduce product"s time-to-market and BOM cost.

Enhance your product with the addition of our 4.3” TFT LCD module. This display module has 480 x 272 RGB resolution and uses the single-chip Himax HX8257-A digital driver. The TFT driver IC is interfaced via 24-bit digital display data and can support up to 16M colors to showcase crisp, detailed images and graphics. The 4.3" LCD display is available with a touch screen panel in either resistive (single-finger or stylus pressure) or capacitive (five-finger, multi-gesture) touch technology.

Victronix is one of the leading manufacturers and suppliers of rohs 4.3inch 480*272 tft lcd with rtp for smart home and monitor. With a professional factory and strict quality control system, we can assure you the high quality of our rohs 4.3inch 480*272 tft lcd with rtp for smart home and monitor. Please feel free to buy low price and customized bulk products with us. We can offer you quotation and free sample if necessary.

NMLCD-43480272-SSD1963 is a colour active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a colour TFT-LCD panel, driver IC, FPC and a back light unit and with a Resistive Touch Panel(RTP). The module display area contains 480 x272 pixels. This product accords with RoHS environmental criterion.

Shenzhen Newman Technology Co., Ltd established in 2003, is a professional LCD module manufacturer and solution provider. We have 1 full-auto COG assembly line, 2 semi-auto assembly line, backlight assembly line, no dust TP bonding line and manufacturing tech support. We can provide unique, innovative and cost effective LCD module development and manufacturing. Our product range includes: middle-small size TFT LCD, industrial capacitive touch panel, OLED display, car navigation, wiggle stereoscopy glasses-free 3D LCM... Our LCD products have been widely used in communications, GPS, equipment, electronic audio-visual, instrumentation, household appliances, PDA and other industries.

Hot Tags: 4.3 inch tft lcd display 480 x 272 resolution with ssd1963 lcd controller board, China, suppliers, factory, wholesale, price list, free sample

FocusLCDs.com sent me a free sample of a 4x3” TFT LCD (P/N: E43RG34827LW2M300-R) to try out. This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit, backlight unit. The resolution of a 4.3” TFT-LCD contains 480x272 pixels, and can display up to 16.7M colors.

For this project, you would need the RA8875 driver board (available at AdaFruit for US$35) to interface the TFT display to the Arduino. It comes with a header which you can solder on as needed.
