Depending on the vendor you may find boards using an ST7920 IC Driver or a ST7565 IC Driver. Boards using a DOG-M128 Display use a ST7565 IC Driver. The more common and generic boards use some flavor of a 12864 LCD with the ST7920, this is the case with most board you find in online stores.

This display board is supported by the most popular 3D Printer firmwares, yet differences in the LCD Drivers used and others may dictate the level of support in a given 3D printer mainboard and firmware combination. See connection for more details.

Depending on the vendor you may find boards using an ST7920 IC Driver, a ST7565 IC Driver, or other. Boards using a DOG-M128 Display use a ST7565 IC Driver. The more common and generic boards use some flavor of a 12864 LCD with the ST7920, this is the case with most boards you find in online stores.

The basic requirement to add support in the Marlin Firmware is to enable the REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER in the "Configuration.h”. For more details check Marlin"s page on how to configure the firmware, see the LCD section.

The firmware also offers other define constants for some popular variants of the "RepRapDiscount Full Graphic Smart Controller", that may use another driver or has a different PIN/layout or other requirement. Look at options under the the "LCD / Controller Selection" sections in the "Configuration.h” file.

To enable the correct LCD in the firmware it is important that you identify if your version of a "Smart Controller" is indeed using the ST7920 driver or if it has a different pin requirement. If that is your situation, then you need to see if the firmware already has support for your version of "Smart Controller" and select it accordingly.

Another important aspect of compatibility is dictated by your printers mainboard it self. If you board has a dedicated LCD connector you have to check at minimum two things:

For example a connection that shares the SPI with the an ST7920 LCD will not work and will produce garbage on the LCD. (The ST7920 can not share an SPI/Serial interface).

A wide variety of 12864 lcd controller options are available to you, such as original manufacturer, retailer.You can also choose from tft, standard and tn 12864 lcd controller,

This Smart Control Boards are equipped with SD card reader, rotary encoder, buzzer and 4x20 Character LCD screen. With the easy-to-use "intelligent adapter" option, you can connect your Ramps boards.

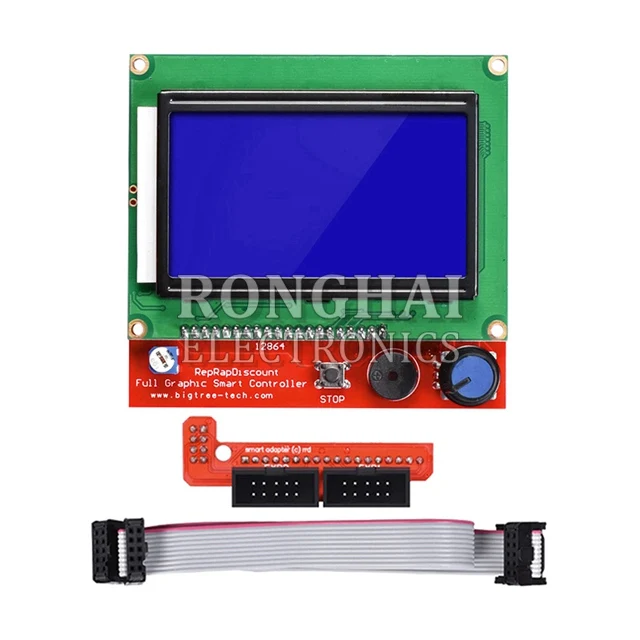

This Smart Controller contains a SD-Card reader, an rotary encoder and a 128x64 LCD display. You can easy connect it to your Ramps board using the "smart adapter" included. After connecting this panel to your Ramps you don"t need your pc any more, the Smart Controller supplies power for your SD card. Further more, all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card.

Compares to the 2004 Smart LCD Controller With Adapter, this 128x64 screen can display much more information, which would help for you run the 3D printer without a computer.

You can turn on the light time to do long or short form of the adjustment TRIMM R4100K from 10 seconds to 2 minutes If you use a print job at night and parts department, which means that the new modifications LCD backlight would be suitable for you

This Smart Controller contains a SD-Card reader, an rotary encoder and a 20 Character x 4 Line LCD display. You can easy connect it to your Ramps board using the "smart adapter" included. After connecting this panel to your Ramps you don"t need your pc any more, the Smart Controller supplies power for your SD card. Further more, all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card.

Although the Duet 3 MB6HC does not have a connector for the PanelDue ribbon cable, if access to the SD card on PanelDue is required then this is possible using a special wiring arrangement. You must use RepRapFirmware 3.4 or later, and you must enable the external SD card using this command:

Generally it is best to run the latest version of the PanelDue firmware that is supported by the RepRapFirmware version on your Duet mainboard. See: Installing and Updating PanelDue Firmware

These restrictions are largely removed in later versions of the PanelDue firmware. However, they will require you to update RepRapFirmware on your Duet mainboard.

You can use the external SD card socket on the LCD panel if you have used a ribbon cable as described above. Please note, the SPI interface provided by this SD card socket is much slower than the on-board SD card socket built into the Duet. Therefore we recommend that you do not upload files to this card over the network. Use the external SD card socket only if you want to write files to the SD card on a PC and then move the SD card to your printer.

You will need to make a custom 5-way cable using this table of connections. For the PanelDue 1.1, the X5 connector pins are numbered from the bottom end of the connector (the end close to the X5 legend). On the Duet 0.6 and 0.8.5 you need RepRapFirmware 1.17d or later to get support for the second SD card.

These displays are typically clones of the RepRapDiscount Full Graphic Smart Controller and look like this. The better ones include a contrast adjustment potentiometer. Unfortunately some manufacturers of other displays using the same controller chip reverse the pinouts on the two ribbon cable connectors. The ST7920 controller chip is invariably powered from 5V, which means that the display need 5V input signal levels.

The Duet 2 Maestro provides two 2x5 ribbon cable headers for a 12864 display using ST7920 controller. The connector pinout is compatible with the original RepRapDiscount design. There is also more information in this thread: https://forum.duet3d.com/topic/7609/conf....

RepRapFirmware 3.2 and later also support displays using the ST7567 controller. For these displays, use the standard cable EXCEPT the following two wires need to be connected to the EXPANSION header pins:

RepRapFirmware 3.2 and later support a 12864 display using ST7567 controller. RepRapFirmware 3.3 added support for a short string of Neopixels on Duet WiFi and Ethernet, so boards that use a Neopixel for the backlight should be able to be controlled. See this thread on the forum for more details.

The most recent version of the standard bigtreetech TFT firmware has built in support for RepRapFirmware. The pre-built images have this enabled by default.

Software SPI is the easiest to set up, since it requires only a 10 pin flat ribbon cable which connects directly and usually comes with your display. Though, since it"s software SPI it"s pretty slow when drawing on the screen.

Please notice: The BTT TFT will work only in Marlin Mode (a.k.a.LCD12864 Emulation Mode). In the settings menu of the display, you"ll find an entry which tells the display in which mode to start up. This can also be achieved by editing theconfig.inifile, which is part of the.

The MakerGear LCD for M2 Interface (with integrated SD Card Reader) is a perfect upgrade item for those who wish to control their printer without the use of a computer. It includes a RepRap Smart Controller-style LCD screen with assembly hardware, all necessary wiring and connections, as well as a laser-cut ABS housing unit and 3D-printed ABS adjustment knob.
