hi all, just on you tube & spotted a video marked up as BMW r1200rs connected ride by Juan Ferrera which has a TFT screen fitted. you cannot miss it as it is a lupin blue one, with front indicators on wing mirrors & Acropovic exhaust

I bet the BMW head up display (HUD) shows up within seconds of processing that question – even more so if the other day you were scrolling through the browser in search of anything remotely high-end for your car.

Praised by many car manufacturers and drivers, there’s no doubt this safety feature should be a standard option on all of the latest BMWs, yet with the current semiconductor shortage it’s far from happening in the near future.

We’ll try to dispel these and more doubts in the following article, so that perhaps this evening you won’t have to immerse yourself in your tenth discussion on a BMW forum ;)

NOTE: BimmerTech doesn’t offer BMW head up display retrofit as of yet. This article was prepared purely for educational purposes. To check our retrofits and coding options, go to our shop.

BMW head-up display is a transparent screen displayed on the windshield, which projects driver-relevant data straight into the driver’s line of sight. Made with the aim of helping drivers maintain their focus on the road, it actually reduces the time required to absorb information by more than half compared to glancing at the cockpit or the central BMW iDrive screen. Anyone who drives pedal to the metal especially treasures that feature at high speeds.

If your car is additionally equipped with BMW Night Vision, you can also leverage your BMW head-up display to alert you about approaching pedestrians.

And how does that technology work exactly? By the magic of coordinating 3 components: a projector, a projection surface and an optical module. LEDs act here as a light source, the TFT (thin-film transistor) screen as an imaging unit and windshield as a surface for projection.

So how it works is the image you choose to display is rotated and mirrored by the system’s optical modules to be then shown on the windscreen covered with a wafer-thin coating – used to avoid double images and adapt to the brightness of the ambient light. The driver can at that point see all relevant information and warnings in real time about two meters away in the line of sight and easily process them no matter the time of the day or night.

If your BMW was produced between 2004-2018 you’ll most likely be able to do that by a push of the HUD button placed next to or beneath the headlight control, and can adjust its settings in the iDrive menu.

If viewing issues occur, or you simply want to adjust the parameters or type of information displayed on your HUD, you can do it all in your BMW iDrive settings.

To adjust the HUD settings check the setting you want to modify and with the use of your BMW iDrive Controller set up the brightness, height and rotation.

Much to the delight of Apple fans, BMW head-up display can be also used with certain functions of Apple CarPlay. If only your BMW software is up-to-date (or 07/2020 version at least) and you’re equipped with BMW iDrive 7.0, you can display your Apple Maps and the current music track from Apple Music on the screen, and have it running in the background while scrolling through other radio stations.

As innovative as it may seem, BMW head-up displays are not new to the automotive industry, or the tech industry in general. The first such screens were made for military purposes back in the 1940s where they appeared in World War II jet fighters to improve pilots’ ability to simultaneously process the instrument and environmental data.

Skipping 60 years forward, BMW introduced its own HUD version in 2004 5 Series E60 as an integral part of BMW ConnectedDrive, which initially could only display speed information in a monochrome orange color. Almost 10 years later, in 2013, the first BMW full-color head-up display appeared, boasting 50% growth compared to its predecessor and ensuring much better readability and projection quality.

Don’t get too excited though ;) Unfortunately not every BMW you see on the lineup has a head-up display on them. You’ve got to be equipped with either the Technology Package, Innovation Package or Premium Package to find it on your option list, but at times even that doesn’t guarantee its presence – especially if you’re based in Europe.

Since the semiconductor crisis has escalated in 2021, some countries such as Germany have withdrawn BMW head-up displays from a number of vehicles with the Innovation package. That includes:

MINI drivers are also not left out of enjoying the comfort of the head-up display. Although, we must say it’s even less common on the British make than on BMW vehicles.

So let’s say you lack it on your option list. Can you add a head-up display to a BMW? Absolutely! You can either go for a more time-consuming solution, which is changing up your entire windscreen to install the OEM HUD, or simply add a BMW head-up display retrofit. Although, the latter won’t be a HUD per se – more of a HUS (head up screen) ;) – that acts almost like the BMW OEM head-up display with the difference of projecting the data onto a standalone transparent OLED screen instead of your windshield.

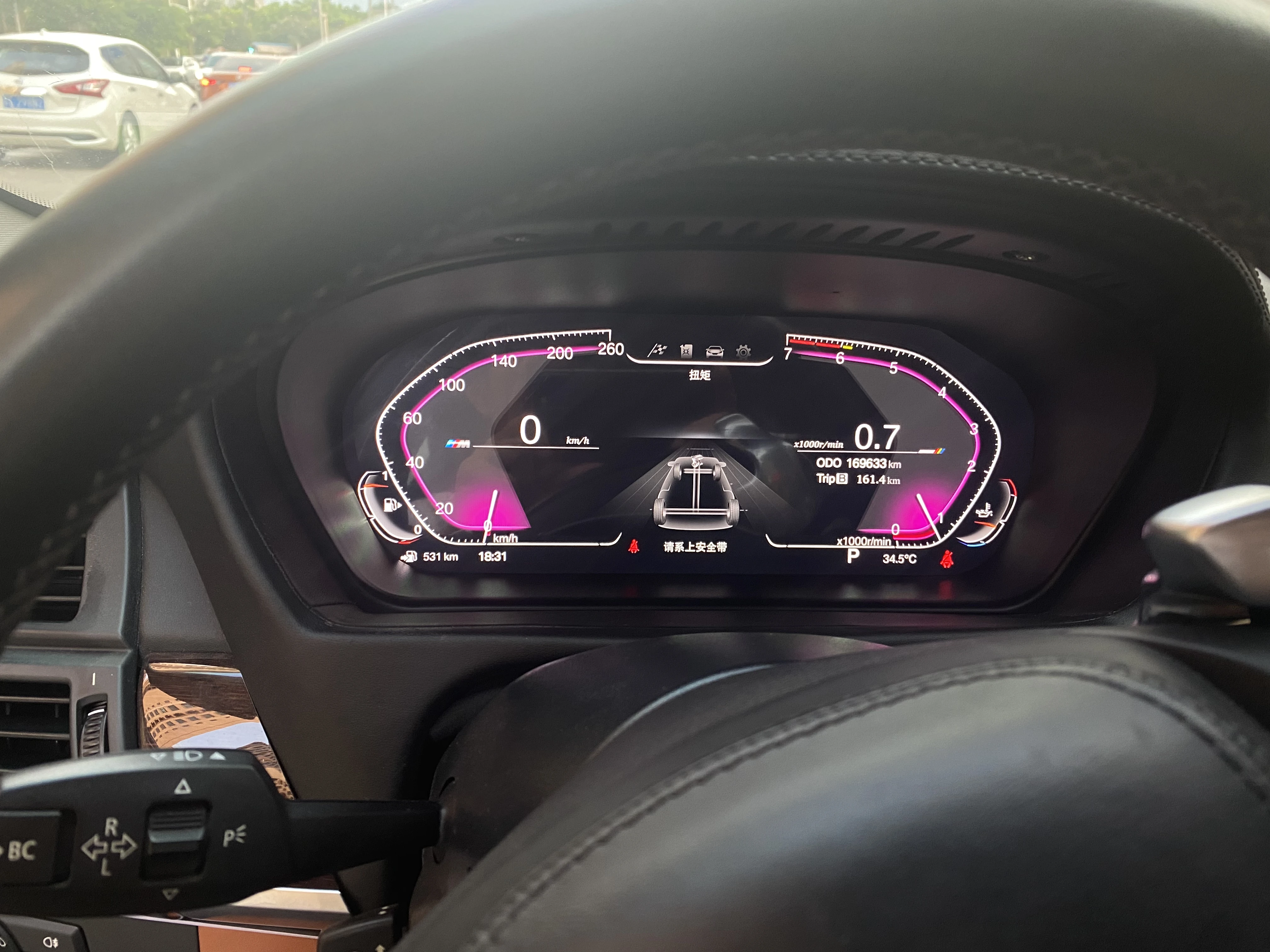

BMW manufacturers introduced the BMW head-up screen retrofit in 2014, so that no driver would have to compromise his or her safety in an older date vehicle. Just like the BMW OEM head-up display, this original accessory,allows you to see nav instructions and real time vehicle information in your field of view, and can be mounted on top of the cockpit in many BMW models. The list includes cars with navigation system (option 606/609) and instrument cluster with extended content (option 6WA):

As for the range of functions, the BMW head-up display retrofit shows the fuel gauge, car speed, power, temperature drop warning, traffic jam warning, output, torque, cruise control, speed limit, the altitude above sea level and more – all of which you’ll easily read even in direct sunlight. Should you feel like adding a few adjustments to the brightness or type of info displayed, you can do it via the BMW head-up screen app for Android and iOS devices. Your HUS will receive its navigation data through WiFi and modify the info accordingly.

Again, depending on the type of upgrade you choose the price will differ. While replacing the entire windshield with a BMW OEM head-up display may cost even up to $2K, the BMW heads up screen price can oscillate around $450 – the final charge is as always contingent upon your region.

There are a few drivers who would deny that. The BMW head-up display may be considered only a military gadget straight from an F-22 Raptor, yet those who’ve used it will tell you the complete opposite. Once you experience the comfort and safety of not taking your eyes off the road while controlling core functions of your iDrive, you’ll loathe going back to your previous setup… at least that’s how many drivers feel after the first month of cruises.

So BMW head-up display – you’re much appreciated ;) Even if only for giving that slight thrill of feeling like Tom Cruise in Top Gun for just a few more minutes.

BMW Motorrad and Bosch are set to give riders what they want, in a move that the cutting edge German engineering and technology company estimates will lead to a safer and more convenient riding experience. In a survey of 2600 motorcyclists, Bosch found that 90% of riders utilize their mobile devices for planning purposes or as part of wrapping up their ride. But perhaps more surprisingly, a third of riders responded that they use their phones while actually riding.

In general, eight out of 10 of those surveyed were in favor of integrating smartphone and instrument cluster information. To address this desire, some of BMW’s new motorcycles will come with Bosch’s 10.25-inch TFT (thin-film transistor) display with split-screen capabilities. Riders will now be provided with the information they previously had to look to the instrument cluster and their mobile device for, in one location.

The new Bosch display will utilize their smartphone integration system called mySPIN to enable content from motorcycle-centric apps like REVER to display appropriately on one half of the screen, while speed or warning indications will display on the other half.

The content being shown can be regulated by the rider with controls on the handlebar. The screen itself is TFT LCD — this technology improves image quality over the traditional LCD displays. Similar Bosch mySPIN split screens will appear on Ducati and Kawasaki motorcycles, as well, but the display sizes may be smaller.

The new BMW Motorrad Connected display will offer a built-in navigation system via the Connectivity App installed on the smartphone, according to an official sneak peek of the new product. This will replace the turn-by-turn navigation currently used on the BMW TFT Dash.

This new product will make the standard GPS obsolete, thanks to the offline maps and to the user-friendly nature of the smartphone app. The sneak peek was revealed in the “RideAndTalk” BMW Motorrad podcast.

Looking at the size and the shape of the new BMW TFT Display, we think that it will debut on the touring segment, and not on the GS. The R1250RT and K1600GT series are featuring some old-school analog dashes, and BMW will probably introduce this new one pretty soon. More than that, it looks too wide to fit other models such as the R1250GS, R1250R/RS or S1000XR, F900 series, and so on.

Moreover, the whole BMW range excepting the G310GS/R and the touring series are already fitted with the first generation of the BMW Motorrad Connectivity Dash, which offers the turn-by-turn navigation.

How does it work? You have to download the free smartphone app, tho connect via Bluetooth, and to set up the destination on the smartphone. The TFT Dash is taking over the information and shows you the guidance (it also features audio guidance). Of course, you can also listen to music and make calls.

Here at Integrated Automotive we live and breath Apple CarpPlay and Android Auto, so we thought it would be a good idea to provide you with a detailed FAQ covering a wide range of topics relating retrofitting Apple CarPlay and Android Auto into your vehicle. This FAQ relates to our IMI-1000 retrofit Carplay/Android Auto multimedia interface which is compatible with BMW, Audi, Mercedes, Range Rover and MINI vehicles.

Apple CarPlay is a user interface designed by Apple Inc specifically for vehicles. It is designed to display applications from your phone onto the built-in display of your vehicle dash. Android Auto is designed by Android Inc/Google Inc and provides similar features to Apple CarPlay.

No, this is one of the key benefits of our retrofit CarPlay/Android Auto upgrade – our system will effecitly upgrade “non-navigation” vehicles to become “nav-equipped”.

Apple Carplay and Android Auto work by connecting your iPhone/Android phone to your in-car entertainment system, the iPhone/android phone will tranmit the CarPlay/Android user interface to the vehicles display via the retrofit Carplay/Android Auto interface (the IMI-1000) and also allows the driver to control carplay using the factory fitted entertainment controls such as BMW i-Drive or Audi MMI. CarPlay can connect wirelessly or via a USB cable.

The wireless connection method for CarPlay  is shown in the graphic below, you will notice the Bluetooth connection is dropped once the WiFi connection is established. Our IMI-1000 retrofit kit has both Bluetooth and WiFi antennas.

A small multimedia computer called the IMI-1000 is installed behind the dash, it is connected to the rear of your existing iDrive/MMI/NTG head unit and a wiring loom is provided for “plug and play installation”. It provides an interface between your iPhone/Android phone and the BMW i-Drive / Audi MMI / Mercedes NTG entertainment system. It is very similar to the “factory fit” CarPlay options you see on some new cars except that it has been designed specifically for retro-fitting into older cars which have a built in LCD displays such as the example Audi MMI system being tested in our lab below;

No, the retrofit CarPlay/Android Auto system works in parallel with the existing iDrive/MMI/NTG system. For example, you can swtich between the two by pressing the MENU button on the BMW radio panel. You do not need to remove any of the BMW iDrive system components, you simply “add in” the IMI-1000 using the plug and play wiring loom. The same is true for Audi, Mercedes, Mini and VW.

The IMI-1000 retrofit Carplay/Android auto unit is installed behind the vehicle dasboard, access is usually gained by removing the radio panel, head unit and a panel in the passenger footwell. The IMI-1000 is connected in-between the built in LCD/TFT display and the existing wiring loom. The IMI-1000 sends and receives the signals from the iPhone to the TFT display and the rest of the vehcile entertanment system. User control signals, such as BMW i-Drive or the Audi MMI control signals are interpreted by the IMI-1000 and utilised to control CarPlay. The IMI-1000 is a plug and play solution and no alterations to the OEM wiring loom are required. The CarPlay box can be removed at any time and the vehicle can be returned to factory specifications.

On most models our CarPlay and Android Auto retrofit kits will use your factory fitted microphone. If you are connecting to the car with a USB cable you can use the factory Bluetooth microphone for calls when using android auto on all models.

We do supply a microphone and have performed thorough audio testing, as the sound quality of the IMI-1000 microphone is excellent. The microphone is supplied with the retrofit kit and installation is simple.

Yes absolutely, the retrofit CarPlay kit has been designed to be installed by anybody who is a competetent DIY’er. Please note, installation is performed at the installers risk and no responsibility can be taken for damage caused by the installer.

16. How do I know if my car already has CarPlay, and if it doesnt, how do I know if my vehicle is compatible with an IMI-1000 retrofit CarPlay/Android Auto system?

If your car is featured on our list of “Compatible vehicles”, then your vehcile does not have CarPlay factory installed. However, it will have the necessary hardware and software to enable you to use our IMI-1000 to retrofit CarPlay/Android Auto with our system.

Yes your standard in-car entertainment system remains fully functional. when you want to use CarPlay/Android Auto, you enable it on the BMW’s by holding down the “MENU” key on the OEM iDrive controller. CarPlay will then be enabled and displayed on the LCD display, you can switch back to iDrive at any time. Different buttons are used as the “activation” button on different systems.

Yes, the choice between the audio source is seperate to the what is displayed on the LCD screen. For example, you can be listening to your DAB radio at the same time as using Waze navigation. The only limitation is that you can only use one audio source at a time, if you are listening to DAB radio then you will not hear the navigation instructions from CarPlay/Android Auto. If you want to listen to music as well as hear navigation instructions, you can do this by using one of the excellent “Radio” apps such as Radio.net, BBC Radio Player or one of the many music apps including Spotify or Amazon music in carplay.

Yes, the IMI-1000 is mounted inside the dash and does not interfere at all with “normal operation”of the vehicle, it also uses the original LCD display so no additional visible hardware is installed.

No, you do not require a GPS antenna in the car as CarPlay will use your phone’s built-in GPS antenna. This is one of the great benefits of the IMI-1000 as vehicles without navigation can be “upgraded” to include navigation with Carplay. Not only that, Waze, Google Maps and Apple Maps are in our opinion far superior to the BMW/Audi/Mercedes navigation system.

Yes, the BMW/Audi/Mercedes etc parking distance sensors will still work when you put the car into reverse. If you are not installing an aftermarket reversing camera then be sure to make the correct setting (Reversing Camera->Original car) in the settings menu, this is found in the “BMW”, “Audi” or Mercedes” etc app on the CarPlay/Android Auto user interface (depending on your vehicle make).

Determining the iDrive version installed in your BMW is vital if you are intending to upgrade your iDrive with on of our genuine retrofit kits or if you intend to install a Retrofit CarPlay/Android Auto Kit such as the IMI-1000 from Integrated Automotive. After reading this article you will be able to determine your iDrive version and also have thorough background knowledge of the history of iDrive.

The IMI-1000 is a mini-computer which is installed behind your head unit. It adds Apple CarPlay and Android Auto to BMW, Audi, Mercedes, Range Rover, Mini and Porsche vehicles.

For us to configure your retrofit system correctly with a genuine BMW NBT-EVO iD6 retrofit it one of our compatible IMI-1000 interfaces (including a plug-and-play wiring loom) for your car, we will need to know what version of iDrive you have installed in your vehicle. Using the simple steps outlined in this article, you will be able to destrrmine your iDrive version.

There are three generations of iDrive system which are compatible with the IMI-1000 Retrofit CarPlay multimedia interface. These are the CCC, CiC and NBT iDrive systems. These systems are fitted to BMW vehicles manufactured between the years 2004 to the present day (2019). After 2016/2017 most BMW models migrated over to the “EVO” iDrive System. The EVO system does not require the IMI-1000 to activate CarPlay/Android Mirroring, Integrated Automotive can offer an alternative upgrade path which “activates” CarPlay/Android Mirroring for NBT-EVO equipped vehicles, contact us for more information regarding NBT-EVO Apple Carplay activation. Please note that BMW do not support android auto so if you want android auto in your BMW you will require the IMI-1000 for that.

CCC, CiC and NBT iDrive Systems were not originally equipped with the electronics required run Apple CarPlay and Android Auto. A software update alone is not enough to “enable” Apple CarPlay and Android Auto. The IMI-1000 Retrofit Kit adds the necessary hardware to your vehicle in order to process information streamed to and from your phone. It will also interpret the CAN messages to and from the in-car iDrive user controls. Examples of such CAN messages are those sent from the rotary control on the central console as well as the steering wheel user controls. The messages are read, processed, interpreted and relayed in order to control the CarPlay/Android Auto interface.

Vehicles equipped with NBT-EVO iDrive will  already have the necessary hardware to provide Apple CarPlay and Android Mirroring functionality (BMW do not support and auto), these vehicles simply require “software activation” to enable Apple CarPlay/Android Mirroring. For clarification, NBT-EVO vehicles (mostly manufactured after 2017) do not require additional electronic hardware such as the IMI-1000 for CarPlay if you have iD6 pro navigation, ENAVEVO systems (6.5 in display) usually do not support native CarPlay.

CCC iDrive was introduced to production vehicles during 2003 on the 5 Series E60/E61. It was then later rolled out to other BMW models up until 2009 with the X5 and X6. CCC iDrive benefited from two updates during its time on the market, in 2007 and 2008.  Some BMW’s manufactured in 2009 were fitted with the new CiC controller (installed on the centre console) but still had the CCC head unit. These cars are essentially still CCC iDrive vehicles and were considered  “Hybrid” CCC/CiC iDrive systems. The CCC iDrive system features an 8.8in 640×240 pixel display.

There is another system called Mask II which shared the same main menu format as the CCC Pro Nav system but has a smaller 6.5in display. If you have Mask II our CCC IMI-1000 retrofit CarPlay and android auto kit will enable you to retrofit CarPlay and Android Auto to your BMW

CiC iDrive Systems feature a higher resolution display in comparison to CCC systems, moving from a 640×240 pixel display on the CCC iDrive to a 1280×480 pixel display on the CiC iDrive, this offers a sharper and more attractive look to the display.

The primary reason BMW upgraded to the 2-wire LVDS line was the increased resolution and performance achievable in comparison to the 8-wire LVDS protocol.

CiC iDrive Systems have an 80Gb 2.5in hard drive (HDD) which stores the maps for the BMW satellite navigation system. The HDD can also store 8Gb of music files which can be uploaded via a USB port. This makes upgrading of maps arguably a more complicated task.

After 2009 LCI, DVD playback was also available when in the park position. CiC Systems were phased out on various vehicles during 2012 for the NBT (Next Big Thing) iDrive System. CiC was eventually completely replaced by NBT over the following couple of years. By 2014, all BMW models were equipped with NBT iDrive in-car entertainment.

2. User interface :The user interface is distinguishable from CCC and NBT interfaces as it features a noticeable red border around the selected menu option (see below), however to confuse things, the display below will have an NBT style 6 pin LVDS connector, whereas the widescreen Pro Nav option 609 vehicles will have a 4 pin LVDS.

As can be seen in the image above, the 2011 BMW 1 series (F20) features a single CD/DVD slot and red border on all 4 sides when a menu item is selected. But this system is not a purely CIC system, it is known as HU_ENTRY and is also available in F3x vehicles without navigation. These systems have 6 pin LVDS displays.

*Note:It is worth mentioning that there were some “Hybrid” models that were equipped with the 2-wire higher resolution LVDS display yet they still used the CiC menu system, these are known as HU_ENTRY and HU_ENTRYNAV iDrive. These systems can sometimes be confused with the standard CiC system, if you have a 2012 BMW F3x you should be aware that you may not have a standard CiC System (if you are unsure which system you have, please contact us).

NBT iDrive Systems are configured with 6.5in, 8.8in and 10.25in displays, this means you cannot use display size as an indicator of having NBT iDrive. It is always best to use either the date of manufacture or the visual appearance of the user interface (or both) as your method of determining if you have NBT iDrive.

Starting in 2014 with the 2 series F23,l and over the following 24 months, around half of the BMW model range were upgraded to the NBT-EVO iDrive System. The 5 series, X1, X5 and X6 did not benefit from the NBT-EVO iDrive System until around 2016. The 6 series (G32) and X3 (G01) did not receive NBT-EVO until 2017.

If you have iD4 iDRIVE the best solution to obtain CarPlay is to retrofit an iD6 head unit into the vehicle. We can offer the iD4->iD6 retrofit, here is the product page: https://integratedautomotive.co.uk/product/bmw-id4-to-id6-retrofit-with-carplay-activation/
