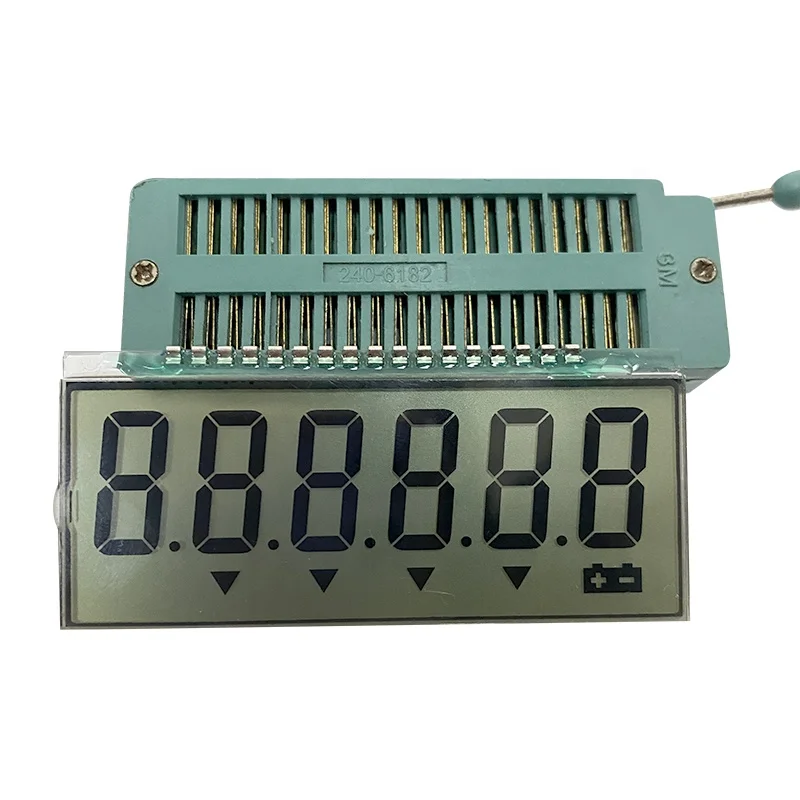

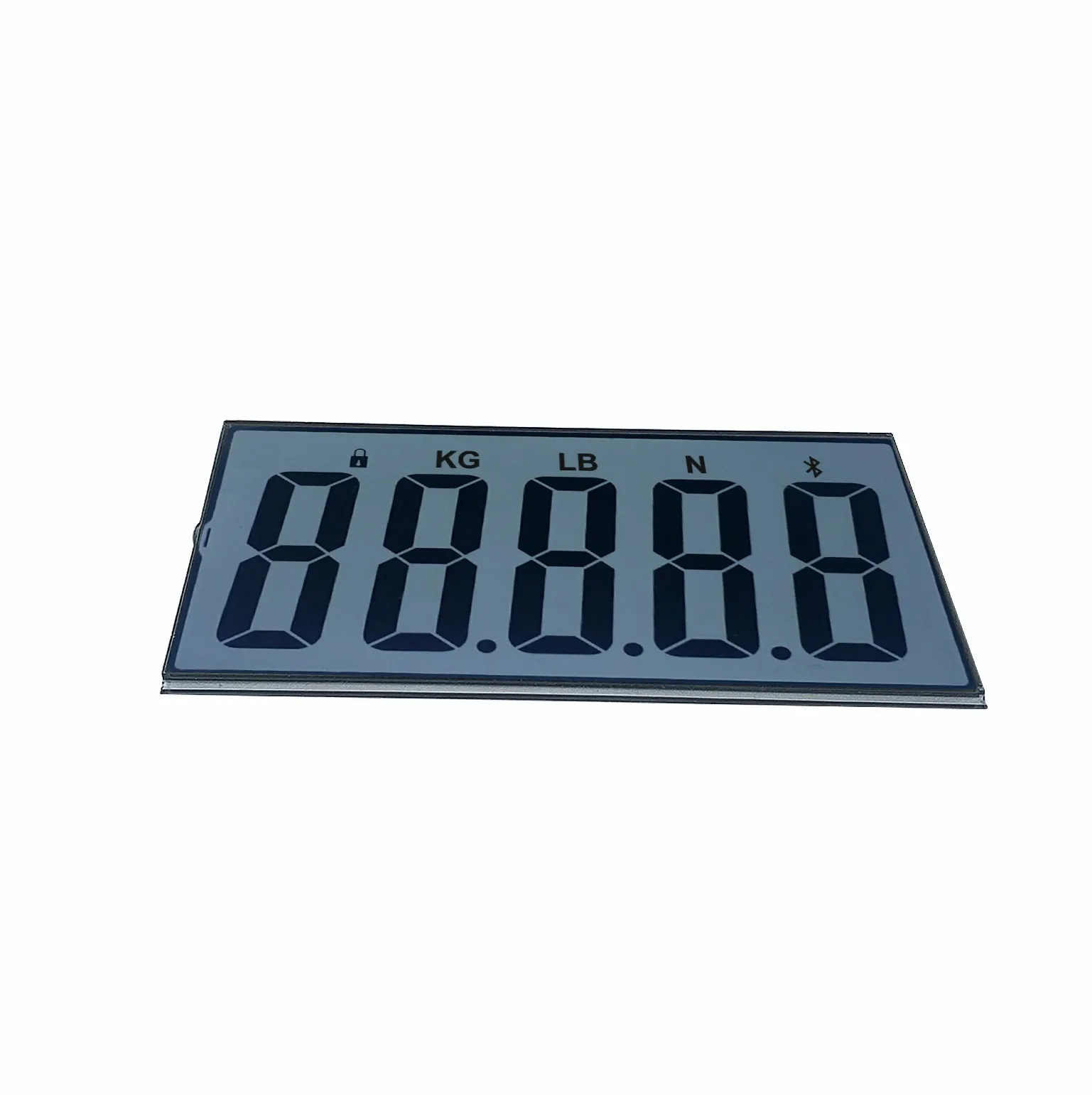

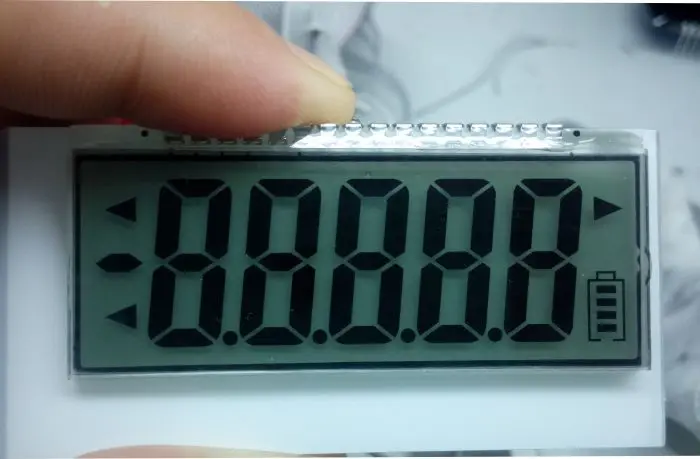

5 digit lcd display free sample

Type OM 502DU is a precise 5 digit panel programmable display for linear potentiometers. The instrument is based on a single-chip microcontroller with a fast 24-bit sigma-delta converter, ...

... precise 5-digit panel programmable display for LVDT sensor.The basis of the device is a single-chip microcontroller and a fast converter, which guarantees the device high accuracy, stability ...

... precise 5 digit panel programmable process monitor. The instrument is based on a single-chip microcontroller with a fast 24-bit sigma-delta converter, which ensures good accuracy, stability and easy ...

Autonics" D5Y Digital Indicator for Anemometer showcases a (WxH) 72-mm x 36-mm size, and a power output range of 12 to 24 V DC. Available with 4 optional modes of input specifications, the D5Y ...

... The unit has power rating of 16 to 35 V AC or 85 to 260 V AC/DC. It has an LED display with color red in 5 x 100 mm that has 8-step adjustment of brightness. It can operate at standard ...

Red Lion"s LPAX 1.5 inch (38 mm) high LED displays are easily read from a distance of up to 70 feet. The input to this display is selected from a variety of input modules ...

The Tractel HF 87 series is an array of digital load cell displays and force management monitors that is suitable for DYNASAFE™ sensors. This device has dynamic effects damper as well as 3 adjustable ...

... consolidated with remote showcases. It has an interesting showcase with 5 digit incomplete Total (h=11.5 mm) with gliding indicate (0.001 99999) and 8 digit non resettable ...

The VISY-TD Display (Truck Driver Display) is an optional part of the VISY-X system designed to provide the fuel delivery truck driver with the most up to date information about the tanks. With the VISY-TD ...

... WayCon offers you the optimal solution for every sensor signal with the series PAX, REX and the Magnescale displays. The modular design of our displays enables an upgrade with a variety of output cards ...

... WayCon offers you the optimal solution for every sensor signal with the series PAX, REX and the Magnescale displays. The modular design of our displays enables an upgrade with a variety of output cards ...

... designed to display the 4 signals generated by the 3115F-12390 load-cell. These load-cell is designed for the control of concrete testing machines following EN1

LED displays of the NDI 57/5 R L65 series are used in demanding indoor industrial conditions and are intended for displaying numerical values of various ...

The Digital LED Display NDI 100/5 R Series is made of steel sheets and it is powder coated. The product is utilized in harsh industrial environments and the rest of ...

The LED displays of the NDI 100/5 R H65 are suitable in light industrial conditions. These tools are built for displaying numerical values of different measured physical ...

The DM57 is a large display for Profinet, Profibus-DP, EtherCAT, CANopen or Modbus. It can display any number, special characters and some letters. The module"s 57mm high characters are well legible from ...

With our standard devices you get LED displays which are ready-for-connection, maintenance-free and easy-to-assemble. Our products are characterised by their ...

Light-emitting Diode (LCD), have screen functions like smartphone displays, which have touch screen functions like smartphone displays.itive lcd is is available in bulk and have a wide variety of functions like smartphone displays. For long-lasting displays of cellularane lcd are available in bulk.

looking for a portable LCD display in bulk option, it is easy to find the right one for your customers. Alibaba.com has a wide selection of lcdds in bulk option, and you are looking for a more affordable option. Check out the other LCDs and wholesale displays from Alibaba.com. LCDs are available for cheap wholesale.

There are many cheaper options like, cell-ite LCDs are a one-stop shop for the cheaper options that sell on Alibaba.com. Buy mini LCD for bulk customers who are looking for a more affordable option.

When buying lcdds in bulk, you want to consider the price, whether you are looking for a more portable option, or buying lcdds in bulk. Alibaba.com offers an options for varying prices and buying lcdds in bulk.

AOur production quality follow ISO9000 standard system, stable design team,22 years experience of QC team and strictly quality control system guarantee the production quality. accept third part inspection,we have mechanical checking,display checking,high&low temperature storage&operating test during high humidity condition,EMC test(optional) for every design .

Seven segment displays are used in common household appliances like microwave ovens, washing machines, and air conditioners. They’re a simple and effective way to display numerical information like sensor readings, time, or quantities. In this tutorial, we’ll see how to set up and program single digit and multi-digit seven segment displays on an Arduino.

Seven segment displays come in a wide variety of sizes and colors. Red, blue, and green are the easiest colors to find. Sizes range from small 0.56 inch displays up to large 4 inch and even 6.5 inch displays. Some displays have a single digit, and others have two or four.

With an LED’s cathode connected to a digital pin, the anode is connected to Vcc. To turn on the LED, the digital pin is switched LOW, which completes the circuit to ground:

Seven segment displays consist of 7 LEDs, called segments, arranged in the shape of an “8”. Most 7-segment displays actually have 8 segments, with a dot on the right side of the digit that serves as a decimal point. Each segment is named with a letter A to G, and DP for the decimal point:

In common cathode displays, all of the cathodes are connected to ground and individual segments are turned on and off by switching power to the anodes:

Single digit seven segment displays typically have 10 pins. Two pins connect to ground, and the other 8 connect to each of the segments. Here is a pin diagram of the popular 5161AS common cathode display:

Before you can connect your display to the Arduino, you need to know if it’s common anode or common cathode, and which pins connect to each segment. This information should be in the datasheet, but if you can’t find the datasheet or you don’t know your display’s part number, I’ll show you how to figure this out below…

Connect the ground (black) wire to any pin of the display. Then insert the positive (red) wire into each one of the other pins. If no segments light up, move the ground wire over to another pin and repeat the process. Do this until at least one segment lights up.

When the first segment lights up, leave the ground wire where it is, and connect the positive wire to each one of the other pins again. If a different segment lights up with each different pin, you have a common cathode display. The pin that’s connected to the ground wire is one of the common pins. There should be two of these.

If two different pins light up the same segment, you have a common anode display. The pin that’s connected to the positive wire is one of the common pins. Now if you connect the ground wire to each one of the other pins, you should see that a different segment lights up with each different pin.

Now draw a diagram showing the pins on your display. With the common pin connected to the ground wire (common cathode) or positive wire (common anode), probe each pin with the other wire. When a segment lights up, write down the segment name (A-G, or DP) next to the corresponding pin on your diagram.

Once you have the pin layout figured out, connecting the display to an Arduino is pretty easy. This diagram shows how to connect a single digit 5161AS display (notice the 1K ohm current limiting resistor connected in series with the common pins):

We’ll use a library called SevSeg to control the display. The SevSeg library works with single digit and multi-digit seven segment displays. You can download the library’s ZIP file from GitHub or download it here:

In this program, we create a sevseg object on line 2. To use additional displays, you can create another object and call the relevant functions for that object. The display is initialized with the sevseg.begin() function on line 11. The other functions are explained below:

hardwareConfig = COMMON_CATHODE – This sets the type of display. I’m using a common cathode, but if you’re using a common anode then use COMMON_ANODE instead.

byte numDigits = 1 –This sets the number of digits on your display. I’m using a single digit display, so I set it to 1. If you’re using a 4 digit display, set this to 4.

byte digitPins[] = {} –Creates an array that defines the ground pins when using a 4 digit or multi-digit display. Leave it empty if you have a single digit display. For example, if you have a 4 digit display and want to use Arduino pins 10, 11, 12, and 13 as the digit ground pins, you would use this: byte digitPins[] = {10, 11, 12, 13}. See the 4 digit display example below for more info.

byte segmentPins[] = {6, 5, 2, 3, 4, 7, 8, 9} –This declares an array that defines which Arduino pins are connected to each segment of the display. The order is alphabetical (A, B, C, D, E, F, G, DP where DP is the decimal point). So in this case, Arduino pin 6 connects to segment A, pin 5 connects to segment B, pin 2 connects to segment C, and so on.

resistorsOnSegments = true– This needs to be set to true if your current limiting resistors are in series with the segment pins. If the resistors are in series with the digit pins, set this to false. Set this to true when using multi-digit displays.

sevseg.setNumber() – This function prints the number to the display. For example, sevseg.setNumber(4) will print the number “4” to the display. You can also print numbers with decimal points. For example, to print the number “4.999”, you would use sevseg.setNumber(4999, 3). The second parameter (the 3) defines where the decimal point is located. In this case it’s 3 digits from the right most digit. On a single digit display, setting the second parameter to “0” turns on the decimal point, while setting it to “1” turns it off.

This example consists of a push button and a single 7 segment display. Every time the push button is pressed and held, the display loops through numbers 0-9 rapidly. Once the button is released, the display continues to loop for a period of time almost equal to the time the button was pressed, and then displays a number along with the decimal point to indicate the new number.

So far we have only worked with single digit 7-segment displays. To display information such as the time or temperature, you will want to use a 2 or 4 digit display, or connect multiple single digit displays side by side.

In multi-digit displays, one segment pin (A, B, C, D, E, F, G, and DP) controls the same segment on all of the digits. Multi-digit displays also have separate common pins for each digit – these are the digit pins. You can turn a digit on or off by switching the digit pin.

The digit pins D1, D2, D3 and D4 need to be connected to current limiting resistors, since they are the common terminals of the digits. The connections are shown below:

Since multi-digit displays use digit pins, we also need to define which Arduino pins will connect to the digit pins. Using byte digitPins[] = {10, 11, 12, 13} on line 6 sets Arduino pin 10 as the first digit pin, Arduino pin 11 to the second digit pin, and so on.

To print numbers with a decimal point, we set the second parameter in sevseg.setNumber(4999, 3) to three, which puts it three decimal places from the right most digit.

By itself, the display will update every time the temperature changes even slightly. This creates an annoying flickering. In order to deal with this, we introduce a timer mechanism, where we only read the value from the thermistor every 300 milliseconds (lines 30 to 34).

Hopefully this article should be enough to get you started using seven segment displays. If you want to display readings from other sensors, the example program above can easily be modified to do that. If you have any questions or trouble setting up these circuits, feel free to leave a comment below.
