tft lcd principle price
At present, TFT LCD touch panel prices rebounded, after six months of continuous decline, TFT LCD touch panel prices began to rebound at the end of July. Global TFT LCD panel prices have rebounded since August, according to Displaysearch, an international market-research firm. The price of a 17-inch LCD touch panel rose 6.6% to $112 in August, up from $105 in July, and fell from $140 in March to $105 in July. At the same time, 15 – inch, 19 – inch LCD touch panel prices also showed a different range of recovery. The price of a 17-inch LCD touch panel rose 5.8 percent, to $110, from $104 in late July, according to early August quotes from consulting firm with a view. Analysts believe the rebound will continue through the third quarter; LCDS will see seasonal growth in the third quarter, driven by back-to-school sales in us and the completion of inventory liquidation in the first half of the year. Dell and Hewlett-Packard (HPQ) started placing orders for monitors in the third quarter, and display makers Samsungelectronics (SXG) and TPV (TPV) are expected to increase production by 25% and 18% respectively.
It seems that due to the increasing demand in the market, the production capacity of the display panel production line has been released. Domestic TFT-LCD touch panel makers boe and Shanghai guardian said their production schedules have been set for September, and their production capacity may reach full capacity by the end of the year. Jd will produce 85,000 glass substrates per month (with a designed capacity of 90,000), according to boe and Shanghai guardian. Previously, panel makers have been hit by falling prices, with boe, SFT, and even international panel giant LG Philips all reporting losses. If the rebound continues into the fourth quarter, boe, Shanghai radio and television and other panel makers will use the rebound to reverse the decline, according to industry analysts.
It is understood that the first quarter of the boe financial results show that the company’s main business income of 2.44 billion yuan, a loss of 490 million yuan.Jd.com attributed the loss to a drop in the price of 17-inch TFT-LCD displays made by its Beijing TFT-LCD fifth-generation production line of Beijing boe photoelectric technology co., LTD., a subsidiary. Boe has issued the announcement of pre-loss in the first half of the year in April. Due to the influence of the off-season of TFT-LCD business operation in the first quarter of 2006, the company has suffered a large operating loss, and the low price in the TFT-LCD market has continued till now. Therefore, it is expected that the operating loss will still occur in the first half of 2006.LG Philips, the world’s largest TFT LCD maker, reported a won322bn ($340m) loss in July, compared with a won41.1bn profit a year earlier.LG Philips attributed the loss to fierce price competition and market demand did not meet expectations.
A TFT LCD, or a thin film transistor liquid crystal display, is one of the fastest growing forms of display technology today. The thin film transistor (TFT) is a type of semiconductor device used in display technology to enhance efficiency, compactness, and cost of the product. In conjunction with its semiconductor properties, the TFT LCD is an active matrix display, controlling pixels individually and actively rather than passively, furthering the benefits of this semiconductor device.
The TFT LCD is built with three key layers. Two sandwiching layers consist of glass substrates, though one includes TFTs while the other has an RGB, or red green blue, color filter. The layer between the glass layers is a liquid crystal layer.
The Architecture of a TFT Pixelbelow) from the other substrate layer of the device and control the amount of voltage applied to their respective sub-pixels. This layer also has pixel electrodes between the substrate and the liquid crystal layer. Electrodes are conductors that channel electricity into or out of something, in this case, pixels.
The outer sides of the glass substrates (closest to the surface or closest to the back) have filter layers called polarizers. These filters allow only certain beams of light to pass through if they are polarized in a specific manner, meaning that the geometric waves of the light are appropriate for the filter. If not polarized correctly, the light does not pass through the polarizer which creates an opaque LCD screen.
The twisted nematic effect is one of the cheapest options for LCD technology, and it also allows for fast pixel response time. There are still some limits, though; color reproduction quality may not be great, and viewing angles, or the direction at which the screen is looked at, are more limited.
The light that passes through the device is sourced from the backlight which can shine light from the back or the side of the display. Because the LCD does not produce its own light, it needs to use the backlight in the OLED) have come into use as well. Typically white, this light, if polarized correctly, will pass through the RGB color filter of the surface substrate layer, displaying the color signaled for by the TFT device.
Within an LCD, each pixel can be characterized by its three sub-pixels. These three sub-pixels create the RGB colorization of that overall pixel. These sub-pixels act as capacitors, or electrical storage units within a device, each with their own independent structural and functional layers as described earlier. With the three sub-pixels per pixel, colors of almost any kind can be mixed from the light passing through the filters and polarizer at different brightness based on the liquid crystal alignment.
A thin-film-transistor liquid-crystal display (TFT LCD) is a variant of a liquid-crystal display that uses thin-film-transistor technologyactive matrix LCD, in contrast to passive matrix LCDs or simple, direct-driven (i.e. with segments directly connected to electronics outside the LCD) LCDs with a few segments.
In February 1957, John Wallmark of RCA filed a patent for a thin film MOSFET. Paul K. Weimer, also of RCA implemented Wallmark"s ideas and developed the thin-film transistor (TFT) in 1962, a type of MOSFET distinct from the standard bulk MOSFET. It was made with thin films of cadmium selenide and cadmium sulfide. The idea of a TFT-based liquid-crystal display (LCD) was conceived by Bernard Lechner of RCA Laboratories in 1968. In 1971, Lechner, F. J. Marlowe, E. O. Nester and J. Tults demonstrated a 2-by-18 matrix display driven by a hybrid circuit using the dynamic scattering mode of LCDs.T. Peter Brody, J. A. Asars and G. D. Dixon at Westinghouse Research Laboratories developed a CdSe (cadmium selenide) TFT, which they used to demonstrate the first CdSe thin-film-transistor liquid-crystal display (TFT LCD).active-matrix liquid-crystal display (AM LCD) using CdSe TFTs in 1974, and then Brody coined the term "active matrix" in 1975.high-resolution and high-quality electronic visual display devices use TFT-based active matrix displays.
The circuit layout process of a TFT-LCD is very similar to that of semiconductor products. However, rather than fabricating the transistors from silicon, that is formed into a crystalline silicon wafer, they are made from a thin film of amorphous silicon that is deposited on a glass panel. The silicon layer for TFT-LCDs is typically deposited using the PECVD process.
Polycrystalline silicon is sometimes used in displays requiring higher TFT performance. Examples include small high-resolution displays such as those found in projectors or viewfinders. Amorphous silicon-based TFTs are by far the most common, due to their lower production cost, whereas polycrystalline silicon TFTs are more costly and much more difficult to produce.
The twisted nematic display is one of the oldest and frequently cheapest kind of LCD display technologies available. TN displays benefit from fast pixel response times and less smearing than other LCD display technology, but suffer from poor color reproduction and limited viewing angles, especially in the vertical direction. Colors will shift, potentially to the point of completely inverting, when viewed at an angle that is not perpendicular to the display. Modern, high end consumer products have developed methods to overcome the technology"s shortcomings, such as RTC (Response Time Compensation / Overdrive) technologies. Modern TN displays can look significantly better than older TN displays from decades earlier, but overall TN has inferior viewing angles and poor color in comparison to other technology.
The transmittance of a pixel of an LCD panel typically does not change linearly with the applied voltage,sRGB standard for computer monitors requires a specific nonlinear dependence of the amount of emitted light as a function of the RGB value.
Less expensive PVA panels often use dithering and FRC, whereas super-PVA (S-PVA) panels all use at least 8 bits per color component and do not use color simulation methods.BRAVIA LCD TVs offer 10-bit and xvYCC color support, for example, the Bravia X4500 series. S-PVA also offers fast response times using modern RTC technologies.
TFT dual-transistor pixel or cell technology is a reflective-display technology for use in very-low-power-consumption applications such as electronic shelf labels (ESL), digital watches, or metering. DTP involves adding a secondary transistor gate in the single TFT cell to maintain the display of a pixel during a period of 1s without loss of image or without degrading the TFT transistors over time. By slowing the refresh rate of the standard frequency from 60 Hz to 1 Hz, DTP claims to increase the power efficiency by multiple orders of magnitude.
Due to the very high cost of building TFT factories, there are few major OEM panel vendors for large display panels. The glass panel suppliers are as follows:

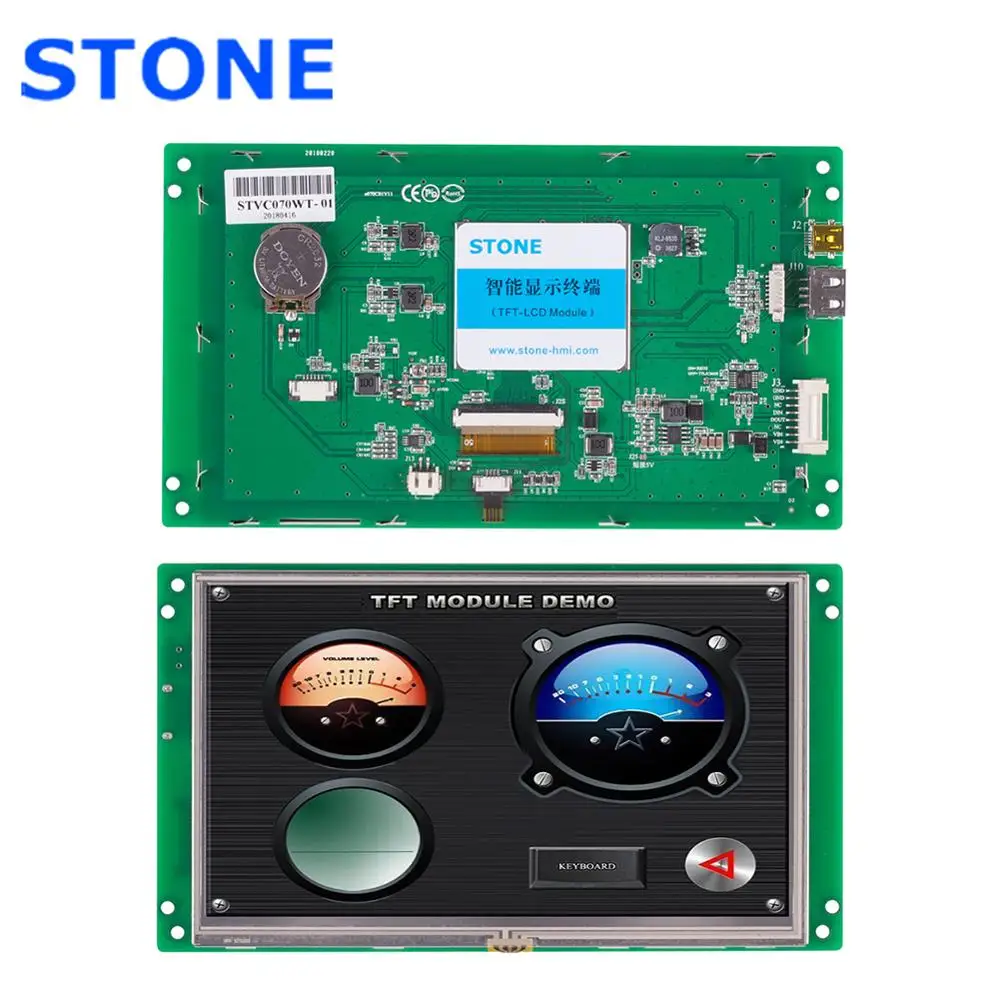

External consumer display devices like a TFT LCD feature one or more analog VGA, DVI, HDMI, or DisplayPort interface, with many featuring a selection of these interfaces. Inside external display devices there is a controller board that will convert the video signal using color mapping and image scaling usually employing the discrete cosine transform (DCT) in order to convert any video source like CVBS, VGA, DVI, HDMI, etc. into digital RGB at the native resolution of the display panel. In a laptop the graphics chip will directly produce a signal suitable for connection to the built-in TFT display. A control mechanism for the backlight is usually included on the same controller board.
The low level interface of STN, DSTN, or TFT display panels use either single ended TTL 5 V signal for older displays or TTL 3.3 V for slightly newer displays that transmits the pixel clock, horizontal sync, vertical sync, digital red, digital green, digital blue in parallel. Some models (for example the AT070TN92) also feature input/display enable, horizontal scan direction and vertical scan direction signals.
New and large (>15") TFT displays often use LVDS signaling that transmits the same contents as the parallel interface (Hsync, Vsync, RGB) but will put control and RGB bits into a number of serial transmission lines synchronized to a clock whose rate is equal to the pixel rate. LVDS transmits seven bits per clock per data line, with six bits being data and one bit used to signal if the other six bits need to be inverted in order to maintain DC balance. Low-cost TFT displays often have three data lines and therefore only directly support 18 bits per pixel. Upscale displays have four or five data lines to support 24 bits per pixel (truecolor) or 30 bits per pixel respectively. Panel manufacturers are slowly replacing LVDS with Internal DisplayPort and Embedded DisplayPort, which allow sixfold reduction of the number of differential pairs.
Kawamoto, H. (2012). "The Inventors of TFT Active-Matrix LCD Receive the 2011 IEEE Nishizawa Medal". Journal of Display Technology. 8 (1): 3–4. Bibcode:2012JDisT...8....3K. doi:10.1109/JDT.2011.2177740. ISSN 1551-319X.
K. H. Lee; H. Y. Kim; K. H. Park; S. J. Jang; I. C. Park & J. Y. Lee (June 2006). "A Novel Outdoor Readability of Portable TFT-LCD with AFFS Technology". SID Symposium Digest of Technical Papers. AIP. 37 (1): 1079–82. doi:10.1889/1.2433159. S2CID 129569963.
Scan line: scan line, control TFT switch. The transistors on the control TFT are on/off. When On, data can be transmitted; when off, data can not be transmitted.
Color filter is the key element in the color of liquid crystal display. Through the color filter, the high gray scale liquid crystal display can be fully coloured. So the function of the color filter is to produce RGB Triple Light in the way of filter light, and then mix the three original light with different strong and weak proportions to show all kinds of colors, so that the LCD displays the full color.
The backlight module is mainly used to provide the light source with uniform and high brightness of the liquid crystal panel. Because of the non self luminescence of TFT-LCD, the external light source, such as the light emitting diode and the cold cathode ray tube, must be used.
Therefore, in the design of TFT LCD, to improve the opening rate as much as possible, because only to increase the opening rate, you can increase the brightness, and the brightness of the backlight plate is not so high, can save electricity consumption and cost.
Many people know what the characteristics of TFT LCD screens are, but do you know what are the characteristics of TFT LCD screen material? Today, we will tell you about the knowledge of the characteristics of TFT LCD screen materials.
With the rapid development of TFT array-driven liquid crystal display technology, in recent years, TFT LCD not only occupied the high-end display market such as portable notebook computers but also challenged the desktop display with the improvement of the manufacturing process and cost reduction. Because the TFT array directly drives the liquid crystal molecules, the cross-distortion effect is eliminated, and the display information capacity is large; the use of low-viscosity liquid crystal materials greatly improves the response speed, which can meet the needs of video image display. Therefore, compared with TFT display, TN type, and STN type liquid crystal display have made a qualitative leap and become one of the most promising display technologies in the 21st century.
TFT also adopts the principle of TN type electro-optic effect, but the TFT LCD material is different from the traditional liquid crystal material. In addition to good physical and chemical stability and a wide operating temperature range, TFT LCD materials must also have the following characteristics:
(4) The optical anisotropy (Δn) is matched to the TFT to eliminate the rainbow effect for greater contrast and wide-angle field of view. The range of △n value should be between 0.07~0.11.
At present, among the TFT LCD screen materials, TN type LCD screen has gradually entered a recession period, the market demand is gradually shrinking, the production capacity is excessive, the price competition is fierce, and there is no investment value. STN-type LCD will gradually enter a mature stage, the market demand will grow steadily, and the production technology will be fully mature. The TFT-type LCD is entering a new round of rapid growth, and the market demand will increase sharply, and it is expected to become one of the most promising display materials in the 21st century.
Although liquid crystal materials whose end groups are cyano groups, such as biphenyl and phenylcyclohexane liquid crystals, have been widely used in TN and STN LCDs, their viscosity is higher than that of fluorine-containing liquid crystals with the same molecular structure. These unfavorable factors limit the application of this type of compounds in TFT LCDs. The ester liquid crystal has the characteristics of simple synthesis method, wide variety, and wide phase transition range, but its high viscosity greatly reduces the dosage in TFT formulation. Therefore, the development of new liquid crystal compounds that meet the above requirements has become the focus of liquid crystal chemistry research.
The liquid crystal materials have developed rapidly with the development of liquid crystal devices, from biphenyl nitrile, esters, oxygen-containing heterocyclic benzenes, and pyrimidine ring liquid crystal compounds to cyclohexyl (bi) benzene, diphenylacetylene, ethyl bridge bonds and various fluorine-containing aromatic ring liquid crystal compounds. Japan has synthesized difluoroethylene liquid crystal compounds with stable structure, and its molecular structure is more and more stable, and it continuously meets the performance requirements of STN and TFT LCDs.
LCD displays. Of course, there is only one color for the backlight and one color for the characters, but as you can see here on the picture above, there could be many colors of backlights. We can have a white backlight, orange, green, blue or any backlight color.
The last part of this article covers graphic displays and character displays, the difference between them and how it influences the cost of an LCD display. The most basic LCD displays are the segmented monochrome LCD displays or icon displays. In this kind of LCD displays we have only some icons and characters, but they are defined when the display is being produced. What we see on the display is defined and we cannot have anything else, the other area is completely off. You can only switch on and off the display segments. This is the cheapest technology to produce, and it is made by mask during the production, so it is usually reserved for high volume applications, that are very well defined during the production phase. For example, this can a be kind of watch, or calculator, or temperature controller. The advantage is the cost, but the disadvantage is that later we cannot change anything, we cannot change the software and add another icon.
Next, we have the fully graphic display. In this kind of LCD display we have a matrix of pixels. It could be 64 by 256, or 64 by 128 pixels, so on this kind of screen we can show almost every image, because we can switch every pixel on and off. We can show letters, characters, images, small, big, anything we want. The disadvantage is the vast number of pixels that we need to connect. The controller and the glass are complicated, because we need to route the wires from every pixel out from the glass and connect it to the controller. So, in the monochrome LCD display family, this kind of display is the most expensive. Other kinds of displays are cheaper, not only because the glass is simple, but because the controllers are simple too.
Are colour OLED displays ready to offer a better alternative to TFT-LCDs, and where do today’s state-of-the-art TFT-LCDs remain strong?We all know that colour graphical display can seriously enhance the user experience your application will deliver. So let"s re-cap on the advantages both TFT and OLED technology offer.
TFT-LCDmaturity means competitive prices, good quality and reliability and available in a wide range of sizes - typically 1-21" for industrial embedded applications.
Operating principle: in similar ways to a monochrome STN, twisted liquid-crystal columns create waveguides to direct light from the display backlight through polarising filters. An electric field applied across ITO electrodes changes the crystal alignment to prevent the light passing and make specific locations appear dark. Unlike STN, however, the TFT-LCD contains red, green and blue filters; a thin-film transistor embedded in every sub-pixel modulates the light intensity to mix the desired colour. TFT-LCDs can display millions of colours, and response times can be fast enough to support full-frame-rate video or smooth animations.
Performance: Standard TFT-LCDs do have some limitations, however. Contrast can be limited, and colour-inversion can be perceived at extreme viewing angles. Typical contrast ratio is about 400:1 with viewing angles of L70/R70/T70/B60.
Improvements: IPS (In-Plane Switching), aka Super-TFT, displays arrived to overcome these drawbacks. In IPS, changes in crystal orientation happen in the same plane as the glass sheets that constitute the display. Pixels are dark in the off state instead of in the on state, which enables the display to appear true back when powered down. Contrast and colour fidelity are improved, and also more consistent, even at wider viewing angles than a standard TFT-LCD can manage. What’s more, there are no distracting bright-pixel defects, which can occur when a transistor fails in a conventional TFT-LCD.
Sleek, Efficient Design: A Organic LED (OLED) displays can be made lighter and thinner than conventional or Super TFT, partly because no backlight is required. No backlight means they also consume less power, which has been the key to their success in the premium smartphone sector and is also driving adoption in mobile industrial and medical applications - such as wearable medical monitors, tele-health equipment, cordless industrial panels, and mobile robotics.
Bright and Beautiful: Their light weight and low profile allow OLED displays to be fixed to the surface of an enclosure, even if the surface is curved. This is easier and more economical than designing an aperture and making provision for mounting a TFT-LCD. The wider temperature range of OLEDs also makes them a robust choice for industrial applications or use outdoors.
Going the TFT-LCD route, especially given the flexibility to choose standard or IPS/Super-TFT, provides a wide choice of displays that are cost-effective, readily available in numerous sizes, and easily capable of displaying full-frame-rate video and smooth animations.
Colours are also very important in the world of displays. The well-known RGB colour scheme (red, green, blue) has been refined with TFT display technology. 8 bit gradations can be selected for each colour. TFT displays are based on LCDs (liquid crystal display). The liquid crystals in a TFT are arranged according to different systems. These include IPS (in plan switching), VA (vertical alignment), MVA (multi vertical alignment) and TN (twisted nematic). In order to manage the high number of individual pixels, an active control principle was implemented using TFT technology (thin film transistor). The latest TFTs have a resolution of up to 8K (7680 x 4320 pixels) and display 16 million colors. Thanks to the large, highly efficient production facilities, TFT displays have an excellent price/performance ratio.
