tft lcd displays wide viewing angles manufacturer

As an active-matrix LCD device, the TFT LCD’s individual pixels consist of red, green, and blue sub-pixels, each with their own TFT and electrodes beneath them. These sub-pixels are controlled individually and actively, hence the name active-matrix; this then allows for smoother, fast response time. The active-matrix also allows for larger display modes that continue to uphold quality of color, refresh rate, and resolution when aspect ratio is increased.

Within the pixels composing the TFT LCD display, electrodes play a role in conducting the circuit between them. If layered on both insides of the two glass substrates, the electrodes, along with the TFT, create an electrical pathway within the liquid crystal layer. There are also other placements of electrodes besides on the surface and back of the device that change the effect of the electrical pathway between the substrates (to be discussed later in this article). This pathway has an effect on the crystals through its electric field, which is one of the TFT concepts responsible for the low, minimized power consumption of TFTs, making them so efficient and appealing.

Though there are a variety of ways to align the crystal molecules, using a twisted nematic (TN) to do so is one of the oldest, most common, and cheapest options for LCD technology. It uses the electric field between the electrodes organized with one on the surface substrate layer and the other on the back substrate layer to manipulate the liquid crystals.

Though this is one of the cheapest options for display technology, it has its own problems. The TN TFT LCD does not have top response times compared to other types, and it does not provide for as wide a viewing angle as other TFT LCDs using different alignment methods. A viewing angle is the direction at which a screen can be looked at before the displayed image cannot be seen properly in terms of light and color. TN displays mostly struggle with vertical viewing angles but also have somewhat limited horizontal angles as well. This TN LCDs viewing angle limit is called the gray scale inversion issue.

Generally, when viewing angle is not ideal, image quality as a whole decreases. Things like contrast ratio (the luminance ratio between the brightest white and darkest black) and readability of the screen are not preserved due to this issue.

Among the methods of liquid crystal alignment, TN is only one option for LCD technology. There are various other common ways to align the crystals for a wide viewing angle, such as the multi-domain vertical alignment or in-plane switching. In addition, because of the abundance of TN devices, something called O-film has also been introduced to pair with TN screens so that users do not have to buy whole new devices.

Simply put, this method divides the cell beneath each pixel into multiple domains. With the division, molecules in the same cell can be oriented differently, and so as users shift their views of the display, there are different crystal directional alignments that allow for the preservation of the display properties over these angles such as high brightness and high contrast. This solves the problem of what is known as a mono-domain vertical alignment.

Though mostly similar to the TN, the MVA has one notable feature in its cell that TN cells do not have: glass protrusions. Between the sandwiching electrodes, angles glass protrusions reorient the light traveling within the layer so that when exiting the surface polarizer, it travels in a multitude of directions to satisfy the need for a wide viewing angle.

In recent developments of the MVA TFT LCD, contrast ratio, brightness, and response times have all increased in quality. Contrast ratio, being 300:1 when first developed in 1997, has been improved to 1000:1. Similarly, response time, characterized by rising (black to white) and decay (white to black) time, has reached times that are the fastest that human eyes can process, demonstrating the appropriateness of MVA-based displays for moving images.

With this type of alignment, viewing angles were preserved in much wider directions compared to the TN. Recently, IPS displays have improved qualities like response time to make the IPS screens more desirable to consumers. However, this type of TFT LCD will tend to cost more than TN devices.

While the TN TFT LCD has the smallest cost, that is for a reason. O-films, MVAs, and IPS TFT LCDs have greater costs due to their more intricate technologies that improve viewing angle to retain resolution and general display quality.

The O-film specifically is unique because rather than changing the liquid crystal alignment technology and for a relatively low cost, it can swap the surface polarizer of a TN device with a special film to widen the viewing angle. Because it is combined with TN, it can only improve viewing angle slightly.

IPS has the most potential for improved viewing angle, reaching higher possible angles than all the other options. With IPS, though, there is a higher power consumption than the regular TN device due to the need for a brighter backlight in this device.

All these technologies are viable options depending on the consumer’s desires and price range. MVA and IPS TFT LCDs tend to be more practical for consumer products like LCD monitors and phone screens, while TN and O-film LCDs can cross over into industrial applications. Nonetheless, with the growth of the IPS and MVA LCDs, their applications are widening.

The AFFS is similar to the IPS in concept; both align the crystal molecules in a parallel-to-substrate manner, improving viewing angles. However, the AFFS is more advanced and can better optimize power consumption. Most notably, AFFS has high transmittance, meaning that less of the light energy is absorbed within the liquid crystal layer and more is transmitted towards the surface. IPS TFT LCDs typically have lower transmittances, hence the need for the brighter backlight. This transmittance difference is rooted in the AFFS’s compact, maximized active cell space beneath each pixel.

Since 2004, Hydis, who developed the AFFS, has licensed the AFFS to the Japanese company Hitachi Displays, where people are developing complicated AFFS LCD panels. Hydis has improved display properties like outdoor readability of the screen, making it even more appealing to use for its main application: mobile phones displays.

In view of the increasing requirements for TFT LCD panel with wider viewing angle. To meet customer’s needs, EVERVISION provides many different types of technology including, for example, MVA technology (Multi-domain Vertical Alignment), IPS technology (In-Plane Switching) and AAS technology (Azimuthal Anchoring Switch).

When it comes to color performance and wide viewing angles, IPS panels are really great. It has 178/178 viewing angle ratings. The reason why IPS displays have better clarity of color than traditional TFT displays is its arrangement of electrodes and orientation layers.

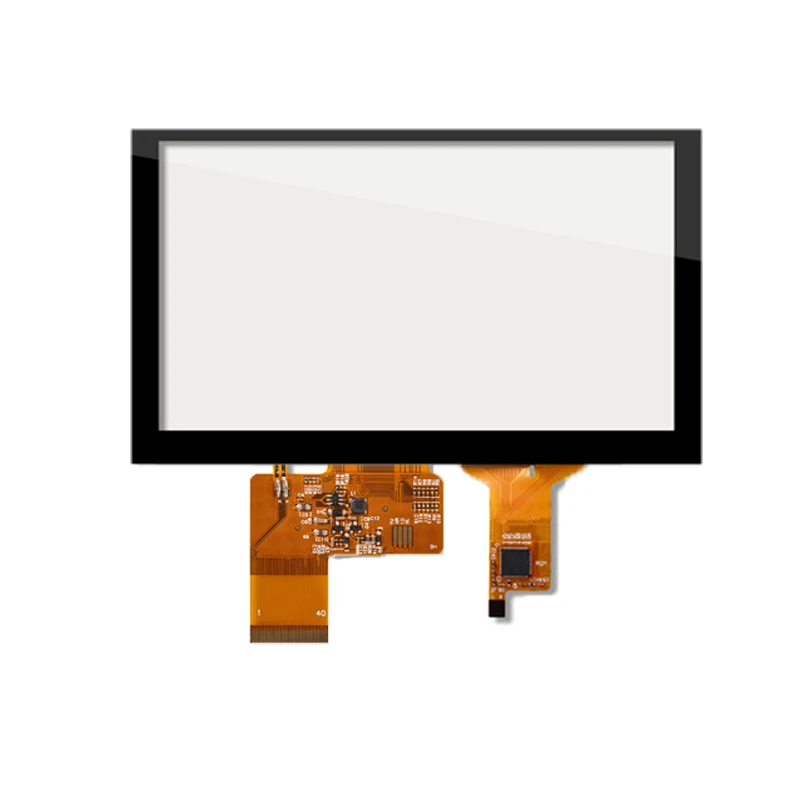

IPS (In-Plane Switching) technology gives both horizontally and vertically wider viewing angle while maintaining consistent image quality and colors from all viewing positions. We provide a wide range of sizes from 3.5", 4.3", 7" to 10.3 inch for TFT LCD Module. Also, touch screen is available depending on client"s application.

This TFT Display Series is designed with a control board with HDMI signal interface output. It allows developers to quickly add a TFT LCD display to their designs using a standard HDMI cable. Also. it features with IPS technology and USB touch.

MVA technology improves viewing angles above 160 degrees and hasbetter contrast ratios. However, the one of disadvantages of MVA panel is slightly worse response times than TN or IPS. In recent developments of the MVA TFT LCD, contrast ratio, brightness, and response times have all improved in quality.

A TN or Twisted Nematic TFT LCD is a cost-effective high performance LCD. It offers good brightness performance and fast response times. However, it suffers in one key area and that is its viewing cone. TN LCD’s typically have three good viewing angle directions. In these directions the image is typically clear and colors are consistent up to 80 degrees from the center of the LCD. The remaining viewing direction is usually good through 40-50 degrees from center. Afterwards, the image is likely to invert, almost appearing like an x-ray.

Pacer offers an extensive range of colour TFT LCD panels from 1.8″ through the popular 3.5″ and 5.7″ sizes to 82″. Our range includes sunlight readable panels from 5.6″ to 70″, bar cut panels, and SMART TFT displays with built-in control. We offer TFT displays with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption.

TFT displays are used extensively in many industrial, commercial and scientific applications, including ATMs, POS terminals, kiosks, security systems, lottery and gambling gaming machines, medical equipment, factory automation, digital advertisement signage, transportation information, and marine equipment.

TFT technology is being used to replace Mono LCD in many applications, and Raystar Optronics now offers a 5.2″ TFT module designed specifically to fit the footprint of the industry standard RG24064-series 240×64 mono graphic STN LCD. The RFS520A can replace traditional STN displays of 8×2 or 16×2 format as it shares the same 16 pin footprint.

Our TFT modules are fully supported with a variety of options including wide operating temperatures, high brightness and contrast, built-in DC-DC and temperature compensation circuitry and most with white LED backlights. Resistive Touchscreens and Projected Capacitive Touchscreens are available for most models. Many panels can be configured as a kit – see our Interface Kits page for more details.

IMPORTANT ANNOUNCEMENT – Mitsubishi has decided to end production of TFT-LCD modules, as the company is no longer able to maintain the products’ competitiveness after significant price falls in the global market. Production of TFT-LCD modules is scheduled to end in June 2022 with a Last Time Buy date of June 2021. Please contact us as soon as possible to discuss last time buy or identification of suitable alternative displays.

Raystar is a professional TFT (Thin Film Transistor) module manufacturer. Whether you need a TFT display with control board, high brightness, wide viewing angle, monochrome or bar type, we have TFT active matrix display models for you to choose from.

LITEMAX® Industrial Display solution provide a wide range of reliable displays from 5.7″ to 85″ including LCD panel modules, open frame LCD displays, outdoor displays, and panel mount monitors. LITEMAX have developed and focused on LCD display technologies such as high brightness technology, optical bonding solutions, and color enhancement technology that bring more add-on value to enhance their products.

US Micro Products manufactures a wide selection of TFT LCD (Active Matrix LCDs) displays to accommodate the needs of OEMs across many different industries, including medical, industrial, gaming, military and many more.

An array of available interfaces, brightness levels, and temperature ranges ensure that our TFT LCDs work well with your design and in the environment of your choice

LCD is a backlight display device. The light is provided by the backlight behind the LCD module. When the backlight passes through the polarizer, liquid crystal, and orientation layer, the output light has directivity. That means most of the light is coming straight out of the screen. Therefore, when you look at the LCD from a large Angle, you can’t see the original color, some time even just white or black color can be seen. The Angle (left and right, up and down) at which the original color appears on the screen is called the Viewing Angle of TFT LCD display Screens.

There are different visual effects from different view angle when viewed from the middle and side of the LCD display screen, the intensity of light entering the human eye is different. For the same picture, there is light and dark part, and the contrast is different. With the definition of perspective, the corresponding perspective of the LCD screen is perspective within the acceptable contrast range of human eyes.

As long as the horizontal viewing angle reaches 120 degrees and the vertical viewing angle reaches 140 degrees, the LCD on the market can fit the application needs of most users. The latest LCD screens are made with wide-angle technology, which can reach up to about 150 degrees, reducing the inconvenience caused by the small viewing angle.

There are 3 popular techniques for a wide display viewing angle so far, which are TN+FILM, IPS(in-plane -SWITCHING), and MVA(multi-domain VERTICAL alignment).

Add a layer of wide-viewing angle compensation film. This compensation film can increase the visual Angle to about 150 degrees, which is a simple and easy method and is widely used in LCD.TN+FILM may not be the best solution for manufacturers, but it is the cheapest solution, so most Taiwanese manufacturers use this method to build 15-inch LCDs.

The technology is the LCD panel technology introduced by Hitachi in 2001. The biggest feature of the IPS panel is that its two poles are on the same surface. Since the electrode is in the same plane and the liquid crystal molecules are always parallel to the screen in any state, the opening rate and the light transmittance will be reduced. Therefore, the application of IPS in LCD TV requires more backlights.

The idea is to add protrusions to form multiple visible areas. The liquid crystal molecules are not arranged vertically at rest, but horizontally when a voltage is applied, allowing light to pass through the layers. MVA technology improves viewing angles above 160 degrees and provides a shorter response time than IPS and TN+FILM.

In the MVA (multi-domain vertical alignment) display technology, horizontal and vertical viewing angles are wider than those of the first two technologies, and there is basically no blind Angle or bright spot. The viewing Angle is divided into horizontal and vertical viewing angles. The horizontal viewing angle is the viewing range from the center of the vertical central axis to the left and right. The vertical viewing angle is the viewing range from the center of the horizontal center axis to the up and down. Viewing Angle takes “degree” as the unit. Currently, the commonly used annotation form is to mark the total horizontal and vertical range directly, such as 150/120 °. At present, the lowest visual Angle is 120/100 ° (horizontal/vertical), which cannot be accepted if it is lower than this value.

If you are interested in STONE TFT LCD module manufacturers or have any questions, please feel free to contact us, we will wholeheartedly for your service.

Get rich colors, detailed images, and bright graphics from an LCD with a TFT screen. Our standard Displaytech TFT screens start at 1” through 7” in diagonal size and have a variety of display resolutions to select from. Displaytech TFT displays meet the needs for products within industrial, medical, and consumer applications.

TFT displays are LCD modules with thin-film transistor technology. The TFT display technology offers full color RGB showcasing a range of colors and hues. These liquid crystal display panels are available with touchscreen capabilities, wide viewing angles, and bright luminance for high contrast.

Our TFT displays have LVDS, RGB, SPI, and MCU interfaces. All Displaytech TFT LCD modules include an LED backlight, FPC, driver ICs, and the LCD panel.

We offer resistive and capacitive touch screens for our 2.8” and larger TFT modules. Our TFT panels have a wide operating temperature range to suit a variety of environments. All Displaytech LCDs are RoHS compliant.

We also offer semi-customization to our standard TFT screens. This is a cost-optimized solution to make a standard product better suit your application’s needs compared to selecting a fully custom TFT LCD. Customizations can focus on cover glass, mounting / enclosures, and more - contact us to discuss your semi-custom TFT solution.

Displaytech IPS displays are the premium option within our standard TFT LCDs. Our IPS TFT displays offer improved color accuracy and crisper images compared to non-IPS displays of the same size. They also provide a very wide viewing angle and a high refresh rate of the screen’s contents.

IPS screens have a special technology within the liquid crystals that allow the screen’s contents to maintain color and overall visibility from any viewing direction. This enhances the user experience since the user can interact with the LCD from any vantage point.

Color TFT LCDs (Thin Film Transistor LCDs) give your product a beautiful appearance with high-resolution, full-color graphics. Our modern, automated LCD factories can create custom TFT displays for extreme temperature functionality, sunlight readability, shock and vibration durability, and more. Whether you need a stand-alone TFT LCD display or fully integrated assembly with touch and cover lens, custom FPC, or custom backlight, our experienced team can develop the right solution for your project.

Take your design to the next level with our range of TFT Displays including latest IPS TFT, circular and bar shape as well as large size TFT. With or without touch, these are fully customisable to your system requirements.

TFT-LCD technology is now fairly mature. As a result, manufacturing processes are efficient and production yields are high, leading to very competitive unit prices. Upgrading from a monochrome display to a TFT is now an affordable way to give your product an uplift.

Users of industrial display devices are wanting the same experience they have come to expect from a consumer device with all-round viewing angles. Switching to a superior IPS TFT display has become very cost effective as production increases and unit prices decrease.

Choosing a circular display for your next product design could really set you apart from your competition. Models are available from 1" to 4.2"in TFT, PMOLED and AMOLED, we have something to suit every application.

It is now possible to transform from a monochrome display to a colour display in space constrained systemsby using a letterbox shaped display. These ultra-wide displays are ideal for applications with restricted build height such as rack mount systems or landscape format front panels.

Large TFT display systems are increasingly being used for transportation information, retail signage and vending machines and kiosks. We can supply a large range of TFT solutions up to 65" diameter and in bar-style, square or rectangular configurations.

We are now offering increasing cover lens customisation options and processes to make your TFT LCD user interface truly stand out! Anders’ experienced marketers and engineers work with our manufacturing partners around the world to keep informed of the latest innovations, including mirrored glass,tinted glass, spot-facing, three dimension glass, and many more!

See below our range of TFT Displayswith sizes ranging from0.96" to 64.5" and including circular and bar type shape. All our displays can be tailored to suit your application antimicrobial coating technology,

A TFT display is a form of Liquid Crystal Display with thin film transistors for controlling the image formation. The TFT technology works by controlling brightness in red, green and blue sub-pixels through transistors for each pixel on the screen.

There are many display technologies, but do you know which one would be better for your application? Particularly when considering optimum viewing angle and contrast. We discuss 2 of the best options.

Compare IPS vs TFT displays - the TFT display is the display of choice for industrial designs, but it can have its limitations. A newer technology called IPS (in plane switching) offers better viewing angles and colours, but is it really the best choice - we discuss benefits and negatives of both types of TFT display.

Usually customer-oriented, and it"s our ultimate focus on to be not only by far the most reliable, trustable and honest provider, but also the partner for our customers for Tft Viewing Angle, Thin Lcd Panel, Tft Monitor Computer, Touch Display Panel,Computer Monitor Tft. We"ve been confident that there"ll become a promising future and we hope we can have long lasting cooperation with consumers from all over the world. The product will supply to all over the world, such as Europe, America, Australia,Hungary, Poland,Cambodia, Frankfurt.Our solutions have national accreditation standards for experienced, premium quality goods, affordable value, was welcomed by people around the globe. Our products will continue to increase in the order and look forward to cooperation with you, Truly must any of people goods be of interest to you, make sure you letus know. We"re likely to be delighted to give you a quotation up on receipt of one"s in depth specs.

Viewing angle is a very important factor when evaluating LCD display"s performance. Understanding how to locate the optimum viewing angle and choose the right LCD display will make your product looks sharp without extra cost.

LCD viewing angle is the maximum angle from which customer can view the screen well. "Viewing well" is commonly recognized as having at least 10:1 contrast and without grayscale inversion.

At time of manufacturing, LCD manufacturer designs LCD panel in a way that it is best viewed from an angle (called Bias) offset from the perpendicular by certain degrees, to accommodate as many applications as possible. Viewing angle is the angle covers both side of Bias angle, where the LCD is still "viewing well".

When reading an LCD"s specification, you will see the term "viewing direction". Viewing direction is defined following the format of a clock. Like figure below, Z axis is Normal, X axis is Horizontal and Y axis is Vertical. An LCD"s viewing angle "above" Z axis is having 12 o"clock viewing direction. So 6 o"clock viewing direction LCD is best viewed from "below" Z axis.

Theoretically, LCD manufacturer can produce LCD with 3, 12, 9 and 6 o"clock viewing direction. But in practice, we usually look at LCD display from 12 or 6 o"clock angle.

Using a simple TN type TFT LCD as example, its viewing angle is typically 45~65 degrees. Adding extra wide polarizer film (EWP) to the TN type LCD, the viewing angle may be increased about 10 degrees. Similarly, an O-film enhancement polarizer will widen the viewing angle to 75 degree in each direction. However, these enhancements bring along contrast reduction. Adjusting LCD contrast is necessary.

Using a liquid crystal display with proper viewing angle is very important to your product"s success. And we should keep in mind that optimized contrast is crucial, too. Both parameters define the visual appearance of the LCD display and the appeal of your product. Choices are based on cost performance trade offs.

For example, if your project requires a wide viewing angle 2.4" TFT LCD. TN TFT panel with O-film solution might be better than using IPS LCD. Topway engineers are here to help you making those design decisions.

TFT is an LCD Technology which adds a thin-film transistor at each pixel to supply common voltages to all elements. This voltage improves video content frame rates. Displays are predominantly utilizing color filter layers and white LED backlighting.

IPS TFT is a deviation of a traditional TN TFT Display. The most fundamental difference is that light is not rotated in plane and passing through polarizer films, but instead perpendicular to shutter the light. This approach to the technology improves contrast and enables symmetrical viewing angles from all directions.

OLED Displays are emissive displays and do not utilize liquid crystal. Each pixel is emissive with light. Passive OLED displays multiplex power and logic through the IC. Active OLED displays add a transistor at each pixel to supply power directly to the pixels and the IC only performs logical functions.

TFT (Thin Film Transistor) LCD (Liquid Crystal Display)technology is currently dominant in the display world right now due to its lightweight, low power consumption, low manufacturing cost, etc. But LCDs do have several generic drawbacks. A narrow viewing angle is one of the main issues compared with other display technologies, such asOLED (Organic Light Emitting Diodes), CRT(Cathode-Ray Tube), Plasma, VFD(Vacuum Fluorescent Display), and most recent SamsungMicroLEDdisplays. They also don’t have a response time issue.

LCD scientists and engineers took more than 30 years of effort to improve the TFT LCD viewing angle which has made TFT screens widely applicable in different applications ranging from automotive, home appliances, medical, military, industrial, consumer, etc. The following is a summary of the different TFT wide viewing angle technologies.

When we talk about TFT LCD, we normally mean TN LCD. Thetwisted nematic effect(TN-LCD) takes advantage of the ability of the nematic substance to rotate the polarization of light beams passing through it. Two polarizing filters, parallel planes of glass with their polarizing lines oriented at right angles with respect to each other, are positioned on either side of the liquid crystal. When light enters the display, it is polarized by the input filter. In the absence of an electric field, all the incoming light is transmitted. This is because the light polarization is rotated 90 degrees by the nematic liquid crystal, and the light, therefore, passes easily through the output filter, which is oriented to match the 90-degree shift. With the application of a voltage, an electric field is produced in the nematic liquid crystal. Under these conditions, the polarization effect is reduced. If the voltage is large enough, the polarization effect disappears altogether, and the light is blocked by the output polarizing filter. Refer to Fig.1

In this case, when the display is observed from a vertical direction to the substrate, the display shows a dark state, because the optical axis of the liquid crystal is perpendicular to the substrate. However, when the display is observed from the tilted direction, the display does not show completely a dark state because light leaks due to the birefringence. The birefringence becomes predominant with an increase in the voltage. At different viewing angles, the birefringence is different and the transmission is different in each direction. This is the reason for the poor viewing angle of TFT LCDs. See Fig.3.

The most cost-effective and common way is to use a wide viewing angle polarizer. Of course, the improved viewing angle is not wide enough for some applications. Another limitation is that the wide viewing angle polarizer will not be able to change the Gray Scale Inversion shown at the bottom photo in Fig.3.

O-Film is an optical film that is applied to the TN TFT LCD and redirects light, providing all round viewing angles to any TN TFT LCD to which it is applied. It is easy to apply and relatively low cost.

The best advantage of O Film is to eliminate grayscale inversion. The drawback is to reduce the contrast and brightness. With the wider adoption of IPS, O Film gradually fell out of favor with the market.

This article is an original piece of content written by the engineering and technical support team atOrient Display. We are an LCD and display technology provider with over two decades of industry experience in delivering cutting edge display solutions. Please browse ourknowledge baseif you would like to learn more about LCDs!

Let us start with the basics first; refresh the knowledge about TN and LCD displays in general, later we will talk about TFTs (Thin Film Transistors), how they differ from regular monochrome LCD displays. Then we will go on to the ghosting effect, so we will not only discuss the technology behind the construction of the TFT, but also some phenomena, like the ghosting effect, or grayscale inversion, that are important to understand when using an LCD TFT display.

Next, we will look at different technologies of the TFT LCD displays like TN, IPS, VA, and of course about transmissive and transflective LCD displays, because TFT displays also can be transmissive and transflective. In the last part we will talk about backlight.

Let us start with a short review of the most basic liquid crystal cell, which is the TN (twisted nematic) display. On the picture above, we can see that the light can be transmit through the cell or blocked by the liquid crystal cell using voltage. If you want to learn more about monochrome LCD displays and the basics of LCD displays, follow this link.

What is a TFT LCD display and how it is different from a monochrome LCD display? TFT is called an active display. Active, means we have one or more transistors in every cell, in every pixel and in every subpixel. TFT stands for Thin Film Transistor, transistors that are very small and very thin and are built into the pixel, so they are not somewhere outside in a controller, but they are in the pixel itself. For example, in a 55-inch TV set, the TFT display contains millions of transistors in the pixels. We do not see them, because they are very small and hidden, if we zoom in, however, we can see them in every corner of each pixel, like on the picture below.

On the picture above we can see subpixels, that are basic RGB (Red, Green, Blue) colors and a black part, with the transistors and electronic circuits. We just need to know that we have pixels, and subpixels, and each subpixel has transistors. This makes the display active, and thus is called  the TFT display. TFT displays are usually color displays, but there are also monochrome TFT displays, that are active, and have transistors, but have no colors. The colors in the TFT LCD display are typically added by color filters on each subpixel. Usually the filters are RGB, but we also have RGBW (Red, Green, Blue, White) LCD displays with added subpixels without the filter (White) to make the display brighter.
