uart serial lcd module display quotation

This command will have no effect on USB modules. It will return an ACK for compatibility with old versions of host software. For serial modules this command will return an ACK for a 0 (19200 BAUD) or 1 (115200 BAUD). All other entries will return an error as stated in the datasheet

... Specification TOPWAY HMT035ATA-1C is a Smart TFT Display Module with 32bit MCU on board. Its graphics engine provides numbers of outstanding features. It supports TOPWAY TML 3.0 for preload and pre-design display ...

TOPWAY Smart LCDs embed a display engine and a versatile range of TFT display sizes and Touch-Panels to support a wide range of industrial and instrumentation application.

TOPWAY Smart LCDs embed a display engine and a versatile range of TFT display sizes and Touch-Panels to support a wide range of industrial and instrumentation application.

... graphics engine provides numbers of outstanding features. It supports TOPWAY TML3.0(Editor 2017)for preload and pre-design display interface that simplify the host operation and developwent time.Suitable for industry ...

Hot sale and most welcomed 3.5 inch High standard TFT LCD Module HMI Display with Touch Panel. DMG32240C035_03W is the intelligent touch screen(touch screen can ...

The standard package of ezDisplay LED DotMatrix In-Door Family products is the 64x32 RGB LED DotMatrix Module with UART Interface, USB power socket plus 1.5A current protector and USB ...

... low cost, high efficiency and smart of TFT-LCD display control module which can provide characters or 2D graphics application within an embedded 768KB of display RAM.

... low cost, high efficiency and smart of TFT-LCD display control module which can provide characters or 2D graphic application within a 16MB of display SDRAM. FES877x offers several serial ...

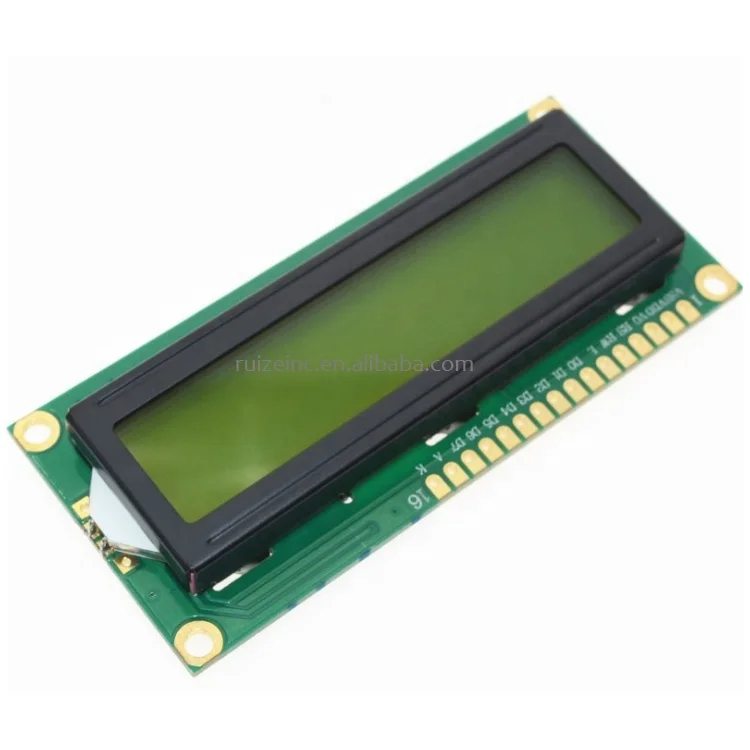

Bought this from Robotshop retailer. Worked right away like a charm. I even changed splash screen to display my software version. However at some point it stopped displaying text, then backlight started spontaneously switching off several seconds after powering on. I connected LCD to different device and started experimenting just sending one command at a time.

ALL 0xFE commands work just fine. I am able to switch display on/off, change between underline and blinking cursor, directly position cursor on screen and scroll screen around. 0x7C commands work too, I can control backlight and turn splash screen on/off. Reset 0x12 also works.

The only thing that does not work is actual text display. I tried all acsii characters at different cursor locations. It seems that something is going on, at least cursor jumps to 2nd line after printing 16 characters (does not move otherwise), except characters are invisible. Note that splash screen still works, with exact text I put there!

My only complaint with this product is the difficulty in mounting. Finally had to drill out the holes to accept 4-40 standoffs. The Eagle files don"t include the complete board so making a screw hole template from the PCB is impossible. Otherwise works fine with my stand alone Atmega 328P using the SerLCD.h and SoftwareSerial.h libraries.

Does anybody know how to do a hard reset on this LCD? While I was uploading my code, I left it plugged into TX, and it doesn"t work anymore. I"m realizing that it probably got spammed with commands and the configuration got messed up. Does anybody know how to reset to factory defaults?

I have the same question. I now have the 3.3v serial enabled LCD (with backpack) and want to use this one for future usage. VDD of 5V can be supplied, but will the TTL work when its getting 3.3V signals from the TX from Netduino?

Is it just me, or are the solder holes for VDD, GND, and TX near the JST connector too small to accept standard pin headers? Perhaps I just need to use a little more force? I see that one of the pictures of this module shows what appear to be standard headers installed in that location, so I am confused..

I"ve put together some python code for sending serial data to these LCD screens. In particular, the code pulls my twitter status and writes it to the LCD. To work with the extra characters, I wrote functions to page the text (vertical scroll) or scroll the text (horizontal scroll). Details are available here: http://dawes.wordpress.com/2009/12/23/twitter-to-lcd/

Is it possible to wire this up in parrellel rather than use the serial function? I ran into a snag and am unable to use the serial function of this lcd? I see the pinouts on the schematic but when wired it doesn"t seem to work.

I"ve created a new splash screen for the Serial LCD, now I want to save it to the Serial LCD memory. So, exactly how do I write a "control-j" to the Serial LCD. I"ve put in the required line to transmit special character 124, but I can figure out how to format the "control-j" line of code. I"ve Googled this for about an hour and can"t find an explanation or sample code anywhere. Here"s my code...void setup() {

I"m not sure if you"re referring to comments on the website, or on your LCD screen. You can contact techsupport@ and they"ll be able to assist you further.

I have used a Labview program for this LCD. When i send character "a", the display is "0". Does anyone having a same problem. How should I troubleshoot this problem.Tq

Has anyone managed to get the PWM backlighting working with an Arduino? I"m trying variations of this and nothing works except the standard On/Off commands using 0xFE as the escape. All my attempts turn the display off but the backlight LED is on full.

Why do I get power out of the VDD port with only RX and GND hooked up? I have a 5V rail that I use to power everything on my board - and when I added this SerLCD I now have a bridge between the arduino power and my 5v line ... which I dont want. Can I add a diode to the VDD to stop reverse voltage from powering my board?

It seems like the MCLR function has been disabled through the config bits. No pullup to Vdd is installed. This makes it really irritating to work with this display. Programming an arduino with this hooked the HW serial port will screw up the display, and without the reset line you have to pull power. A simple solution would just be to wire the PICs MCLR pin to the Arduinos reset line, but this isn"t possible without the MCLR function obviously.

Quick suggestion... It"d be very helpful for some people if you guys added a note in the description pointing people to the correct 3-pin JST jumper wire to be used with these serial LCDs. Two reasons... it"s not clear that the jumper is not included, and you have 3-pin jumpers in your catalog which don"t work with this serial LCD.

I have ported LiquidCrystal library for use with the serial LCD you can look at my code here. Still working on finishing all the documentation. But putting up for now hopefully someone will find it usefull.

I"m also having the same problem after accidentally sending the control character "|" followed by "\", "-", "/" to the LCD as I was trying to animate a rotating bar to indicate a busy status.

The baud rate problem can be solved by writing at 9600, at startup, a "change baud rate" command to the target rate. At worst, the display is already at the target rate and will misinterpret the command and display garbage, at best, it will be set to the right baud rate.

Does the serial version of the display still have the parallel pins available on it? I would like to use the serial access for the most part, but I might need regular old parallel for one project.

Yes you can, but you are limited to only 8 custom characters. First define 8 bytes that will hold your custom character, one byte per line (obviously only the lower 5 bits can be used since this is a 5x8 display). Then decide which character (from 0-7) you want to set. Call this "x". Then do this pseudocode:

I"m surprised that a mechanical drawing is not included in the data sheet. It"s not too hard to measure but seems like a documentation oversight for anyone who wants to integrate the display into a case.

I"m asking b/c I"m in a space constrained situation where the serial backpack just isn"t going to fit. The datasheet (2.5) shows a picture with a backpack (soldered on?), but nothing else on this page suggests that any backpack is required to talk with this device thru 3-wire serial.

I"m asking b/c I"m in a space constrained situation where the serial backpack just isn"t going to fit. The datasheet (2.5) shows a picture with a backpack (soldered on?), but nothing else on this page suggests that any backpack is required to talk with this device thru 3-wire serial.

Having ordered this exact LCD myself, I can say that aside from the issue mentioned in my other comment, it looks exactly like the picture. No bulky backpack module, everything is on a single board. Pretty sleek, really.

Hi...noob question. how do i send data on the fly via arduino? it only has 1 connection to tx. i tried using the serial monitor to send something, but it doesnt work...im looking for something which i guess is similar to liquidCrystal->SerialDisplay example.

Nevermind, my own fault. I calculated the wrong offset to the start of the second line when I repositioned the cursor. Although the second line was displayed correctly, the offset was wrong by -32.

The data stream I tapped into once inadvertently changed the backlight level to something less than 100%, and I noticed that the dimmed display had a noticeable flicker.

I have a couple of suggestions for a future version: On the PCB layout, please add a thermal to the ground pin for the user connectors to make it easier to hand solder. Please change the firmware to make it more difficult for a random serial stream to stumble upon a configuration sequence. Maybe pick a non-printable prefix character like ESC instead of the vertical bar. Please make the brightness values more user friendly, like 1, 2, 3, etc. Maybe have an option to make the display scroll when it gets full, instead of resetting the cursor to home and overwriting. All-in-all, a fun little platform. Thanks for using a PIC on this one! I think I may try my hand at writing some new firmware for it. Cheers!

Edit: Got mine fixed. If you checked the soldering on all the terminals, check them again. I also sometimes was getting strings of garbage if I wriggled the terminals on the LCD (I suspect because I was getting a partial connection on the bad terminal). Resoldered and it is working fine now.

Wait, so I get the 3 pins for power and control, but whats with all the other pins on the sides? Can it be used to control another LCD besides the one built in?

The other pins are used if you want to control the LCD without using the serial standard. There"s some tutorials on how to do that with the arduino below. You have more control over what you can do with it, but it takes up more pins on the arduino. If you want to wire it up this way, don"t spend the money on the serial interface, they have cheaper LCD"s that allow you to do it this way, without the serial.

The IO-204 has two ways to output serial - one directly out of a channel and the other is thru a serial smart board. If you see "SO=" then the widget was using the smart board protocol. Using a Serial Out widget under "I/O Channel Widgets". I hope that helps out.
