ER-TFTM050-3 is 800x480 dots 5" color tft lcd module display with RA8875 controller board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,and ARM .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 8080 6800 8-bit,16-bit parallel,3-wire,4-wire,I2C serial spi interface. Built-in MicroSD card slot. It"s optional for 4-wire resistive touch panel (IC RA8875 built-in touch controller),capacitive touch panel with controller,font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable.Mounting on board by default. There is no capacitive touch panel connection on the board of ER-TFTM050-3,its capacitive touch panel needs to be connected with your external board.Now we design another new board with capacitive touch connection named_ER-TFTM050A2-3.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for5" TFT capacitive touch shield with libraries,examples,schematic diagram for Arduino Due,Mega 2560 and Uno. For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

ER-TFTM101-1 is 1024x600 dots 10.1 "color tft lcd display with RA8876 or LT7683 controller board,Optional capacitive touch panel with controller and resistive touch panel,superior display quality and easily controlled by MCU such as 8051(C51), PIC, AVR, ARDUINO,ARM and Raspberry PI .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.Portrait mode is also available.

It supports 8080 6800 8-bit,16-bit parallel,3-wire,4-wire,I2C serial spi interface.Built-in MicroSD card slot.It"s optional for touch panel controller,4-wire resistive touch panel screen. font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable mounting on board by default and suggested.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 10.1"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560,Uno. For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.e.

I am not being lazy honest, I"ve spent hours searching AliExpress and BuyDisplays but most that I see are either Parallel or use the RA8875 chip that is not supported.

Microtips Technology provides displays in many different industries around the world. Because of this, we have become familiar with certain requirements that are necessary in these different markets. Our team can guide and advise on what displays will be best for your particular application. We can also tune any of our standard displays to work better for your environment. We offer anything from wide-temperature fluid for automotive applications to display module ruggedization for harsh or humid environments to tuning our capacitive touchscreen with glove and stylus support in mind.

While in theory an Arduino can run any LCD, we believe that some LCDs are particularly suited to being an Arduino LCD display. We"ve currated this list of LCD displays that will make any Arduino-based project shine.

First is the interface. All of these displays support SPI. Builders often ask themselves (or us) "which interface uses the fewest GPIO pins? AND is that interface fast enough to update the screen at an acceptable rate for my application?" When using the relatively small procesor of the Arduino, SPI is usually the best interface because it takes few wires (either 3 or 4) however it does limit the overall size (number of pixels) that can be quickly controlled. I2C is another choice of interface to leave GPIOs open. We tend to recommend SPI over I2C for Arduino displays because SPI is quicker and better at handling more complex data transfer, like pulling image data from an SD card.

Which brings us to the second factor in choosing an Arduino display: the number of pixels. We typically recommend a display with a resolution of 320x240 or less for use with Arduino. Take for example a 320x240 24-bit display. Such a display takes 230,400 bytes *(8 + 2) = 2,304,000 bits for a single frame. Divide that by 8,000,000 (Arduino SPI speed of 8MHZ) = 0.288 seconds per frame or 3.5 frames per second. 3.5 fps is fast enough for many applications, but is not particularly quick. Using fewer bits-per-pixel or a display with fewer pixels will result in higher frame rates. Use the calculator below to calculate the frame rate for a display using SPI with an Arduino.

Third, we want to recommend displays that are easy to connect to an Arduino. Each of these displays has a ZIF tail or easily solderable throughholes, so no fine pitch soldering is needed. These displays can either be brought up on the CFA10102 generic breakout board, or with a custom CFA breakout board.

Most character displays can be run via Parallel connection to an Arduino. You"ll want to make sure you can supply enough current to operate the backlight.

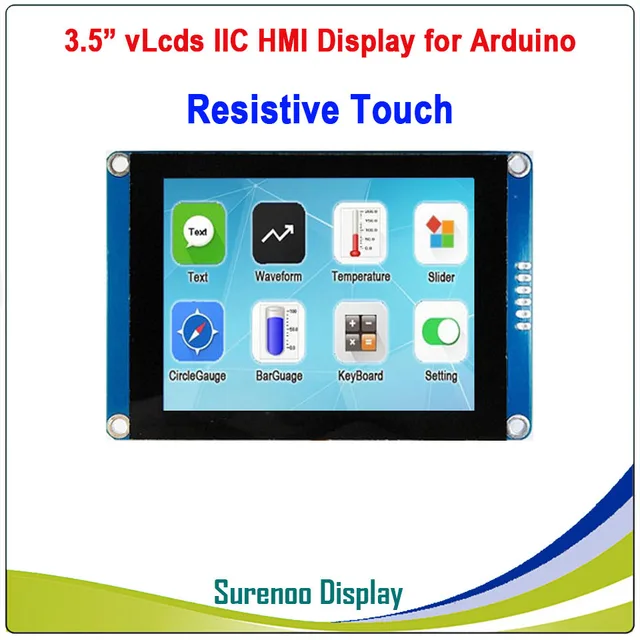

A TFT touch screen combines the fundamental elements of a i2c touch display with the advanced imagery TFT technology. These are the variants of i2c touch display displays that most consumers see and use on a daily basis. While TFT displays use more energy than standard monochrome LCD displays, many models provide brighter and more detailed visuals than conventional screens.

Explore the extensive selection of wholesale i2c touch display LCD displays, TFT, and HMI that can be used across a range of industries, including domestic, medical, industrial, automotive, and many others. You can choose from a number of standard industry sizes and find the i2 c touch display that are applicable to your required use. If you would like options that allow a smaller environmental footprint due to low power consumption, you can browse the Chip-on-Glass (COG) LCDs. COGs are designed without PCBs so have a slimmer profile.

Alibaba.com features a broad collection of smart and advanced i2c touch display equipped with bright, capacitive screens for the most affordable prices. These i2c touch display are made implying the latest technologies for a better, enhanced, and smart viewing experience. These products are of optimal quality and are sustainable so that they can last for a long time. Buy these i2c touch display from the leading wholesalers and suppliers at discounted prices and fabulous deals. The smart and capacitive i2c touch display offered on the site are applicable for all types of ads displaying, mobile screens, LCD monitors, and many more. You can use them both for commercial as well as residential purposes. These marvellous i2c touch display are provided with bright and strong backlights available in distinct colors for a wonderful screen viewing experience. These i2c touch display are not just used for LCD screens but also are used for T.

Display size, contrast, color, brightness, resolution, and power are key factors in choosing the right display technology for your application. However, making the right choice in how you feed the information to the display is just as vital, and there are many interface options available.

All displays work in a similar manner. In a very basic explanation, they all have many rows and columns of pixels driven by a controller that communicates with each pixel to emit the brightness and color needed to make up the transmitted image. In some devices, the pixels are diodes that light up when current flows (PMOLEDs and AMOLEDs), and in other electronics, the pixel acts as a shutter to let some of the light from a backlight visible. In all cases, a memory array stores the image information that travels to the display through an interface.

According to Wikipedia, "an interface is a shared boundary across which two separate components of a computer system exchange information. The exchange can be between software, computer hardware, peripheral devices, humans, and combinations of these. Some computer hardware devices such as a touchscreen can both send and receive data through the interface, while others such as a mouse or microphone may only provide an interface to send data to a given system.” In other words, an interface is something that facilitates communication between two objects. Although display interfaces serve a similar purpose, how that communication occurs varies widely.

Serial Peripheral Interface (SPI) is a synchronous serial communication interface best-suited for short distances. It was developed by Motorola for components to share data such as flash memory, sensors, Real-Time Clocks, analog-to-digital converters, and more. Because there is no protocol overhead, the transmission runs at relatively high speeds. SPI runs on one master (the side that generates the clock) with one or more slaves, usually the devices outside the central processor. One drawback of SPI is the number of pins required between devices. Each slave added to the master/slave system needs an additional chip select I/O pin on the master. SPI is a great option for small, low-resolution displays including PMOLEDs and smaller LCDs.

Philips Semiconductors invented I2C (Inter-integrated Circuit) or I-squared-C in 1982. It utilizes a multi-master, multi-slave, single-ended, serial computer bus system. Engineers developed I2C for simple peripherals on PCs, like keyboards and mice to then later apply it to displays. Like SPI, it only works for short distances within a device and uses an asynchronous serial port. What sets I2C apart from SPI is that it can support up to 1008 slaves and only requires two wires, serial clock (SCL), and serial data (SDA). Like SPI, I2C also works well with PMOLEDs and smaller LCDs. Many display systems transfer the touch sensor data through I2C.

RGB is used to interface with large color displays. It sends 8 bits of data for each of the three colors, Red Green, and Blue every clock cycle. Since there are 24 bits of data transmitted every clock cycle, at clock rates up to 50 MHz, this interface can drive much larger displays at video frame rates of 60Hz and up.

Low-Voltage Differential Signaling (LVDS) was developed in 1994 and is a popular choice for large LCDs and peripherals in need of high bandwidth, like high-definition graphics and fast frame rates. It is a great solution because of its high speed of data transmission while using low voltage. Two wires carry the signal,  with one wire carrying the exact inverse of its companion. The electric field generated by one wire is neatly concealed by the other, creating much less interference to nearby wireless systems. At the receiver end, a circuit reads the difference (hence the "differential" in the name) in voltage between the wires. As a result, this scheme doesn’t generate noise or gets its signals scrambled by external noise. The interface consists of four, six, or eight pairs of wires, plus a pair carrying the clock and some ground wires. 24-bit color information at the transmitter end is converted to serial information, transmitted quickly over these pairs of cables, then converted back to 24-bit parallel in the receiver, resulting in an interface that is very fast to handle large displays and is very immune to interference.

Mobile Industry Processor Interface (MIPI) is a newer technology that is managed by the MIPI Alliance and has become a popular choice among wearable and mobile developers. MIPI uses similar differential signaling to LVDS by using a clock pair and one to eight pairs of data called lanes. MIPI supports a complex protocol that allows high speed and low power modes, as well as the ability to read data back from the display at lower rates. There are several versions of MIPI for different applications, MIPI DSI being the one for displays.

Display components stretch the limitations of bandwidth. For perspective, the most common internet bandwidth in a residential home runs on average at around 20 megabits per second or 20 billion 1s and 0s per second. Even small displays can require 4MB per second, which is a lot of data in what is often a tightly constrained physical space.

Take the same PMOLED display with the 128 x 128 resolution and 16,384 separate diodes; it requires information as to when and how brightly to illuminate each pixel. For a display with only 16 shades, it takes 4 bits of data. 128 x 128 x 4 = 65,536 bits for one frame. Now multiply it by the 60Hz, and you get a bandwidth of 4 megabits/second for a small monochrome display.

Excel Display"s Common pinout can provide our customer not only with convenience that using same board to light up varied LCM, but also with reduction of time and cost. LCM from 5�� to 10.1�� are able to attach RGB interface or LVDS Interface, which driven by 3.3V single power (include Analog, Gate High, Gate Low , Common, Gamma, etc.). Excel Display"s products provide our customers with two options, build-in LED Driver and acquired LED Driver.

Excel"s small reflective TFT displays are made for hand-held devices. This newest family of AMLCDs are built with a reflective backing and a front light for both day and night use.

TFT LCD, acronym for Thin Film Transistor Liquid Crystal Display, is a technology developed for improve image quality and has countless consumer and industrial uses.

Specifically, within TFT monitors, liquid crystals allow faster and smoother state transitions while saving power, resulting in high image quality on the display, which appears without flickering or bright irregularities (unlike simpler LCD screens).

TFT screens can be of different sizes, ranging from small 3.5" screens to large displays, and can also be identified by their area of use or by certain special features and applications, such as multitouch.

TFT displays are always clearly visible in sunlight, making them particularly suitable for outdoor use. This type of display is also particularly light, thin and energy-efficient, as well as being relatively inexpensive in relation to the technical features offered.

Digimax has an extensive catalogue ofTFT screens from 7" to 23", LCD displays and professional monitors capable of handling a high number of pixels to enable high image quality, high resolution and a screen without glare or flicker.

TFT technology is now a consolidated reality for the choice of monitors, screens and industrial displays: following this market evolution, Digimax offers the latest generation of TFT touch screen solutions, multi touch monitors and transparent displays able to offer the right option for every need.

We offer both standard and customised TFT LCDs through strategic partnerships with leading international suppliers and brands: Ampire displays, Raystar monitors and DLC screens, as well as RockTech, RockTouch and AUO touch screens.

Together with Digimax consultancy, a specific service is also available to configure TFT kits consisting of a TFT LCD monitor and matching PC board: it is possible to customise CPU and coverlens, touch technology used and connection wiring between motherboard and display.

I want to use a display without pcb so i can connect it to my own pcb. I don"t understand why my display stays white or black (2 different displays).

Displaying a custom image or graphic on a LCD display is a very useful task as displays are now a premium way of providing feedback to users on any project. With this functionality, we can build projects that display our own logo, or display images that help users better understand a particular task the project is performing, providing an all-round improved User Experience (UX) for your Arduino or ESP8266 based project. Today’s tutorial will focus on how you can display graphics on most Arduino compatible displays.

The procedure described in this tutorial works with all color displays supported by Adafruit’s GFX library and also works for displays supported by the TFTLCD library from Adafruit with little modification. Some of the displays on which this procedure works include:

While these are the displays we have, and on which this tutorial was tested, we are confident it will work perfectly fine with most of the other Arduino compatible displays.

For each of the displays mentioned above, we have covered in past how to program and connect them to Arduino. You should check those tutorials, as they will give you the necessary background knowledge on how each of these displays works.

For this tutorial, we will use the 2.8″ ILI9325 TFT Display which offers a resolution of 320 x 340 pixels and we will display a bitmap image of a car.

As usual, each of the components listed above can be bought from the links attached to them. While having all of the displays listed above may be useful, you can use just one of them for this tutorial.

To demonstrate how things work, we will use the 2.8″ TFT Display. The 2.8″ TFT display comes as a shield which plugs directly into the Arduino UNO as shown in the image below.

Not all Arduino displays are available as shields, so when working with any of them, connect the display as you would when displaying text (we recommend following the detailed tutorial for the display type you use of the above list). This means no special connection is required to display graphics.

Before an image is displayed on any of the Arduino screens, it needs to be converted to a C compatible hex file and that can only happen when the image is in bitmap form. Thus, our first task is to create a bitmap version of the graphics to be displayed or convert the existing image to a bitmap file. There are several tools that can be used for creation/conversion of bitmap images including, Corel Draw and Paint.net, but for this tutorial, we will use the Paint.net.

The resolution of the graphics created should be smaller than the resolution of your display to ensure the graphics fit properly on the display. For this example, the resolution of the display is 320 x 340, thus the resolution of the graphics was set to195 x 146 pixels.

Image2Code is an easy-to-use, small Java utility to convert images into a byte array that can be used as a bitmap on displays that are compatible with the Adafruit-GFX or Adafruit TFTLCD (with little modification) library.

With this done, we are now ready to write the code. Do note that this procedure is the same for all kind of displays and all kind of graphics. Convert the graphics to a bitmap file and use the Img2code utility to convert it into a hex file which can then be used in your Arduino code.

To reduce the amount of code, and stress involved in displaying the graphics, we will use two wonderful libraries; The GFX library and the TFTLCD library from Adafruit.

The GFX library, among several other useful functions, has a function called drawBitmap(), which enables the display of a monochrome bitmap image on the display. This function allows the upload of monochrome only (single color) graphics, but this can be overcome by changing the color of the bitmap using some code.

The Adafruit libraries do not support all of the displays but there are several modifications of the libraries on the internet for more displays. If you are unable to find a modified version of the library suitable for your the display, all you need do is copy the code of the drawBitmap() function from the GFX library and paste it in the Arduino sketch for your project such that it becomes a user-defined function.

The first two are thex and y coordinates of a point on the screen where we want the image to be displayed. The next argument is the array in which the bitmap is loaded in our code, in this case, it will be the name of the car and the text array located in the graphics.c file. The next two arguments are the width and height of the bitmap in pixels, in other words, the resolution of the image. The last argument is the color of the bitmap, we can use any color we like. The bitmap data must be located in program memory since Arduino has a limited amount of RAM memory available.

As usual, we start writing the sketch by including the libraries required. For this procedure, we will use the TFTLCD library alone, since we are assuming you are using a display that is not supported by the GFX library.

Next, we specify the name of the graphics to be displayed; car and title. At this stage, you should have added the bit array for these two bitmaps in the graphics.c file and the file should be placed in the same folder as the Arduino sketch.

With that done, we proceed to the void loop function, under the loop function, we call the drawbitmap() function to display the car and the text bitmap using different colors.

The last section of the code is the drawBitmap function itself, as earlier mentioned, to use the drawbitmap() function with the Adafruit TFTLCD library, we need to copy the function’s code and paste into the Arduino sketch.

Plug in your screen as shown above. If you are using any other display, connect it as shown in the corresponding linked tutorial. With the schematics in place, connect the Arduino board to your PC and upload the code. Don’t forget the graphics file needs to be in the same folder as the Arduino sketch.

That’s it for this tutorial guys. The procedure is the same for all kinds of Arduino compatible displays. If you get stuck while trying to replicate this using any other display, feel free to reach out to me via the comment sections below.

@xerox - There have been a few displays and the like suggested here, however it is very hard for any of us to give you any complete suggestions, with as little information as you have so far provided, such as your current setup, an idea of your requirements and the like.

So far all we know is you have an ILI9341 display which has an XPT2046 touch screen controller. So my assumption is that you are using one by PJRC. What graphic library are you using to run it? There are at least a few like one by Adafruit, Paul"s - ili9341_t3, Mine - ili9341_t3n, Frank"s - ili9341_dma (I think)... Note: most of the libraries I mentioned here are or were based off of Adafruits, but there are areas we diverged and or extended. What processor are you using?

The reason I ask questions like this, is for example if your display code is based on one of these drivers, then there is a reasonable chance that if for example Adafruit sells a larger display that meets your requirements, than adapting the code to the new display may not be that difficult. It is not necessarily you have to purchase their display to use it, but obviously their code is more likely to have been tested on their displays...

Speed? - If your requirements are that you must have blazing fast updates to the screen, then you need to understand what using each type of display might do to your updates and the like.

Example: The ILI9341 has 320x240 pixels and it takes 2 bytes per pixel to update the screen(153600 bytes). The ILI9488 display is 480x320 (so twice as many pixels) AND it requires 3 bytes per pixel to be output (460800) so it takes 3 times as many bytes to be output over SPI to update the full display. So it takes 3 times as long...

RA8875 - Many of graphic primitives on these displays have hardware acceleration, so depending on your application, it may be slow it may not be. More details about this up on Sumotoys Wiki on this: https://github.com/sumotoy/RA8875/wiki There are a few different libraries for these displays, including Adafruit (GFX) as well as Sumotoys...

Warning on using Sumotoy"s libraries - There is a lot of great stuff there, but he has not been at all active for at least a couple of years, so many of these displays require changes to work with newer boards like the T4 and T3.6 or T3.5. Some of them have been adapted to work, and some of us have those on our machines, we are still trying to figure out a good way to handle this type of issue where the library owner is no longer active. Example we have a good version of the RA8875 library.
