Low Power LCD Displays: Technology, Advantages, and Future Trends

1、Introduction to Low Power LCD Displays





A low - power LCD (Liquid Crystal Display) is a display technology that prioritizes minimizing energy consumption while ensuring good visual performance. Unlike traditional LCDs that depend heavily on backlighting, low - power models adopt advanced technologies such as reflective or transflective designs, optimized backlight control, and energy - efficient materials. These displays are of great significance for battery - powered devices that require long - term operation without frequent charging, including smartphones, wearable devices, and portable medical equipment.

With the rapid development of mobile and IoT devices, power efficiency has become a crucial design factor. Low - power LCDs address the challenge of balancing display quality and energy consumption, allowing devices to run longer on a single charge. This section emphasizes the market demand for energy - efficient displays and how low - power technology meets the needs of modern consumers and industries.

Liquid crystals, a state of matter between solid and liquid, have optical properties that change under the influence of an electric field. In LCDs, this property is utilized to control the transmission of light through polarizers and color filters, thereby forming visible images.

Traditional LCDs rely on continuous backlighting, which consumes a lot of power. Low - power LCDs improve this structure by adding reflective layers (to utilize ambient light) or reducing backlight intensity through zone dimming, thus reducing energy consumption without affecting visibility.

• Reflective LCDs: These displays use ambient light for illumination, eliminating the need for a backlight. They are very suitable for outdoor use but have lower brightness in dark environments.
• Transflective LCDs: A hybrid design that combines reflective and transmissive modes, enabling the display to switch between using ambient light and minimal backlighting as required.

• LED Backlight with Local Dimming: Dividing the backlight into different zones, which can dim or brighten according to the displayed content, reducing power consumption in dark areas.
• PWM (Pulse Width Modulation) Dimming: Adjusting the backlight brightness by pulsing the light at high frequencies, maintaining visual quality while saving power.

• Low - Power Integrated Circuits: Drivers designed to operate at lower voltages, reducing energy consumption during pixel activation.
• Cholesteric Liquid Crystals: A type of reflective LCD that uses spiral - structured molecules. It only requires power when changing images, making it suitable for ultra - low - power static displays.

The main advantage of low - power LCDs is their ability to significantly reduce power consumption, making them essential for portable devices. For example, compared with traditional displays, a smartphone using a low - power LCD can extend the screen - on time by 30% - 50%, improving the user experience without increasing the battery size.

Reflective and transflective LCDs perform well in bright sunlight, which is a common problem for traditional transmissive displays. This makes them suitable for outdoor applications such as digital signage, automotive dashboards, and industrial control panels.

The advanced materials used in low - power LCDs allow them to operate in extreme temperatures ranging from - 20°C to 60°C, ensuring reliability in harsh environments such as agricultural equipment or outdoor machinery.

Although the initial R&D costs of low - power technologies may be high, the economies of scale in manufacturing (shared with standard LCD production lines) lead to competitive prices. This affordability promotes the adoption of low - power LCDs in consumer and industrial sectors.

Although transflective displays are energy - efficient, their maximum brightness may be lower than that of fully transmissive LCDs, which affects visibility in very dark environments without sufficient backlighting.

Compared with high - end transmissive displays, reflective LCDs usually have narrower color gamuts and lower contrast ratios, making them less suitable for applications requiring vivid visuals, such as graphic design or media consumption.

Low - power LCDs may have slower response times, resulting in motion blur in fast - moving content such as videos or games. Although this limitation has been alleviated in modern models using advanced drive circuits, it is still a factor to consider in performance - critical applications.

The viewing angle limitation of traditional LCDs may be more obvious in low - power models, especially reflective designs. The contrast and color will decrease when viewed from the side. Despite improvements in wide - angle technologies, a balance must be struck between power consumption and viewing angle.

Low - power LCDs are widely used in mid - to high - end smartphones, balancing vibrant displays with all - day battery life. Models with adaptive backlighting and reflective modes perform well in outdoor use.

Smartwatches and fitness trackers rely on low - power displays to support multi - day battery life. Transflective LCDs provide clear visibility in sunlight while enabling always - on features without excessive power consumption.

E - readers like Kindle use electrophoretic displays (a type of reflective low - power technology) for paper - like readability and weeks of battery life, which is ideal for long - form reading.

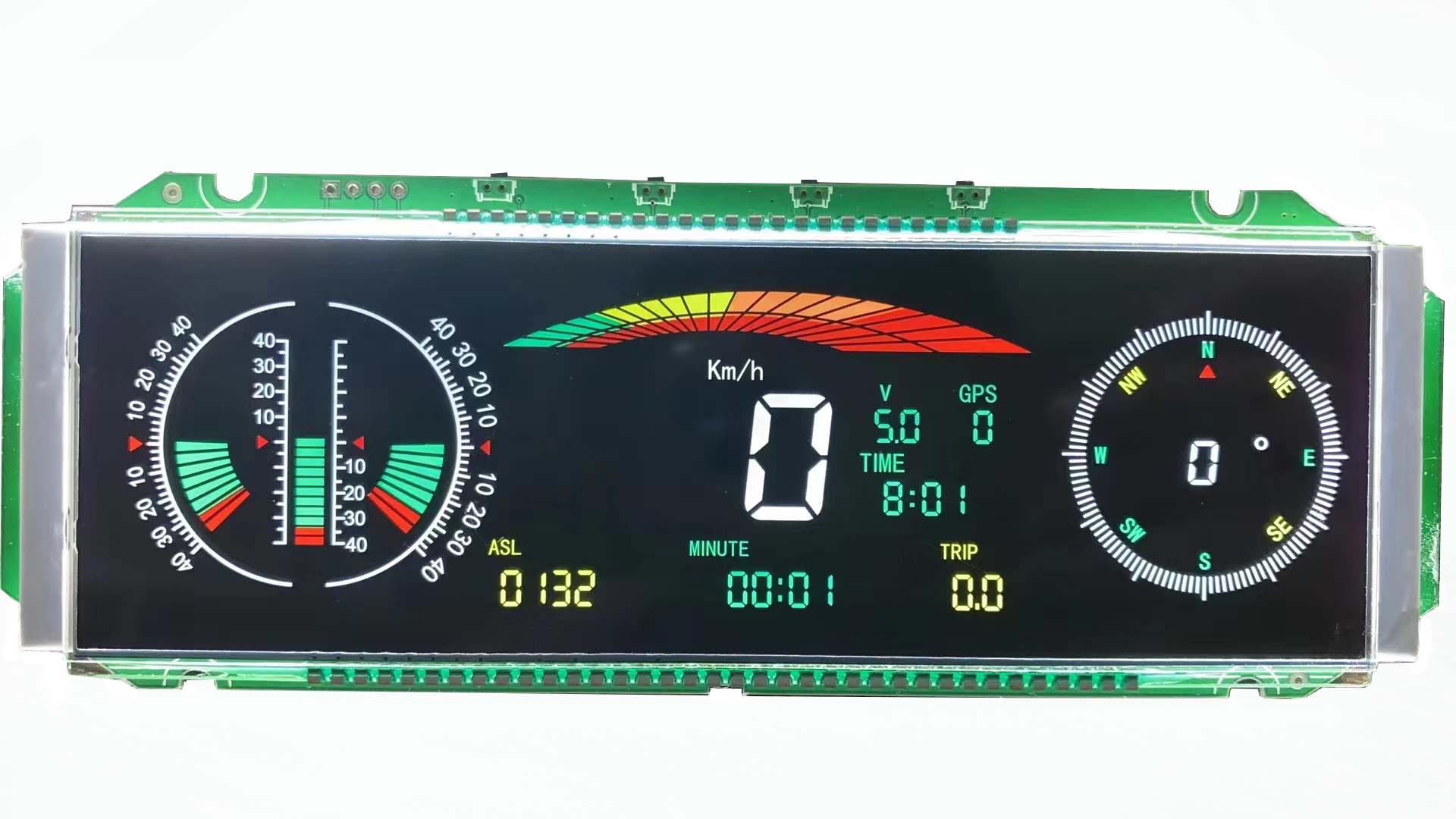

Dashboard instruments and infotainment systems use low - power LCDs for energy efficiency and reliability in varying lighting conditions, including direct sunlight and night driving.

Portable medical monitors, glucose meters, and patient terminals require low - power displays to operate during long shifts or transportation, ensuring continuous data visibility without frequent charging.

Smart meters, industrial control panels, and remote sensors use low - power LCDs for real - time data display in off - grid or battery - powered setups, reducing maintenance and energy costs.

Low - power LCDs are well - matched with solar panels in devices such as outdoor sensors, calculators, and e - books, enabling self - sustained operation with minimal energy input.

Low - power reflective displays are increasingly used in digital signage for retail and smart cities, offering low maintenance and high visibility while reducing carbon footprints.

The development of mini - LED and micro - LED backlights is expected to achieve even higher efficiency. Smaller and more precise light - emitting diodes enable better local dimming and lower power consumption in transmissive LCDs.

Research on flexible reflective LCDs with improved color accuracy and bend resistance may revolutionize wearable and foldable devices, combining low power consumption with innovative form factors.

Machine learning algorithms are likely to play a role in predicting user behavior and adjusting display settings (such as brightness and refresh rate) in real time, further optimizing power consumption without user intervention.

Combining low - power LCDs with other display technologies (such as OLED for high - contrast areas and electrophoretic displays for static text) may create hybrid solutions that balance energy efficiency and performance for specific use cases.

Low - power LCD displays have developed into a key technology for modern electronics, meeting the dual needs of visual quality and energy efficiency. Although they face challenges in display performance and viewing angles, continuous advancements in materials, design, and integration with emerging technologies are expanding their applications. As the demand for portable, sustainable, and reliable devices grows, low - power LCDs will remain a cornerstone of display innovation, driving progress in consumer, industrial, and environmental sectors.

By understanding their working principles, advantages, and limitations, manufacturers and developers can utilize low - power LCDs to create products that excel in both functionality and efficiency, meeting the evolving expectations of a connected and mobile world.
