tft lcd pcb connection quotation

For me, it"s about a TFT + touch + controller solution that we"ll have a little more control over (quality and repeatability). Cost is of some concern, but if we can build a better unit for $80 than the current $50 one from China I"d be happy with that.

The LCDs themselves seem reasonably common, but having only one or two sources for the completed unit with PCB worries me too. I"d also remove the features we don"t need (SD card slot and flash memory) and replace the 2 female headers with 1 male one so we can use easier-to-make female-female IDC cables.

were missing for my display (hailege, 2,8 tft, spi, il9431, https://www.amazon.de/-/en/gp/product/B07YTWRZGR/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1). so it might just be that the led backlight isnt being turned on. but of course the tip might not help with the st7796s.

Have you ever asked yourself what LCD is? No worries, we are here for you. Therefore, like in any display gadget, liquid crystal display coordinates with a microprocessor or microcontroller. The MCPU and MCU send the brightness that every pixel should produce. It creates the required color of the pixel for your LCD screen.

However, the mode of communication between the MPU/MCU and an LCD segment is known as the interface. We shall discuss more of the LCD interface in this guide.

The LCD interface is a link between the flat panel display module and the multimedia processor. Therefore, the interface can be separated or incorporated as part of the structure on the chip. Additionally, the application produces an image, and then the screen displays it using an LCD interface for the user.

Besides,  the serial peripheral interface has another component known as the slave select (SS) or chip select. The function of the SS is to wake the peripheral to receive or send data. For instance, since the SPI can support several peripherals, the SS can wake particular peripherals instead of all. Finally, you can use the SPI in graphic, character, digit, and small TFT LCDs. It allows simple interfacing, affordable hardware, and faster speeds than in the SCI.

It is another serial interface in LCDs that resembles the SPI with slave, clock functions, and master. The I²C does not integrate the SS line as in SPI. Therefore, a process known as addressing is essential in selecting a slave to communicate. A frame of the signal is sent on the data bus to address a specific slave after the first bit. Nevertheless, the output signal gets to every slave connected with, although only the slave with the corresponding address to the signal will receive the message.

Additionally, in MCU parallel interface for Liquid Crystal Displays, data signals are sent through data lanes on either 18-bit, 16-bit, 9-bit, or 8-bit data channels. Besides, the MCU interface is simple, although it requires a display RAM for its memory functionality. Also, you can use it in graphic LCDs, character LCDs, and small TFT LCDs.

LVDS is an acronym for Low-Voltage Differential Signaling. This type of interface is essential as a complement for large LCDs and peripherals that require high bandwidth, such as HD graphics and fast frame rates. Therefore, it is a good choice due to its fast data transmission while consuming low voltage. One of the LVDS interface wires carries the precise inverse of its companion. Additionally, the electric charge from one wire is correctly masked by the other wire, reducing the interference to the wireless system nearby. Finally, at the recipient end, a circuit checks the variation in voltage between the two wires.

This TFT kit comprises one of our smallest TFT displays and an adapter board that breaks the tail connections out to a simple 2x5 10-position header. The adapter board includes a backlight driver, so only a single 3.3v power input is required to bring up the display.

The adapter board is specifically designed for use with this display, so it fits directly behind the display with no PCB overlap. The display is a 1.3", full color, IPS display that looks incredibly sharp.

I am blocked because I have the same TFT as on the photo. I have to connect it to a pcb that use the same SPI for the display and for the touchscreen. I am using a ESP32 but I am not sure it is meaningful.

When the TFT_RST pin is defined as output and set to HIGH, the XPT2046 returns only a value equal to zero when I read it. Otherwise, it replies with values that seems OK (they change when I touch the screen).

Note: I have a friend that has the same TFT. He did not remove the diode (was not aware off this) and his TFT works just fine using exactly the same firmware and the same board.

For the last 4 days been hunkering down to understand the world of TFT and IC drivers, trying to make sense in all the beautiful wonder of screens. Following are some of my findings that want to share and hope this can help others too.

TFT screens that are sold as is mostly does not have a driver that can drive the TFT. The driver is IC that will communicate with the MCU to drive the TFT, doing things such as drawing a pixel, setting columns and widths, refresh rate, PLL, etc. The IC driver is a full graphics processor that you can send command in to do all these activities.

8 and 16bits processors such as Arduino does not have graphics processors so they rely on these IC to drive TFTs, however, 32bits MCUs normally have a built-in TFT driver that can be used to drive the TFT such as the ARM Cortex family. There are a number of TFT screens that comes equipped with graphics processor that can be bought from eBay, Taobao, etc, most of these screens are 1.8”, 2.8”, 3.2”, 3.5”, 4.3” and 7”. Most of them come with a IC processor from Salomon (SSD families) or ILITEK and there are *LOTS* of open source schematics and code that can be downloaded.

There are lots of TFT that you can buy off the shelf and most of the TFTs are sold having few things in commons such as PINs configuration, refresh rate, screen size, etc, which is a good thing also. One thing to remember though there are no screens that are the same, each screen are different than the the next. Buying a screen off-the-shelf means that you probably don’t have a graphics processor that can drive it, or if you are lucky by searching Google you would see some blog or forum post of someone that have managed to build the driver. A lot of times I found posts that talk about driving a graphics processor using Cortex-M3 or FPGA but that mostly for big screens of 3” and above as normally these kind of screen need faster processor, more faster than current 16bit processors available.

Buying off-the-shelf screen also means that you need to get a hold of the datasheet, as the datasheet contains important electrical (and mechanical) information that you will need to drive it. Power supply information is of the paramount information that you will be focusing on as you need to know how much power each part of the TFT will need such as – backlights, etc. The next step after buying off-the-shelf TFT is to build a PCB board to drive it, and this is where choosing the proper graphics processor is important.

Finding graphics processor are not as daunting as TFT as there are few companies that supply this kind of processor (you can count by fingers kind of few companies). One of thing that I was stunned during my finding to know that even Epson produced their own driver. The most developer friendly driver that I found so far is Salomon, their documentation and application notes really help a lot if you are building your own PCB driver, it contains quite a comprehensive explanation about the different things that you have to take into consideration on building your own PCB. There are also lots of open source schematics that you can leverage on for Salomon based drivers and one of the drivers that I’m looking keenly at is the SSD1963, which to my surprise has *LOTS* of sample schematics (Chinese or non-chinese based) that you can use.

During my time researching this what I find frustrating sometimes it understanding the TFT datasheets, but thanks to the help of the open source communities I was able to mapped out what the different value means back to the code that was written to it. This takes a bit of practice as you need to map out between the code, pin connection to the graphics driver and then to the TFT, but once you figure it out it is not that hard.

The overall experience of reading blogs, forums, datasheets and code has paid off in terms of knowledge. From now on the fun will being by start designing the PCB, populating it with SSD1963 and connecting to Arduino and STM32 and pray that it will work :)

Hi guys, over the past few tutorials, we have been discussing TFT displays, how to connect and use them in Arduino projects, especially the 1.8″ Colored TFT display. In a similar way, we will look at how to use the 1.44″ TFT Display (ILI9163C) with the Arduino.

The ILI9163C based 1.44″ colored TFT Display, is a SPI protocol based display with a resolution of 128 x 128 pixels. It’s capable of displaying up to 262,000 different colors. The module can be said to be a sibling to the 1.8″ TFT display, except for the fact that it is much faster and has a better, overall cost to performance ratio when compared with the 1.8″ TFT display. Some of the features of the display are listed below;

TheTFT Display, as earlier stated, communicates with the microcontroller over SPI, thus to use it, we need to connect it to the SPI pins of the Arduino as shown in the schematics below.

Please note that the version of the display used for this tutorial is not available on fritzing which is the software used for the schematics, so follow the pin connection list below to further understand how each pin of the TFT display should be connected to the Arduino.

In order to allow the Arduino to work with the display, we need two Arduino libraries; the sumotoy TFT ILI9163C Arduino library which can be downloaded from this link and the popular Adafruit GFX Arduino library which we have used extensively in several tutorials. Download these libraries and install them in the Arduino IDE.

For today’s tutorial, we will be using the bigtest example which is one of the example codes that comes with the sumotoy ILI9163C Arduino library to show how to use the TFT display.

The example can be opened by going to File–>Examples–>TFT_ILI9163c–>bigtest as shown in the image below. It should be noted that this will only be available after the sumotoy library has been installed.

Next, an object of the ILI9163c library named “display” was created with CS and DC parameter as inputs but due to the kind of display being used, we need to include the pin of the Arduino to which the A0 pin of the TFT display is connected which is D8.

Hi guys, welcome to today’s tutorial. Today, we will look on how to use the 1.8″ ST7735  colored TFT display with Arduino. The past few tutorials have been focused on how to use the Nokia 5110 LCD display extensively but there will be a time when we will need to use a colored display or something bigger with additional features, that’s where the 1.8″ ST7735 TFT display comes in.

The ST7735 TFT display is a 1.8″ display with a resolution of 128×160 pixels and can display a wide range of colors ( full 18-bit color, 262,144 shades!). The display uses the SPI protocol for communication and has its own pixel-addressable frame buffer which means it can be used with all kinds of microcontroller and you only need 4 i/o pins. To complement the display, it also comes with an SD card slot on which colored bitmaps can be loaded and easily displayed on the screen.

Due to variation in display pin out from different manufacturers and for clarity, the pin connection between the Arduino and the TFT display is mapped out below:

We will use two libraries from Adafruit to help us easily communicate with the LCD. The libraries include the Adafruit GFX library which can be downloaded here and the Adafruit ST7735 Library which can be downloaded here.

We will use two example sketches to demonstrate the use of the ST7735 TFT display. The first example is the lightweight TFT Display text example sketch from the Adafruit TFT examples. It can be accessed by going to examples -> TFT -> Arduino -> TFTDisplaytext. This example displays the analog value of pin A0 on the display. It is one of the easiest examples that can be used to demonstrate the ability of this display.

The first thing, as usual, is to include the libraries to be used after which we declare the pins on the Arduino to which our LCD pins are connected to. We also make a slight change to the code setting reset pin as pin 8 and DC pin as pin 9 to match our schematics.

Next, we create an object of the library with the pins to which the LCD is connected on the Arduino as parameters. There are two options for this, feel free to choose the most preferred.

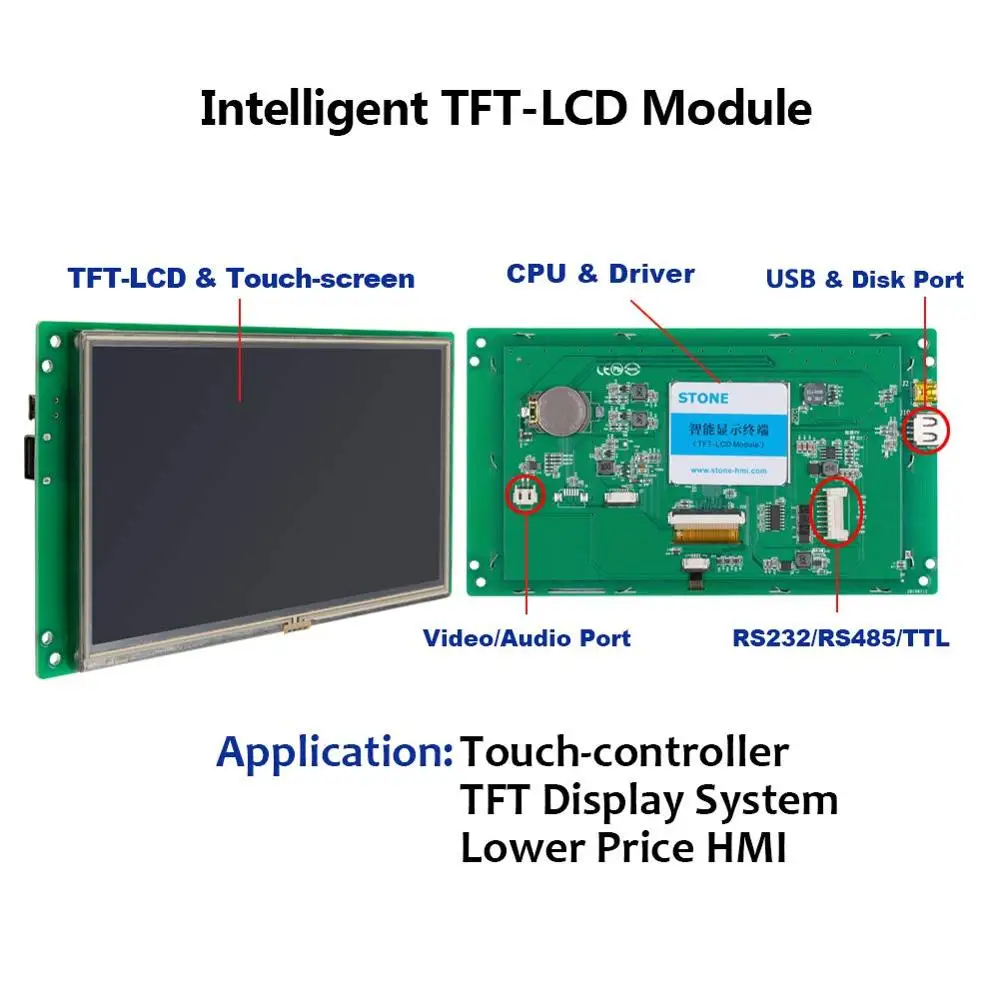

TFT displays are full color LCDs providing bright, vivid colors with the ability to show quick animations, complex graphics, and custom fonts with different touchscreen options. Available in industry standard sizes and resolutions. These displays come as standard, premium MVA, sunlight readable, or IPS display types with a variety of interface options including HDMI, SPI and LVDS. Our line of TFT modules include a custom PCB that support HDMI interface, audio support or HMI solutions with on-board FTDI Embedded Video Engine (EVE2).

This sunlight readable TFT LCD module has built-in HDMI compatibility for a streamlined connection between devices with fewer cables. Assembled to the display is a custom PCB providing the user an all-in-one, plug-and-play HDMI + USB touch solution. It is attached to 3.5mm mounting holes enabling standard M3 screws for easy installation. There is an on-board Texas Instruments TFP401A HDMI/DVI receiver and TPS61165 high brightness LED driver with PWM. Whether you need a display for your Raspberry Pi, BeagleBone, Windows, or a touchscreen HMI for your Linux or other embedded system, this display offers a solution. The 24-bit true color, 800x480 resolution screen is equipped with a powerful backlight, providing visibility in bright lighting conditions including the direct sun. This Liquid Crystal Display is RoHS compliant and has a USB-HID capacitive touch panel with no external driver installation required.
